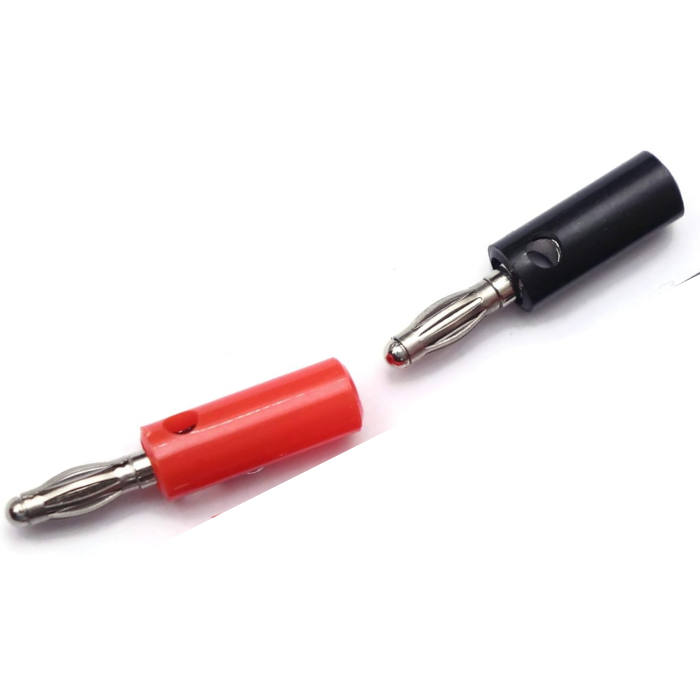

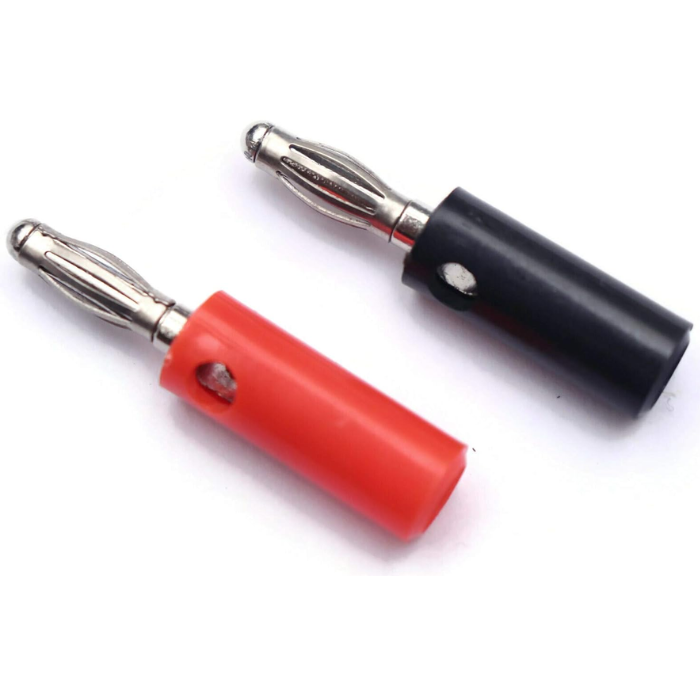

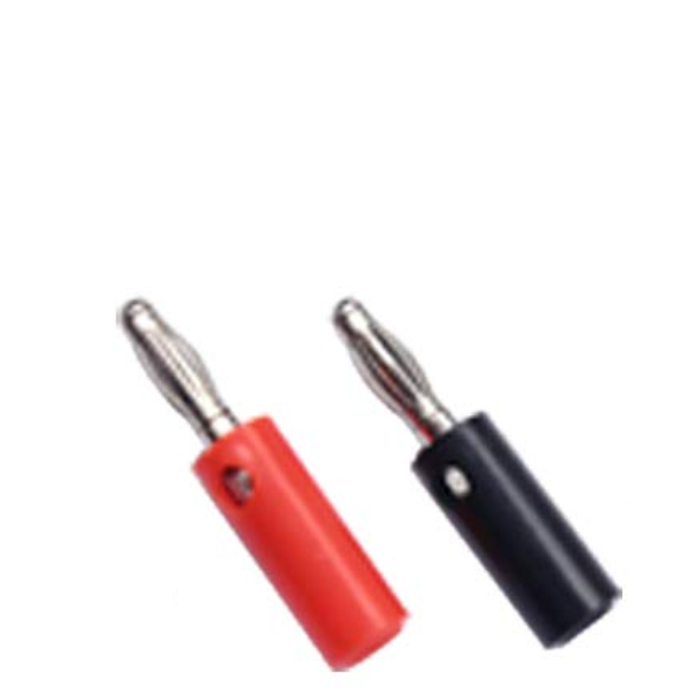

1. what is a banana plug connector?
Banana plugs are also referred to as 4mm connectors and banana connectors. Banana plugs provide a tidy and secure method for connecting wires to equipment, helping to minimize the chance of short circuits. They are fast to attach and detach, which saves both time and effort. Commonly used in audio devices such as speakers and receivers, they are also utilized in TV antennas and lab testing gear.
2. What is the use of banana plug connectors?
Banana plugs serve as electrical connectors for joining single-conductor wires or connecting them to equipment. Available in male and female styles, they facilitate secure connections. They are commonly used in audio equipment such as hi-fi receivers, speakers, and amplifiers, as well as for TV aerials and laboratory testing equipment, including electrical circuit boards with multi-prong binding posts.
3. What size is a banana jack connector?
Standard size for banana jack connections are approximately 4mm (5/32 inch), however smaller ones are available at 2mm. While shorter lengths like 15mm (⅝ inch) are gaining popularity, the conventional length is approximately 20mm (¾ inch). Less frequently used lengths include 11mm (⅜ inch) and 25mm (1 inch).
4. Do you lose sound quality with banana plugs?
No, banana plugs generally don't degrade sound quality because they offer a secure and dependable connection.
5. What are the different types of banana plugs?
There are three main types of banana plugs, each with different protective sleeve options:
- Unshrouded Banana Test Plugs: These plugs have a bare, uninsulated pin visible for connection. mainly used in the lower voltage 30 - 70 VDC electrical testing applications.
- Shrouded Banana Test Plugs: Also known as sheathed banana plugs, these feature insulation around the connector to prevent accidental contact with the metal plug, especially in high-voltage situations. They are essential for CAT II & IV (600-1000V) applications and only fit into shrouded banana sockets (jacks).
- Retractable Sleeve Banana Test Plugs: Featuring a spring-loaded shroud cover that retracts when the pin is inserted, these plugs improve safety, particularly in higher voltage applications.
6. How to Connect Banana Plugs to Speakers?
To connect banana plugs to speakers:
- Your dual-conductor wire should be cut to the necessary length.
- For a distance of one or two inches, peel one conductor apart from the other.
- To reveal approximately half an inch of wire at the end of each conductor, use a wire stripper to remove the insulation.
- To guarantee a secure connection, twist each strand's exposed inner wire together.
- Remove the red (positive) and black (negative) banana plugs from their sockets, then put the matching conductor into each plug until you are unable to push it any farther. Reinstall the screws to secure the cables in place after both have been fully placed.
- Put the positive and negative banana plugs into the speaker's respective sockets.
