- The Arduino Nano 33 BLE (with headers) is Arduino’s 3.3V compatible board in the smallest available form factor.
- It comes with an embedded 9 axis inertial sensor what makes this board ideal for wearable devices.
- It includes an accelerometer, a gyroscope, and a magnetometer with 3-axis resolution each.
- This makes the Arduino Nano 33 BLE the perfect choice for more advanced robotics experiments, exercise trackers, digital compasses and many more.
- Robocraze is the authorized seller of Arduino products in India and you can buy Arduino Nano BLE board at best prices from Robocraze.
Arduino Nano 33 BLE with Headers

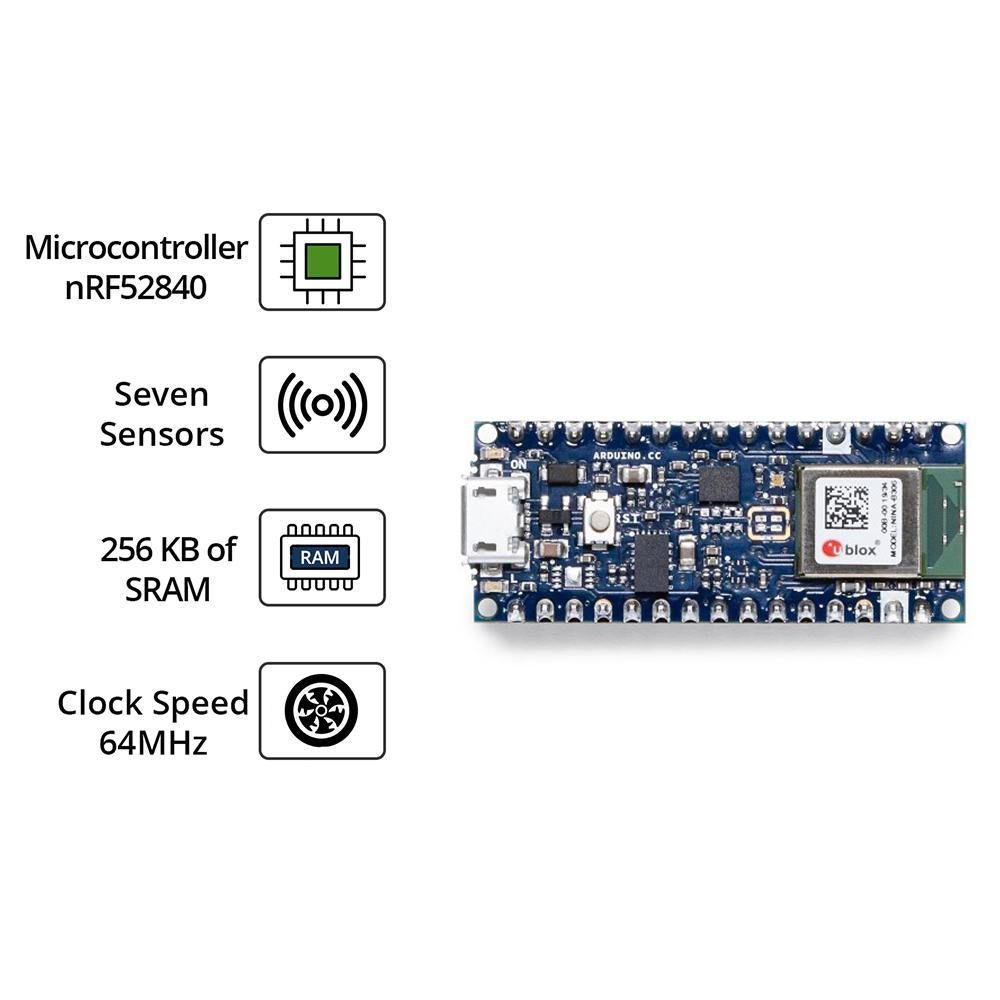

The Arduino Nano 33 BLE is an evolution of the traditional Arduino Nano but features a lot more powerful processor, the nRF52840 from Nordic Semiconductors, a 32-bit ARM® Cortex™-M4 CPU running at 64 MHz.
This will allow you to make larger programs than with the Arduino Uno (it has 1MB of program memory, 32 times bigger), and with a lot more variables (the RAM is 128 times bigger). The main processor of this arduino original board includes other amazing features like Bluetooth® pairing via NFC and ultra-low power consumption modes.
The Arduino Nano 33 BLE is a completely new board on a well-known form factor. It comes with an embedded 9 axis inertial sensor what makes this board ideal for wearable devices, but also for a large range of scientific experiments in the need of short-distance wireless communication.
The Arduino Nano 33 BLE is an evolution of the traditional Arduino Nano, but featuring a lot more powerful processor, the nRF52840 from Nordic Semiconductors, a 32-bit ARM Cortex-M4 CPU running at 64 MHz.
This will allow you to make larger programs than with the Arduino Uno (it has 1MB of program memory, 32 times bigger), and with a lot more variables (the RAM is 128 times bigger). The main processor includes other amazing features like Bluetooth pairing via NFC and ultra-low power consumption modes.
The Nano 33 BLE comes with a 9 axis inertial measurement unit (IMU) which means that it includes an accelerometer, a gyroscope, and a magnetometer with 3-axis resolution each. This makes the Nano 33 BLE the perfect choice for more advanced robotics experiments, exercise trackers, digital compasses, etc.
Pin diagram of Arduino Nano 33 BLE:
Pin diagram of Arduino Nano 33 BLE
Note: Robocraze is the authorized seller of Arduino in India. Therefore, even if you are in Bangalore, Hyderabad, Mumbai, or Pune, you can order and buy Arduino Nano 33 BLE online from the comfort of your home.
Applications:
- Real-Time Face Detection
- Arduino Metal Detector
- Automation and Robotics
- Medical Instruments
- Virtual Reality Applications
- Industrial Automation
- Android Applications
- Embedded Systems
- GSM-Based Projects
- Home Automation
Package Includes:
- 1 x Arduino Nano 33 BLE with Headers
Specifications:
| Brand | Arduino |
| Microcontroller | nRF52840 |
| Operating Voltage | 3.3V |
| DC Current per I/O Pin | 15 mA |
| Clock Speed | 64MHz |
| Digital Input / Output Pins | 14 |
| Analog Input Pins | 8 (ADC 12 bit 200 samples) |
| PWM Pins | all digital pins |
| Dimensions | 4.5 x 1.8cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino Nano BLE Sense Rev2 with Headers
Regular price
Rs. 3,665
Regular price
Rs. 3,999
Sale price
Rs. 3,665
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Original Arduino UNO R4 WIFI
Regular price
Rs. 2,299
Regular price
Rs. 2,999
Sale price
Rs. 2,299
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Arduino Tiny Machine Learning Kit
Regular price
Rs. 5,298
Regular price
Rs. 6,999
Sale price
Rs. 5,298
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1.How can I program the Arduino Nano 33 BLE using the Arduino IDE?
- The Arduino Nano 33 BLE can be programmed using the Arduino IDE 1.8.X. To install the board, the following steps can be followed:
- Open the Arduino IDE.
- Go to Tools > Board > Boards Manager.
- Search for "Arduino Mbed OS Nano Boards" and install the latest version.
- Connect the Nano 33 BLE to the computer using a micro USB cable.
- Go to Tools > Port and select the port corresponding to the Nano 33 BLE.
- Write the code and upload it to the board.
2.How to power the Arduino Nano 33 BLE?
- The Arduino Nano 33 BLE can be powered either by using the 3.3V pin or by using the Vin pin, which passes through a voltage regulator to provide a stable 3.3V to the board. The regulator used in the Nano 33 BLE is the MPM3610, which requires an input voltage of at least 4 - 4.5 volts.
