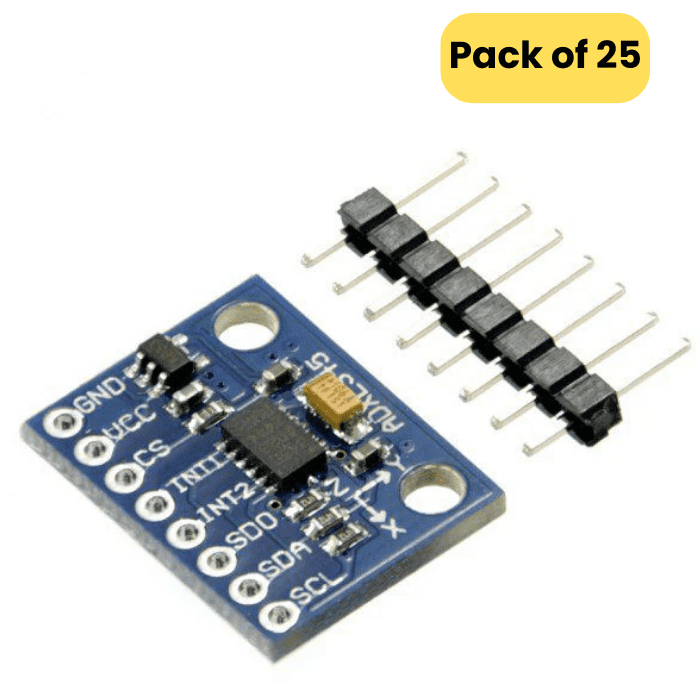

ADXL345 Accelerometer Module (Pack of 25)

ADXL345 Accelerometer Module (Pack of 25)

Out of stock

Regular price Rs. 3,509
Regular price Rs. 5,499 Sale price Rs. 3509
Sale Sold out 36% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC200 FLAT ₹ 200/- OFF

When you shop for ₹ 5000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • This is ADXL345 Accelerometer Module (Pack of 25)
  • 3V-6V DC Supply Voltage
  • Onboard LDO Voltage regulator
  • Built in Voltage level convertor (MOSFET based)
  • Can be interface with 3V3 or 5V Microcontroller.
  • All necessary Components are populated.
  • Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
  • Tap/Double Tap Detection
  • Free-Fall Detection
  • SPI and I2C interfaces

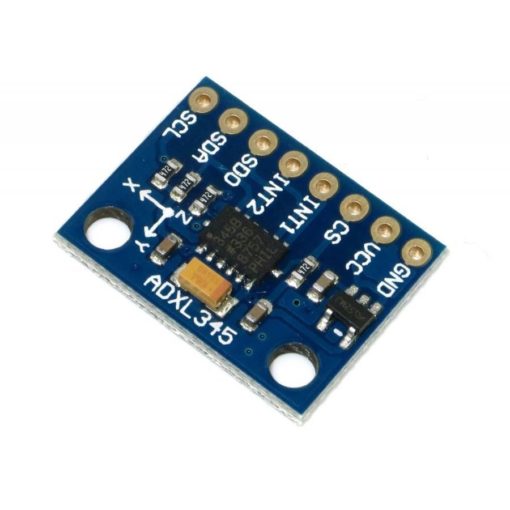

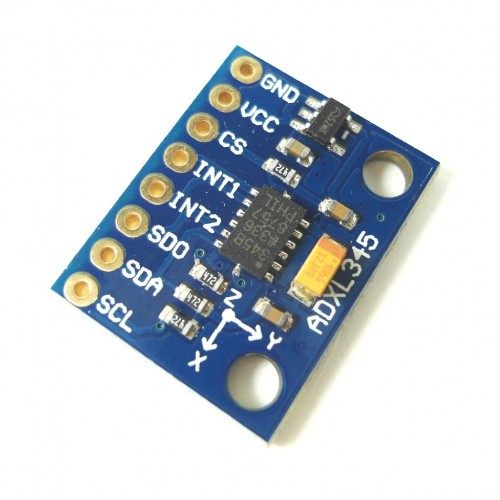

ADXL345 Accelerometer Module

ADXL345 is a Breakout board for the Analog Device's ADXL345 triple-axis accelerometer. The module is populated with MOSFET-based Voltage level conversion circuitry to enable you to interface with different types of microcontrollers (3V3 & 5V). Apart from the above all, necessary components like decoupling capacitors, filter capacitors, pull-up resistors and LED are also populated on board.

It is ideal for motion and acceleration sensing applications.It is a low-power, 3-axis MEMS accelerometer module with both I2C and SPI interfaces.

The ADXL345 is a low-power, MEMS, three-axis accelerometer module with both SPI and I2C interfaces to communicate with your controller like ArduinoRaspberry Pi, PIC, etc. It also has user-selectable sensitivity and 10-13bit of resolution. This Digital Accelerometer has a voltage regulator on board hence can be connected to both 5V and 3.3V powered controllers. Its high-resolution 4mg/LSB also enables it to measure less than 1° change in the orientation of the object. The ADXL Sensor can be used in Robotics applications, measuring vibration in a machine, in the data acquisition system of a vehicle, measuring the motions of a bridge, etc. It can also be used to detect taps on an object.

The ADXL345 features 4 sensitivity ranges from +/- 2G to +/- 16G. And it supports output data rates ranging from 10Hz to 3200Hz such as the Arduino.

Applications:

  • Cost-sensitive, low power, motion- and tilt-sensing applications
  • Mobile devices
  • Gaming systems
  • Data acquisition system of a vehicle
  • Measuring vibration in a machine
  • Disk drive protection
  • Image stabilization
  • Sports and health devices

Package Includes:

  • 25 x ADXL 345 Module

Specifications

Supply Voltage 3.3 V/ 5V
Interface Type I2C, SPI
Sensing Range ±2g, ±4g, ±8g, ±16g
X 28.6 LSB/g
Y 31.2 LSB/g
Z 34.5 LSB/g
Dimensions  3 x 2 x 1cms
Weight  5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is accelerometer ADXL345?

  • The ADXL345 is a small, thin, ultralow power 3-axis accelerometer capable of measuring up to 16 g with high resolution (13-bit). Digital output data is in 16-bit two's complement format and can be accessed via an SPI (3- or 4-wire) or I2C digital interface.

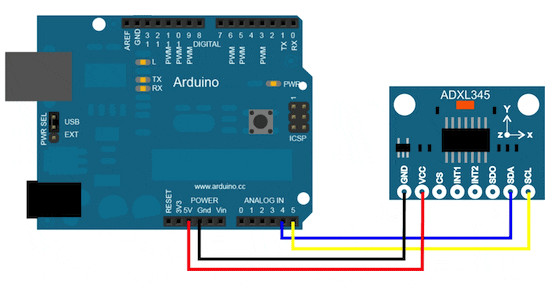

2. How do you use ADXL345 accelerometer with Arduino?

  • To connect an ADXL345 with Accelerometer follow the steps mentioned below:
    • Connect the ADXl345's GND pin to the Arduino's GND pin.
    • Connect the ADXL345's VCC pin to the Arduino's 3.3V pin.
    • Connect the ADXL345's SCL pin to the Arduino's SCL pin.
    • Connect the ADXL345's SDA pin to the Arduino's SCL pin.
    • Run the Program in Arduino IDE.

3. Is ADXL345 a gyroscope?

  • No, ADXL345 is a 3-axis accelerometer that senses both static acceleration (due to gravity) as well as dynamic acceleration (due to motion or shock). So, it can be used as a tilt sensor or to detect free fall.

4. What is the difference between ADXL335 and ADXL345?

  • ADXL345 has a measuring range between ±2g and ±16 g. The sensor has an accuracy angle measurement of less than 1° and power consumption of about ten times less than the ADXL335 version when it is in sleep mode. The ADXL345 is a digital sensor that uses the I2C or SPI digital protocols to return values.
