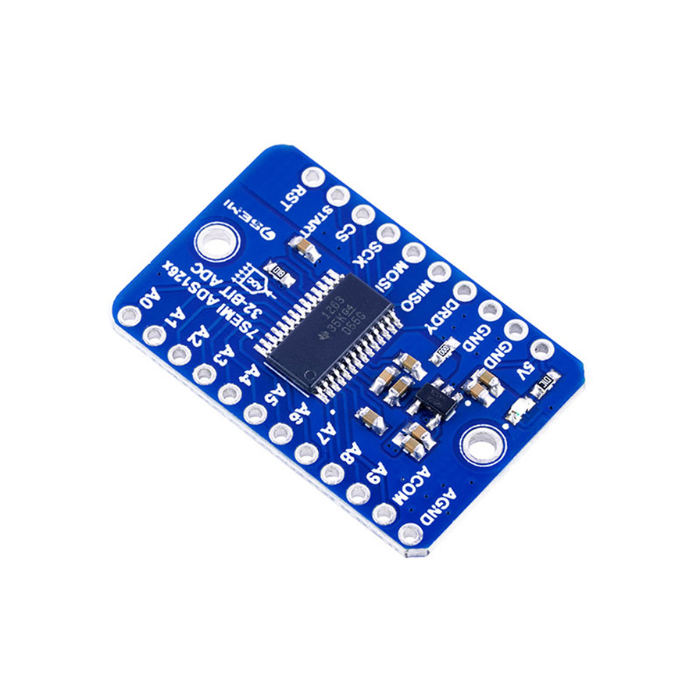

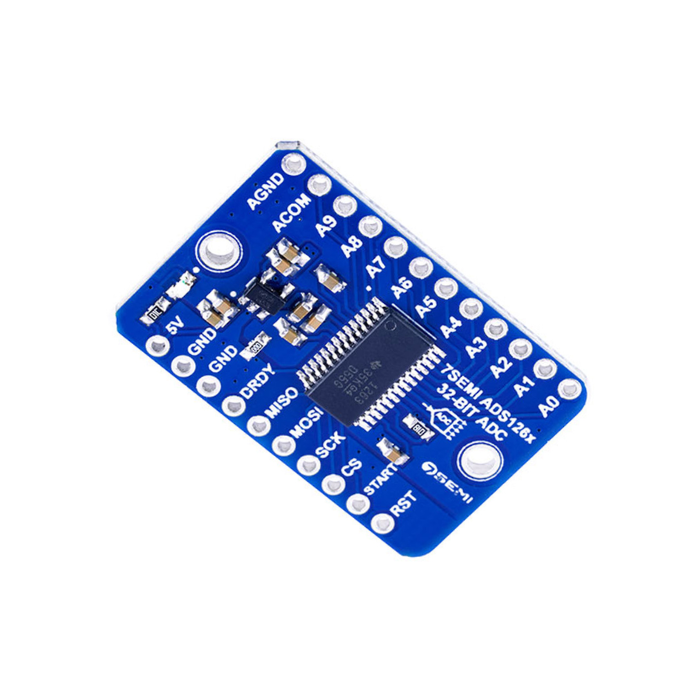

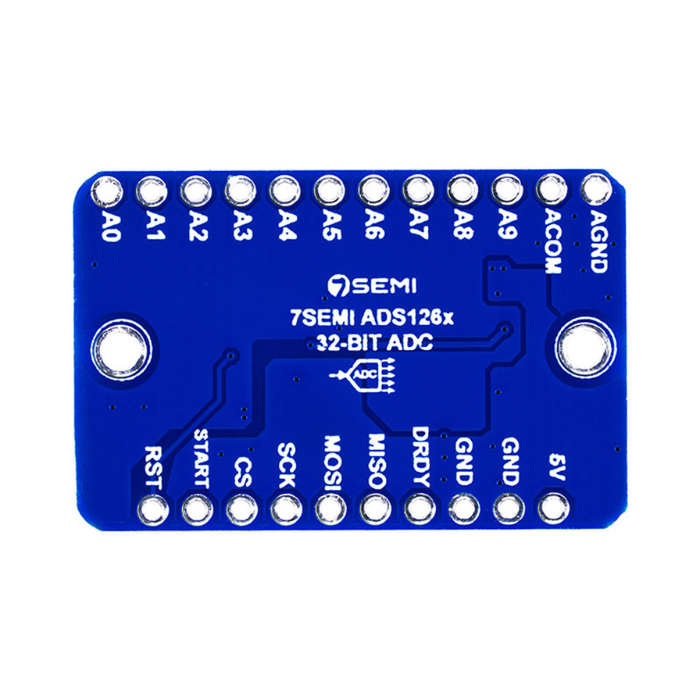

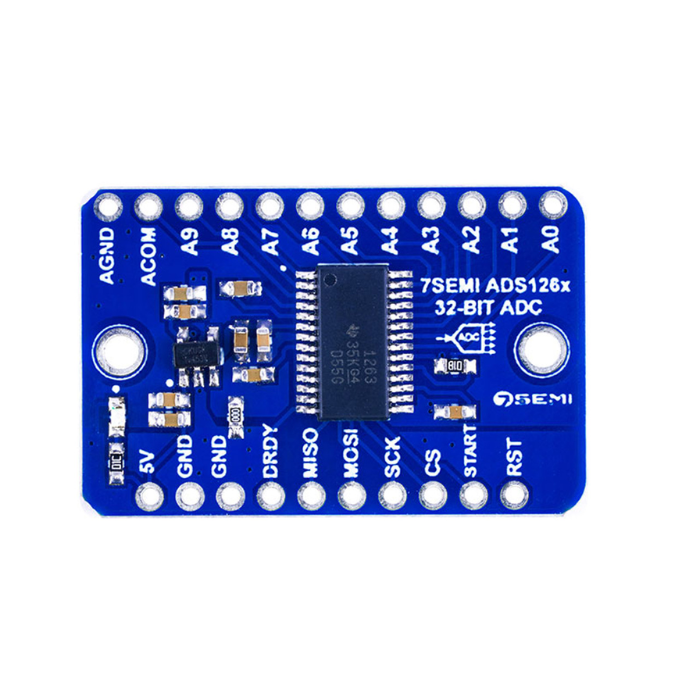

ADS1262 32bit ADC Module with PGA Breakout -7Semi - Buy Online in India

Package Includes:

• 1 x ADS1262 32bit ADC Module with PGA Breakout -7Semi

Specifications:

1. How do I connect the ADS1262 ADC module to a microcontroller?

Connect the ADS1262 ADC module to your microcontroller using the SPI interface—link SCLK, MOSI, MISO, and CS pins to corresponding GPIOs. Provide a stable power supply (3.3V or 5V) and ensure a clean ground connection. Use a precision external reference voltage if high accuracy is required for your analog signal measurements.

2. How can I read analog signals with the ADS1262 32-bit ADC breakout?

Attach your analog sensor output to one of the differential or single-ended input channels on the 32-bit ADC breakout. Configure the module via SPI to start a conversion, and retrieve the high-resolution digital output through the MISO line. The ADS1262 ADC module delivers precise readings ideal for low-level signal acquisition like thermocouples or strain gauges.

3. How do I use the PGA feature on the ADS1262 ADC module?

Enable the onboard programmable gain amplifier (PGA) to amplify small input signals before conversion—ideal for microvolt-level inputs. Set the gain (1 to 128 V/V) via configuration registers to match your signal range and maximize resolution. This eliminates the need for external amplifiers and ensures optimal use of the 32-bit ADC breakout’s dynamic range.

4. How can I interface the 32-bit ADC breakout with an Arduino?

Wire the 32-bit ADC breakout to your Arduino using SPI: connect CS, SCLK, MOSI, and MISO to digital pins, and apply 3.3V power if available. Install a compatible library to configure the ADS1262 ADC module, set PGA gain, and read converted values with high precision. This enables lab-grade data logging and sensor interfacing in DIY or industrial Arduino projects.

5. What should I do if the ADS1262 ADC module gives inaccurate readings?

Verify that all connections—power, ground, reference voltage, and signal inputs—are secure and noise-free. Ensure the PGA is correctly configured for your input range and that the SPI communication is error-free. Use bypass capacitors and shielded cables for sensitive measurements to maintain the accuracy of the 32-bit ADC breakout in electrically noisy environments.

• ADS1262 Datasheet
