- ADS1115 16-bit 4-channel ADC breakout board by 7Semi
- Uses Texas Instruments ADS1115 ADC chip
- Features programmable gain amplifier (PGA)
- I2C communication interface for easy integration
- Operates on 2.0V to 5.5V power supply range
- Low power consumption suitable for portable devices
- Supports data rates from 8 to 860 samples per second
- Ideal for precise sensor measurements in industrial, automotive, and portable applications

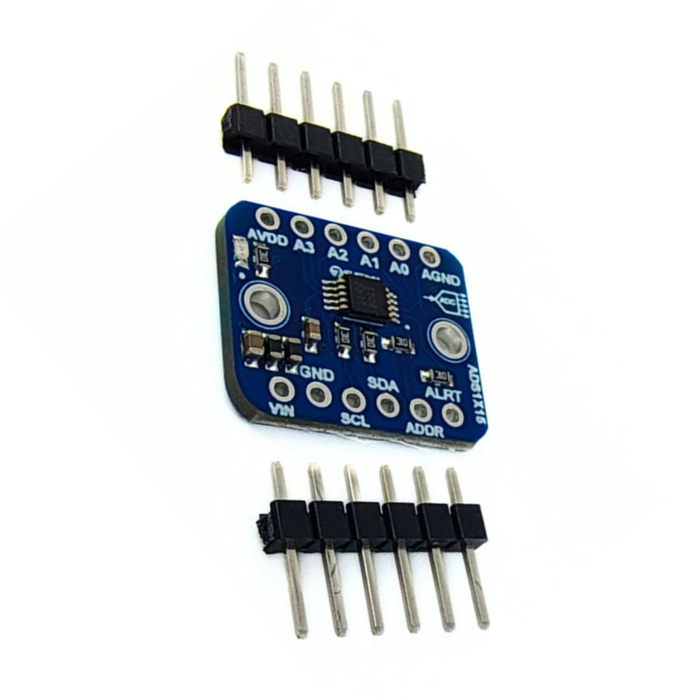

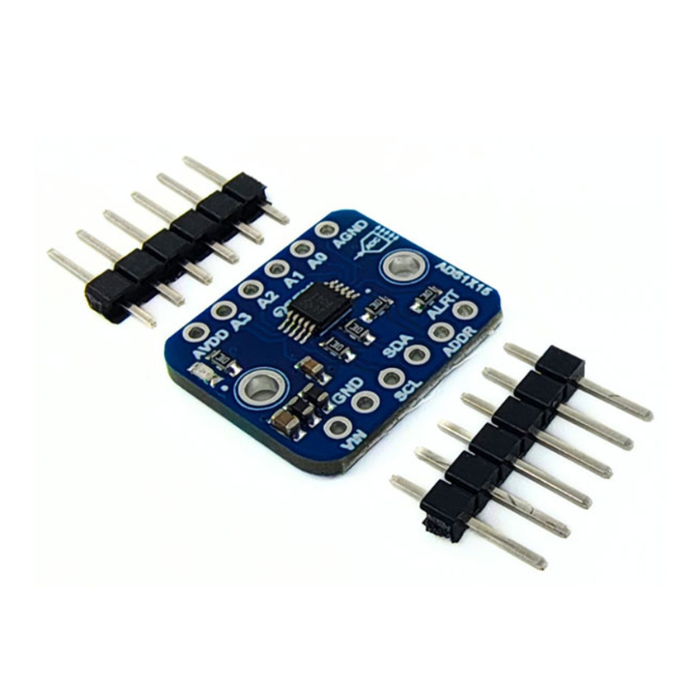

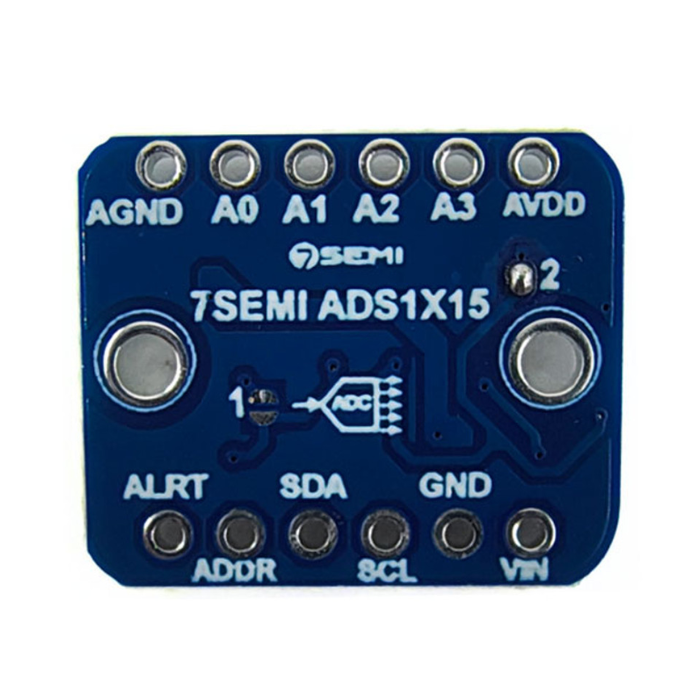

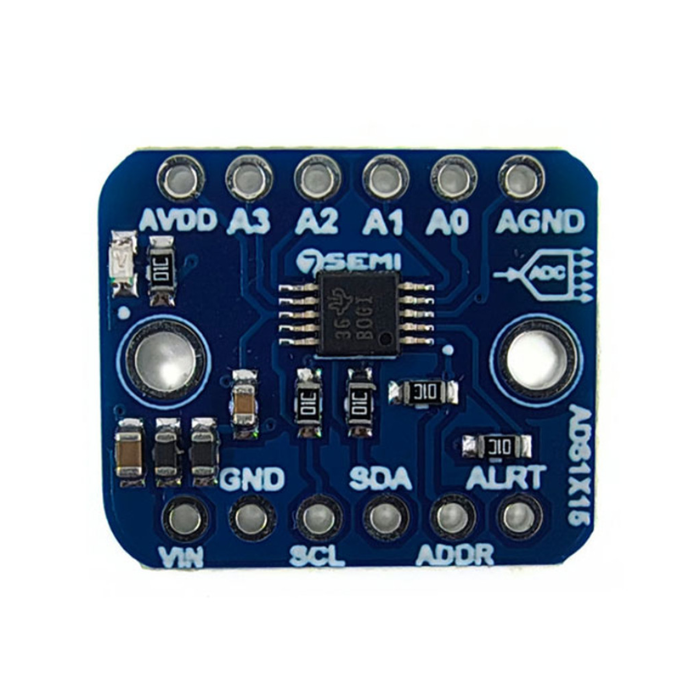

ADS1115 4-Channel 16bit ADC Breakout Board with PGA I2C -7Semi
The 7Semi ADS1115 4-Channel 16-bit ADC Breakout Board integrates the high-precision Texas Instruments ADS1115 analog-to-digital converter, featuring a programmable gain amplifier (PGA) for versatile input signal scaling.
Designed with an easy-to-use I2C interface, this breakout board operates efficiently over a wide voltage range of 2.0V to 5.5V while maintaining low power consumption.
The ADS1115 chip supports flexible data rates between 8 and 860 samples per second, making it an excellent choice for accurate sensor data acquisition in various fields such as industrial automation, automotive systems, and portable electronics.
For more technical specifications and application guidance, referring to the ADS1115 datasheet is highly recommended.
Features:
- 16-Bit High-Resolution ADC: Increase measurement precision and accuracy, resulting in high-quality data conversion.
- Wide Supply Range (2.0 V to 5.5 V): Compatible with a variety of power sources, giving your design flexibility.
- Low Power Consumption: Operates with only 150 µA in continuous conversion mode, optimizing energy efficiency in battery-powered applications.
- Programmable Data Rate: You can change your sample speed from 8 SPS to 860 SPS, which is ideal for a variety of applications.
- Internal Low-Drift Voltage Reference and Oscillator: Provides stable and consistent performance, which is critical for long-term accuracy.
- I2C Interface with Four Pin-Selectable Addresses: Enables simple integration and communication among numerous devices in your system.
- Four single-ended or two differential inputs: Flexible input configurations to meet your individual measuring needs.
- Programmable Gain Amplifier (PGA): Improves signal processing, allowing more precise readings at different input levels.
- Wide Operating Temperature Range (-40C to +125C): Engineered to work reliably in harsh environments, making it perfect for industrial and automotive applications.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x ADS1115 4-Channel 16bit ADC Breakout Board
Specifications:
| Specification | Details |
|---|---|
| ADC Resolution | 16-bit |
| Number of Channels | 4 |
| ADC Chip | Texas Instruments ADS1115 |
| Programmable Gain Amplifier | Yes |
| Communication Interface | I2C |
| Supply Voltage Range | 2.0 V to 5.5 V |
| Power Consumption | Low power |
| Data Rate | 8 to 860 samples per second |
