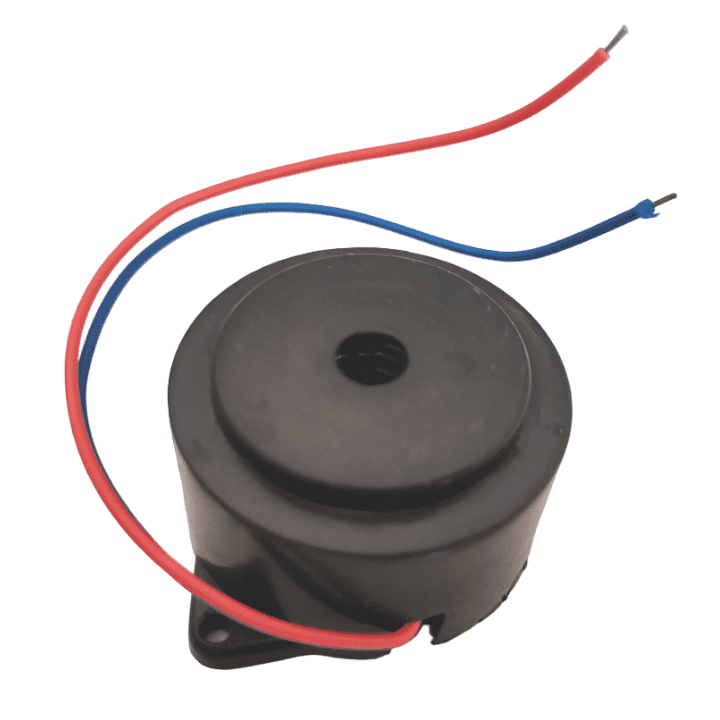

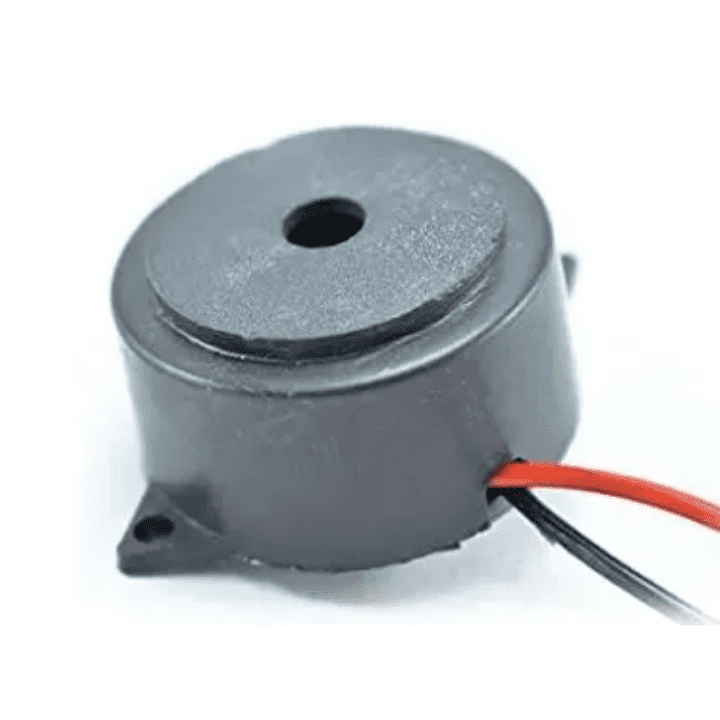

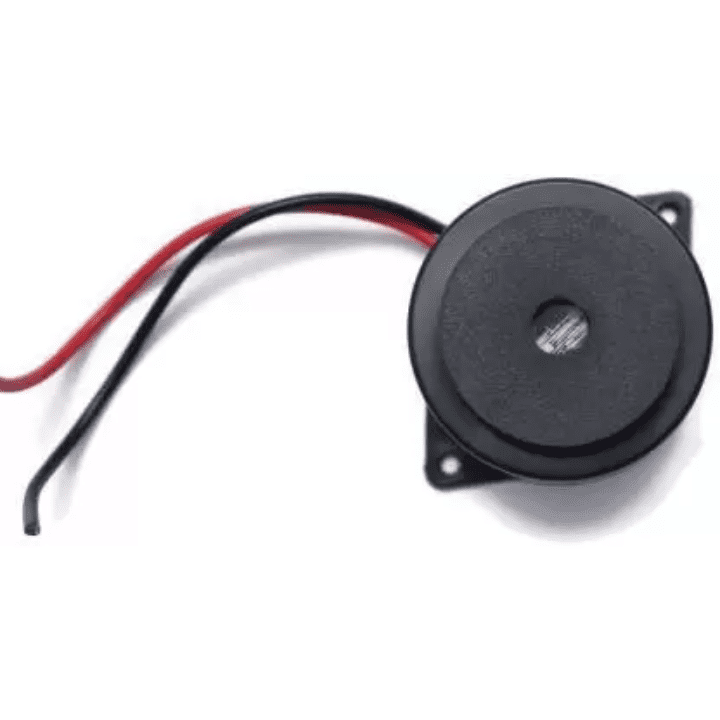

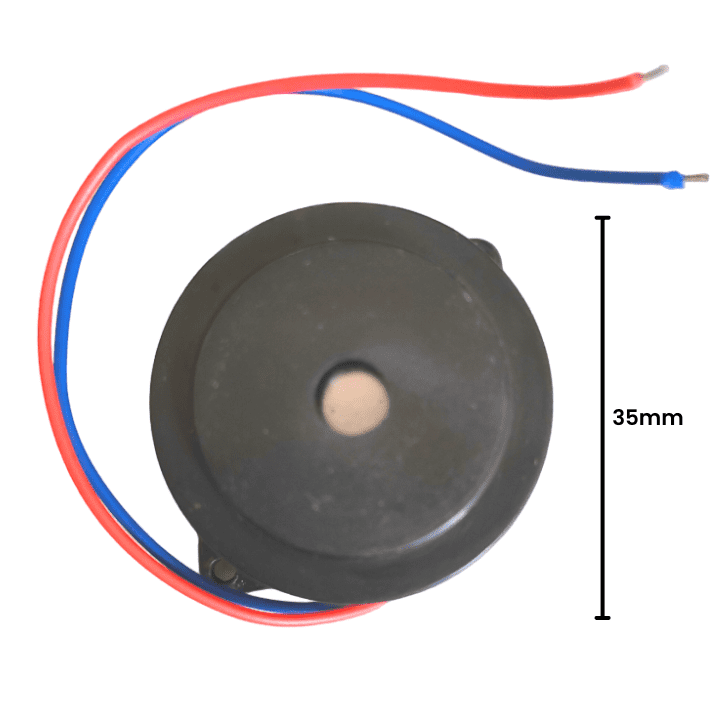

- This is a 35mm 230V AC Continuous Buzzer
- It has a operating voltage of 230V AC.
- Frequency Response is Good
- Size is small
- Energy Consumption is less
AC/230V - 35mm 230V AC Continuous Buzzer
A buzzer is a small yet efficient component to add sound features to our project/system. It is very small and compact 2-pin structure hence can be easily used on breadboard, Perf Board and even on PCBs which makes this a widely used component in most electronic applications. There are two types of buzzers that are commonly available. The one shown here is a simple buzzer which when powered will make a Continuous Beep.
Sound due to the internal oscillating circuit present inside it. But, the one shown here is most widely used because it can be customized with help of other circuits to fit easily in our application.
Read our blog on Buzzer Arduino detailing step by step guide about how to use the buzzer with your Arduino board.
Applications:
- Electrical alarms
- Educational purposes
- Security applications
- Electronic Metronomes
- Household applications
Also check the Passive Buzzer Module available on the Robocraze website. it is designed for versatile applications in electronic projects. The module produces adjustable tones ranging from 1.5 to 2.5 kHz and is compatible with Arduino and other microcontrollers, featuring easy installation with a pin pitch of 2.54mm and fixed bolt holes.
Package Includes:
- 1 x 35mm 230V AC Continuous Buzzer
Specifications:
| Minimum sound level | 100db |
| Oscillation frequency | 4KHz ± 500Hz |
| Current consumption | Maximum 20mA |
| Operating voltage | 230V AC |
| Tone | Loud Continuous |
| Mounting | Flange Type |
| Wire/Lead length | 120mm 2 wire |
| Height | 24.5mm |
| Diameter | 38.5mm |
| Pitch | 47.5mm |
| Operating temperature range | 20 to 50 °C |
