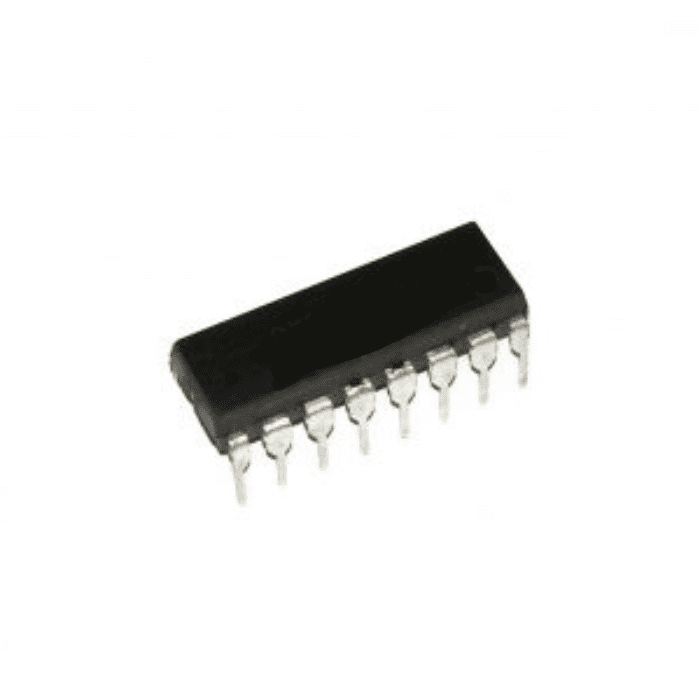

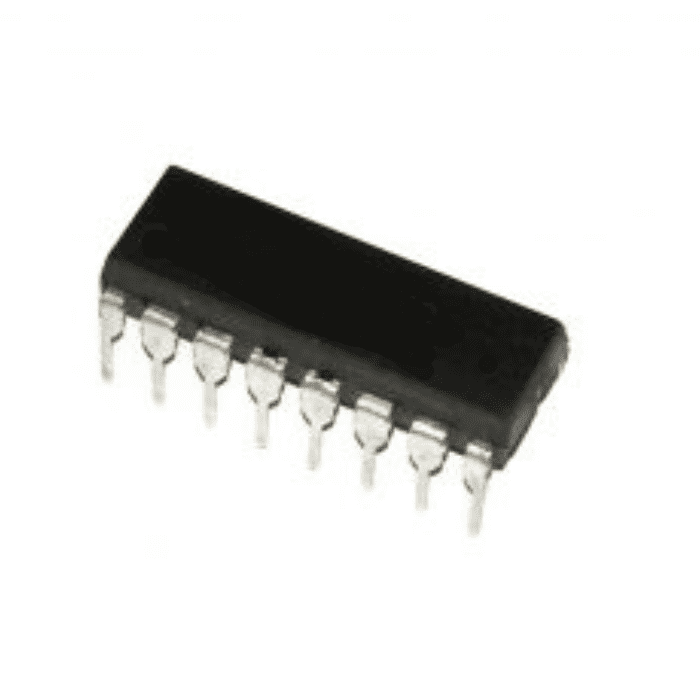

74169 IC

74169 IC

Low stock: 6 left

Regular price Rs. 44
Regular price Rs. 55 Sale price Rs. 44
Sale Sold out 20% off Best Price Guaranteed
You save Rs. 11 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • The 74169 is a 4-bit synchronous binary counter with an asynchronous reset.
  • It has four output lines and increments the count by one on each clock pulse.
  • It can operate at speeds up to 250 MHz and has a wide supply voltage range of 3.3 V to 15 V.
  • It has low power consumption and is available in a variety of package types.
  • It is commonly used in applications such as timing circuits, frequency dividers, and pulse generation.
Trust Badge 1 Trust Badge 2 Trust Badge 3

74169 IC

The 74169 is a digital logic IC that belongs to the 74xx series of integrated circuits. It is a 4-bit binary counter with a synchronous reset, meaning that the counter can be reset to zero at any time using a reset signal. The 74169 has four output lines, one for each bit in the counter, and it increments the count by one each time it receives a pulse on its clock input. It is commonly used in applications where a counter is needed, such as in timing circuits and frequency dividers.

check out : 7448 IC

Applications:

  • Timing circuits
  • Frequency dividers
  • Pulse generation
  • Digital clocks
  • Automation systems
  • Data acquisition systems

check out : CD4028 - BCD to Decimal Decoder IC

Package Includes:

  • 1 x 74169 IC

Specification:

Package type DIP, SOIC, TSSOP
Supply voltage 3.3 V to 15 V
Operating temperature -40°C to +85°C
Maximum clock frequency 250 MHz
Output type Complementary
Output current 32 mA (sinking), 16 mA (sourcing)
Propagation delay 8.5 ns (typical)
Power consumption 10 mW (typical)
Dimensions 7x5x2mm
Weight  1g
