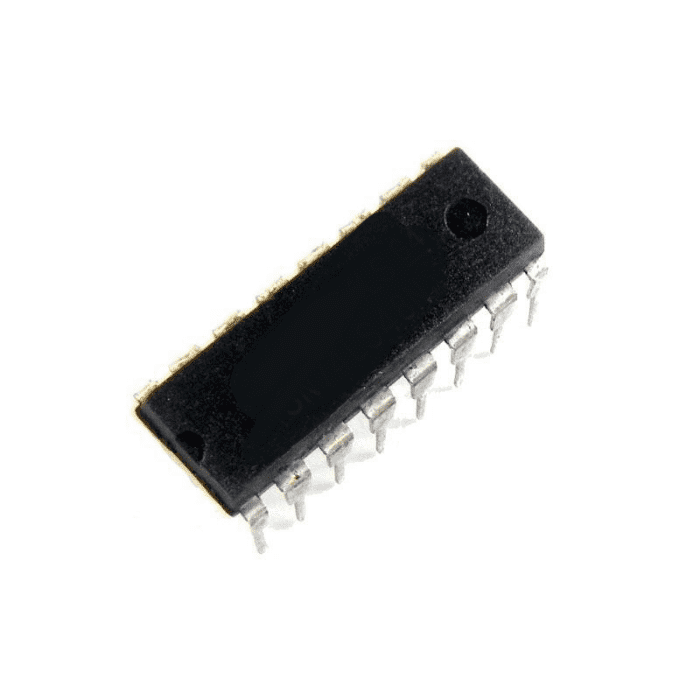

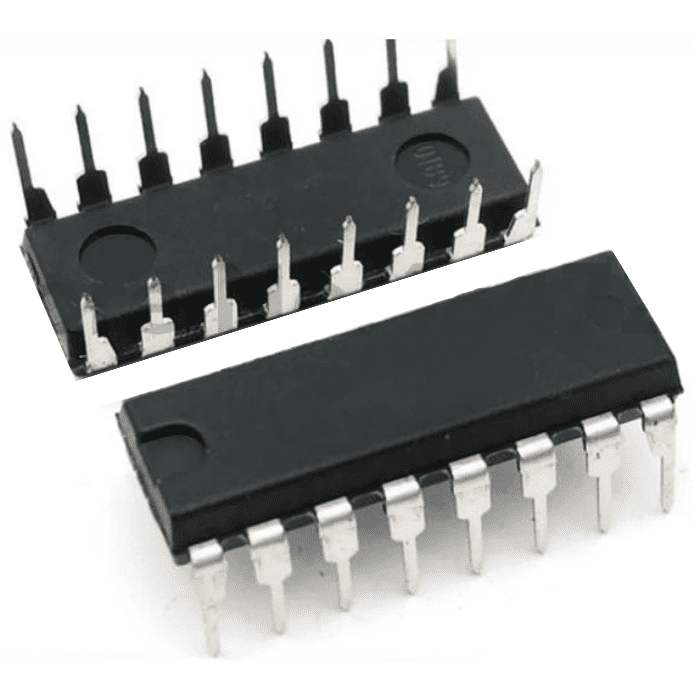

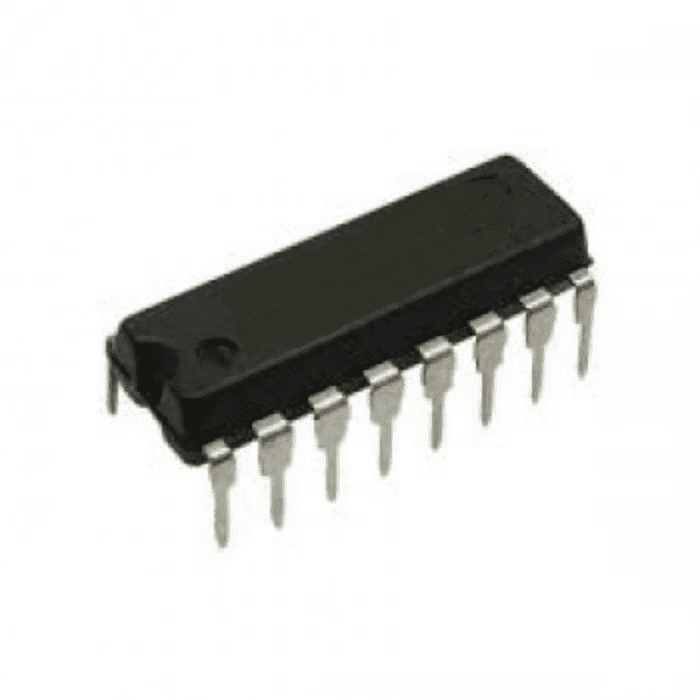

7448 IC
7448 IC
Out of stock
Regular price
Rs. 25
Regular price
Rs. 29
Sale price
Rs. 25
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The 7448 is a BCD-to-7-segment decoder/driver that converts BCD inputs into a pattern of signals that can drive a 7-segment display.
- It has four BCD inputs and seven output lines, as well as an active-low output line for a decimal point.
- The 7448 has open-collector output lines that can sink current but not source it, allowing multiple 7448s to be connected together to drive multiple 7-segment displays.
- It is widely used in applications where a 7-segment display is used to display numerical information.
- It is available in a variety of package types and is relatively inexpensive and easy to use.
7448 IC
The 7448 is a digital logic IC that belongs to the 74xx series of integrated circuits. It is a BCD-to-7-segment decoder, which means that it can convert a binary-coded decimal (BCD) input into a pattern of signals that can be used to drive a 7-segment display. The 7448 has four BCD inputs and seven output lines, one for each segment of the 7-segment display. It also has an active-low output line for a decimal point. The 7448 is widely used in applications where a 7-segment display is used to display numerical information.
check out : 74169 IC
Applications:
- Digital clocks
- Digital thermometers
- Counters
- Process control displays
- Data acquisition systems
- Digital voltmeters
Package Includes:
- 1 x 7448 IC
Specifications:
| Package type | DIP, SOIC, TSSOP |
| Supply voltage | 2.7 V to 6 V |
| Operating temperature | -55°C to +125°C |
| Output current | 16 mA (sinking) |
| Propagation delay | 6.5 ns (typical) |
| Power consumption | 70 mW (typical) |
| Dimensions | 7x5x3mm |
| Weight | 2g |
