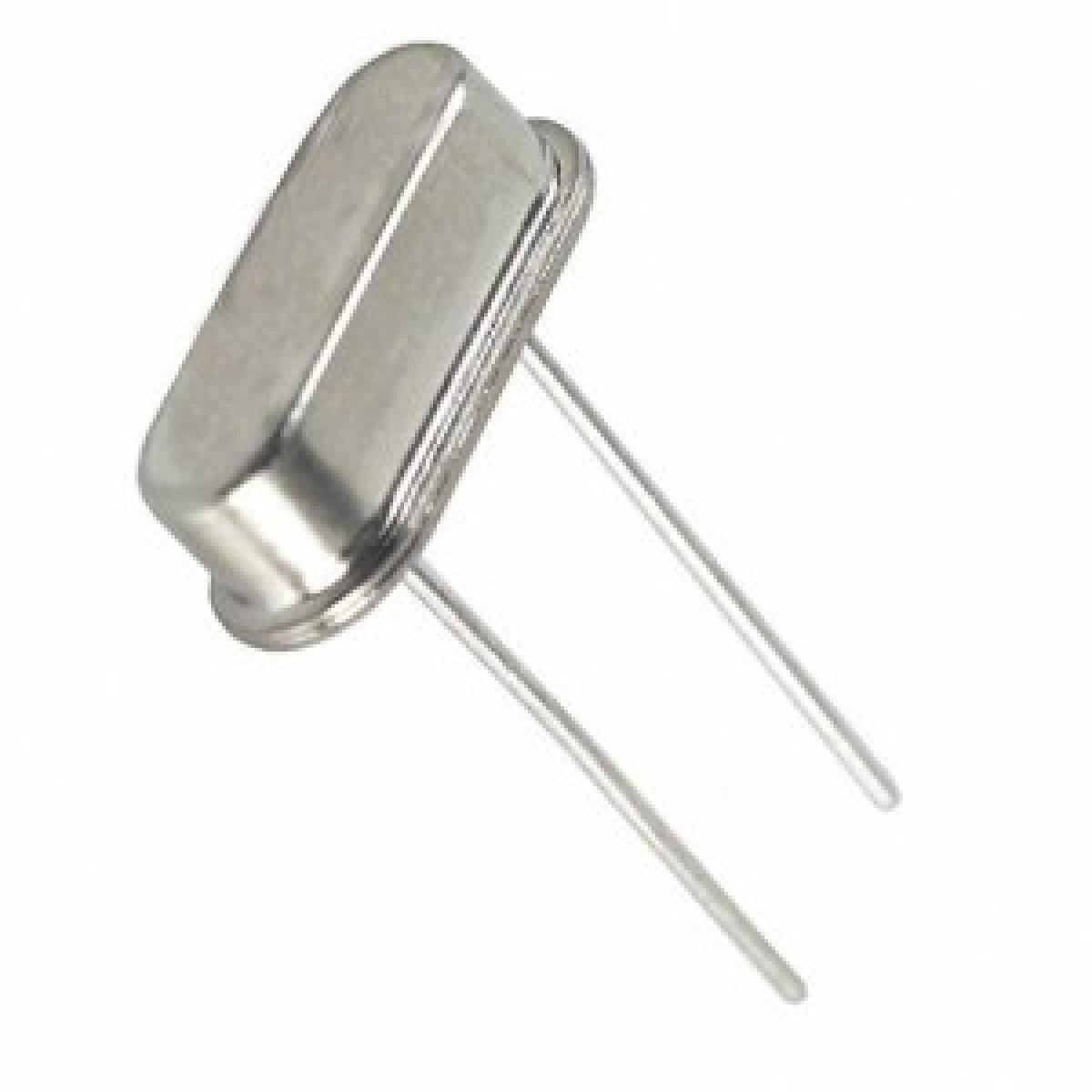

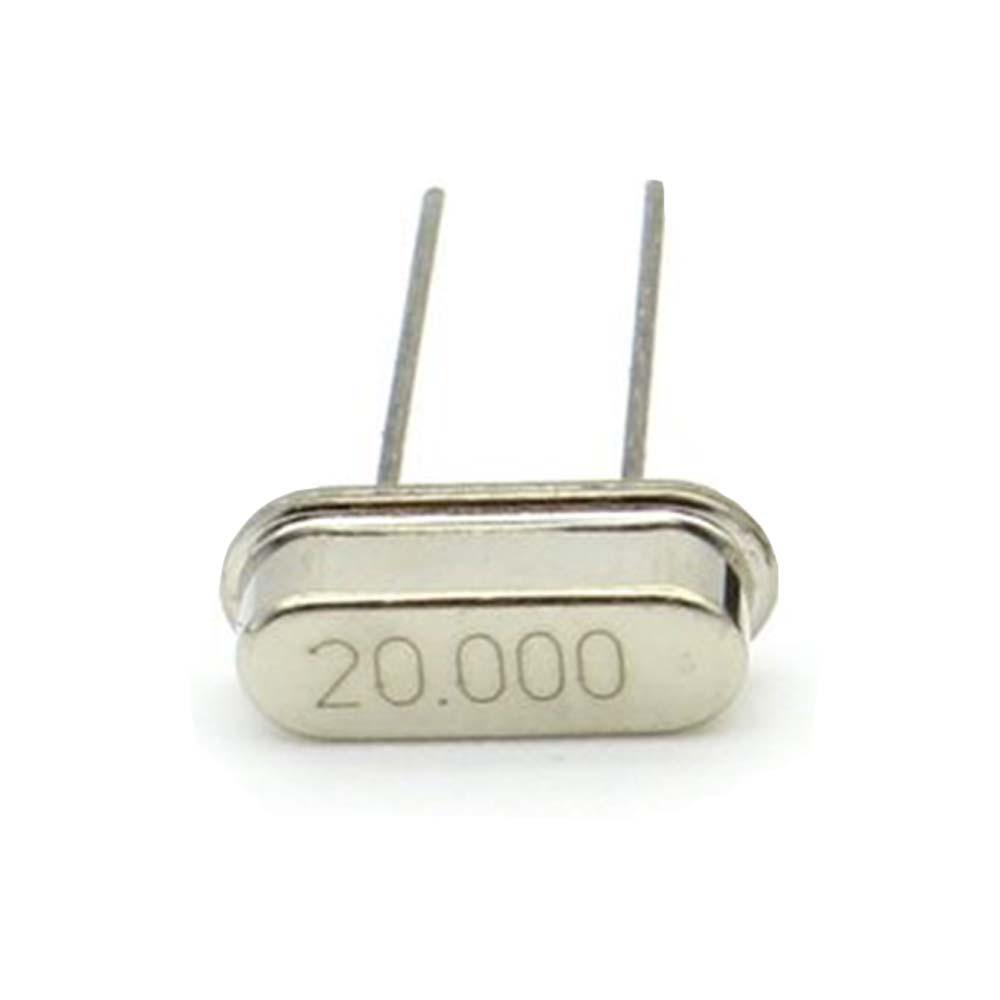

20MHz Crystal Oscillator - (Pack of 10)

Regular price
Rs. 85
Sale price
Rs. 85
Regular price
Sold out
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 1000/-
  • 💰 Earn LOYALTY POINTS on every purchase
  • 🛠️ Dedicated Technical Support Team
  • It provides clock pulses of 8 Mhz frequency.
  • The 20MHz Mhz Oscillator can be used as UART clock (6×1.8432 MHz).
  • It allows integer division to common baud rates (96×115200 baud or 96×96×1,200 baud).
  • The 20MHz oscillator is a common clock for AVR microcontroller.
  • The 20MHz crystal oscillator has uses in microprocessor clock, network card, various consumer electronics.

Related Tags
Electronic Components
Oscillators
Passive Components

20MHz Crystal Oscillator - (Pack of 10)

The 20MHz crystal oscillator circuit sustains oscillation by taking a voltage signal from the quartz resonator, amplifying it, and feeding it back to the resonator. It provides clock pulses of 20MHz frequency. The popularity of the crystals is due to the low cost.

How are20MHz crystal oscillators useful?

One of the most important traits of the crystal oscillator is that it exhibits very low phase noise. In the crystal oscillator, the crystal mostly vibrates in one axis, therefore only one phase is dominant. This property of low phase noise makes them particularly useful in telecommunications where stable signals are needed, and in scientific equipment where very precise time references are needed. The result is that a quartz crystal behaves like a circuit composed of an inductor, capacitor and resistor, with a precise resonant frequency.

Package Includes:

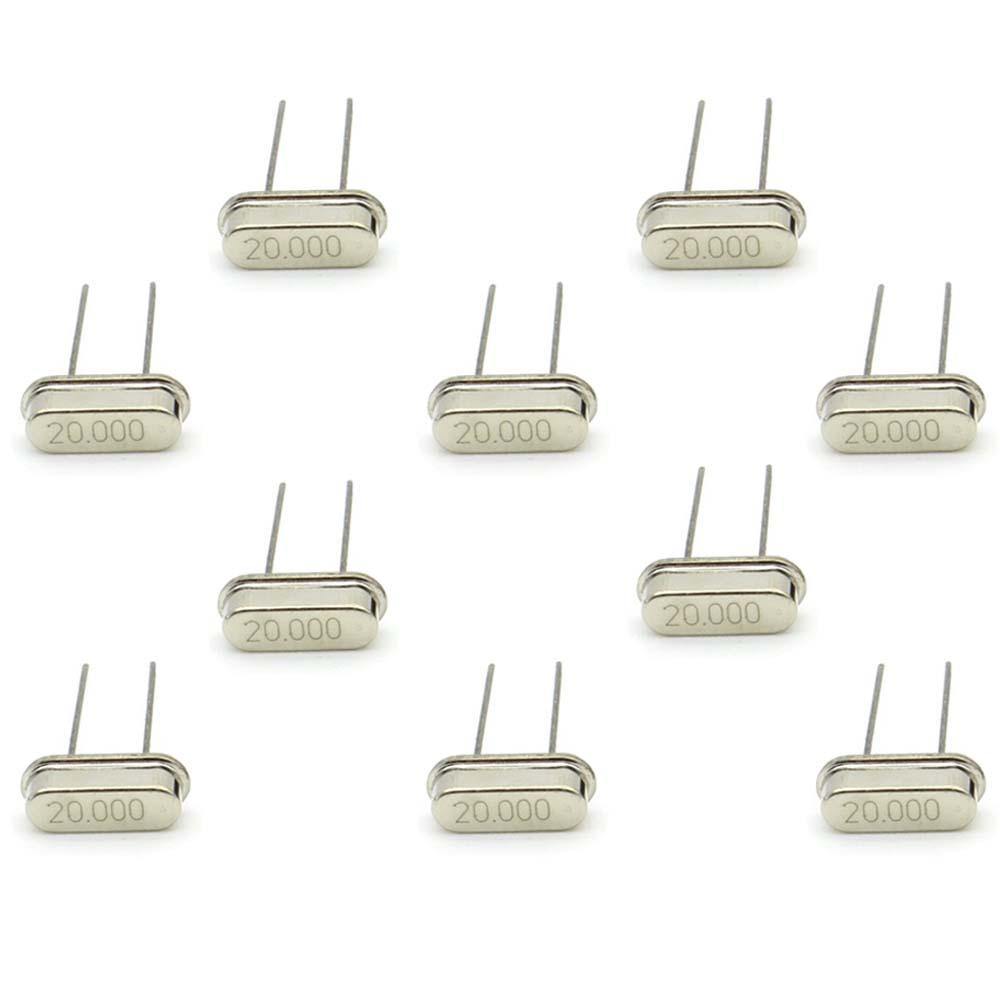

  • 10 x 20MHz Crystal Oscillator

Specifications:

Frequency Range 20MHz
Tolerance(%) 30
Operating Temperature Range -10°C to +60°C
Dimensions  10 x 4.4 x 3.3(mm)
Weight  5 grams
