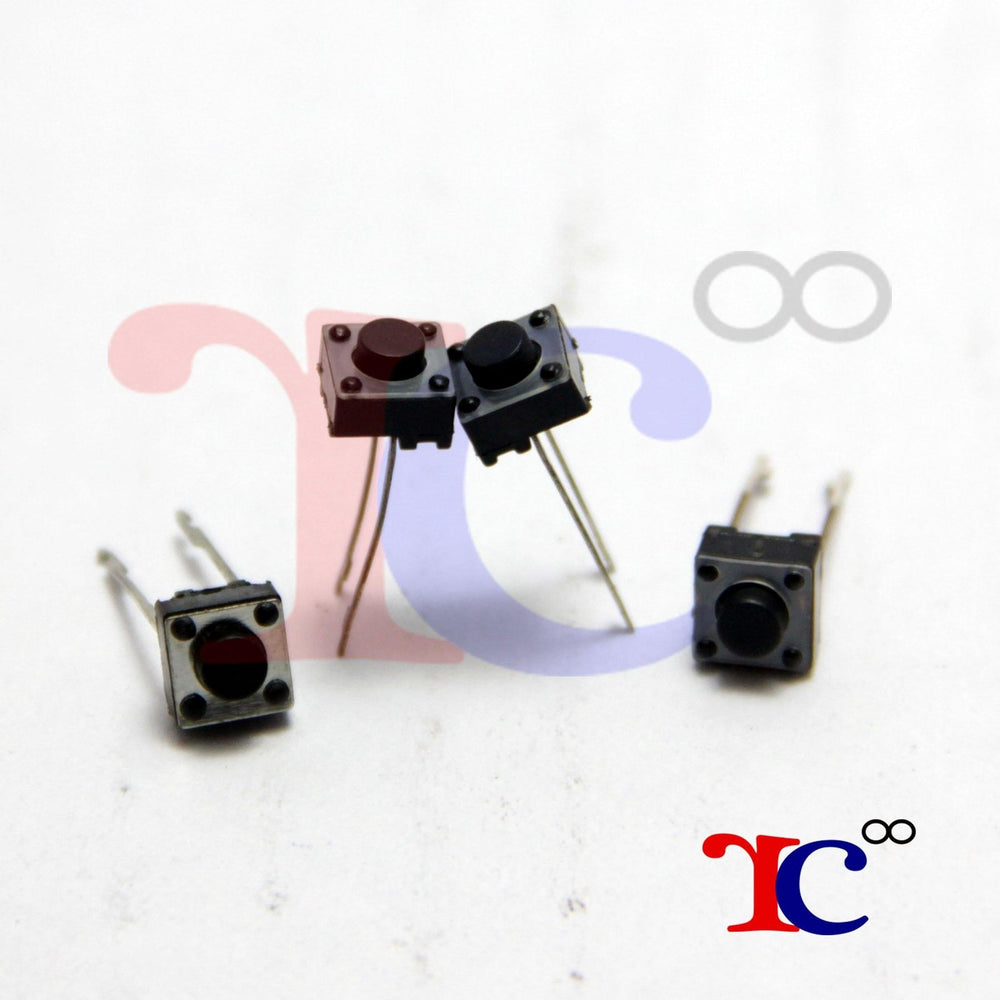

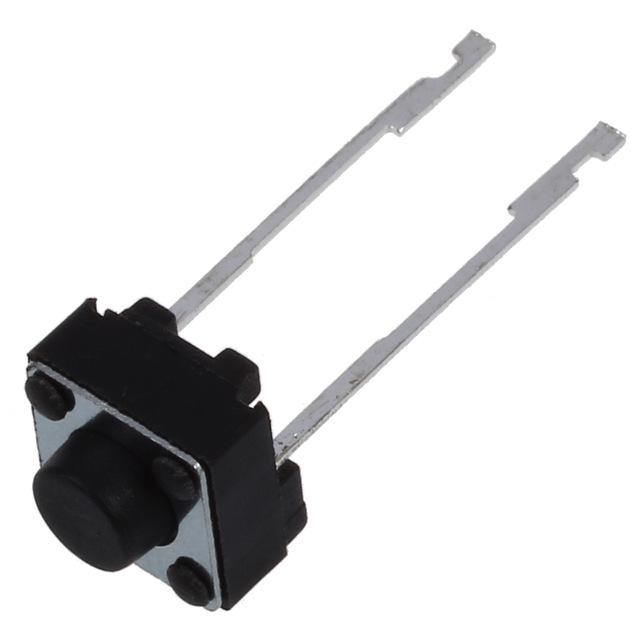

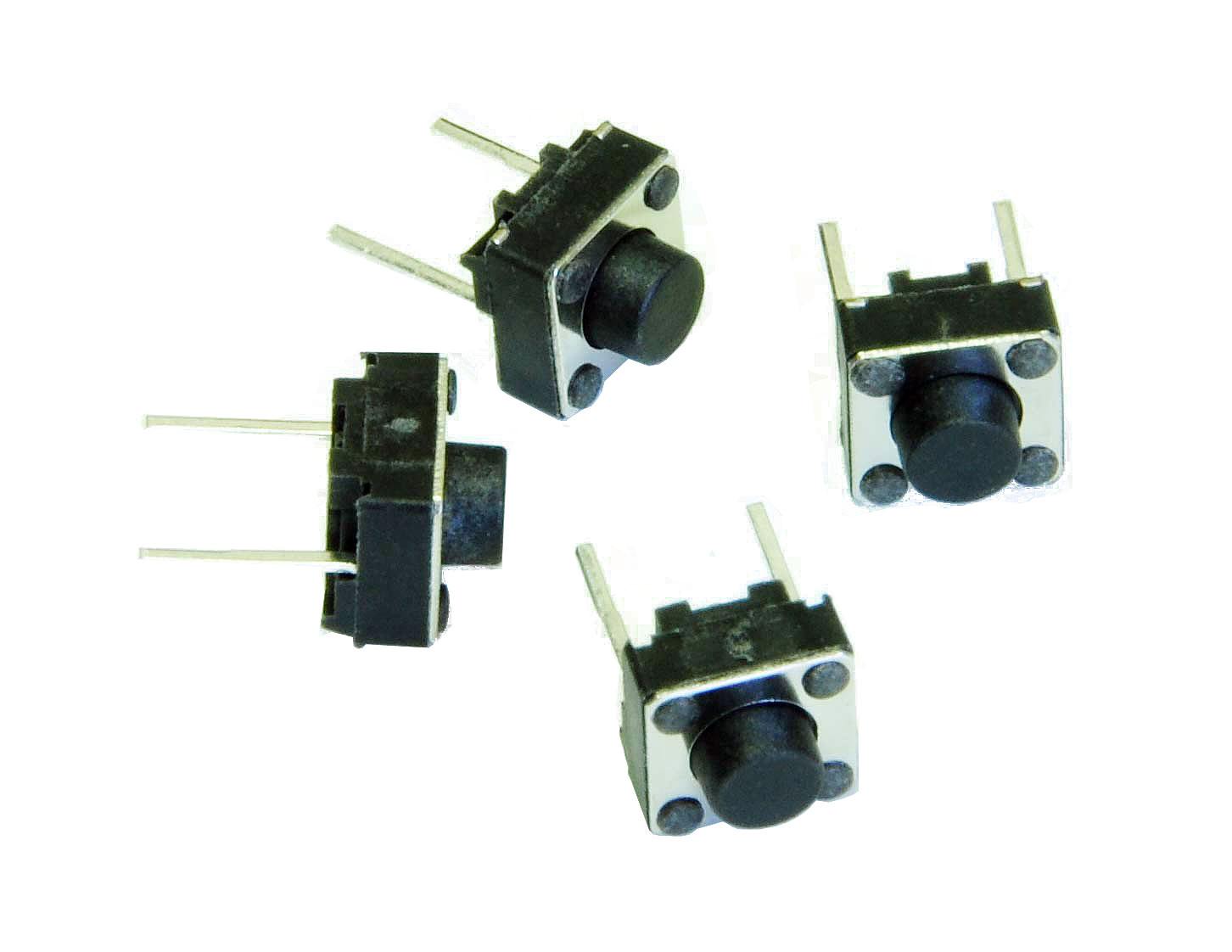

2 Pin Button Switch (Pack of 10)

1.How do you connect a two-pin push button?

• To connect a two pin push button, you will need to follow these steps:
  • Gather your materials: You will need the push button switch, a pair of wires, wire strippers, and a soldering iron and solder (if you are using a soldered connection).
  • Strip the wires: Use the wire strippers to remove a small section of insulation from the ends of the wires. Make sure to leave enough wire exposed so that it can be securely attached to the push button.
  • Attach the wires to the push button: There are a couple of different ways to attach the wires to the push button, depending on the type of connection that the push button has.
    • If the push button has solder tabs, you can simply place the stripped wire onto the tab and use the soldering iron and solder to secure the connection.
    • If the push button has screw terminals, you can loosen the terminal screws, place the stripped wire underneath the screw, and tighten the screws to secure the connection.
  • Test the connection: Once you have attached the wires to the push button, you can test the connection by applying a voltage to the wires and pressing the push button to see if it activates the circuit.

2.What are the two types of push buttons?

• There are several types of push buttons, but two common types are momentary push buttons and latching push buttons.
  • Momentary push buttons: These types of push buttons are designed to only make a connection while they are being pressed. Once the button is released, the circuit is broken. Momentary push buttons are often used as control inputs in electronic devices, such as to start and stop a motor or to turn a device on and off.
  • Latching push buttons: These types of push buttons have two stable positions, "on" and "off," and are designed to remain in one position until they are intentionally switched to the other position. Latching push buttons are often used as control inputs in electronic devices, such as to activate and deactivate a function or feature.
• Both momentary and latching push buttons can be found in a variety of different configurations, including single pole, single throw (SPST), single pole, double throw (SPDT), and double pole, double throw (DPDT)

3.How many pins does a push button have?

• Push buttons typically have two pins, although there are some types of push buttons that have more. Most push buttons are designed to be mounted in a hole in a panel or circuit board and are activated by pressing a button or lever on the front of the switch. The two pins on the back of the push button are used to make electrical connections and control the flow of electricity through the circuit. Some types of push buttons, such as those with multiple poles or throws, may have more than two pins in order to support more complex circuit configurations. For example, a single pole, double throw (SPDT) push button may have three pins, while a double pole, double throw (DPDT) push button may have four pins. The number of pins on a push button will depend on the specific type of push button and the intended application.

4.What are the different type of switches?

• There are many different types of switches, each with its own unique characteristics and intended uses. Here are a few examples:
  • Toggle switches: These are switches that are actuated by flipping a lever back and forth. They are often used to turn circuits on and off and are commonly found in household appliances and electronic devices.
  • Rocker switches: These are switches that are actuated by rocking a lever back and forth. They are similar to toggle switches in function, but have a different design.
  • Push-button switches: These are switches that are actuated by pressing a button. They are commonly used as control inputs in electronic devices and systems.
  • Slide switches: These are switches that are actuated by sliding a lever back and forth. They are often used to select between different options or settings.
  • Rotary switches: These are switches that are actuated by turning a dial or knob. They are commonly used to select between different options or settings and are often found in audio and video equipment.
  • Micro switches: These are small, precision switches that are actuated by a very small movement. They are often used in precision control systems and automated processes.
  • Reed switches: These are switches that are actuated by the presence of a magnet. They are commonly used in security systems and other applications where a non-contact switch is desired.
  • Relays: These are electrical switches that are actuated by an electrical current. They are commonly used to control high-voltage or high-current circuits from a lower-voltage control circuit.
