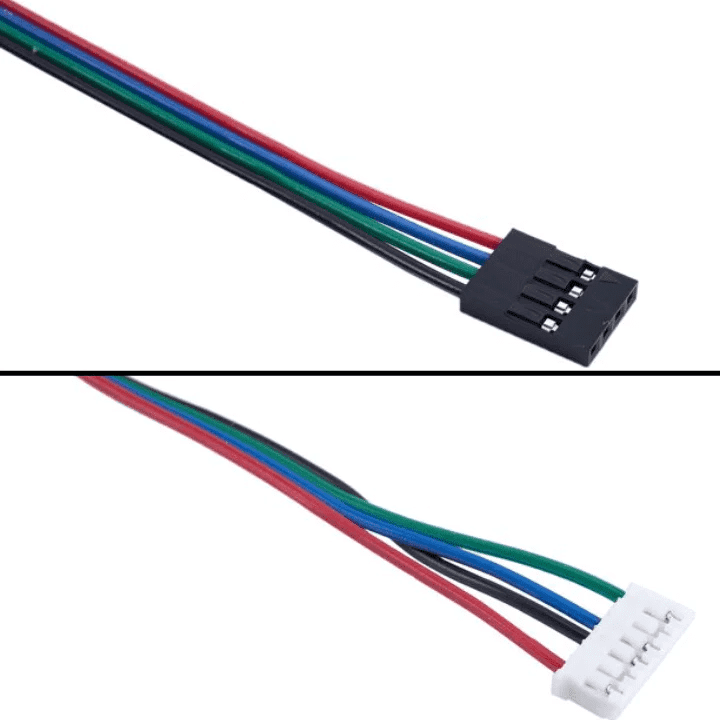

- This is 17HS3401S NEMA17 Stepper Motor with Connector
- This motor has a high initial speed
- The step angle of this motor is 1.8 degrees
- The Detent torque of this motor is 18mN.m
- This Motor is used in wide range of applications like 3D printers, monitoring devices, packaging machines, stage lighting, etc.

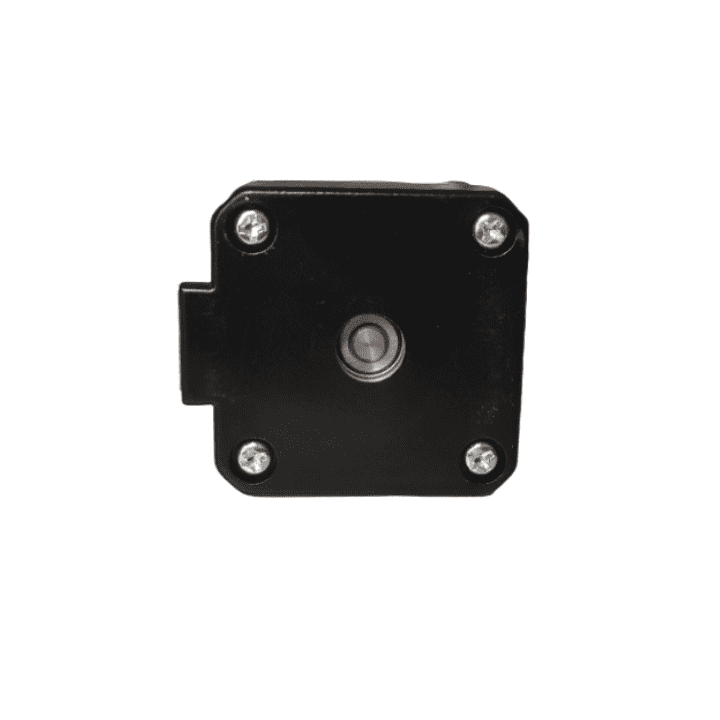

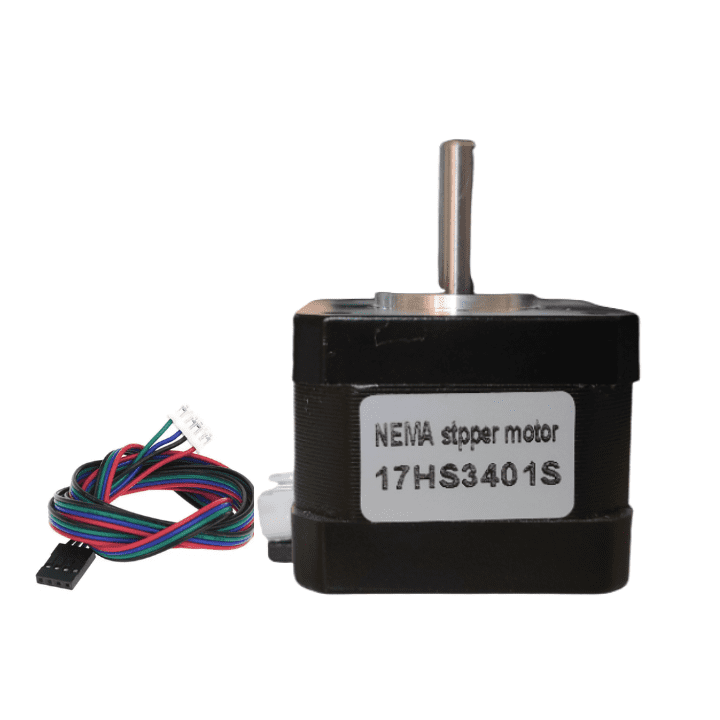

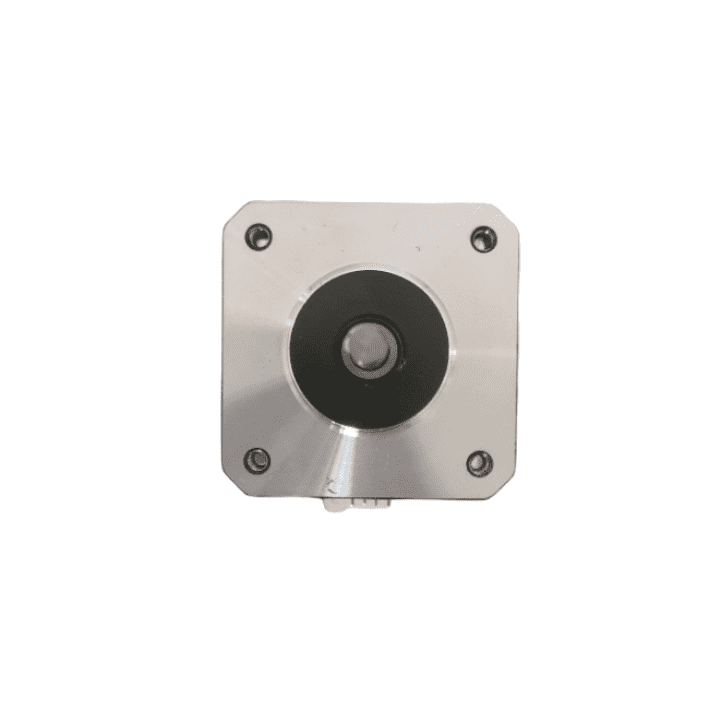

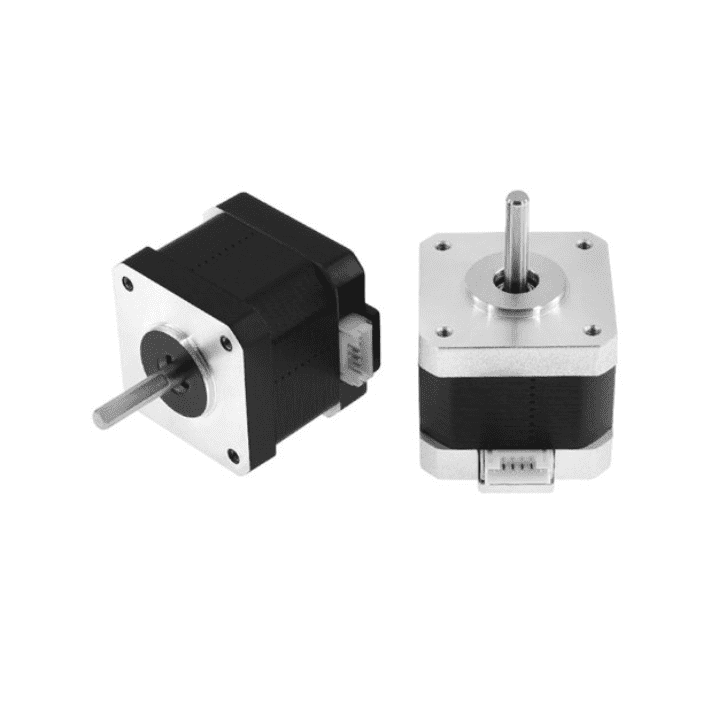

17HS3401S NEMA17 Stepper Motor
The 17HS3401S NEMA17 Stepper Motor is known for its high precision and outstanding performance. It is perfect for a wide range of applications due to its 1.8-degree step angle and 18 mN.m detent torque.
It's a great option for building CNC machines or 3D printers because of its precision and dependability.
This solid build of this motor is meant to withstand the demands of long-term use. Its sophisticated bearing mechanism ensures smooth operation while reducing the danger of failure. Also, the motor's effective heat dissipation mechanism helps to extend its operating life.
This NEMA17 Stepper Motor is a versatile motor that can be used in a wide range of applications. It is compatible with a variety of control systems and can be easily adapted to fit your specific needs.
Whether you are building a robotics project or a custom automation system, this motor is a perfect choice. With its compact size and powerful performance.
Read more : NEMA 17 - The High Torque Stepper Motor Working Principle
Features:
- Low noise.
- Low heat.
- Smooth operation.
- Good acceleration performance.
Applications:
- 3D printers
- Monitoring devices
- Packaging machines
- Stage lighting
- DIY projects
- CNC machines
- Robotics projects
- Custom automation systems
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
TB6560 Stepper Motor Driver
23HS5628 Nema 23 Stepper Motor
YS-DIV268N-5A Hybrid Stepper Motor Driver 5A | Single Axis TB6600 0.2-5A Two Phase Hybrid Stepper Motor Driver Controller
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x 17HS3401S NEMA17 Stepper Motor
Specifications
| Motor Type | NEMA 17 Stepper Motor |
| Step angle |
1.8 degrees |
| Rated Voltage |
7.3 V |
| Rated current |
1 A |
| Detent torque | 18mN.m |
| Relative humidity |
90% |
| No. phases | 2 |
| Weight | 300 grams |
1. What is the step angle of this Motor?
The step angle is 1.8 degrees.
2. What is the rated voltage of this motor?
The rated voltage is 7.3 volts.
3. What are the features of the NEMA17 Stepper Motor?
It offers low noise, low heat, smooth operation, and good acceleration performance.
4. Is the motor compatible with control systems?
Yes, it is compatible with a variety of control systems.
5. What applications is this Motor suitable for?
This motor is used in various applications including 3D printers, monitoring devices, packaging machines, and stage lighting.
