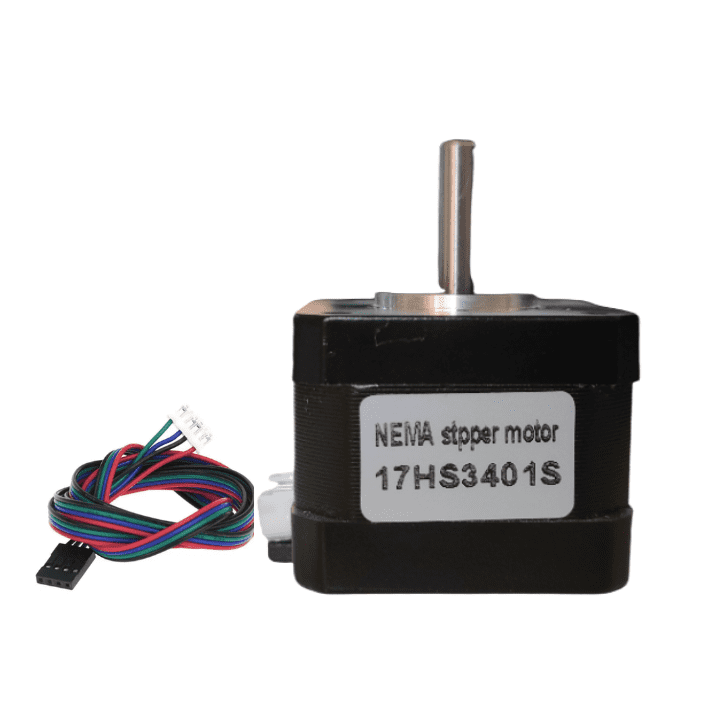

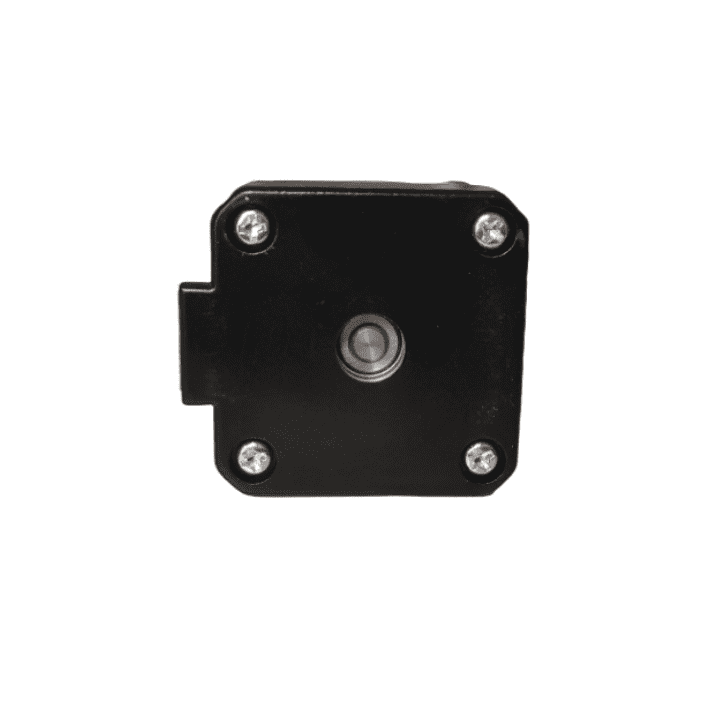

17HS3401S NEMA17 Stepper Motor - Buy Online in India

Package Includes:

• 1 x 17HS3401S NEMA17 Stepper Motor

Specifications

1. How do I calculate the steps of a NEMA 17 stepper motor?

To calculate the steps per revolution, divide 360° by the motor’s step angle. For example, a 1.8° step angle gives 200 steps per revolution. This applies to most NEMA 17 stepper motors and helps in setting up precise motion for projects like 3D printers.

2. How do I connect a 6-wire stepper motor to Arduino?

Identify the two coil pairs and leave the center taps unconnected. Use a stepper motor driver compatible with your motor to simplify wiring and protect the Arduino. This method works for many small or mini stepper motors.

3. How do I connect a stepper motor to Arduino?

Connect the motor coils to a suitable driver, then link the driver to Arduino pins. This setup allows controlled rotation in small robotics projects, DIY machines, or even 3D printer stepper motors.

4. How can I drive a stepper motor using a ULN2003 driver?

Connect the stepper motor coils to the ULN2003 outputs and Arduino digital pins to the inputs. Ensure the motor’s voltage and current match the driver’s rating. This works for mini stepper motors or other low-power stepper motors.

5. How does a stepper motor work with Arduino?

A stepper motor moves in discrete steps when pulses are sent from Arduino through a stepper motor driver. This allows precise control of position and speed, making it ideal for CNC machines or 3D printer stepper motors.

6. How do I calculate the torque of a stepper motor?

Check the motor’s datasheet for its holding torque. If using gears, multiply by the gear ratio. Knowing the torque ensures your motor can handle the load without skipping steps, whether it’s a small DIY motor or a NEMA 17 stepper motor in a 3D printer.

1. What is the step angle of this Motor?

The step angle is 1.8 degrees.

2. What is the rated voltage of this motor?

The rated voltage is 7.3 volts.

3. What are the features of the NEMA17 Stepper Motor?

It offers low noise, low heat, smooth operation, and good acceleration performance.

4. Is the motor compatible with control systems?

Yes, it is compatible with a variety of control systems.

5. What applications is this Motor suitable for?

This motor is used in various applications including 3D printers, monitoring devices, packaging machines, and stage lighting.
