1 Channel 5V Active Low Relay Module
1 Channel 5V Active Low Relay Module
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Operating at 5V with direct microcontroller input.
- Operates at 3V or 5V.
- Switches AC or DC high voltage loads.
- Handles 110V or 220V AC (lights, fans, motors).
- Red LED shows relay status.
- Includes normally closed and normally open (NO) contacts.

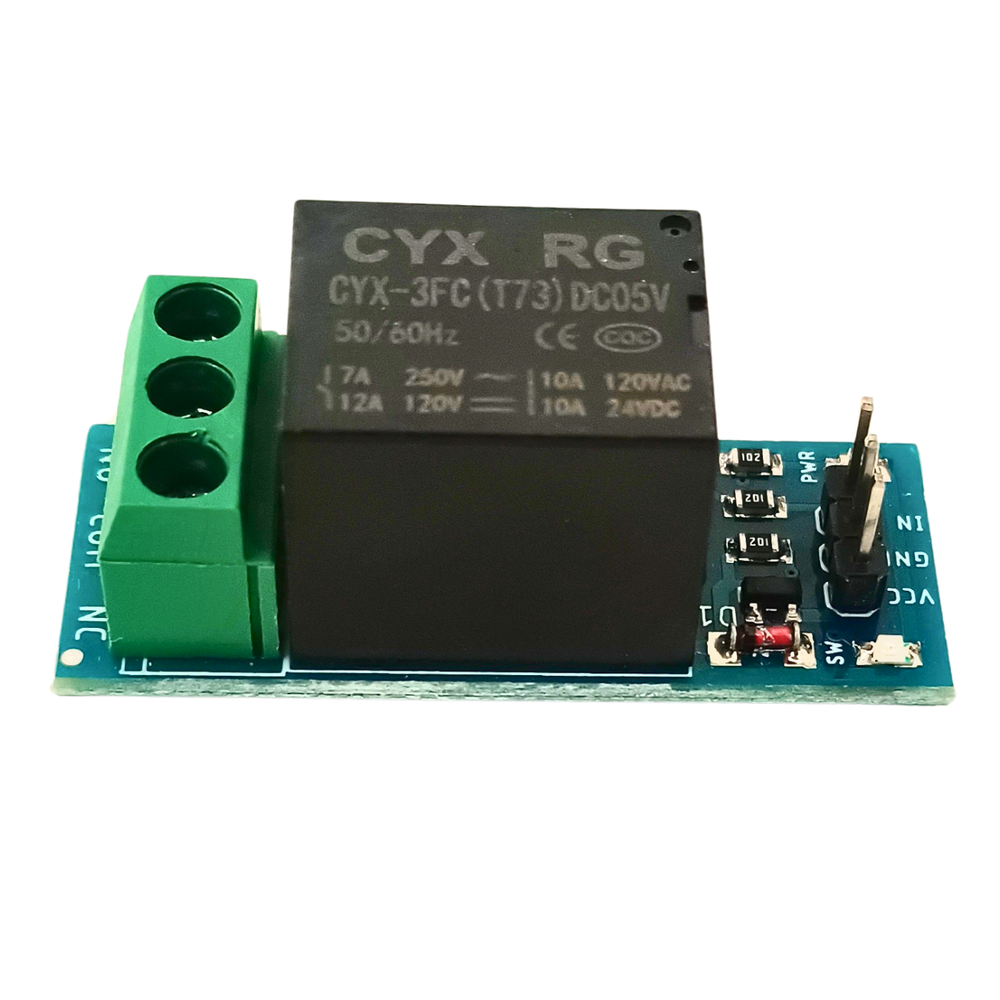

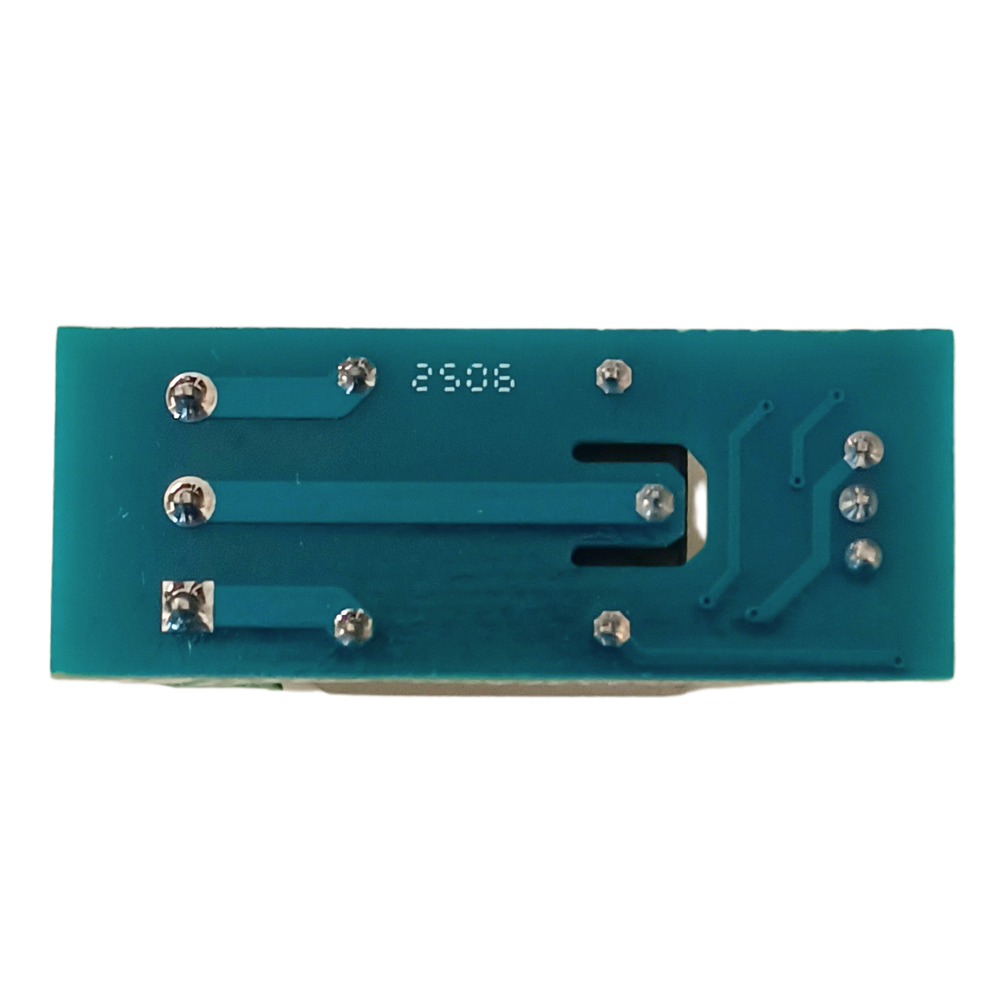

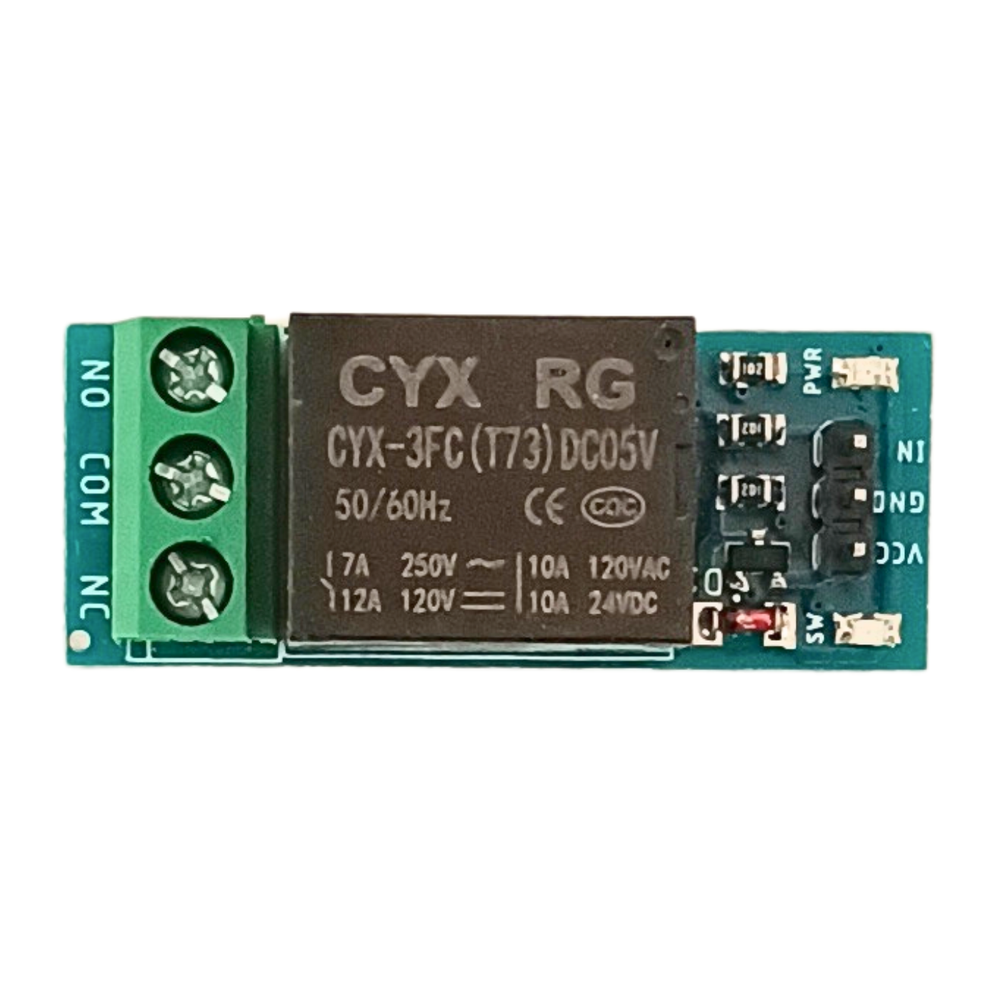

1 Channel 5V Active Low Relay Board
The 5V 1-channel relay module works with a 5V to 12V TTL control signal. It is perfect for controlling home appliances and for use in microcontroller projects. the 5V relay module can handle a 220V AC load, so you can use it to control motors, LED strips, or other devices.
This single-channel relay acts like a regular switch, keeping its contacts separate from the circuit it controls. It has an LED light to show when the relay is ON and accepts input from a 3-5V microcontroller.
The output terminals connect to the relay, and there’s a 2x3-pin male header for easy wiring. You can power it with an external 5V source or through the male header. The 5V relay module can handle up to 5A at 240V AC.
Note: It is important that the microcontroller shares ground with the relay board along with other control signals else it will not be able to control the relay.
Also, check the other 5V Relays Collections.
Check out our wide variety of Relays including 5V, 12V, and Solid state relay switches.
Features:
- Input signal can come directly from a microcontroller
- Works at 3V or 5V to control relays
- Can switch a variety of AC or DC high voltage loads
- Suitable for SCM development and home appliance control
- 5V~12V TTL control signal for DC/AC control
- LED indication of relay ON
- Contact rating: 5A at 240V AC
- Direct input from 3-5V microcontroller for relay control
- Provision of 2x3Pin male header for wire connection
- Powered from external 5V or from the male header
- Relay contact is isolated from the driven circuit
Applications:
- Home automation
- Robotics
- Light control
- Motor control
- Solenoid control
- Valve control
- Process control
- Alarm systems
- Access control systems
- Surveillance systems
- DIY projects
Pinout:
Package Includes:
- 1 x 1 CH 5V Relay Board
Specifications:
| Specification | Value |
|---|---|
| Number of Channels | 1 |
| Operating Voltage | 5V |
| Contact Rating | 5A at 240V AC |
| Dimensions | 3 x 2 x 1 cm |
| Weight | 5 grams |
