1.8 inch TFT module
Superb. Price could be little lowered, if Robocraze team helps.
Robocraze BEST PRICE GUARANTEED
Get
3 rc coins
3 rc coins1.8 inch TFT LCD Module
1.8 inch TFT LCD Module
Out of stock
8
Regular price
Rs. 345
Regular price
Rs. 573
Sale price
Rs. 345
Unit price
per
or ₹ 328 + 17 rc coins
17 rc coinsIncl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 17 people are actively viewing.
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 1.8 inch TFT LCD Module
- This is 1.8-inch serial SPI colour display module
- This TFT LCD Module Support analogue SPI and hardware SPI
- The LCD has a wide viewing angle, the contrast is also very suitable.
- This is a Good quality display

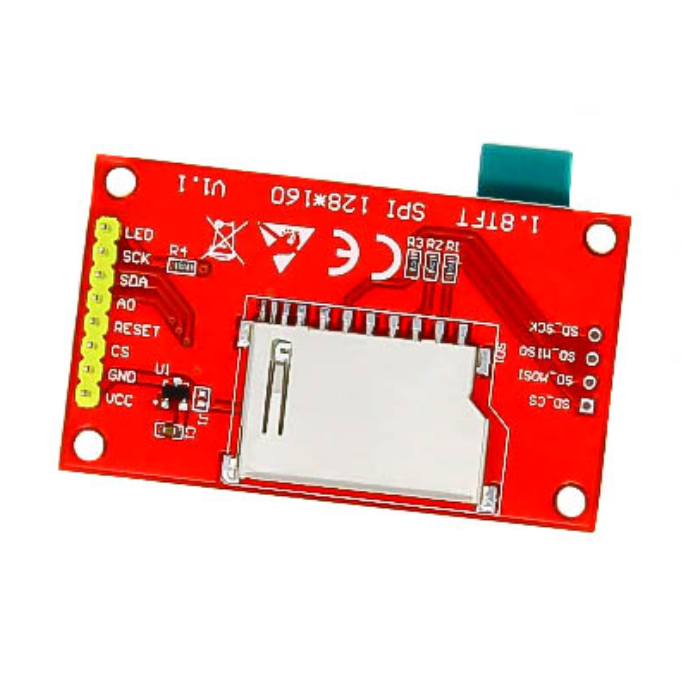

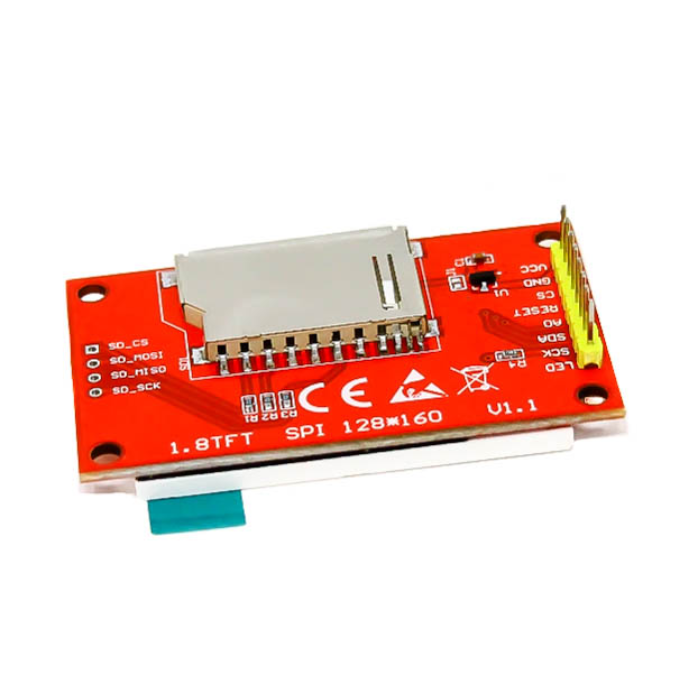

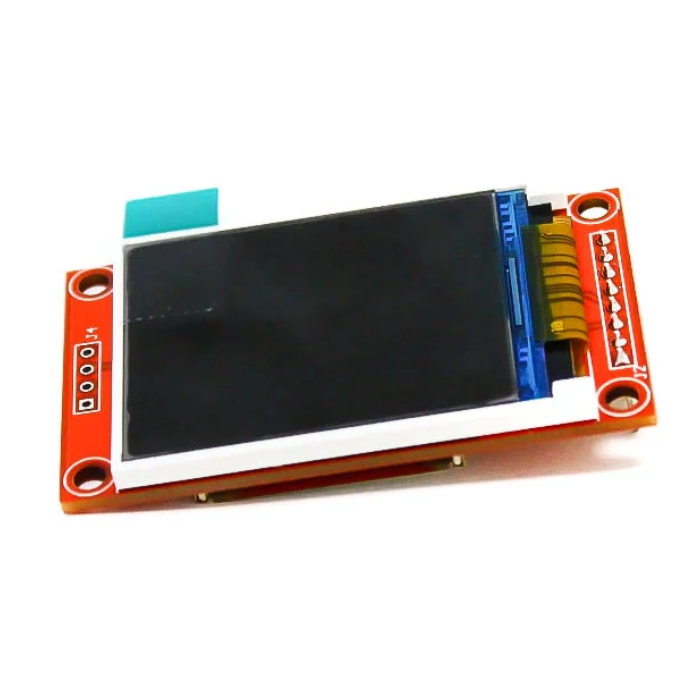

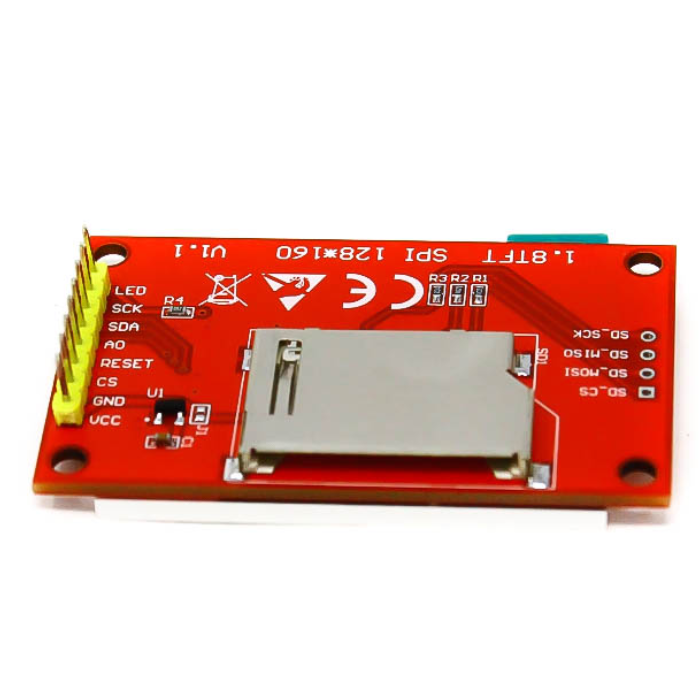

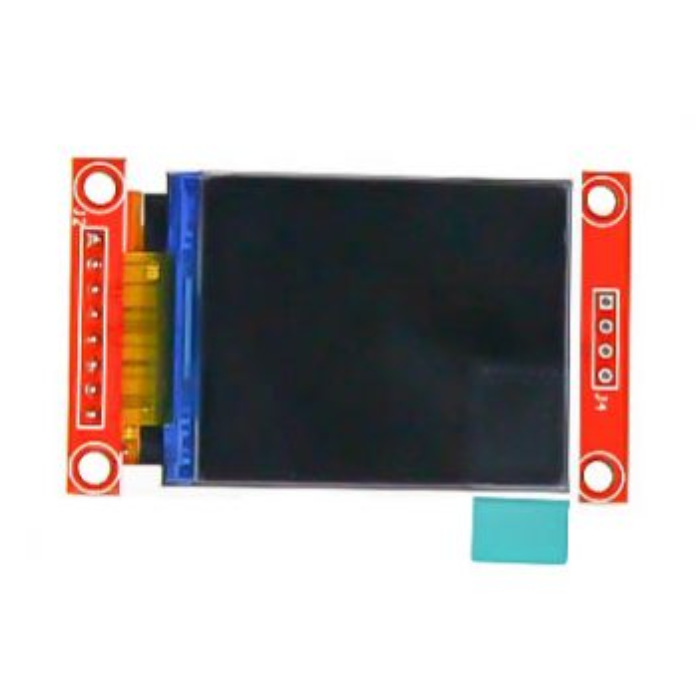

1.8 inch TFT LCD Module
This is the 1.8 inch TFT LCD Module, This TFT LCD display Module communicates via 4-wire SPI and has its own pixel-addressable frame buffer; it can be used with any type of microcontroller. Even a very small one with limited memory and few available pins! The 1.8′′ TFT LCD display features 128160 colour pixels. This display is a true TFT, unlike the low-cost "Nokia 6110" and similar LCD displays, which are CSTN type and thus have poor colour and slow refresh. The ST7735R TFT driver can display full 18-bit colour (262,144 shades!).
And the LCD will always come with the same driver chip, so you won't have to worry about your code not working from one to the other. The TFT display is soldered to the breakout (it uses a delicate flex-circuit connector), as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter, allowing you to use it with 3.3V or 5V power and logic.
If you want to use this 1.8 inch TFT LCD display Module with Arduino, in your project for that you will need few essential components like
Package Includes:
- 1 x 1.8 inch TFT LCD Module
LCD Module Specifications
| Display Size | 1.8 inch |
| Pixels | 128×160 colour pixels |
| Input Voltage (V) | 3.3 to 5V |
| Driver IC | ST7735 |
| Interface Type | SPI |
| PCB Size (mm) | 62×38 |
| Weight | 25 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino 2.4inch TFT Display for UNO board compatible
Regular price
Rs. 463
Regular price
Rs. 684
Sale price
Rs. 463
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Arduino 3.2in TFT LCD Display Shield
Regular price
Rs. 1,179
Regular price
Rs. 1,599
Sale price
Rs. 1179
Unit price
per
Incl. GST (No Hidden Charges)
Sale
3.5in TFT LCD Shield for Arduino
Regular price
Rs. 1,218
Regular price
Rs. 1,508
Sale price
Rs. 1218
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. Is TFT LCD better than IPS?
- Well in terms of functionality and features IPS Displays have an upper hand. As it provides higher picture quality, high contrast, fast response time and much more. While TFT LCDs are comparatively better than IPS displays in terms of Cost and Power consumption. The 1.8 inch TFT LCD display module SPI is one of the widely used for DIY Projects. The 1.8 TFT SPI 128x160 has great resolution for when working with any micro controllers.
2. What is TFT LCD display module?
- TFT LCD (Thin Film Transistor Liquid Crystal Display) displays have a sandwich-like structure with liquid crystal sandwiched between two glass plates. A TFT Glass has as many TFTs as pixels displayed, whereas a Color Filter Glass has a colour filter that generates colour.
3. How does TFT LCD display work?
- A TFT LCD has a liquid crystal layer between a glass substrate formed with TFTs and transparent pixel electrodes and another glass substrate with a colour filter (RGB) and transparent counter electrodes. Polarizers are also placed on the outside of each glass substrate, as well as a backlight source on the inside.
