SmartElex TMP102 Digital Temperature Sensor -Sensors -Temperature Sensors -Robocraze

SmartElex BEST PRICE GUARANTEED

SmartElex TMP102 Digital Temperature Sensor - Buy Online in India

SmartElex TMP102 Digital Temperature Sensor

Rs. 109; ~~Rs. 179~~; Rs. 109
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

SKU: TIFSS0388

Digital Temperature Sensor Module based on the reliable Texas Instruments TMP102
Uses I2C communication for accurate digital temperature readings (no analog noise)
High resolution of 0.0625°C with accuracy up to ±0.5°C
Operates safely between 1.4V to 3.6V, ideal for low-power projects
Plug-and-play design with Molex PicoBlade connectors and optional 0.1″ breadboard pins
Built-in 4.7kΩ I2C pull-up resistors, no external components required
Address jumper included for easy multi-sensor I2C setups

BEST COUPON

RC100

COPY CODE

When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name*

Last Name*

Email*

Phone*

Quantity*

Company

Comments

Enter the Captcha

Reload

SmartElex TMP102 Digital Temperature Sensor

~~Rs. 179~~ Rs. 109

Quantity:

SmartElex TMP102 Digital Temperature Sensor

~~Rs. 179~~ Rs. 109

Description
Specifications
Additional Resources
Shipping & Return

Description

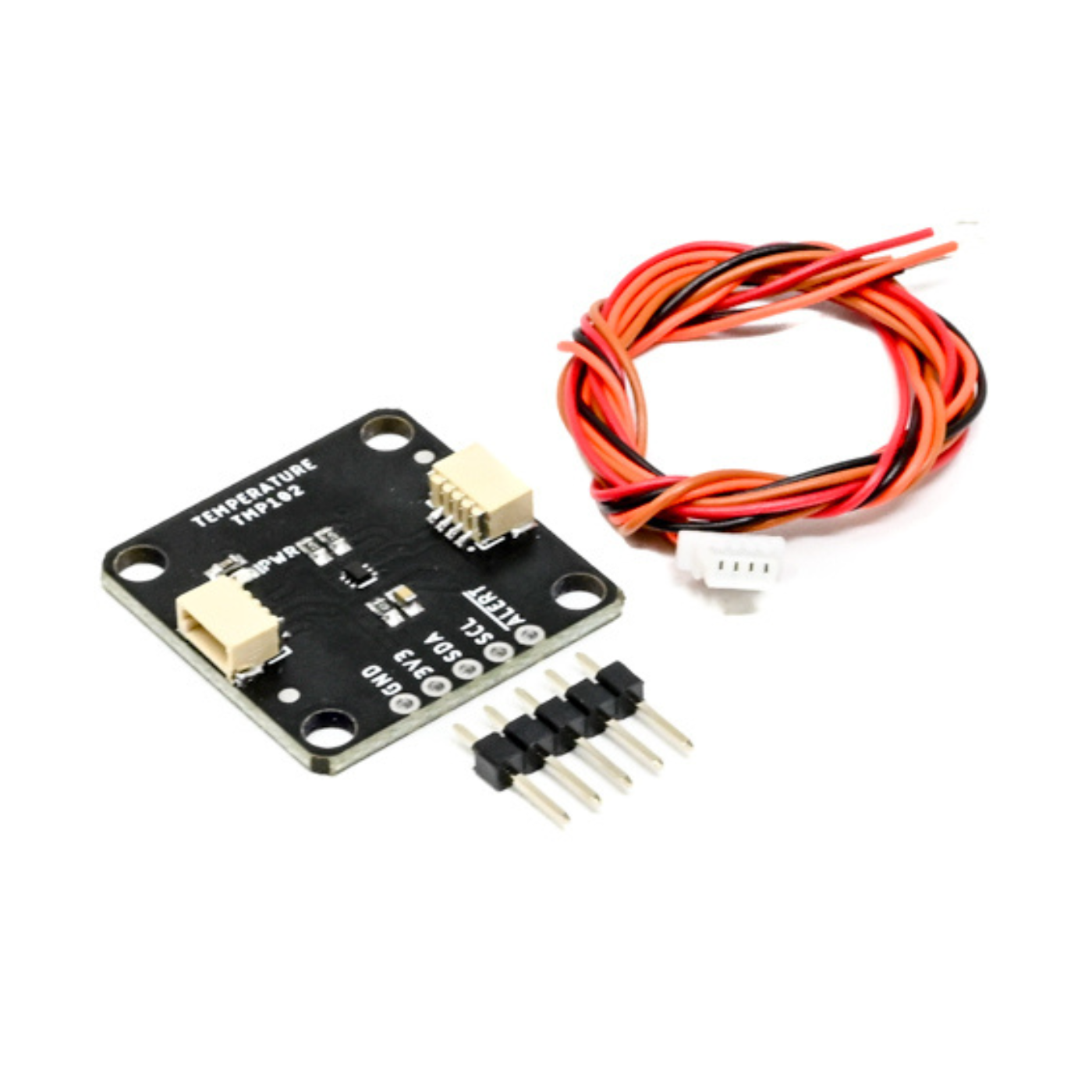

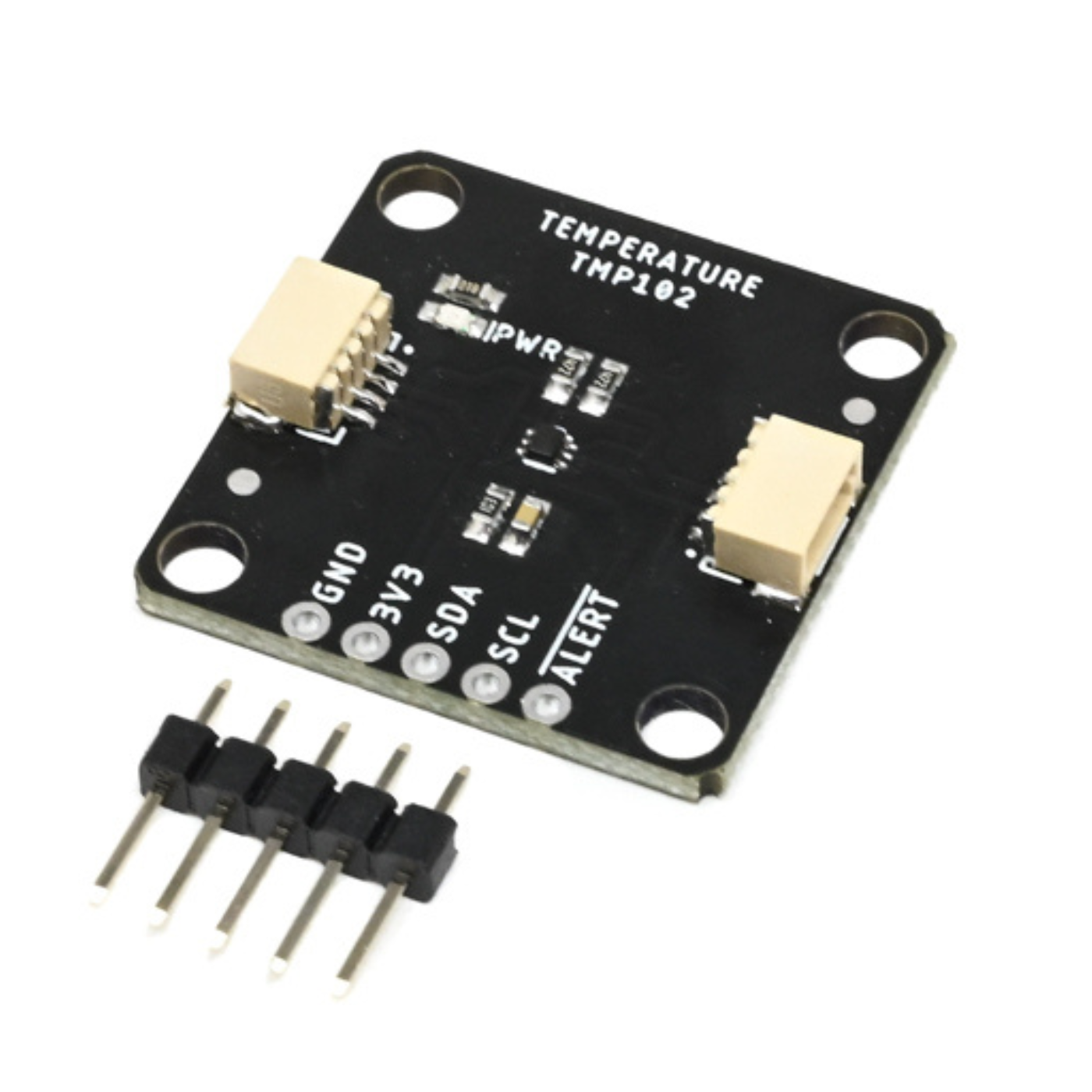

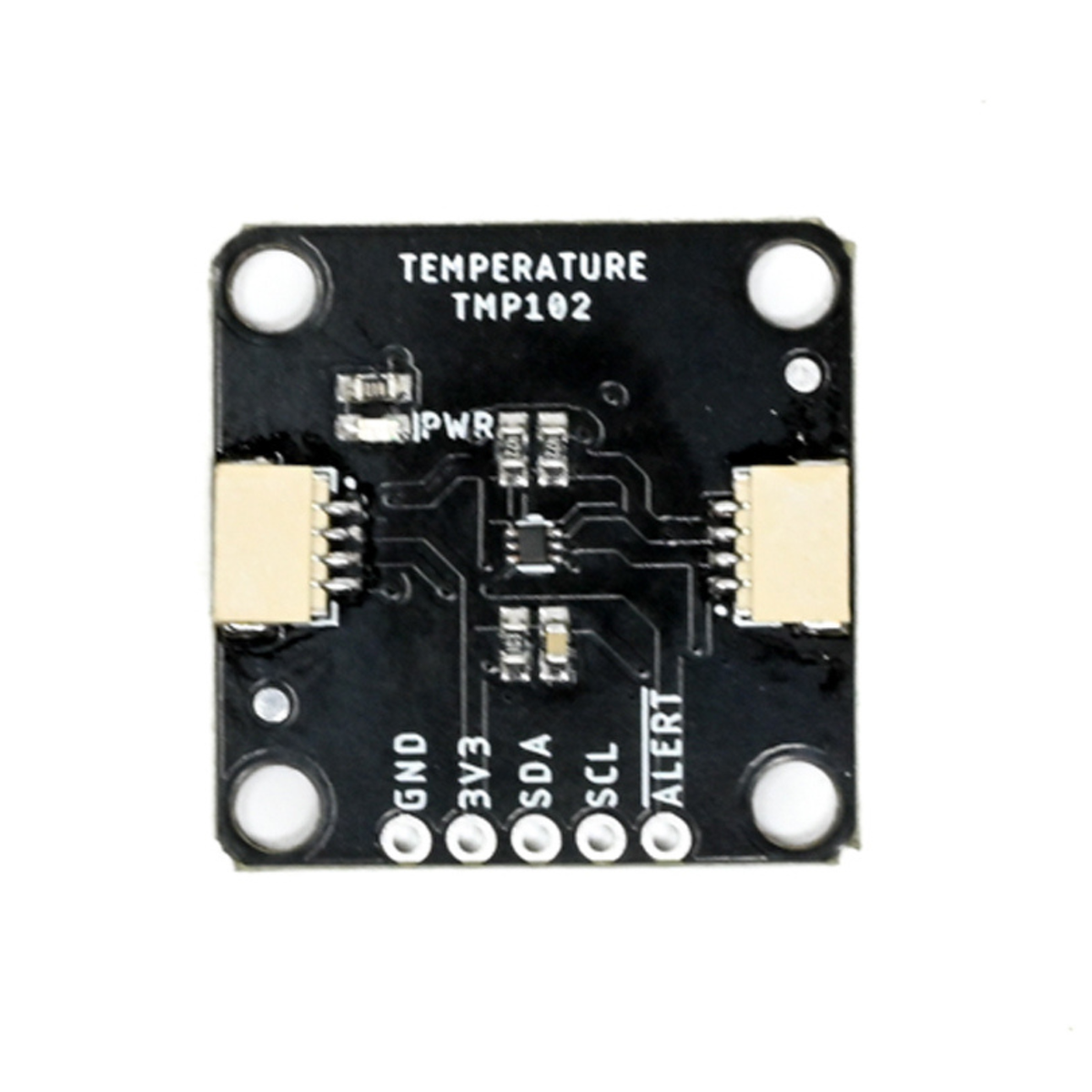

SmartElex TMP102 Digital Temperature Sensor

The SmartElex TMP102 Digital Temperature Sensor is a compact and easy-to-use Temperature Sensor Module designed for accurate digital temperature measurement in Arduino, IoT, and embedded projects.

Unlike analog sensors, this Digital Temperature Sensor communicates directly over the I2C bus, delivering stable and noise-free readings with a fine resolution of 0.0625°C and accuracy of ±0.5°C.

It operates efficiently within a 1.4V to 3.6V range and includes onboard 4.7kΩ pull-up resistors for hassle-free I2C communication without level shifting.

With added Molex PicoBlade connectors, an address jumper for flexible I2C addressing, and standard 0.1″ pin spacing for breadboard compatibility, this module is ideal for temperature monitoring, automation systems, and low-power electronics projects.

Features:

uses the I2C interface.
I2C Address: 0x48 by default (three more addresses are also selectable).
Resolution: 12-bit, 0.0625ºC.
Typical temperature accuracy is 0.5ºC.
3.3 V sensor
Supports up to four TMP102 sensors on the I2C bus at one time.
2 Molex PicoBlade Connectors

Specifications

Package Includes:

1 x SmartElex TMP102 Digital Temperature Sensor

Specifications:

Model	Temperature Sensor
Model No.	TMP102
Voltage Rating (V)	3.3V
Supply Voltage (V)	1.4V to 3.6V
Interface	I2C
Length (mm)	25.4
Width (mm)	25.4
Weight (g)	1

Additional Resources

User Manual
