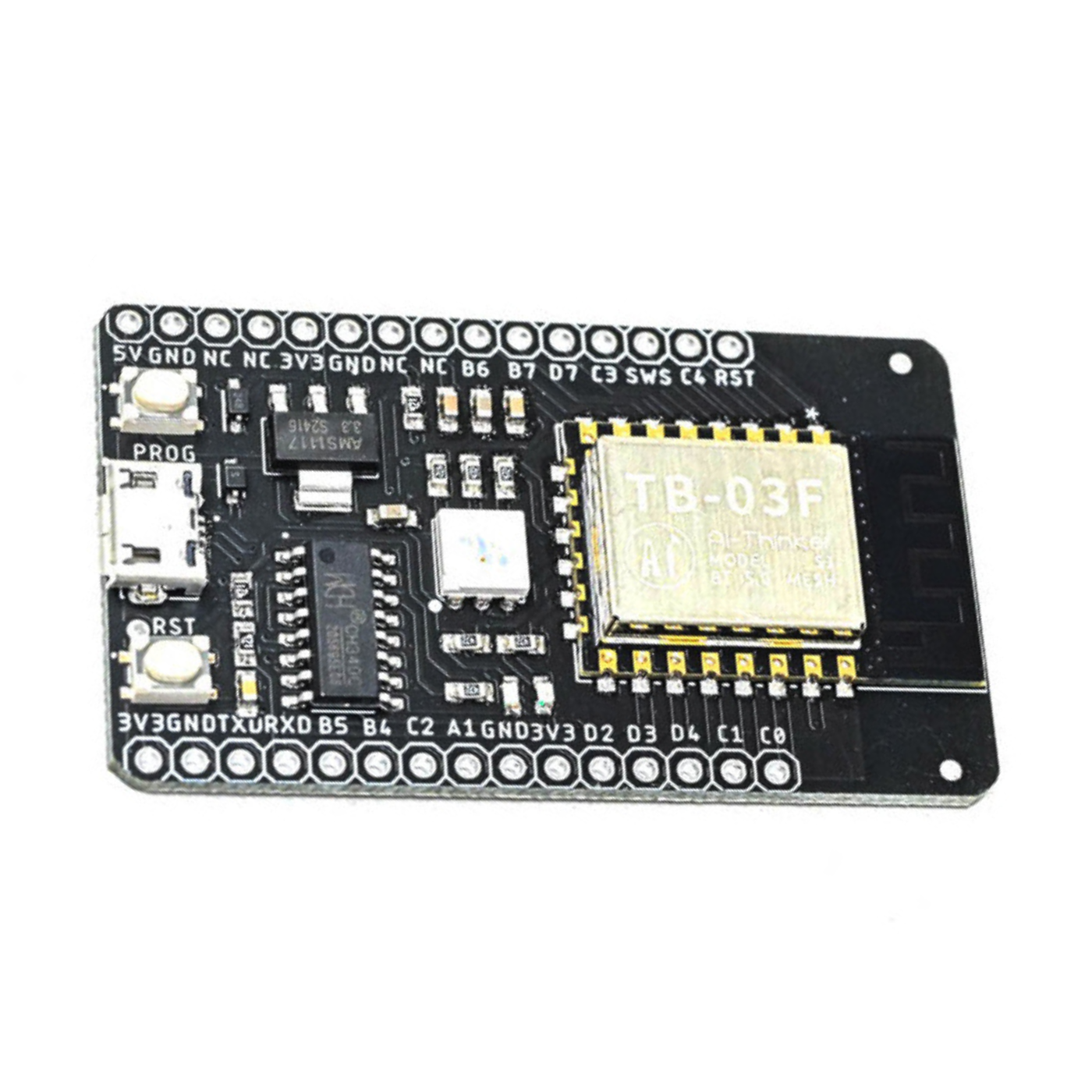

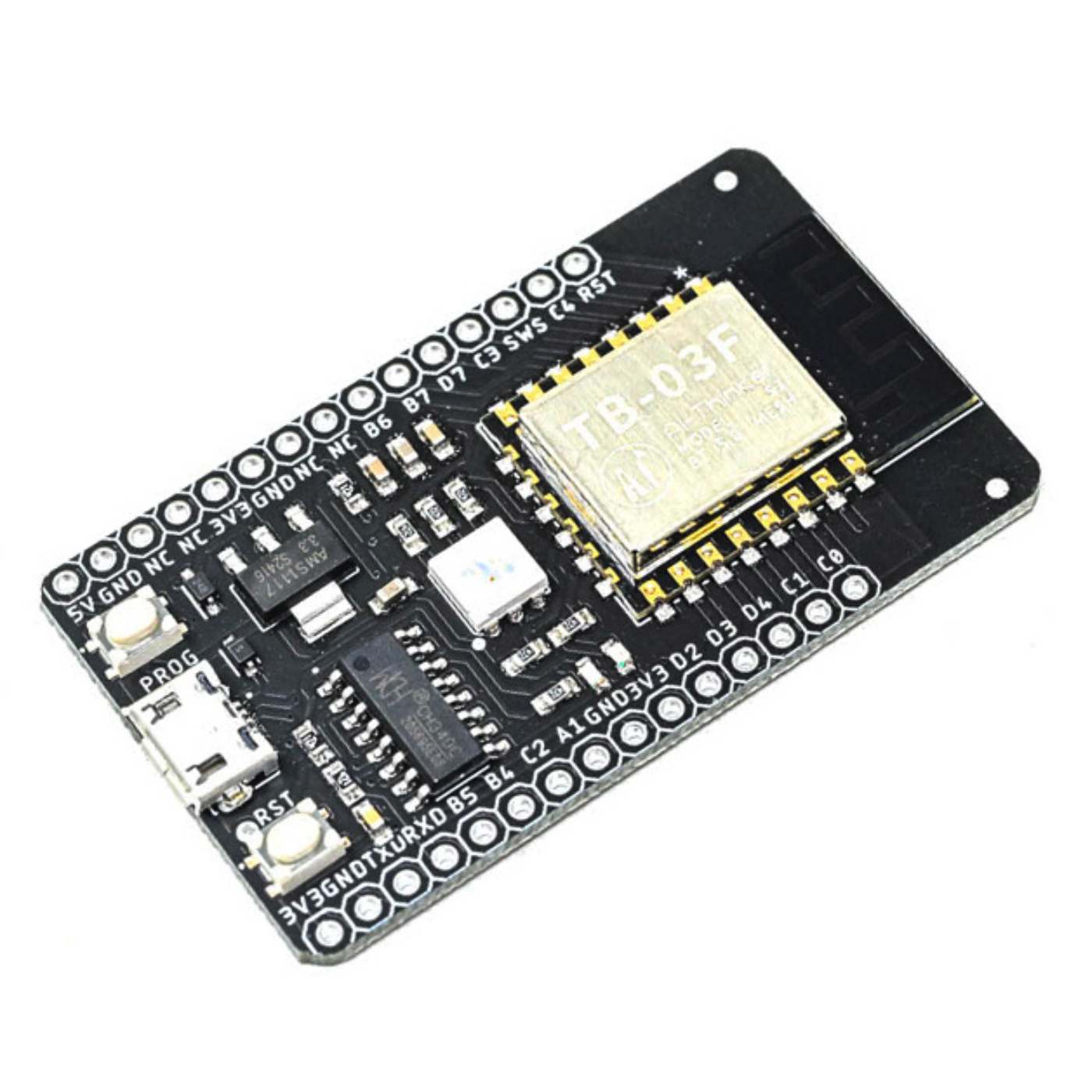

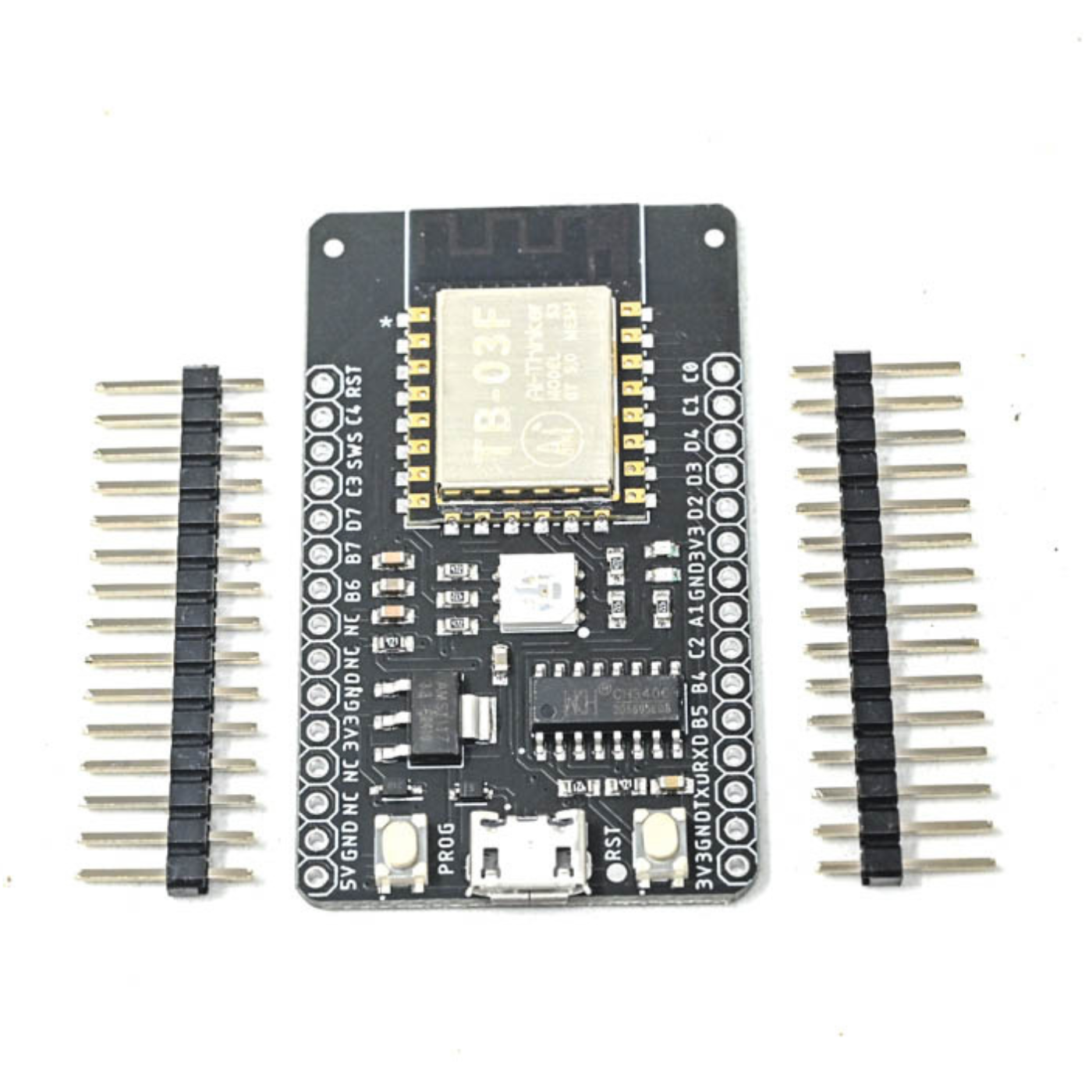

The SmartElex TB-03F Bluetooth Module for Smart Lighting is a compact and efficient Bluetooth 5.0 Low Power Module built on the TLSR8253 chipset, specially designed for intelligent lighting control systems.
It conforms to BT 5.0 low power Tmall Genie Mesh standards, enabling direct control through Tmall Genie voice commands. Using star network communication and Bluetooth broadcast technology, this Bluetooth Module ensures quick and reliable response even when multiple lighting devices are connected.
With low power consumption, minimal latency, and stable short-range wireless communication, the TB-03F is an ideal solution for modern smart lighting and IoT-based automation applications.
| Parameter | Specification |
|---|---|
| Item Type | Bluetooth Module |
| Model Name | TB-03F |
| Wireless Standard | BT 5.0 (Bluetooth 5.0 Low Power Module) |
| Frequency Rating | 2400 – 2483.5 MHz |
| Transmit Power | Maximum 10 dBm |
| Receive Sensitivity | -93 dBm ±2 |
| Transmission Distance | Open Line of Sight: 80 m – 150 m |
| Overall Dimensions | 24 × 16 × 3 mm (±0.2 mm) |
| Package Type | SMD-22 |
| Interface | GPIO / PWM / SPI / ADC / I2S |
| Operating Temperature | -40 ℃ to 85 ℃ |
| Environmental Temperature | -40 ℃ to 125 ℃, < 90% RH |
