SmartElex MPL3115A2 Altitude Pressure Sensor Breakout Board - Buy Online in India

SmartElex MPL3115A2 Altitude Pressure Sensor Breakout Board

Rs. 606; ~~Rs. 689~~; Rs. 606
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

SKU: TIFSS0389

High-precision Altitude Pressure Sensor using the MPL3115A2 MEMS technology
Measures altitude with up to 30 cm accuracy (with oversampling enabled)
Integrated 24-bit ADC for highly accurate pressure and altitude readings
Supports I2C communication, compatible with Arduino, Raspberry Pi, and other controllers
Provides 12-bit temperature output in degrees Celsius
Easy-to-use Breakout Board with standard 0.1″ pin headers
Ideal altitude sensor module for IoT, drones, weather stations, and DIY projects

BEST COUPON

RC100

COPY CODE

When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name*

Last Name*

Email*

Phone*

Quantity*

Company

Comments

Enter the Captcha

Reload

SmartElex MPL3115A2 Altitude Pressure Sensor Breakout Board

~~Rs. 689~~ Rs. 606

Quantity:

SmartElex MPL3115A2 Altitude Pressure Sensor Breakout Board

~~Rs. 689~~ Rs. 606

Description
Specifications
Additional Resources
Shipping & Return

Description

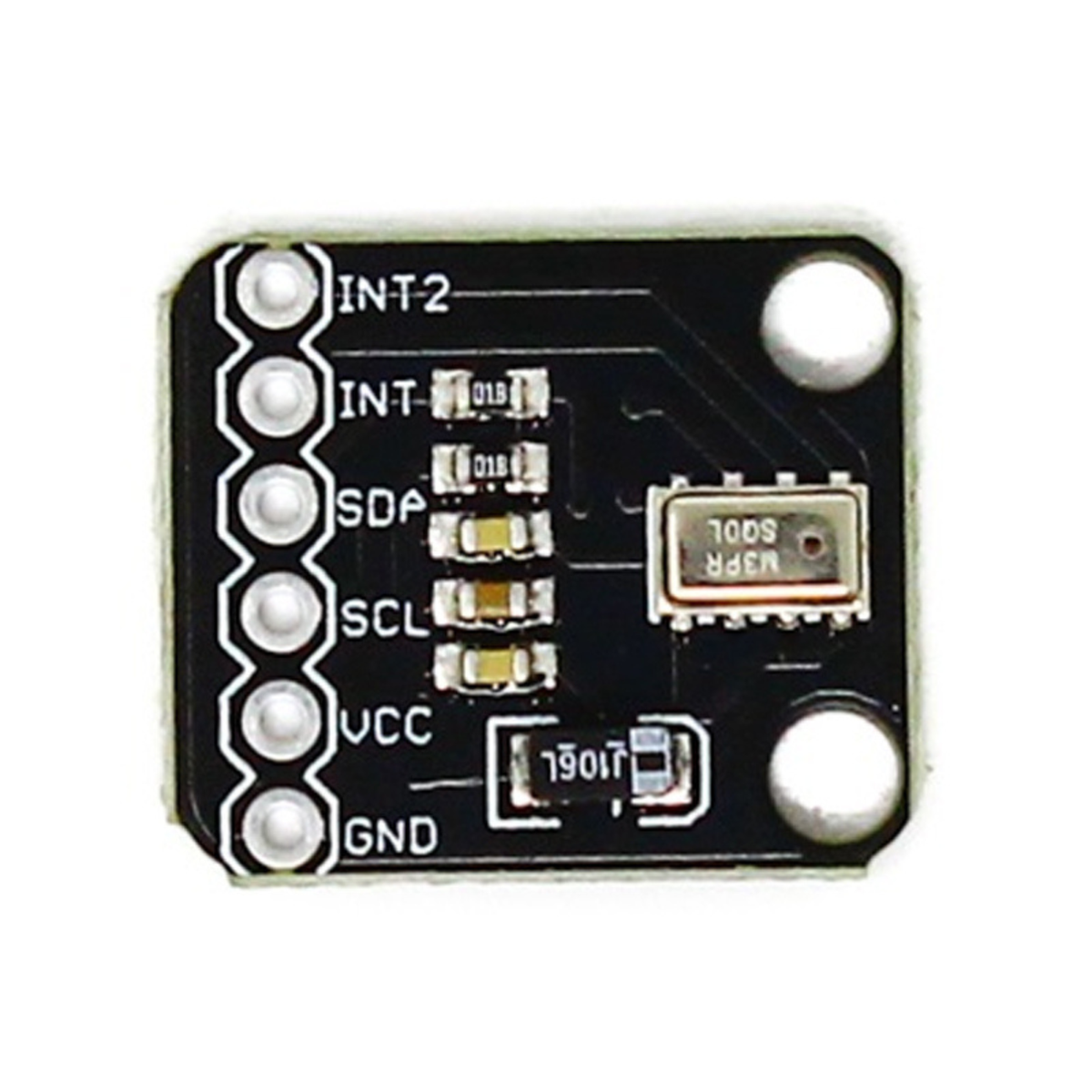

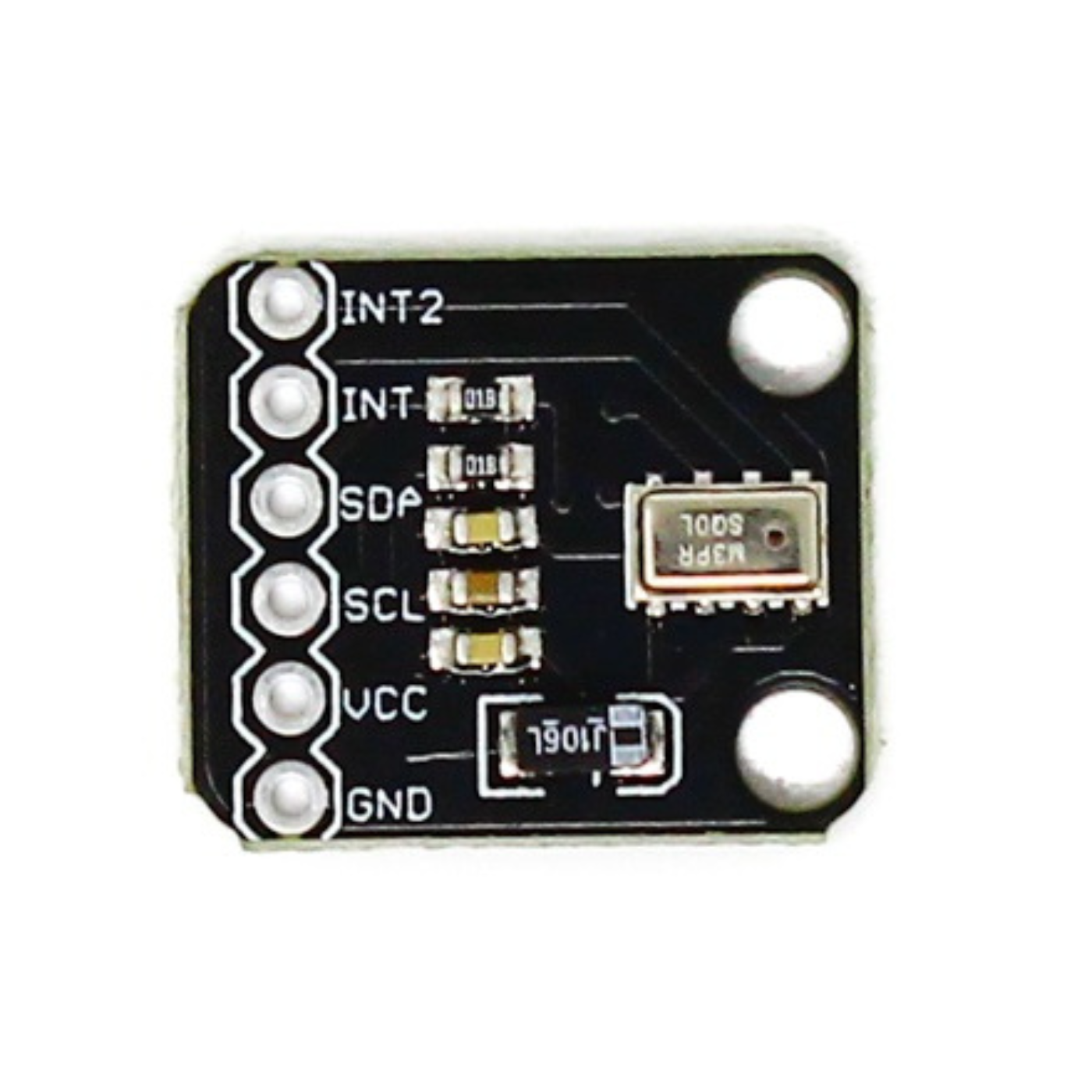

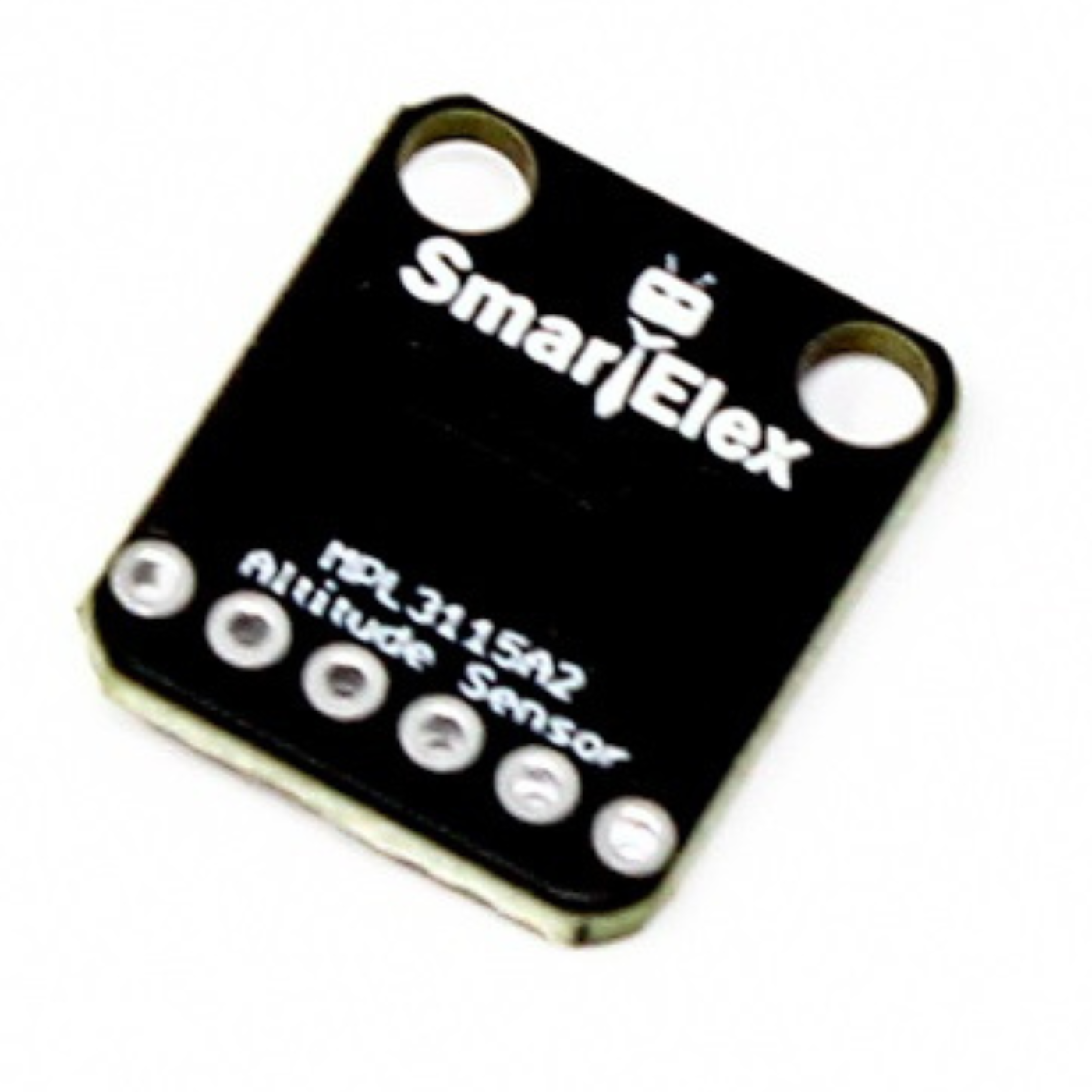

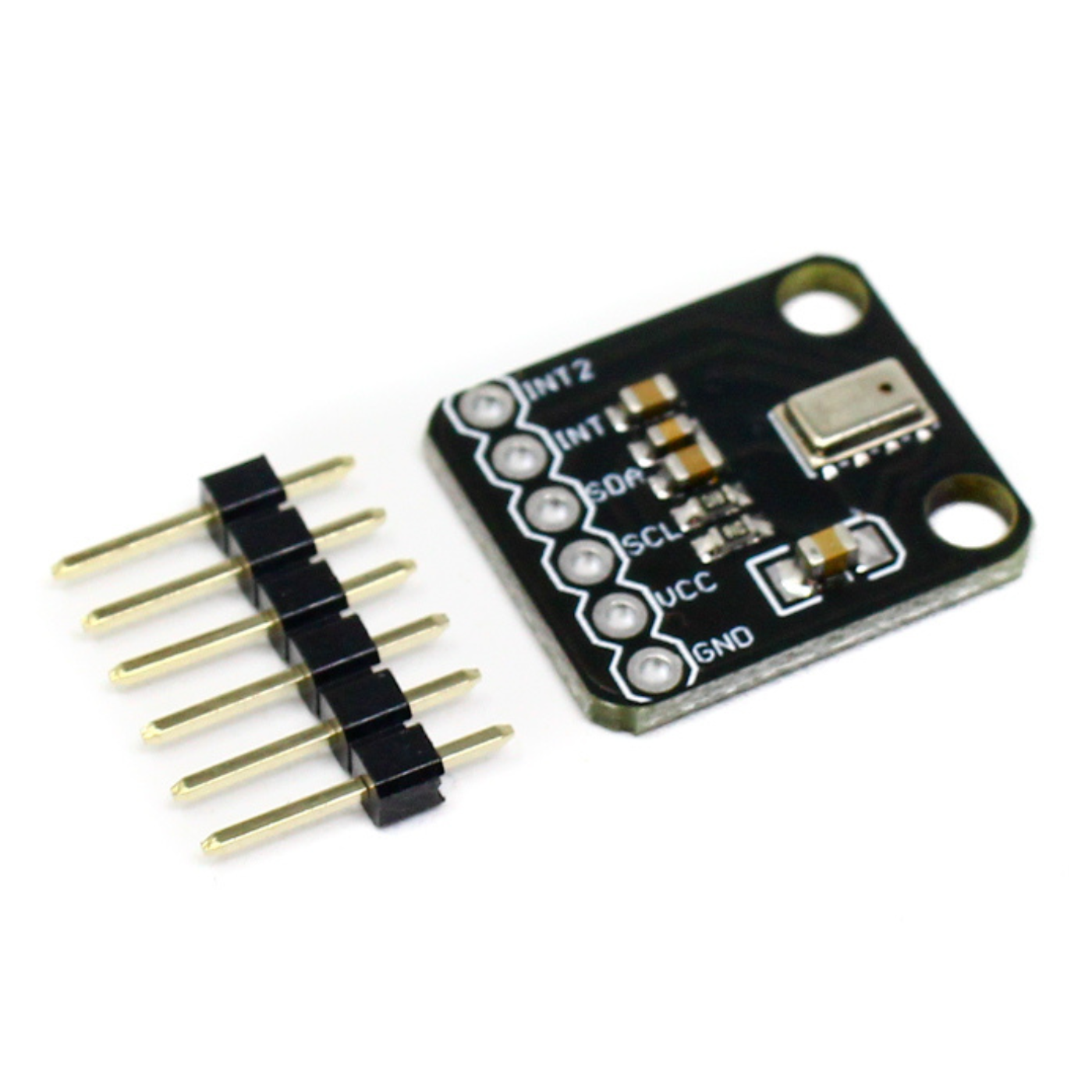

SmartElex MPL3115A2 Altitude Pressure Sensor Breakout Board

The SmartElex MPL3115A2 Altitude Pressure Sensor Breakout Board is a compact and reliable altitude sensor module designed for precise environmental measurements. Based on the MPL3115A2 MEMS sensor, it delivers altitude data with accuracy up to 30 cm and pressure readings in fractions of a Pascal using a high-resolution 24-bit ADC.

The sensor communicates via I2C, making it simple to interface with popular microcontrollers and development boards. This Breakout Board includes all required passive components and exposes the pins on a 0.1″ header, allowing quick prototyping without extra circuitry.

With added 12-bit temperature sensing, this Altitude Pressure Sensor is well-suited for drones, weather monitoring, navigation systems, and embedded IoT applications.

Features:

Supply voltage ranges from 1.95V to 3.6V and is internally regulated by the LDO.
Digital interface supply voltage ranges from 1.6 to 3.6 V.
Internally, fully compensated.
Direct reading, compensated.

Pressure: 20-bit measurement (in Pascals)
Altitude: 20-bit measurement (metres)
Temperature: 12-bit measurement (in degrees Celsius)

Programmable events.
Autonomous Data Acquisition
Resolution down to 1 ft. (30 cm)
32 Sample FIFO
Ability to log data for up to 12 days using the FIFO method
Data acquisition rates range from one second to nine hours.
I2C digital output interface operates at up to 400 kHz.

Specifications

Package Includes:

1 x SmartElex MPL3115A2 Altitude Pressure Sensor Breakout Board

Specifications:

Parameter	Specification
Model	Breakout Board, Pressure Sensor
Model No.	MPL3115A2
Voltage Rating (V)	1.95 to 3.6
Length (mm)	18.01
Width (mm)	25.24
