SmartElex LSM303AGR Accelerometer/Magnetometer - Buy Online in India

SmartElex LSM303AGR Accelerometer/Magnetometer

Rs. 325; ~~Rs. 389~~; Rs. 325
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

SKU: TIFCC0301

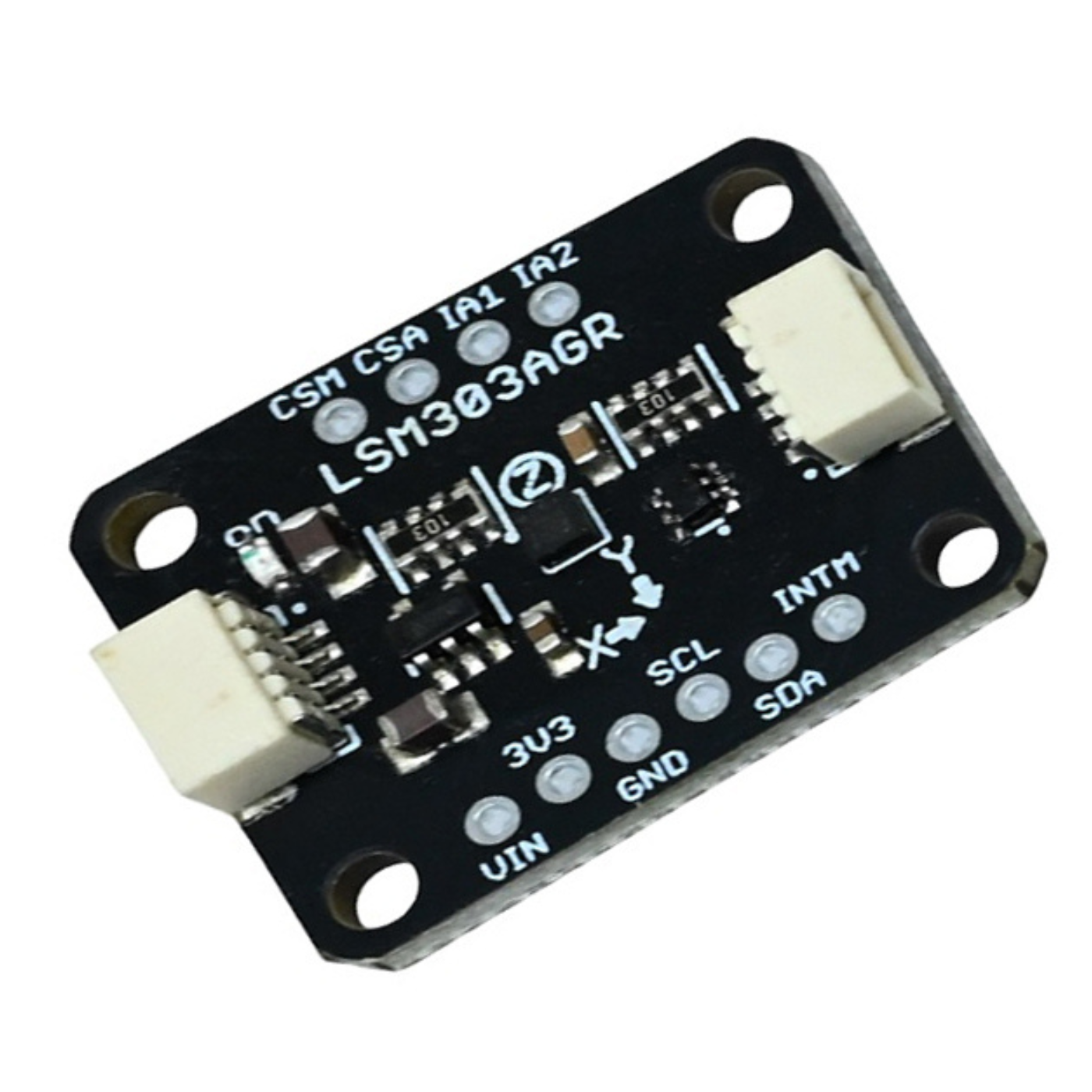

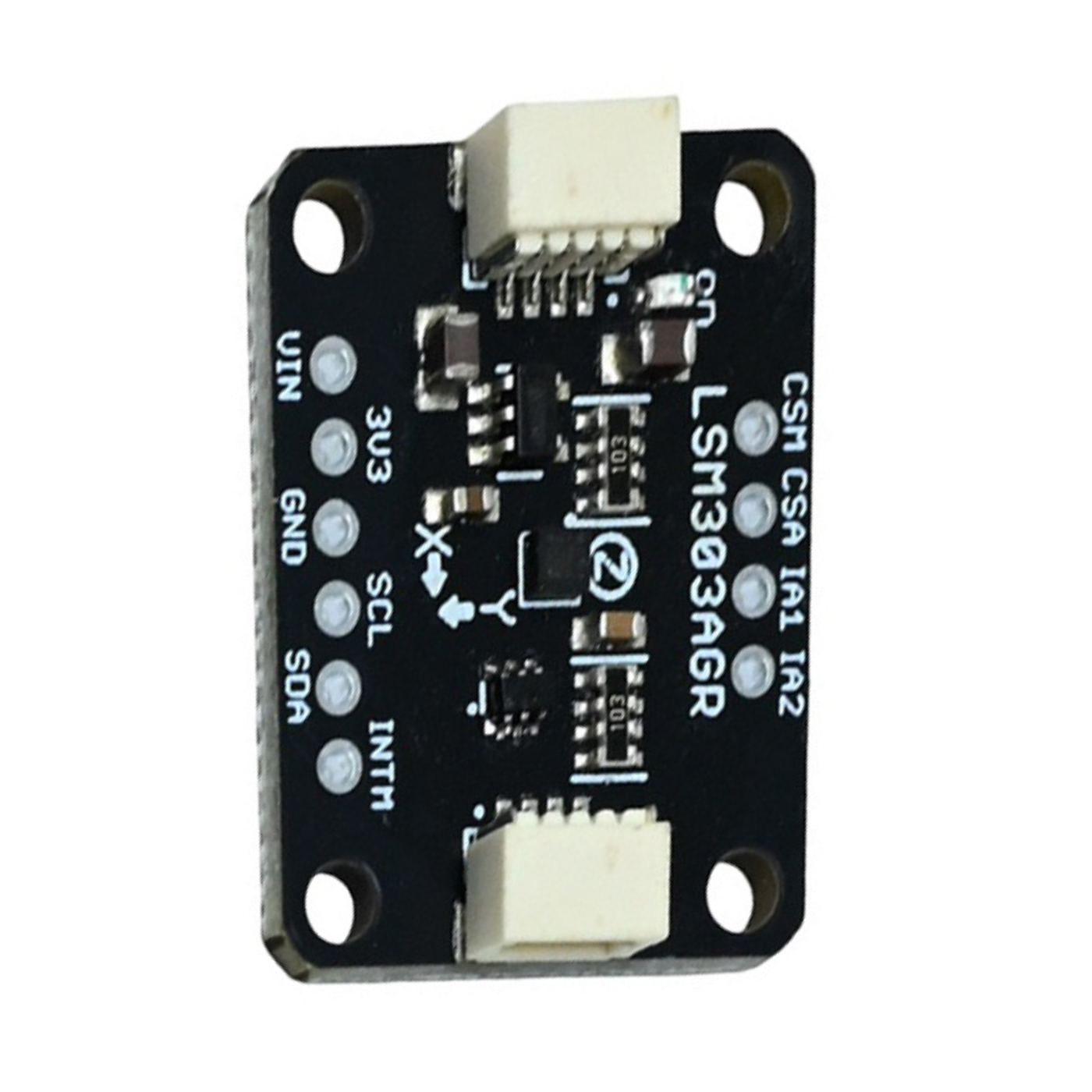

SmartElex LSM303AGR Accelerometer & Magnetometer digital tilt and compass sensor
Combines 3-axis accelerometer + 3-axis magnetometer in a single compact module
Accurately detects tilt, orientation, motion, and magnetic north
Uses I2C interface for simple and reliable communication
Supports 3.3V and 5V logic levels (Arduino, Raspberry Pi, Feather compatible)

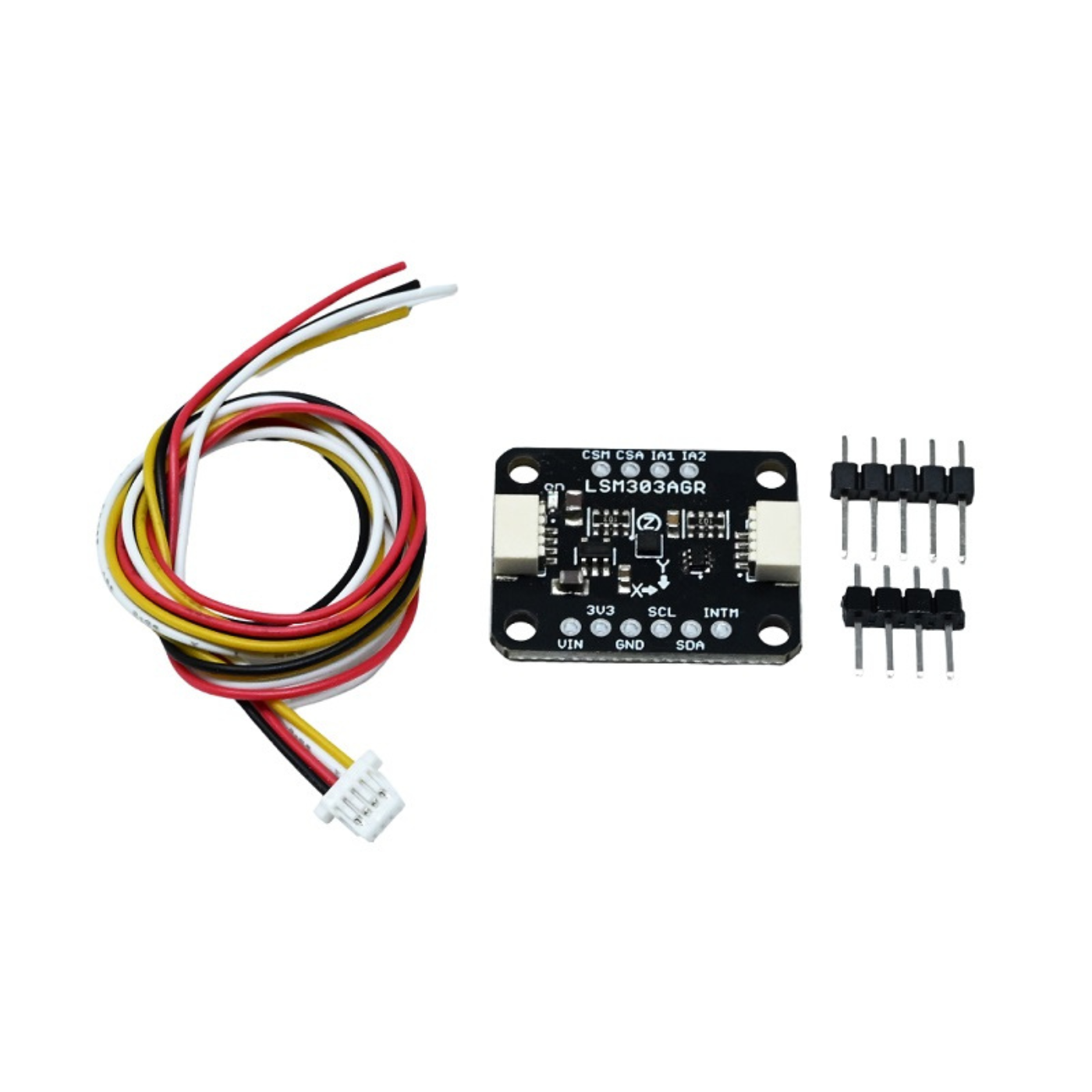

Pre-assembled breakout board with Molex PicoBlade I2C connectors
Includes 0.1″ header pins and 4 mounting holes for easy integration

BEST COUPON

RC100

COPY CODE

When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name*

Last Name*

Email*

Phone*

Quantity*

Company

Comments

Enter the Captcha

Reload

SmartElex LSM303AGR Accelerometer/Magnetometer

~~Rs. 389~~ Rs. 325

Quantity:

SmartElex LSM303AGR Accelerometer/Magnetometer

~~Rs. 389~~ Rs. 325

Description
Specifications
Additional Resources
Shipping & Return

Description

SmartElex LSM303AGR Accelerometer/Magnetometer

The SmartElex LSM303AGR Accelerometer & Magnetometer digital tilt and compass sensor is a compact, high-precision module designed to measure motion, orientation, and heading in embedded and IoT projects.

It integrates a 3-axis accelerometer to sense tilt and gravity direction, along with a 3-axis magnetometer to detect magnetic fields and determine compass heading. By combining both sensor outputs, the module enables accurate orientation and navigation data for robotics, drones, wearables, and motion-aware systems.

Based on the latest LSM303AGR sensor, it communicates via I2C, works seamlessly with both 3.3V and 5V microcontrollers, and comes fully assembled on a breakout PCB with onboard support circuitry—making it easy to use, solder-free, and ready for real-world applications.

Features:

LSM303AGR - Triple-axis accelerometer and magnetometer.
I2C Communication Interface.
Supply voltage - 3.3V 5V
50 mGauss magnetic dynamic range.
1.5 gauss magnetic sensitivity.
Accelerometer ranges: 2/4/8/16g.
Accelerometer sensitivity is as low as 1mg

Specifications

Package Includes:

1 x SmartElex LSM303AGR Accelerometer/Magnetometer

Specifications:

Model	Accelerometer & Magnetometer
Model No.	LSM303AGR
Voltage Rating	3.3V to 5V
Communication Mode	I2C
Length	26.47 mm
Width	20.83 mm
