SmartElex CAP1203 Capacitive Touch Slider -Sensors -Pressure/Touch Sensors -Robocraze

SmartElex BEST PRICE GUARANTEED

SmartElex CAP1203 Capacitive Touch Slider - Buy Online in India

SmartElex CAP1203 Capacitive Touch Slider

Rs. 180; ~~Rs. 249~~; Rs. 180
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

SKU: TIFSS0390

Based on CAP1203 capacitive touch controller with 3 independent touch inputs
Works as a Capacitive Touch Slider or as three individual touch buttons
Supports I2C communication with a fixed address 0x28
Onboard arrow-shaped touch pads for immediate use
Breakout 0.1″-spaced pins for breadboard compatibility
Customizable sensitivity and interrupt alert LED support
No soldering required, but pads available for custom touch electrodes
Ideal touch sensor breakout for Arduino, Raspberry Pi, and DIY projects

BEST COUPON

RC100

COPY CODE

When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name*

Last Name*

Email*

Phone*

Quantity*

Company

Comments

Enter the Captcha

Reload

SmartElex CAP1203 Capacitive Touch Slider

~~Rs. 249~~ Rs. 180

Quantity:

SmartElex CAP1203 Capacitive Touch Slider

~~Rs. 249~~ Rs. 180

Description
Specifications
Additional Resources
Shipping & Return

Description

SmartElex CAP1203 Capacitive Touch Slider

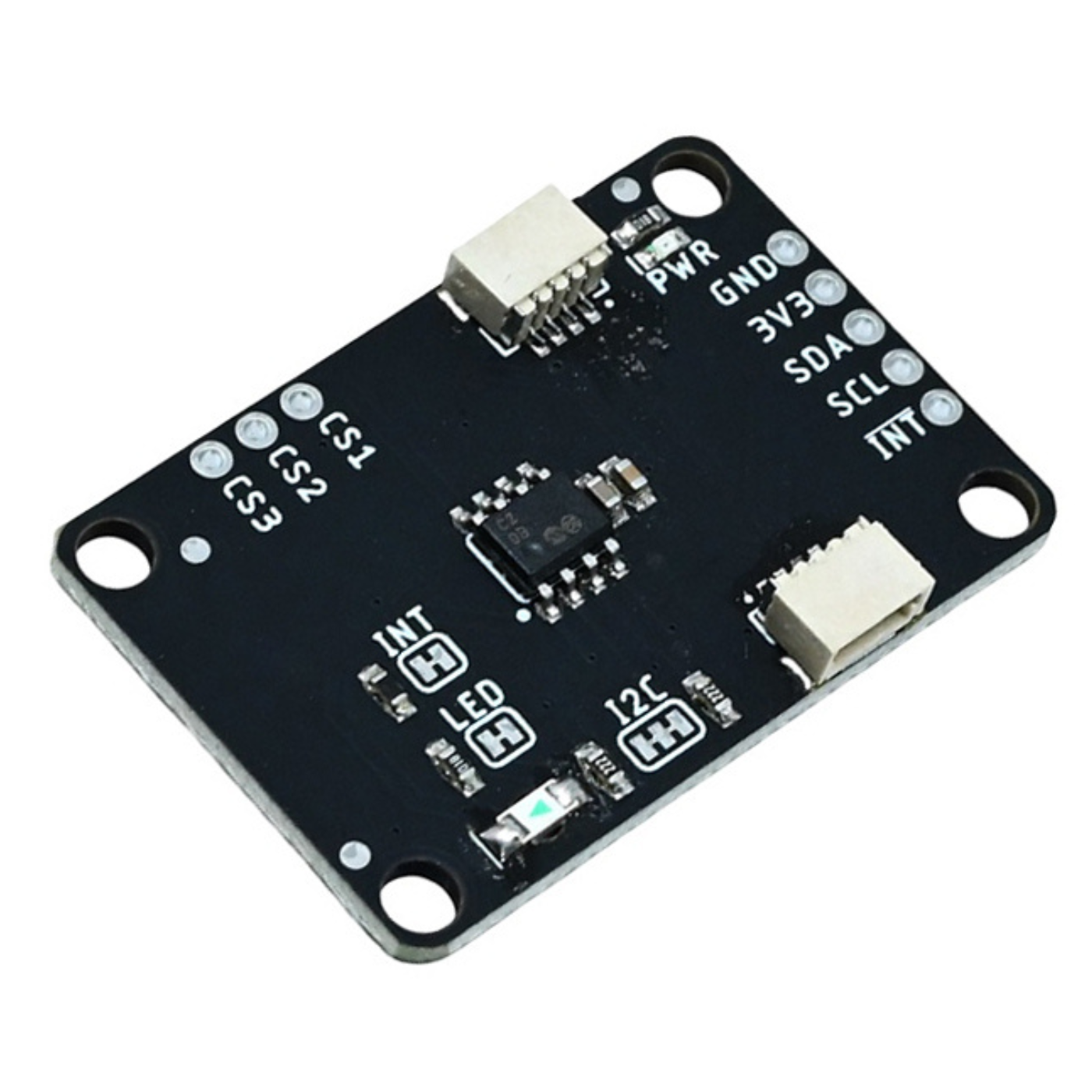

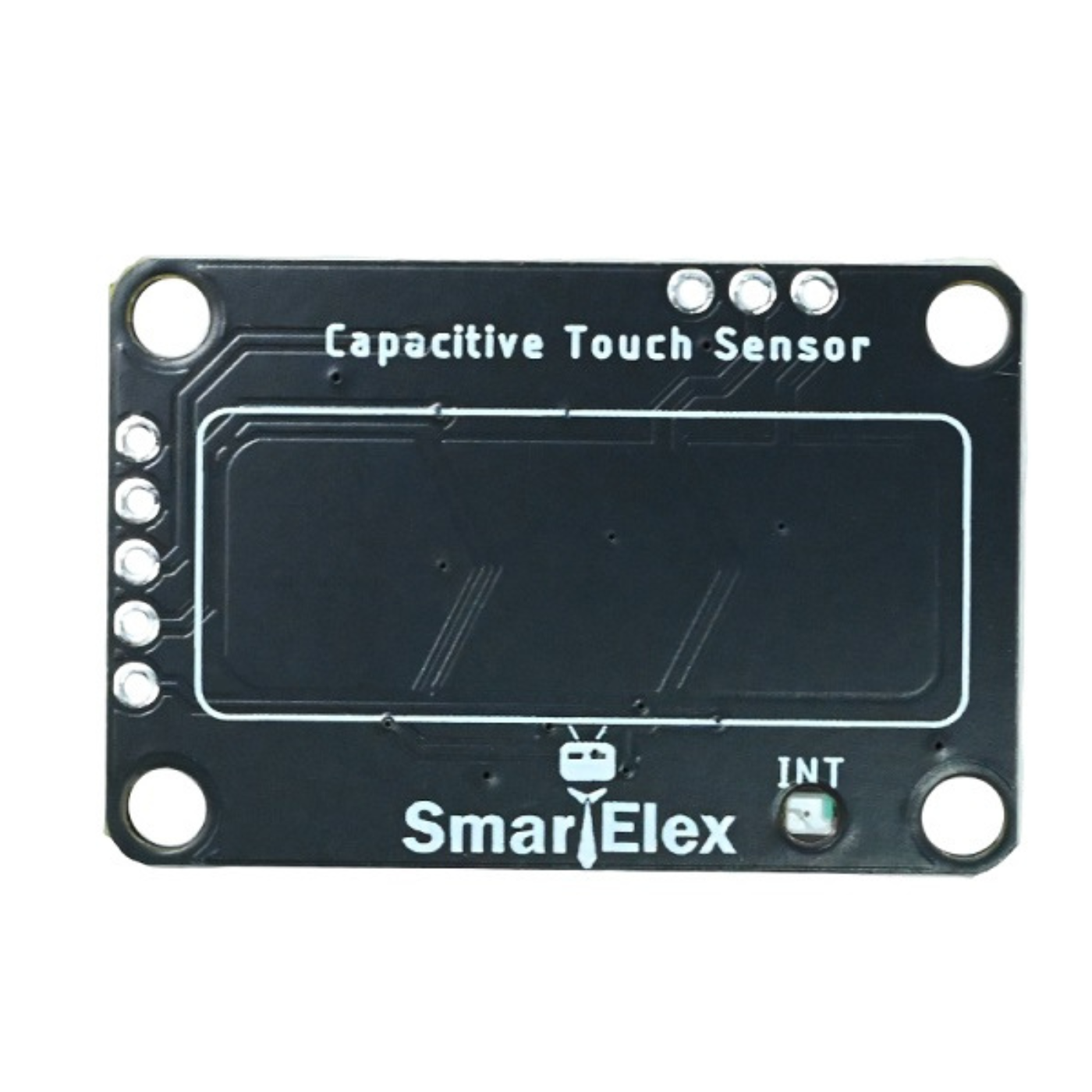

The SmartElex CAP1203 Capacitive Touch Slider is a versatile touch sensor breakout designed to replace traditional mechanical sliders or buttons with a smooth, modern capacitive interface. Powered by the CAP1203 IC, it features three capacitive touch pads arranged in an arrow shape, allowing it to function either as a Capacitive Touch Slider or as three separate touch inputs.

The board communicates via I2C (address: 0x28) and supports adjustable touch sensitivity, power-button functionality, and interrupt-based alerts using the onboard LED. With 0.1″ breakout pins and plated through-holes for external touch pads, it works effortlessly with breadboards and custom designs—no soldering required for basic use.

Perfect for interactive art installations, control panels, and science experiments, this module adds a reliable and intuitive touch interface to any project.

Features:

Model: CAP1203
Three unique capacitive touch inputs.
Emulated slider.
Power button settings
Sensitivity is programmable
Automatic recalibration.
I2C Address: 0x28.
Supply Voltage: 3.3V - 5V.

Specifications

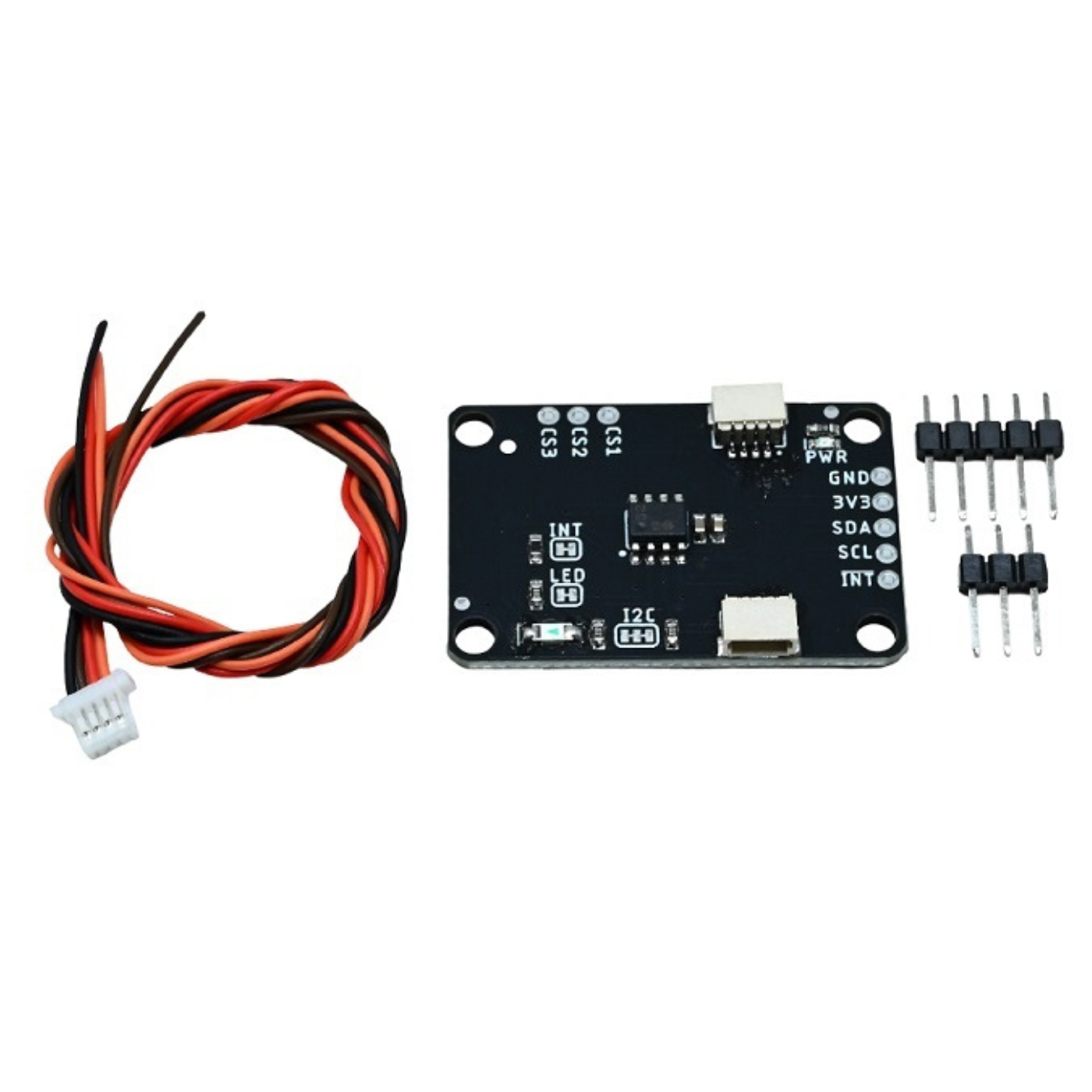

Package Includes:

1 x SmartElex CAP1203 Capacitive Touch Slider

Specifications:

Model	Capacitive Touch Slider
Model No.	CAP1203
Voltage Rating (V)	3.3V to 5V
I2C Address	0x28
