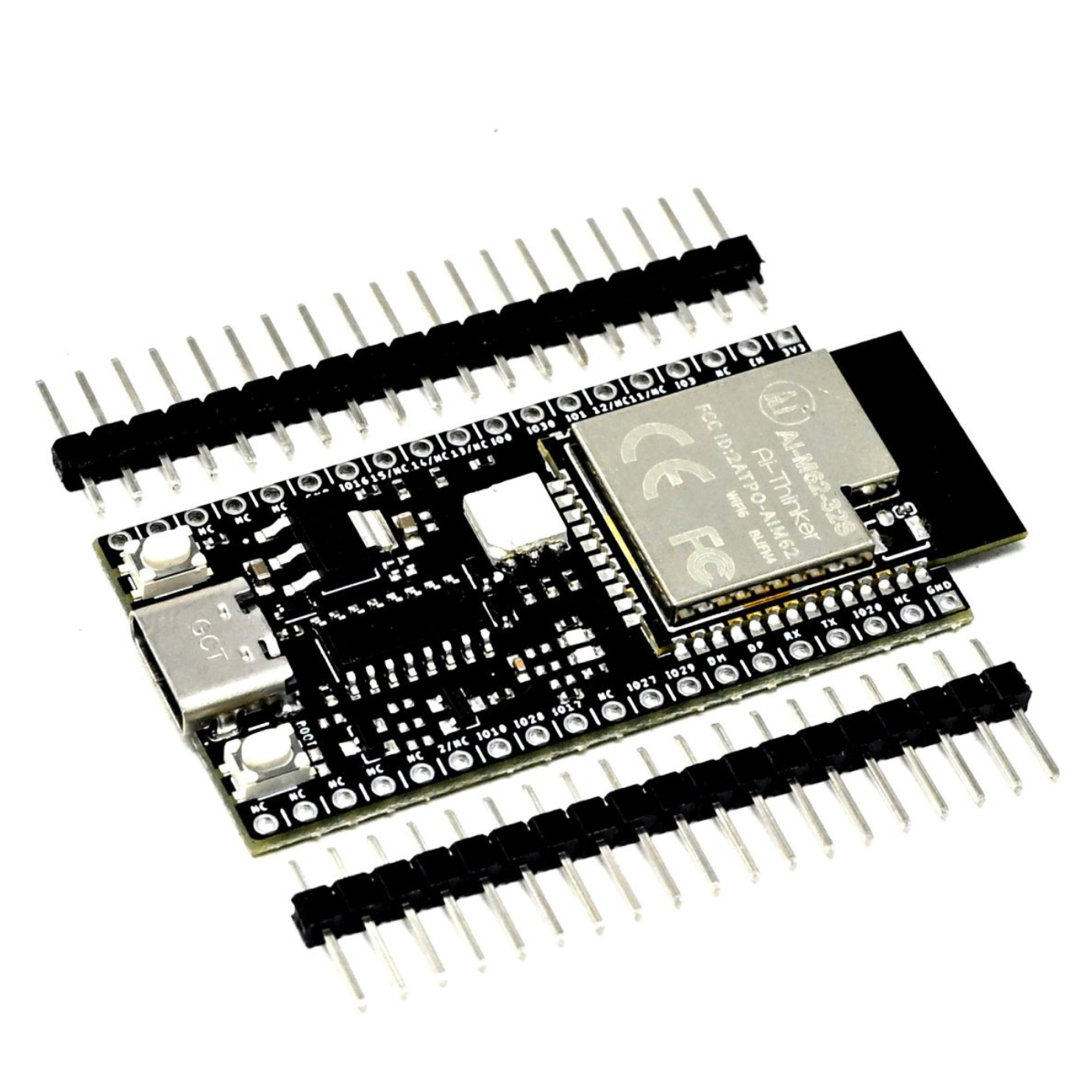

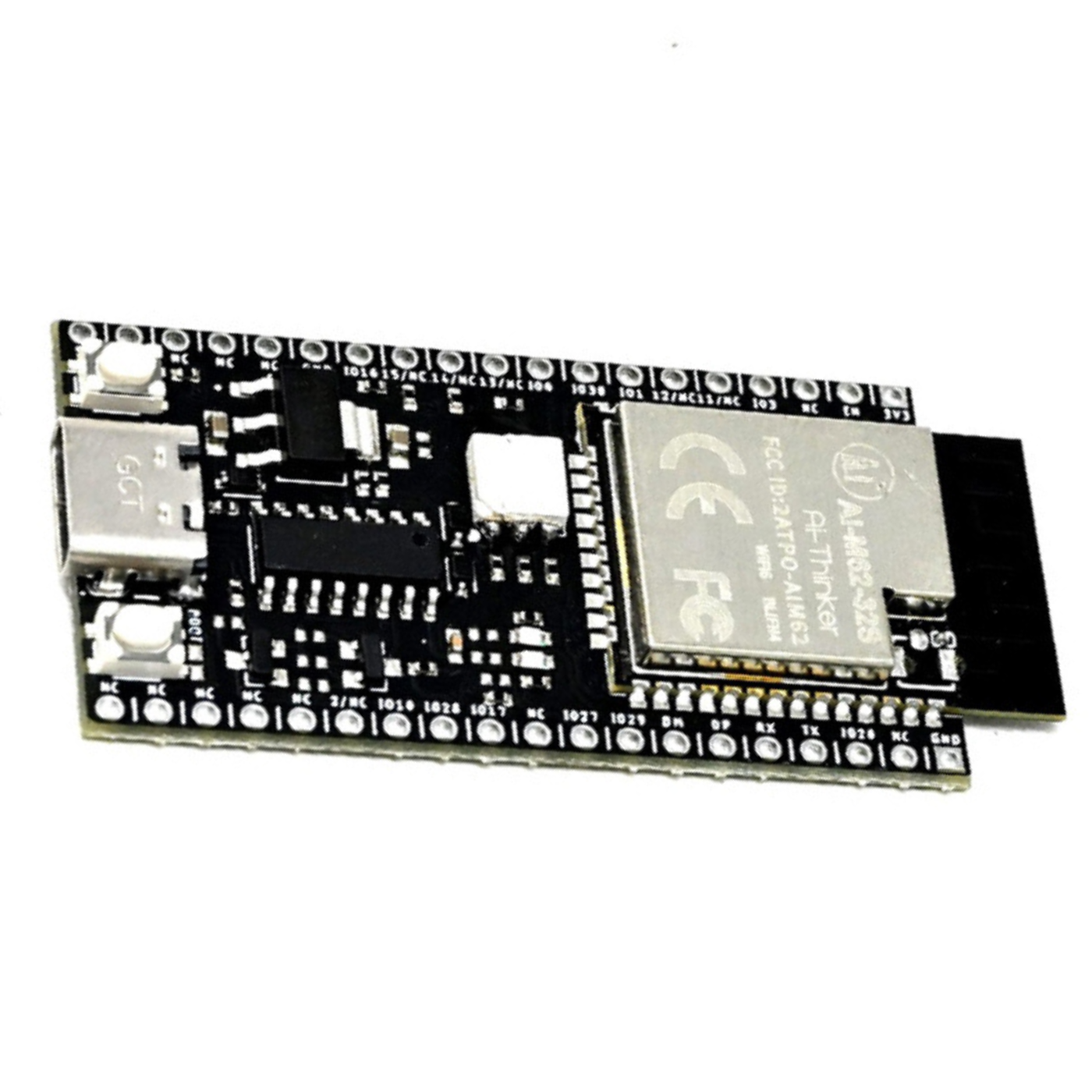

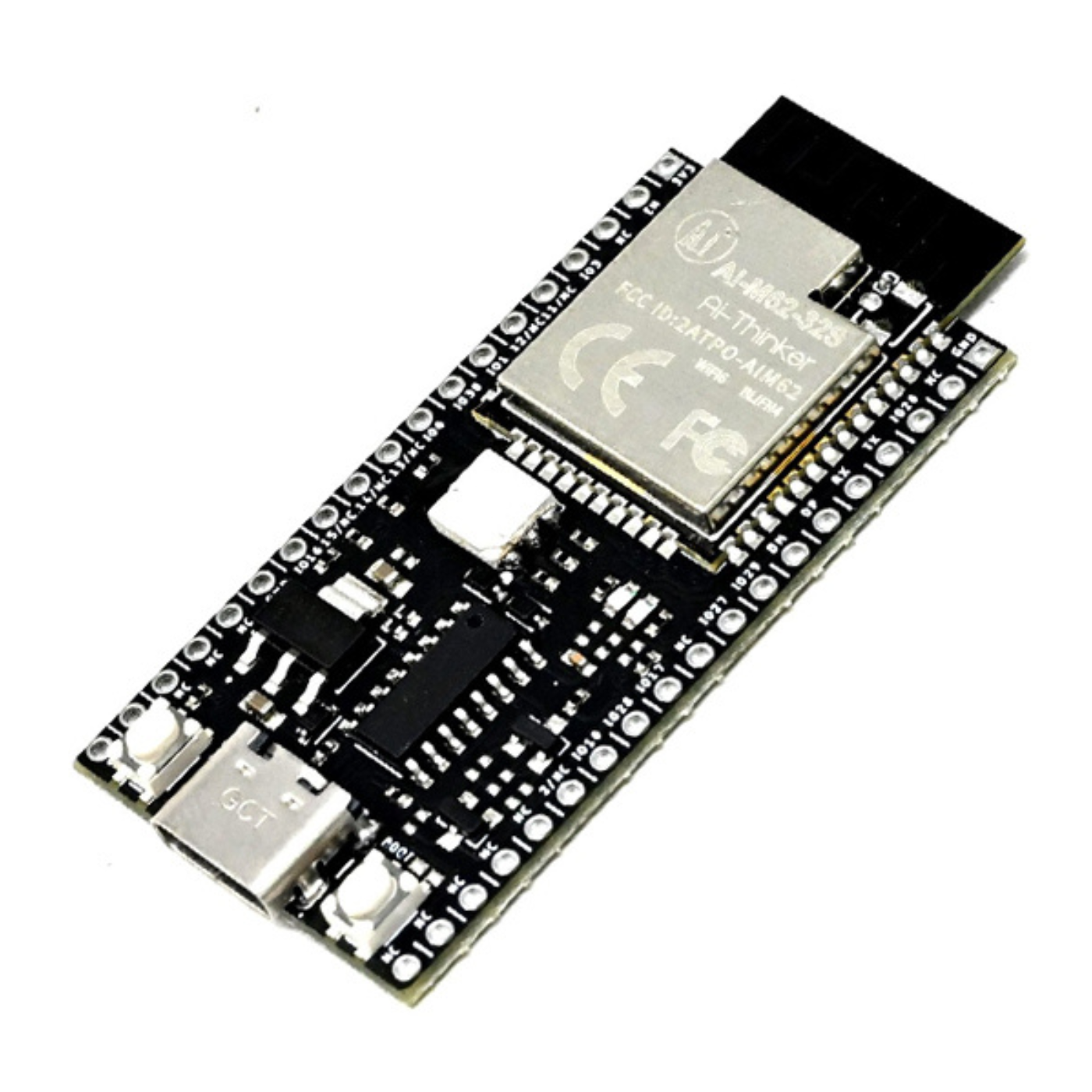

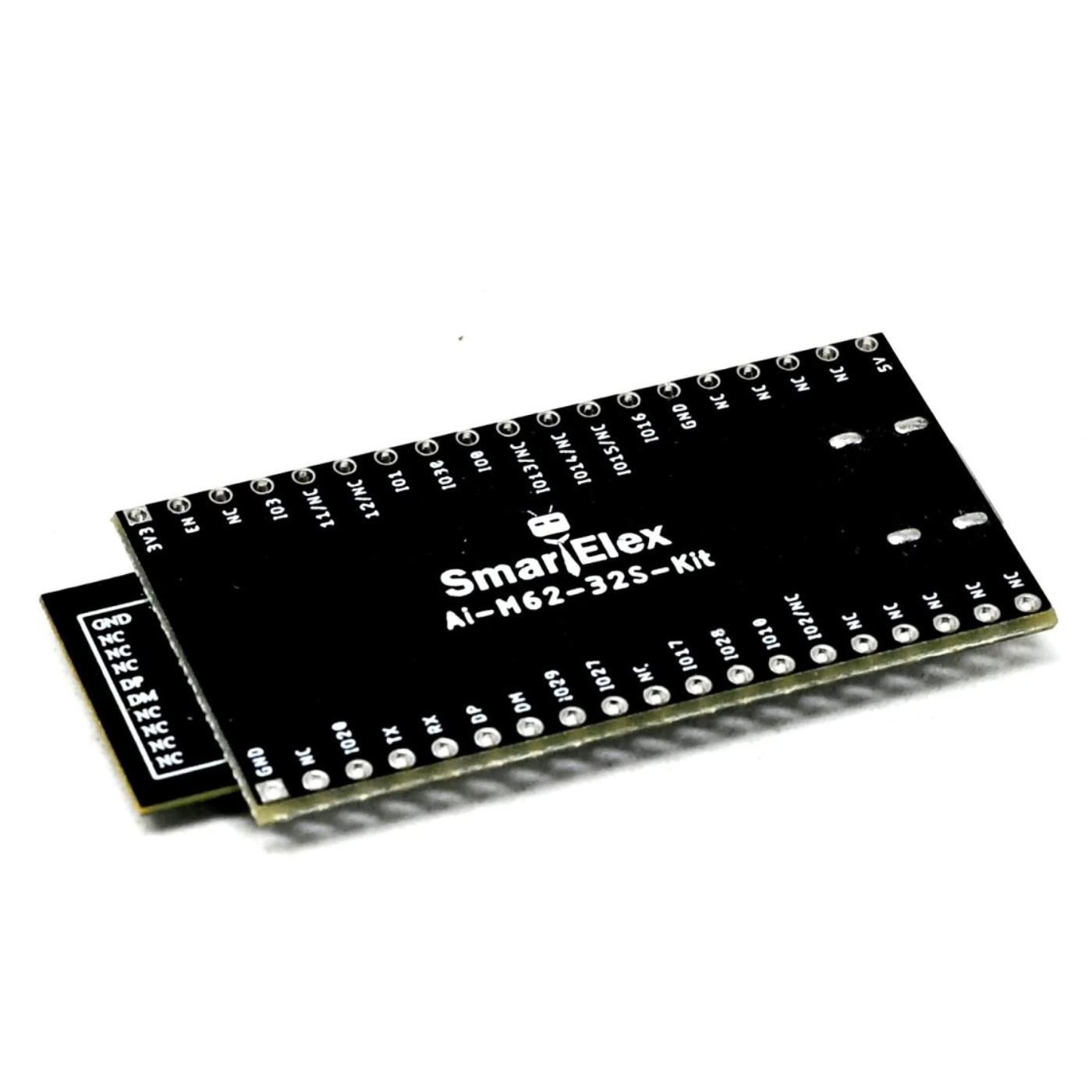

SmartElex Ai Thinker Ai M62 32S Development Kit
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The SmartElex AI Thinker Ai-M62-32S Development Kit is a powerful and versatile solution designed for modern wireless and IoT applications. Built around the BL616 RISC-V CPU, it delivers high performance with a maximum operating frequency of 320 MHz, making it suitable for real-time data processing and edge computing.
This AI thinker modules platform supports Wi-Fi 6, BLE 5.3, and Thread protocol, ensuring fast, stable, and low-power connectivity. The Ai-M62-32S Development Kit features a wide range of interfaces including USB 2.0, SPI, UART, I2C, I2S, PWM, ADC, DAC, and GPIO, enabling seamless integration with sensors, displays, and peripherals.
With built-in hardware security engines supporting AES, SHA, PKA, and TRNG, along with secure boot and encrypted firmware startup, it meets strict security requirements for IoT deployments. This makes the Ai-M62-32S Development Kit an excellent choice for smart home systems, wearable electronics, multimedia devices, and next-generation IoT solutions.
| Item Type | Kit |
|---|---|
| Model Name | Ai-M62-32S |
| Frequency Rating | 2400 to 2483.5 MHz |
| Package | SMD-38 |
| Antenna | Onboard Antenna / IPEX Seat |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 125°C, < 90% RH |
| Power Supply | 2.97V to 3.6V, Supply Current ≥ 500mA |
| Interfaces | USB 2.0, SDU, SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO |
| I/O Pins | 18 |
| UART Baud Rate | Default 115200 bps |
| Security | WPS, WEP, WPA, WPA2, WPA3 |
