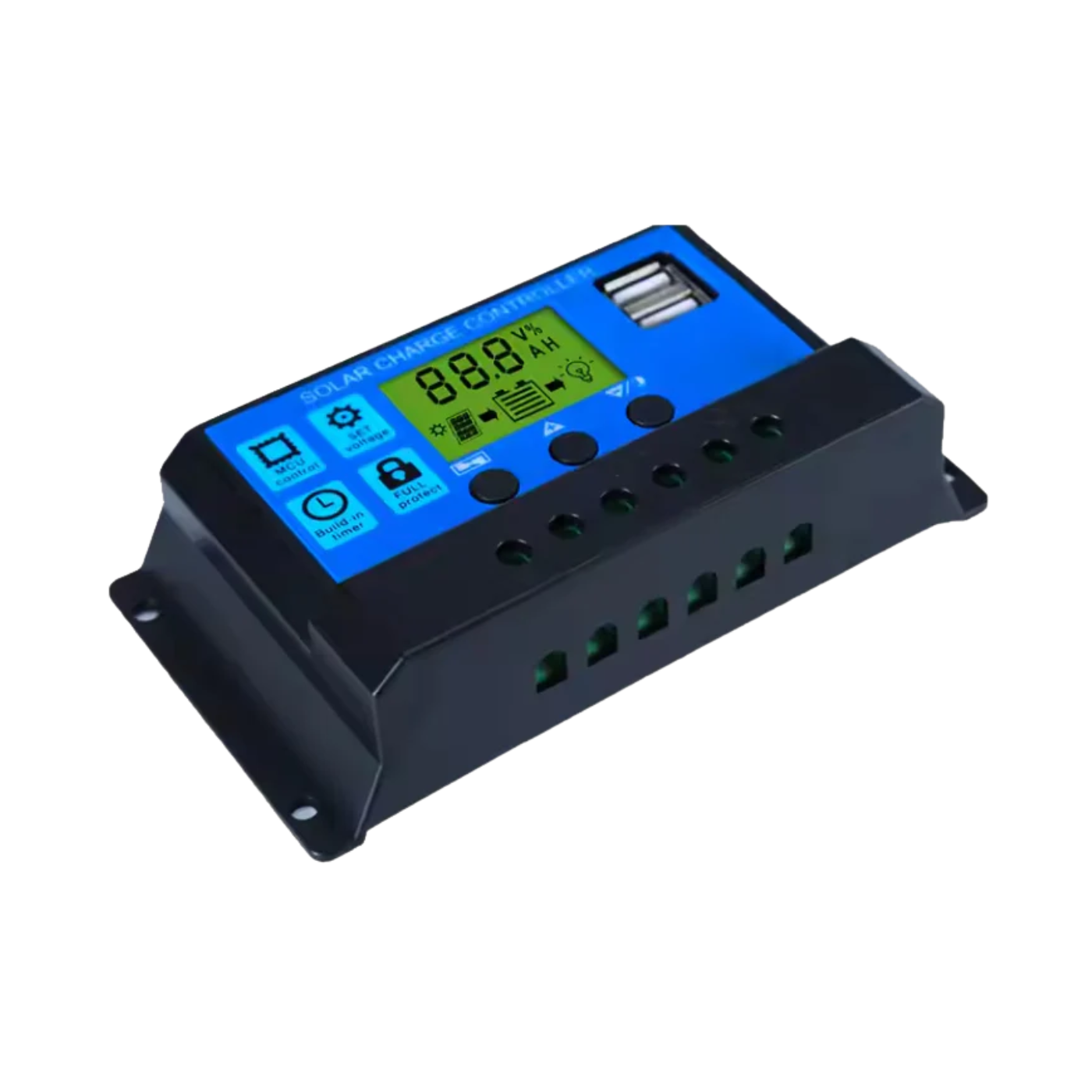

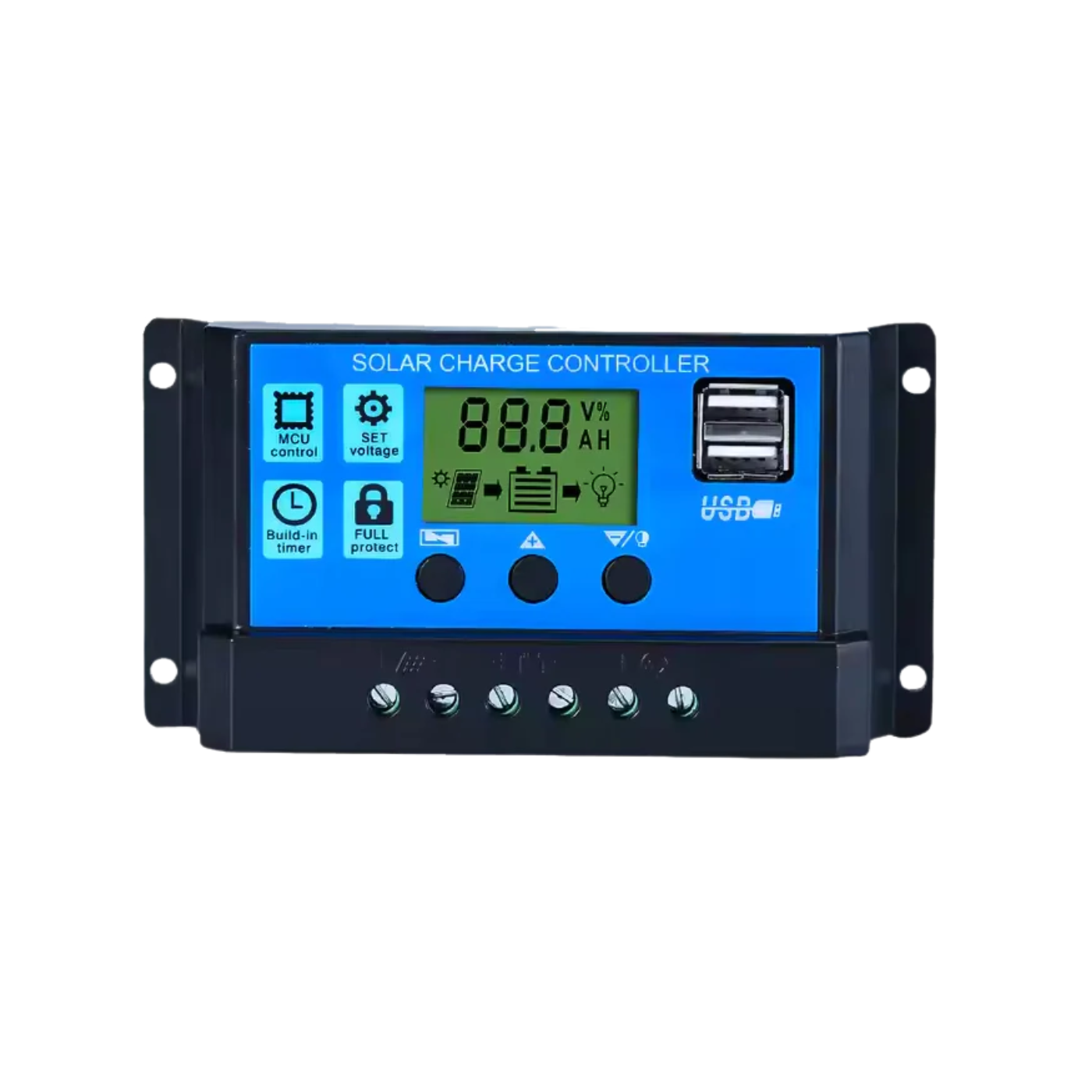

The Smart Solar Charge Controller 10A with Timer is an intelligent solar power management solution designed to efficiently regulate charging and protect your battery system. Supporting both 12V and 24V setups, it delivers up to 10A charging current using PWM charging technology to ensure stable and efficient energy flow from solar panels to batteries. Built-in protection features help prevent overcharging, over-discharging, short circuits, and reverse polarity, extending battery life and ensuring safe operation.
Equipped with a timer function, this controller allows automated control of loads such as solar street lights and garden lighting, making it ideal for off-grid solar applications. It also includes a USB mobile charging socket for powering phones and USB devices directly from the system, along with a clear LCD display that provides real-time information on voltage, current, and battery status for easy monitoring and control.
| Specification | Details |
|---|---|
| Operating Voltage | 12V / 24V (Auto-detect) |
| Maximum Charge / Discharge Current | 10A |
| USB Output | 5V, 2A |
| Charging Technology | PWM (Pulse Width Modulation) |
| Display | LCD for system status and battery monitoring |
| Protection Features | Overcharge, over-discharge, short-circuit, reverse polarity protection |
| Operating Temperature | -20°C to 60°C |
| Application | Off-grid solar systems, solar lighting, RVs, boats, DIY solar projects |
