  • The XH-W3001 digital thermostat switch needs a supply voltage of 24V and produces a power of 240W.
  • All the important components of the XH-W3001 digital thermostat are protected in a ABS housing.
  • This digital temperature controller is equipped with a 1 metre long stainless waterproof probe that has great resistance against corrosion.
  • It offers high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 110℃.
  • The 24V XH-W3001 temperature controller is best used for heating control in refrigeration and suitable for seafood machines.

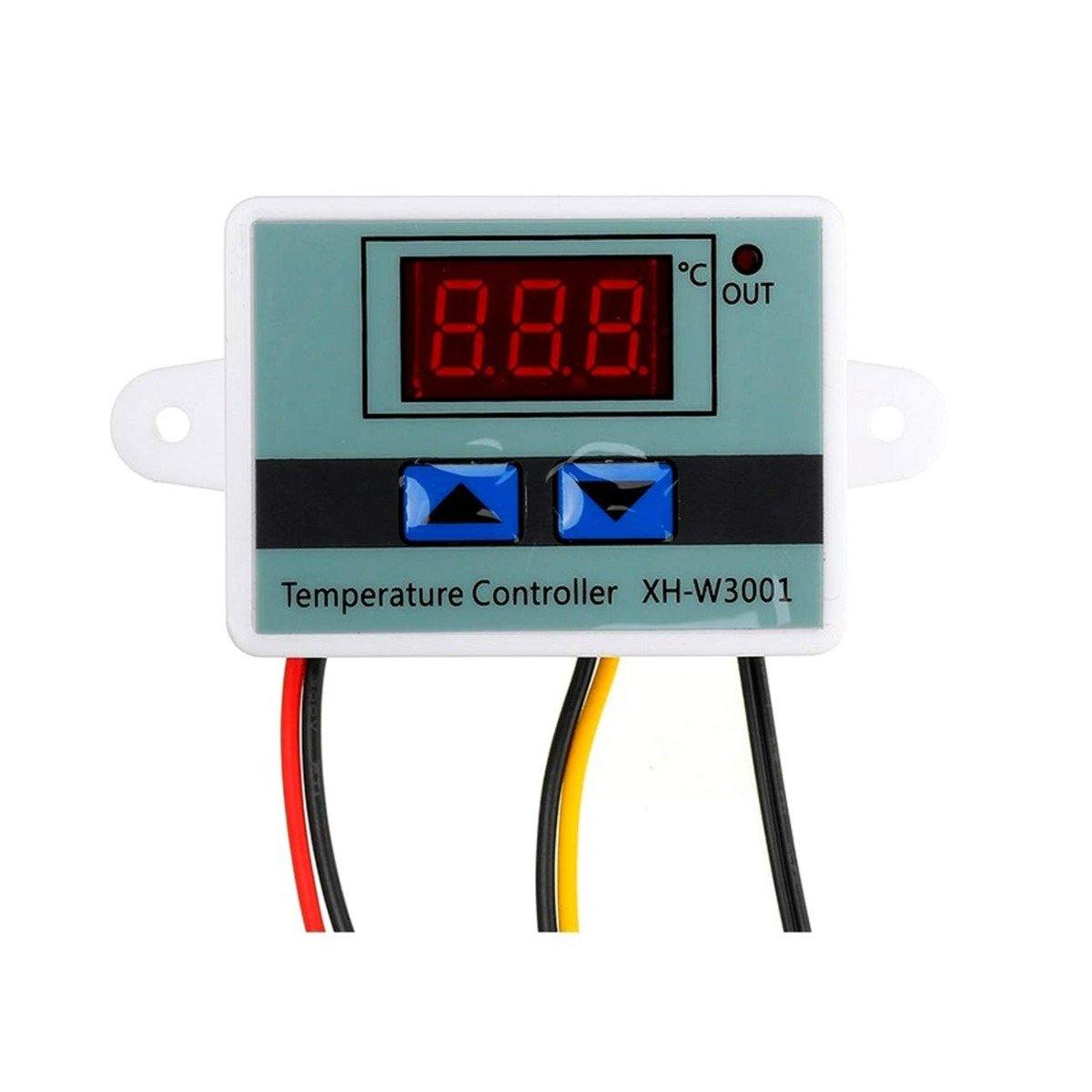

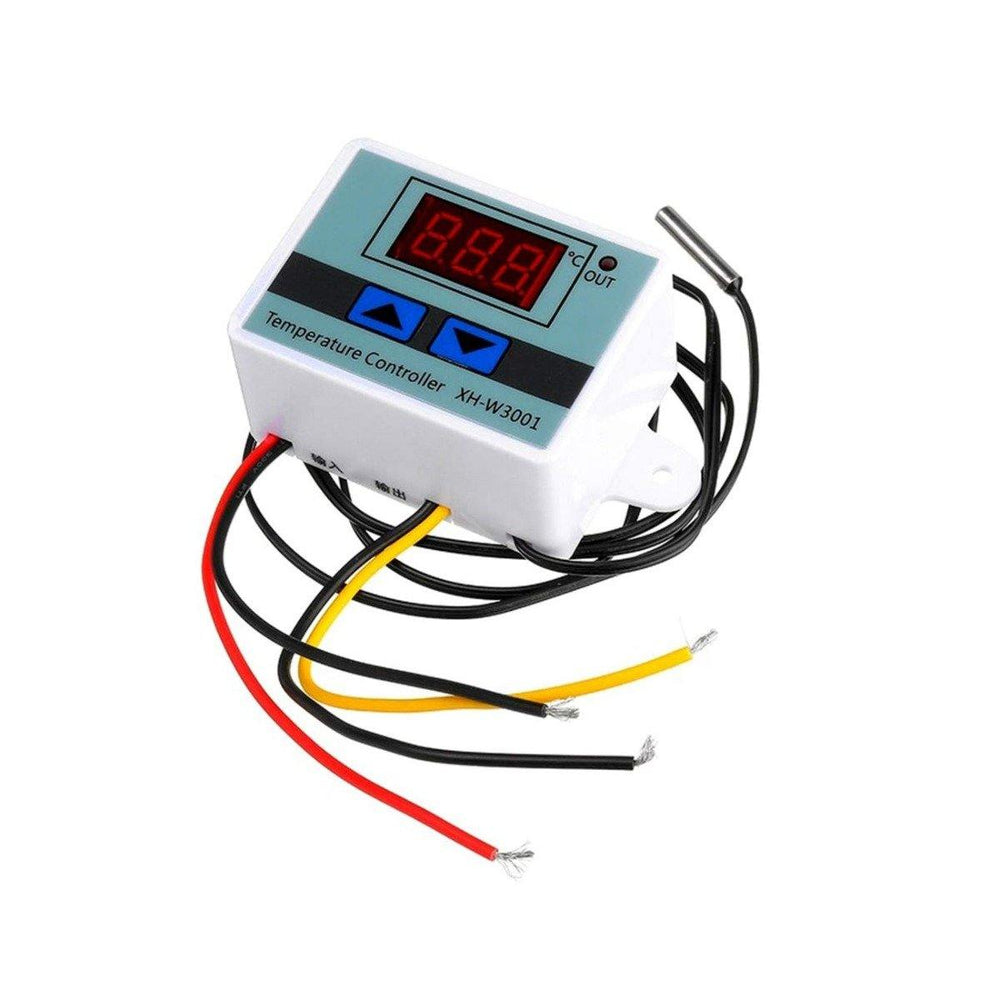

XH-W3001 24V 240W Digital Thermostat Switch

This is XH-W3001 DC 24V 240W Digital Temperature Controller Microcomputer Thermostat Switch. A temperature measurement and Controller with high accuracy and precision at a very low cost.

The Digital Thermostat switch offers a high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 110℃. The LED Display shows the results clearly. One can directly install or embed the XH-W3001 in the industrial control equipment panel, which is convenient and quick.

It features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is avirulent and environmentally protective.

Digital display LLL: If the digital tube displays LLL, the sensor is faulty. Please repair the sensor or replace the sensor.

Digital display HHH: If the digital tube displays HHH, this is because the detected temperature is beyond the measurement range.

BUTTON FUNCTIONS OF THE XH-W3001 CONTROLLER:

  1. Press UP to show the start temperature button.
  2. On a Long press of the UP button, the display starts flashing, then press the UP or DOWN button Set the beginning of the temperature value
  3. Press Down the display button to stop the temperature.
  4. On the Long press of the Down button, the display starts flashing, then press the Up or Down button Set to stop the temperature value.

PACKAGE INCLUDES:

  •  1 x XH-W3001 DC 24V 240W Temperature Controller

SPECIFICATIONS:

DC Output DC 24V 240W
Temperature Measuring Range 50~110°C
Temperature Control Range 50~110°C
Control Accuracy Up to 0.1℃
Dimensions  11 x 5 x 3cms
Weight  150 grams

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

-37%
XM-18 Mini Digital Automatic Egg Incubator-Robocraze

XM-18 Mini Digital Automatic Egg Incubator

Rs. 2,324
Rs. 3,715 Rs. 2324
Incl. GST (No Hidden Charges)
Sold out
-33%
Thermoelectric Peltier Refrigeration Cooling System DIY Kit With TEC-12706 Peltier-Robocraze

Thermoelectric Peltier Refrigeration Cooling System DIY Kit With TEC-12706 Peltier

Rs. 499
Rs. 749 Rs. 499
Incl. GST (No Hidden Charges)
Sale
-43%
XH-W3001 DC 12V 120W Digital Display LED Temperature Controller with Thermostat Control Switch Probe-Robocraze

XH-W3001 DC 12V 120W Digital Display LED Temperature Controller with Thermostat Control Switch Probe

Rs. 143
Rs. 249 Rs. 143
Incl. GST (No Hidden Charges)
Sale

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

1. How to set the temperature and restore the factory settings?

  • To set the Startup Temperature:
    • Press the UP Button once and display the start temperature.
      Press and hold the UP Button for about 3 seconds, then Startup temperature flashed, you can use the UP/DOWN Button to adjust the Startup Temperature.
  • To set the Desired Temperature:
    • Press the Down Button once and display the desired temperature.
      Press and hold the Down Button for about 3 seconds, then desired temperature flashed, you can use the UP/DOWN Button to adjust the Desired Temperature.
  • To restore factory settings:
    • When power is on, press and hold the UP/DOWN Button at the same time, the display will show 888 and then automatically perceive current temperature, the factory settings have been restored.

2. How to set heating and cooling mode in the XH-W3001 temperature controller?

Heating Mode

Cooling Mode

Control the water heater:

Heat it to 50 °C stop. When return the temperature to40 °C to start the heating again.

How to set it?

1. Startup Temperature(40 °C) < Desired Temperature(50 °C).

2. Press and hold 3 seconds for the UP Button. When the temperature value flashes, press UP/DOWN BUTTON to adjust 40 °C.

3. Press and hold 3 seconds for the DOWN Button. When the temperature value flashes, press UP/DOWN BUTTON to adjust 50 °C.

The radiator is controlled:

The heat is cooled to 26 °C stop. When temperature is raised to 30 °C to start the radiator again.

How to set up?

1. Startup Temperature(30 °C) > Desired Temperature(26 °C).

2. Press and hold 3 seconds for the UP Button. When the temperature value flashes, press UP/DOWN BUTTON to adjust to 30 °C.

3. Press and hold 3 seconds for the DOWN Button. When the temperature value flashes, press UP/DOWN BUTTON to adjust to 26 °C.
