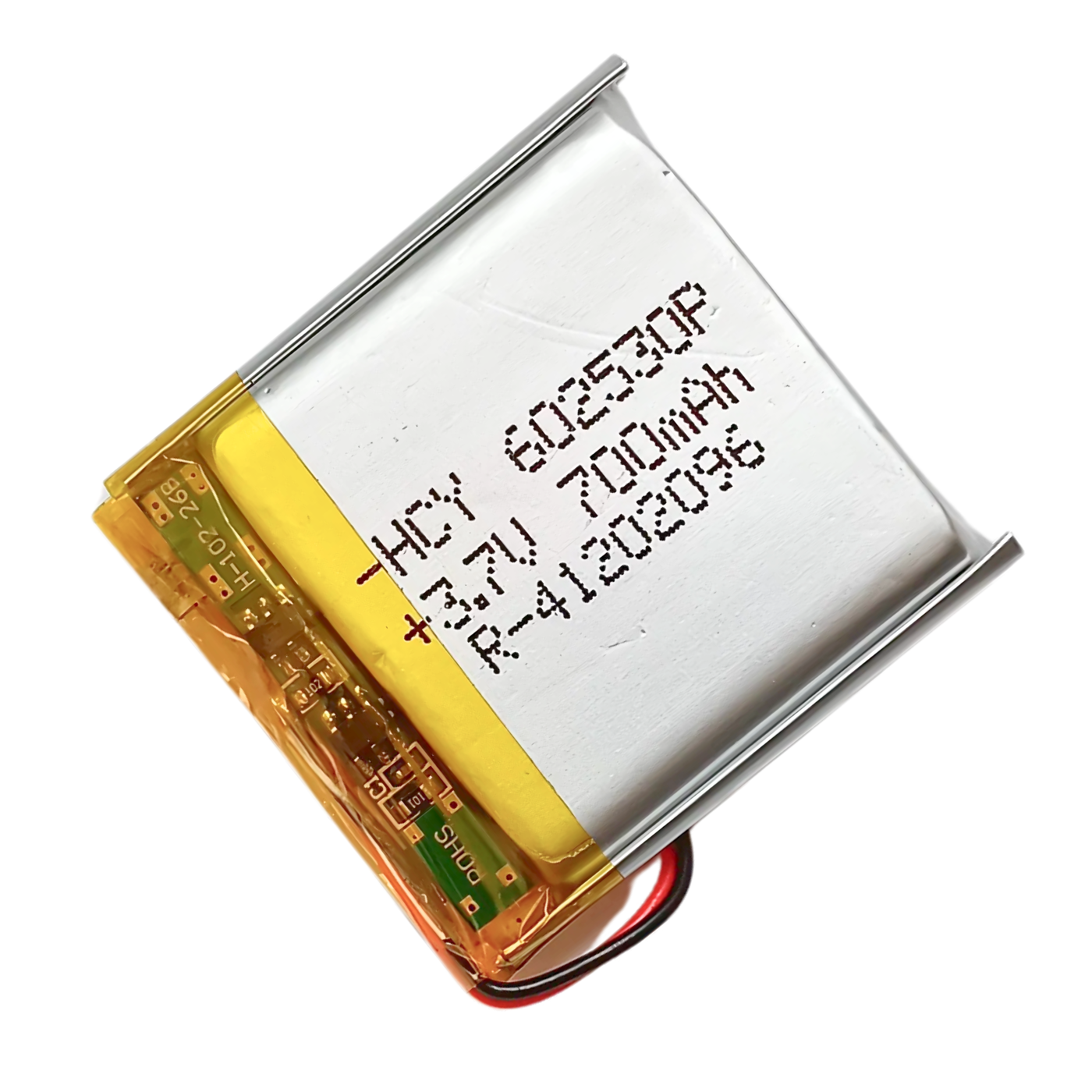

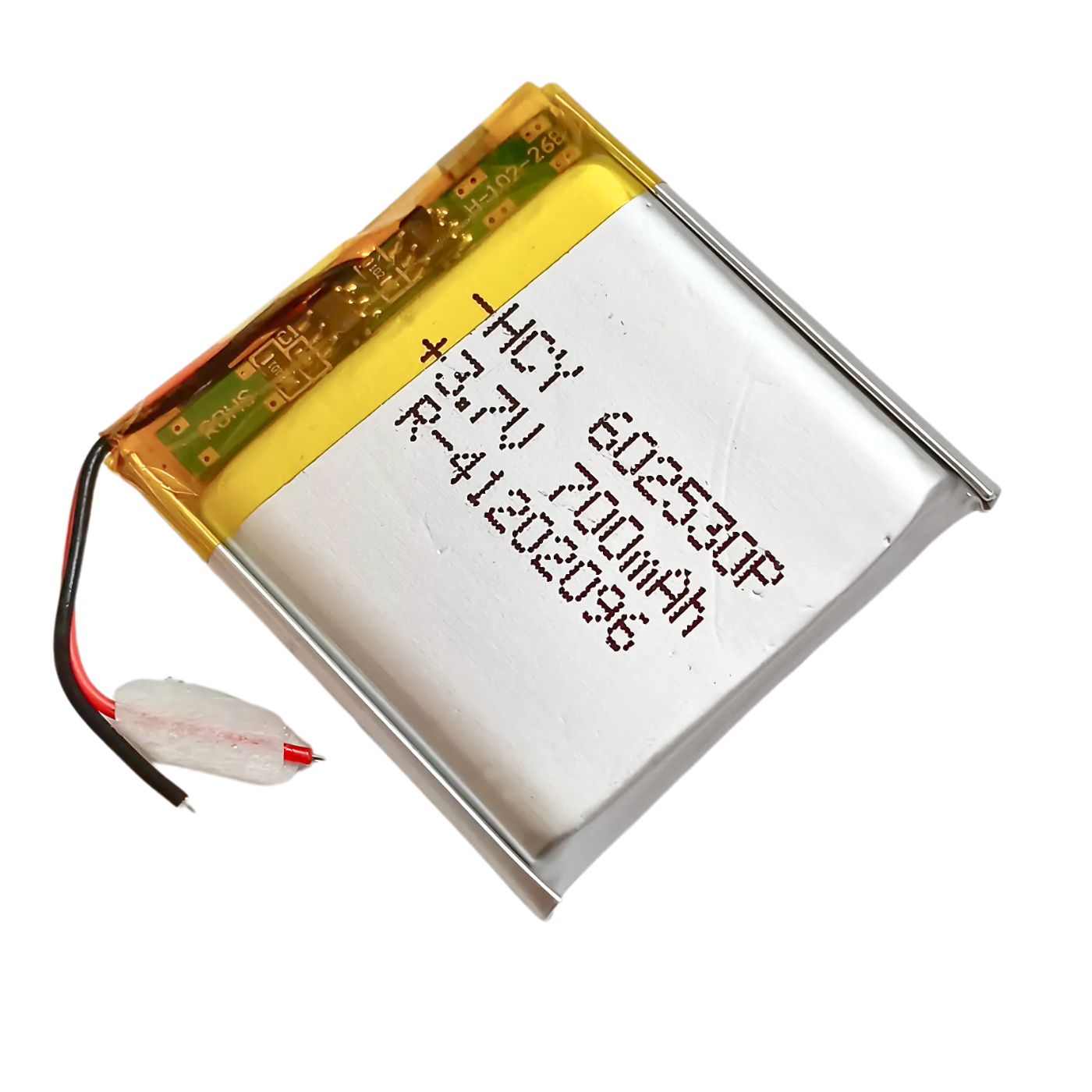

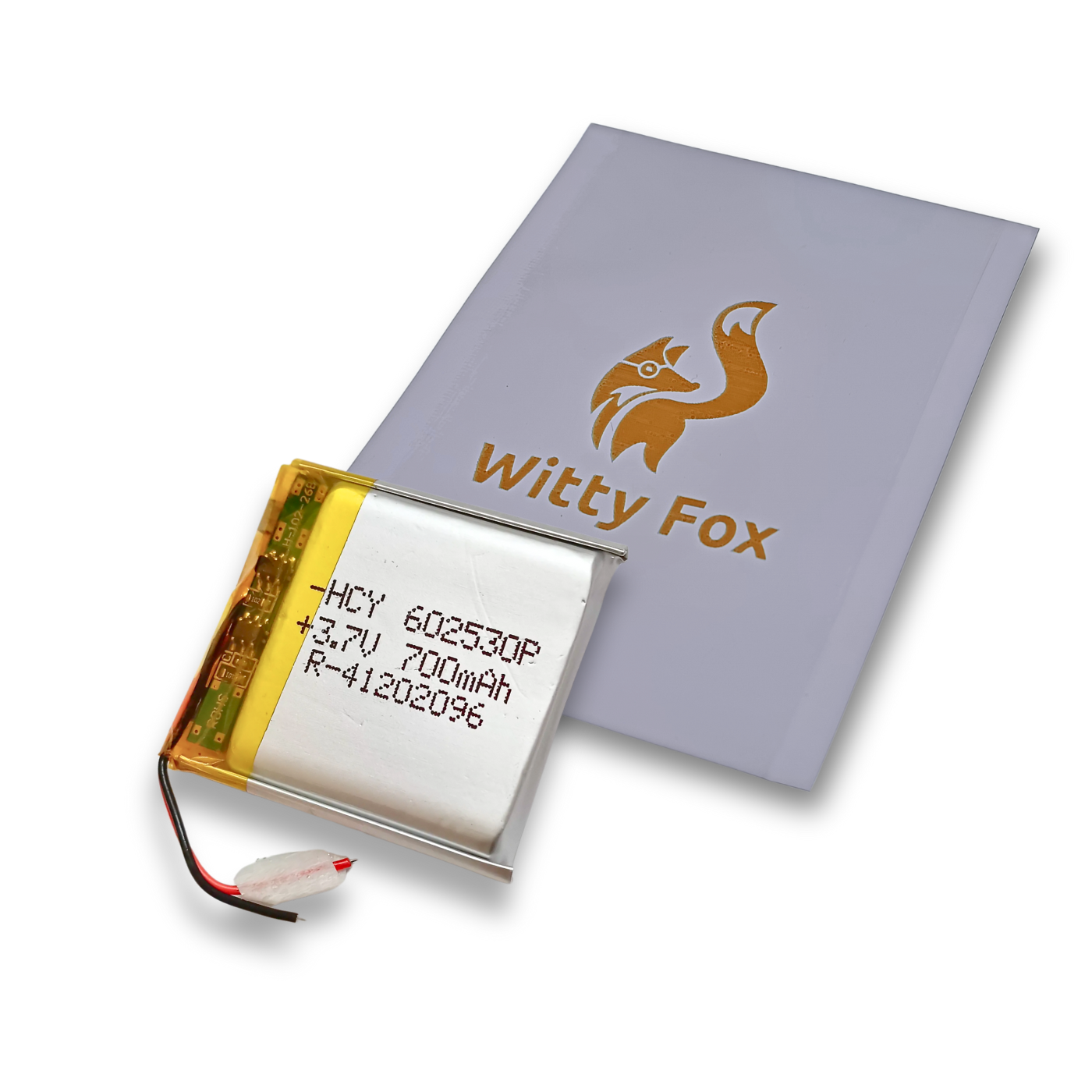

Witty Fox 700mAh Rechargeable 3.7v LiPo Battery
Couldn't load pickup availability
The Witty Fox 700mAh Rechargeable 3.7V LiPo Battery is a compact and reliable power source, ideal for low-power electronics, DIY projects, and portable devices.
It features a 1S configuration, meaning it consists of a single lithium polymer (LiPo) cell with a nominal voltage of 3.7V and a capacity of 700mAh, offering a balanced performance between size and runtime.
This lightweight and rechargeable battery is perfect for applications where space and weight are crucial, such as wearables, IoT devices, and small robotic systems.
Now, why are all LiPo batteries rated at 3.7V? That’s due to the chemistry of the ternary lithium cells used in their construction. A single LiPo cell has a nominal voltage of 3.7V, which represents its average voltage during discharge.
This is standard across most lithium-ion batteries because of the electrochemical properties of the lithium cobalt oxide (or related) compounds inside. When fully charged, the voltage can go up to 4.2V and drops to about 3.0V when discharged.
The Witty Fox 700mAh 3.7V LiPo follows this standard, ensuring compatibility with a wide range of devices designed for 1S battery systems.
| Specification | Details |
|---|---|
| Brand | Witty Fox |
| Battery Type | Lithium Polymer (LiPo) |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 700mAh |
| Cell Configuration | 1S (1 Cell in Series) |

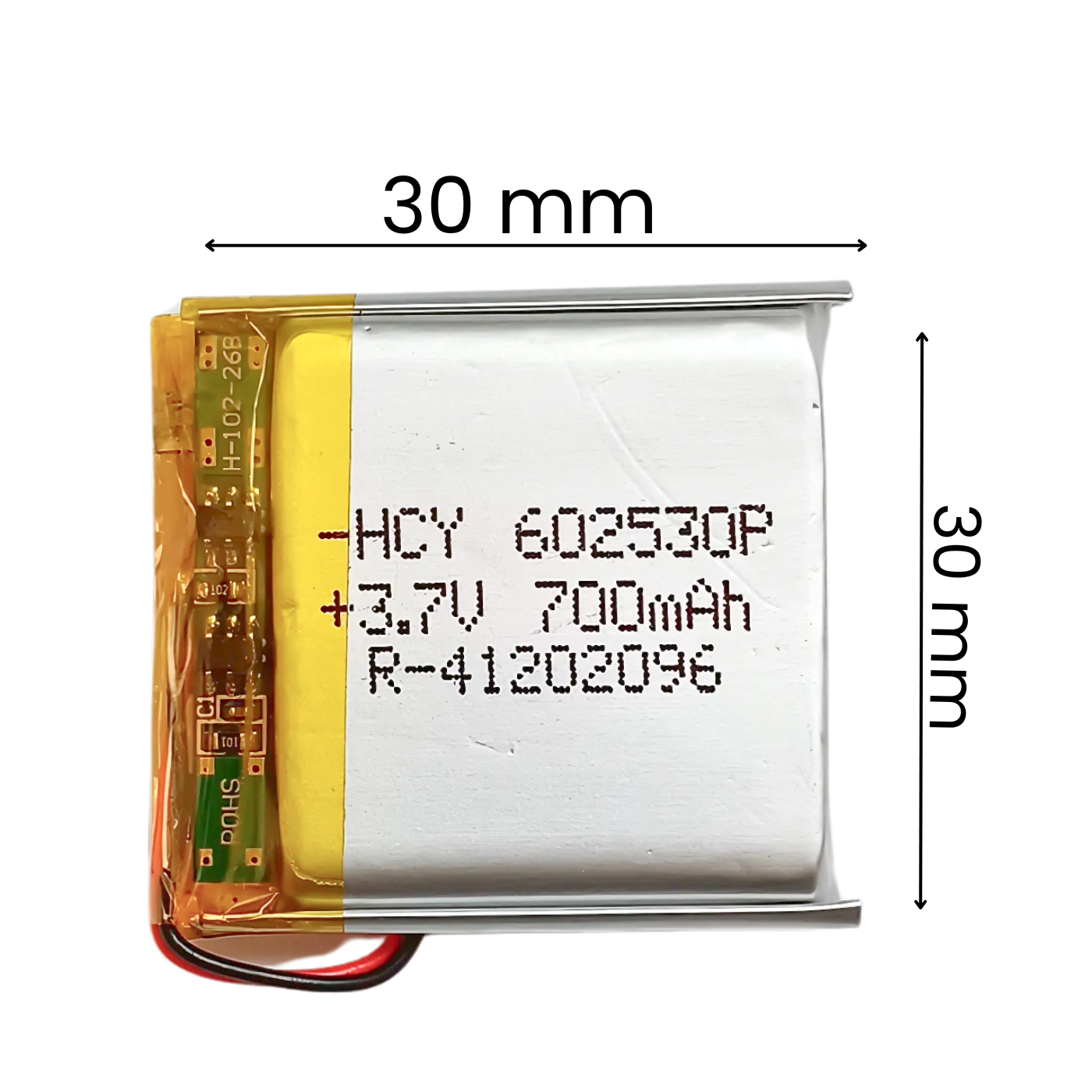

| Dimensions (LxWxH) | 30x30x5 mm |
| Weight | 11 g |
