Witty Fox 160mAh Rechargeable 3.7V LiPo Battery
Couldn't load pickup availability

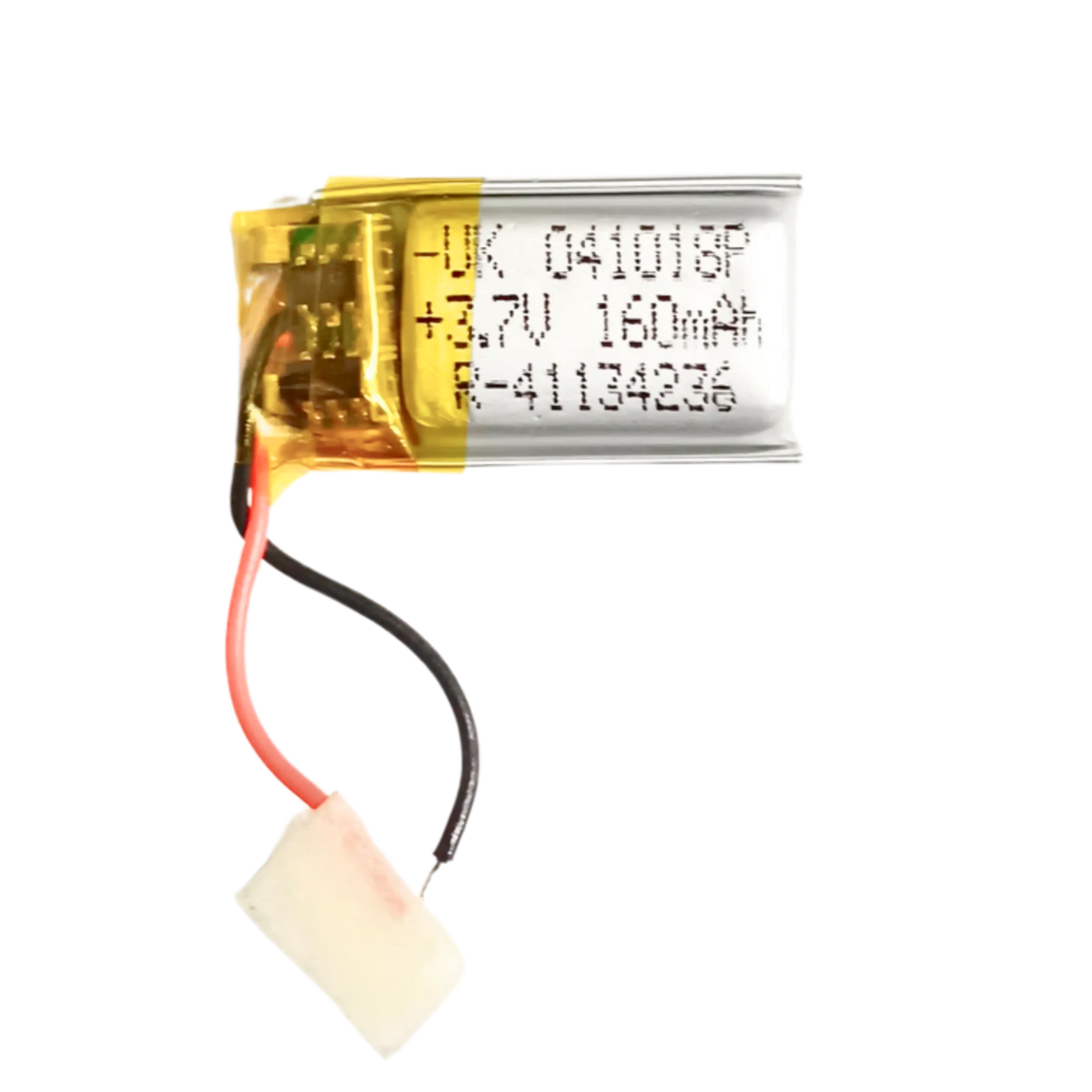

The Witty Fox 160mAh Rechargeable 3.7V LiPo Battery is a compact and reliable lithium polymer battery designed for a variety of small electronic devices. It features a nominal voltage of 3.7V and a capacity of 160mAh, making it suitable for applications that require a lightweight power source with moderate energy storage.
The battery has a single-cell (1S) configuration and supports up to 500 charge-discharge cycles, ensuring good longevity. It operates efficiently within a temperature range of 0°C to 50°C, providing stable performance in typical ambient conditions.
To maximize the lifespan and safety of the Witty Fox LiPo battery, it is recommended to follow the 80% rule for LiPo batteries. This means charging the battery when its state of charge (SOC) drops to around 40% and stopping the charge once it reaches about 80%.
Similarly, during use, it is advisable to avoid discharging the battery below 40% SOC and not to exceed 80% SOC in charging to prevent stress on the battery cells.
Adhering to this practice helps maintain battery health, prevents overcharging or deep discharge, and extends the overall cycle life of the battery. This makes the Witty Fox 160mAh battery a dependable choice for users seeking a balance between performance and durability.
| Specification | Value |
|---|---|
| Nominal Voltage (V) | 3.7 |
| Nominal Capacity (mAh) | 160 |
| Battery Cell Configuration | 1S |
| Life Cycle | 500 times |
| Operating Temperature (°C) | 0° ~ 50° |

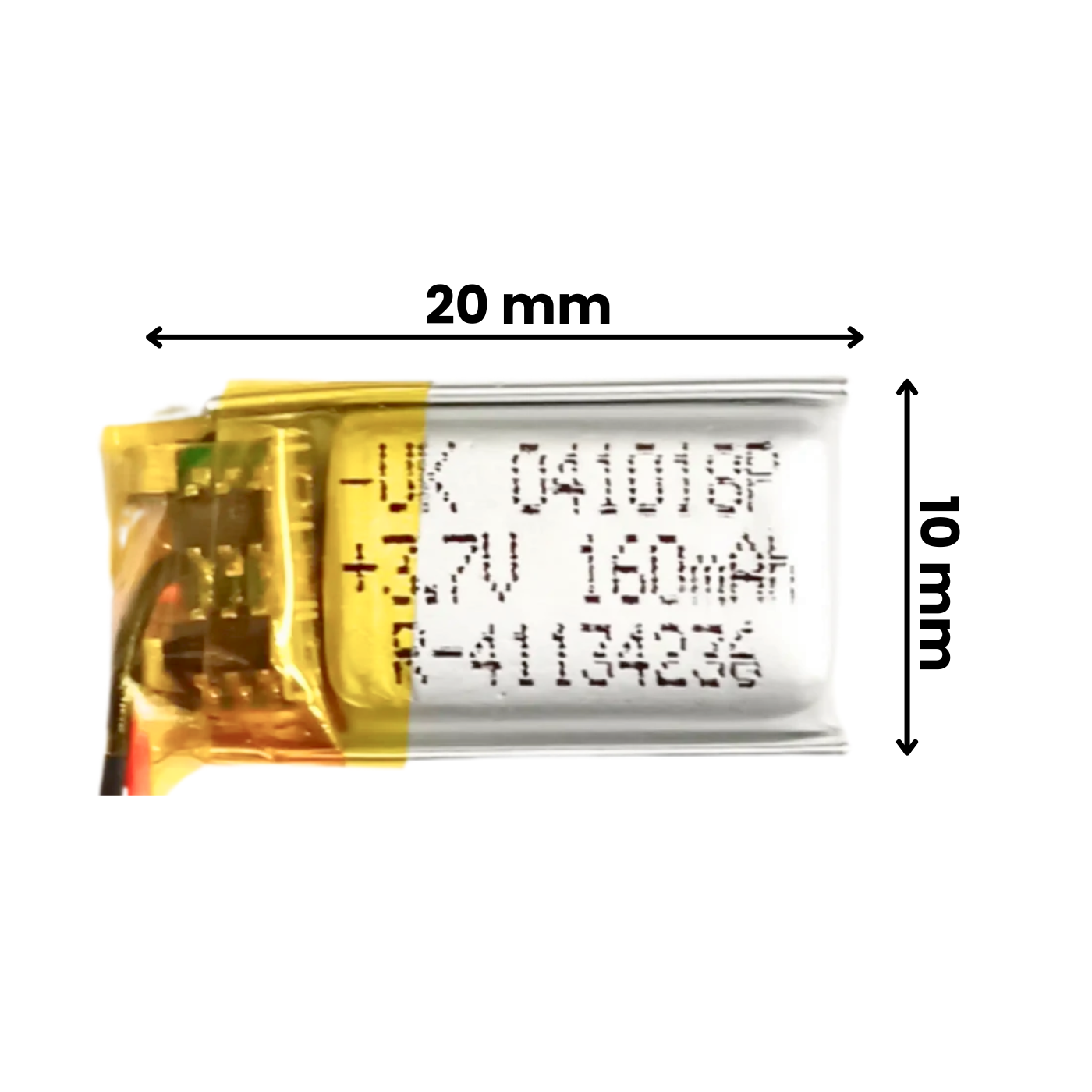

| Dimensions (L x W x H) | 20 x 10 x 4 mm | Weight | 3 g |
