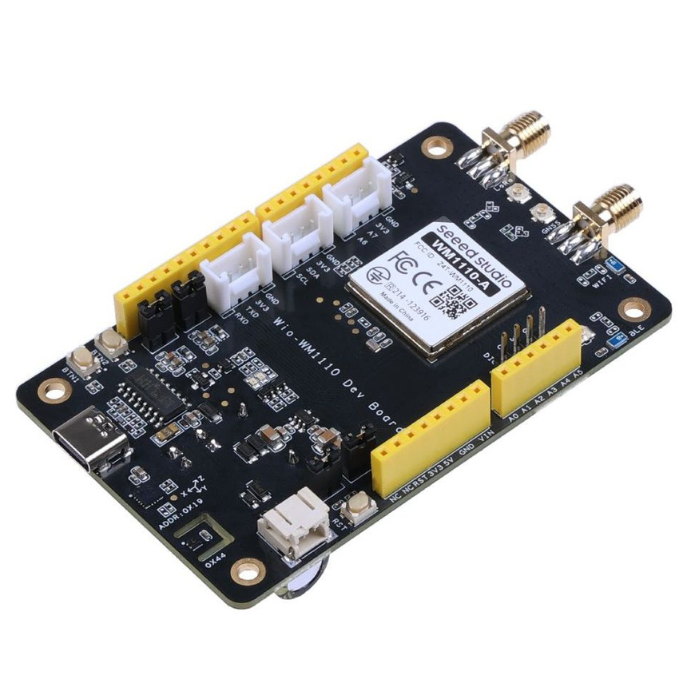

Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840
Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Long-Range Connectivity: Up to 10km of reliable wireless communication with Semtech's LoRa® technology.
- Versatile Location Tracking: Precise outdoor and indoor positioning thanks to integrated GNSS (GPS/BeiDou) and Wi-Fi scanning.
- Extensive Expansion Options: Over 400 Grove-compatible interfaces for customizable and flexible project applications.
- Open Source Platform: Limitless application possibilities with access to the open-source ecosystem of LR1110 and nRF52840.
- Built-in Sensors: Comprehensive environmental data collection with temperature, humidity, and 3-axis accelerometer sensors.
- Power Options: Flexible deployment with support for both solar and battery power.
- Developer-Friendly: Easy development with a fully open-source platform, example applications, and SDK.
Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840
The Seeed Studio Wio-WM1110 Dev Kit is the ultimate solution for your IoT projects, offering long-range communication, precise location tracking, and versatile customization options. With features like LoRa® technology, GNSS, and an extensive Grove-compatible interface, this dev kit empowers developers to create innovative solutions.
The integration of sensors and multiple power supply modes ensures adaptability to diverse environmental conditions. Whether you're a seasoned developer or just starting, Wio-WM1110 provides the tools and capabilities you need.
This dev kit guarantees top-notch quality and durability. Its open-source nature and compatibility with popular protocols make it an ideal choice for IoT enthusiasts and professionals alike.
Note : Wio-WM1110 module has been perfectly applied to SenseCAP T1000, SenseCAP T1000 is a LoRaWAN® card size tracker for seamless indoor & outdoor positioning. It boasts months of battery life and is equipped with temperature, light, and motion sensors, making it ideal for a variety of location-based applications.
Features:
- Low-Power High-Sensitivity LoRa/(G)FSK Half-Duplex RF Transceiver: Frequency bands support in the range 863- 928MHz
- Multi-Purpose Radio Front-End for Geolocation: GNSS (GPS/ BeiDou)、Wi-Fi、Bluetooth
- Rich GPIOs and Compatible with Grove: Over 400 Grove-compatible for flexible expansion options.
- Open Source Platform: Leverage the extensive LR1110 and nRF52840 open-source ecosystem for infinite application possibilities.
- Built-in Sensors and Multiple Power Supply Modes: Temp&Humidity sensor and 3-Axis accelerometer, support both solar power and battery-powered.
Applications:
- Long-Range Communication: Enables reliable wireless communication with Semtech's LoRa® technology, covering distances of up to 10km.
- Precise Location Tracking: Offers both outdoor and indoor positioning accuracy through integrated GNSS (GPS/BeiDou) and Wi-Fi scanning.
- Extensive Expansion Options: Provides over 400 Grove-compatible interfaces for customizable and flexible project applications.
- Open Source Platform: Allows for limitless application possibilities by leveraging the LR1110 and nRF52840 open-source ecosystem.
- Built-in Sensors: Facilitates comprehensive environmental data collection with temperature, humidity, and 3-axis accelerometer sensors.
- Power Flexibility: Supports both solar and battery power deployment, enhancing adaptability to diverse environmental conditions.

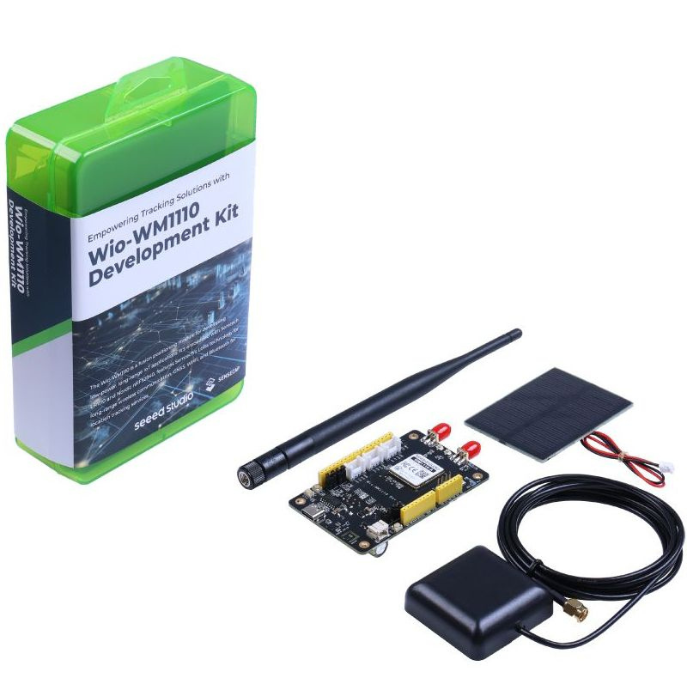

Package Includes:
- 1 x Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840
Specifications:
|
LoRa®WAN Protocol |
V1.0.4 |
|
Frequency |
863~928MHz |
|
Sensitivity |
-125dBm @125K/SF7 -141dBm @125K/SF12 |
|
Output Power |
20dBm max @LoRa® |
|
Positioning Technology |
GNSS(GPS,BeiDou),WiFi |
|
Range |
2~10km (Depends on antenna and environment) |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868
E5 Location Beacon for SenseCAP T1000 Tracker
SenseCAP T1000-A LoRaWAN Tracker for Indoor and Outdoor Positioning
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the range of the Wio-WM1110 Dev Kit's wireless communication?
The kit offers a range of 2-10km, depending on antenna and environmental factors.
2. Can I use solar power with this dev kit?
Yes, the Wio-WM1110 supports both solar and battery power for flexible deployment.
3. How many Grove-compatible interfaces does the kit have?
The kit has over 400 Grove-compatible interfaces, providing extensive options for project customization.
4. What is the LoRa®WAN Protocol version supported by the kit?
The Wio-WM1110 Dev Kit supports LoRa®WAN Protocol V1.0.4.
5. Can I use this kit for IoT projects without prior experience?
Yes, Whether you're a seasoned developer or a beginner, the Wio-WM1110 provides tools and capabilities for all levels.
