Airgain N2420 2.4 Ghz 4DB WiFi Omnidirectional Antenna - IPEX-IPX (Set of 2)

Airgain N2420 2.4 Ghz 4DB WiFi Omnidirectional Antenna - IPEX-IPX (Set of 2)

Rs. 79
Rs. 109 Rs. 79
Sale Sold out 28% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 6 Hours and 12 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Model: N2420, Impedance: 50 ohm
  • Frequency range: 2400-2500 MHz, Gain: 3.5 +- 0.5dBi
  • Used with ESP 8266- 07S or ESP 32.
  • This Package contains 2 Antenna.
  • Standing wave ratio: SWR less than or equal to 1.5

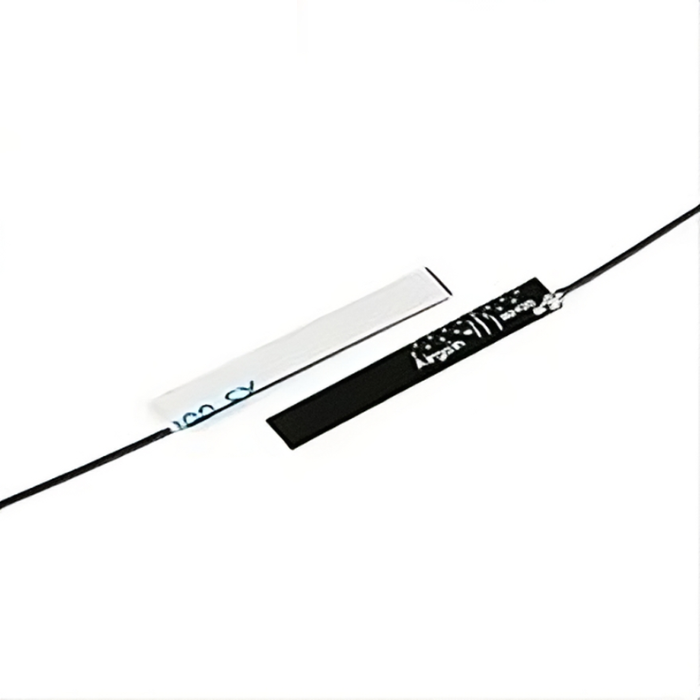

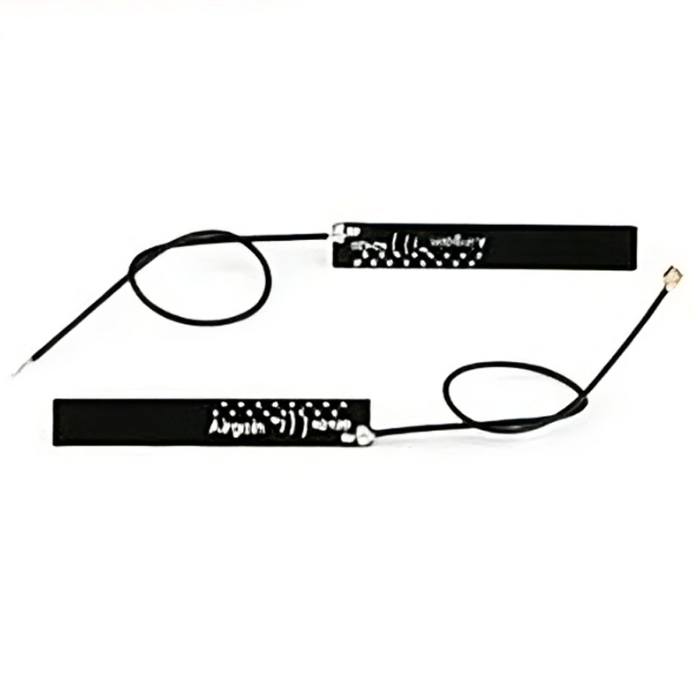

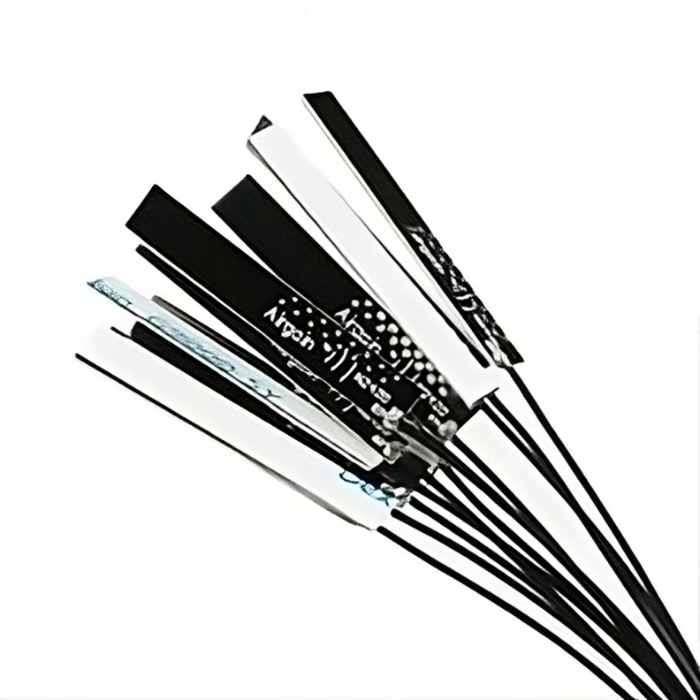

Airgain N2420 2.4 Ghz 4DB WiFi Omnidirectional Antenna

2.4GHz built-in PCB antenna N2420, is our company's well-designed dipole PCB antenna, the gain is up to 3.5dBi (+/-0.5), the effect is comparable to the external rod-shaped omnidirectional antenna. The wire uses a low-loss high-frequency coaxial communication cable.

Wi-Fi omnidirectional antenna is an antenna that sends and receives signals in all directions. These antennas have different gain levels, frequency ranges, and coverage distances which can be helpful for wifi development boards like arduino, nodemcu, etc.

Package Includes:

  • 2 x Set of Airgain N2420 2.4 Ghz 4DB WiFi Omnidirectional Antenna

Specifications

Model N2420
Impedance 50 ohm
Frequency range 2400-2500 MHz
Gain 3.5 +- 0.5dBi
Dimensions 47 X 7.3 X 0.5 (mm)
Weight  15 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 4

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sumit
This is Cool

The antennas' design is impressive, offer comprehensive coverage, effectively eliminating dead zones and providing seamless connectivity throughout my space. I'm highly impressed

R
Reuben J.
Increased RF range

I bought this increase the RF range of my wireless module. Worked well

J
John M.
Used this to increase range

Worked great and increased range of my device
