WiFi Kit 32

WiFi Kit 32

Regular price Rs. 1,349
Regular price Rs. 1,980 Sale price Rs. 1,349
Sale Sold out 32% off Best Price Guaranteed
You save Rs. 631 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Power to the Wi-Fi Kit 32 is supplied via the on-board USB Micro B connector or directly through the connector for a 3.7/4.2 V battery. The power source is selected automatically.
  • Supports Sniffer, Station, softAP and Wi-Fi Direct modes.
  • Compatible with Lithium battery interface of 2Pin-1.25mm interface.
Trust Badge 1 Trust Badge 2 Trust Badge 3

WiFi Kit 32

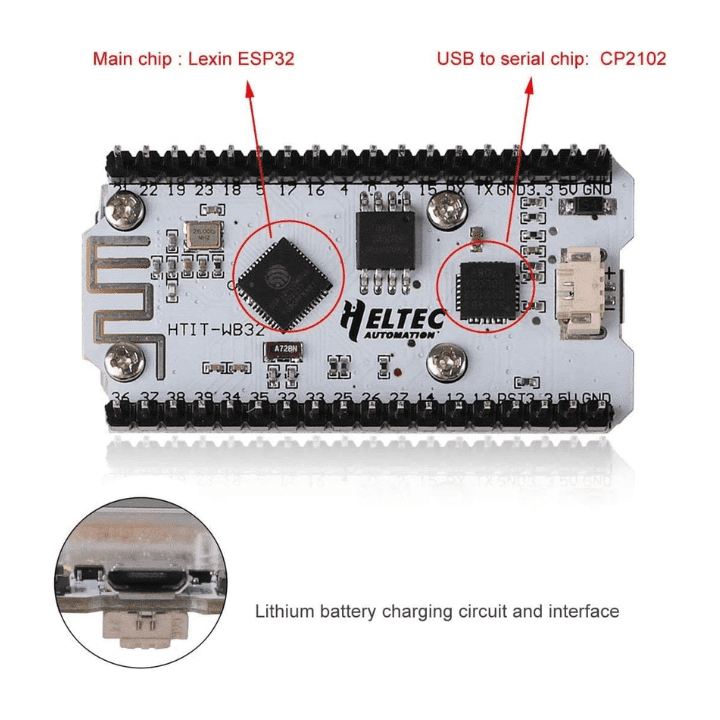

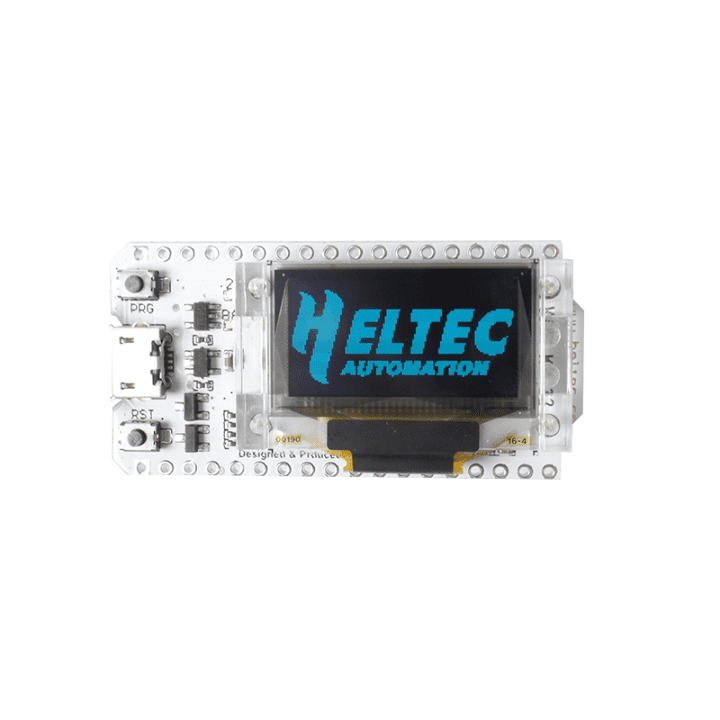

WiFi Kit 32 is a classic IoT dev-board designed & produced by Heltec Automation(TM), it’s a highly integrated product based on ESP32 (include Wi-Fi and BLE), Li-Po battery management system, 0.96″ OLED is also included. It’s the best choice for smart cities, smart farms, smart home, and IoT makers.

The internal flash of the ESP32 module is organized in a single flash area with pages of 4096 bytes each. The flash starts at address 0x00000, but many areas are reserved for Esp32 IDF SDK and Zerynth VM. There exist two different layouts based on the presence of BLE support.

Note: The device can operate on an external supply of 2.5 to 6 volts. If using more than 6V, the voltage regulator may overheat and damage the device.

Pinout:

Pinout of WiFi Kit 32

Package Includes:

  • 1 x WiFi Kit 32

Specifications:

Operating voltage 3.3V to 7V
Operating temperature range -40°C to +90°C.
Data Rate 150Mbps @ 11n HT40,72Mbps @ 11n HT20,54Mbps @ 11g, 11Mbps @ 11b
Transmission power 19.5 dBm @ 11 b, 16.5 dBm @ 11 g, 15.5 dBm @ 11 n
Flash size 32 MegaByte
Dimensions 50 x 25.4 x 10.3mm
Lithium battery interface 2 pin,1.25mm interface
