Waveshare Official Cooling Fan for Jetson Orin
Waveshare Official Cooling Fan for Jetson Orin
Waveshare Official Cooling Fan for Jetson Orin

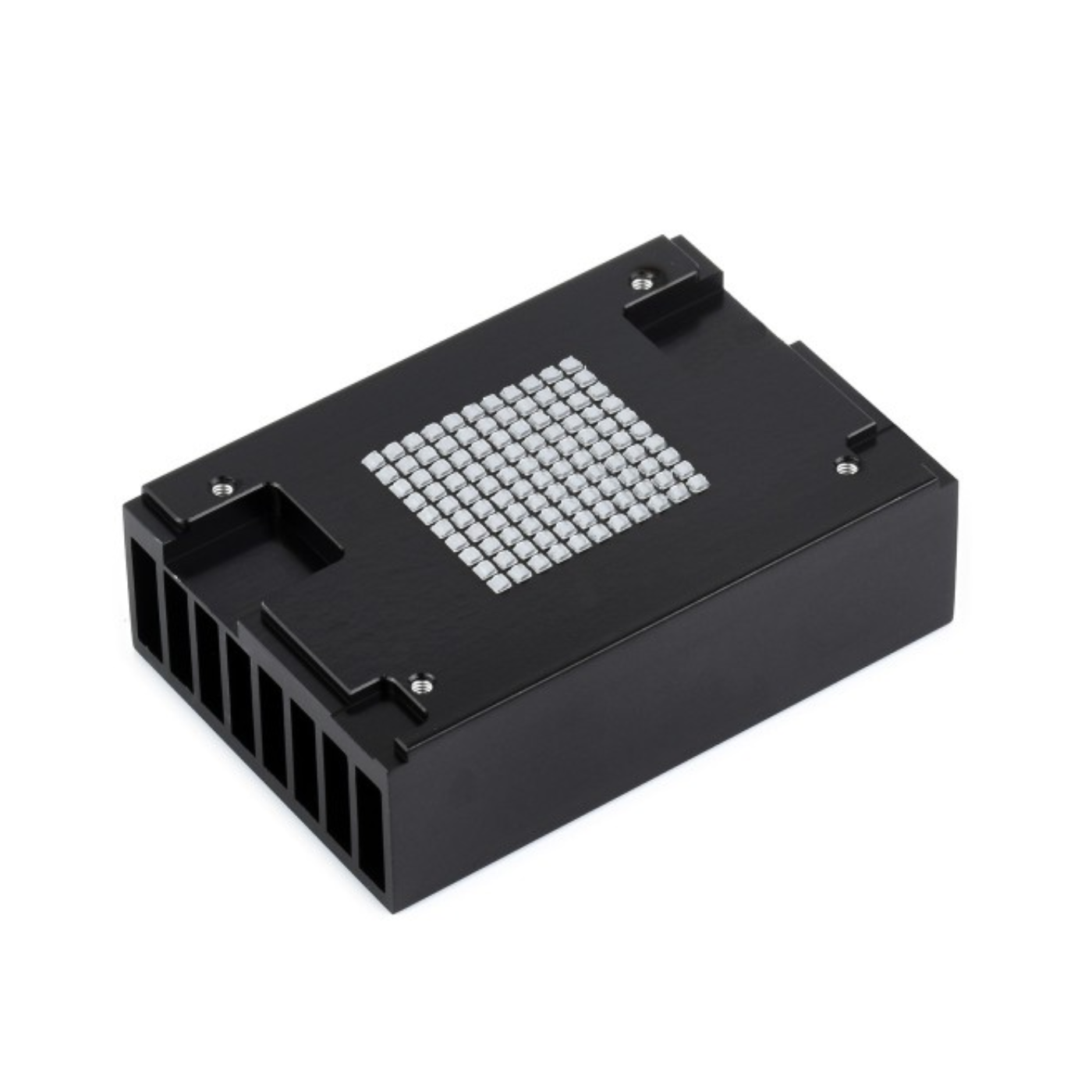

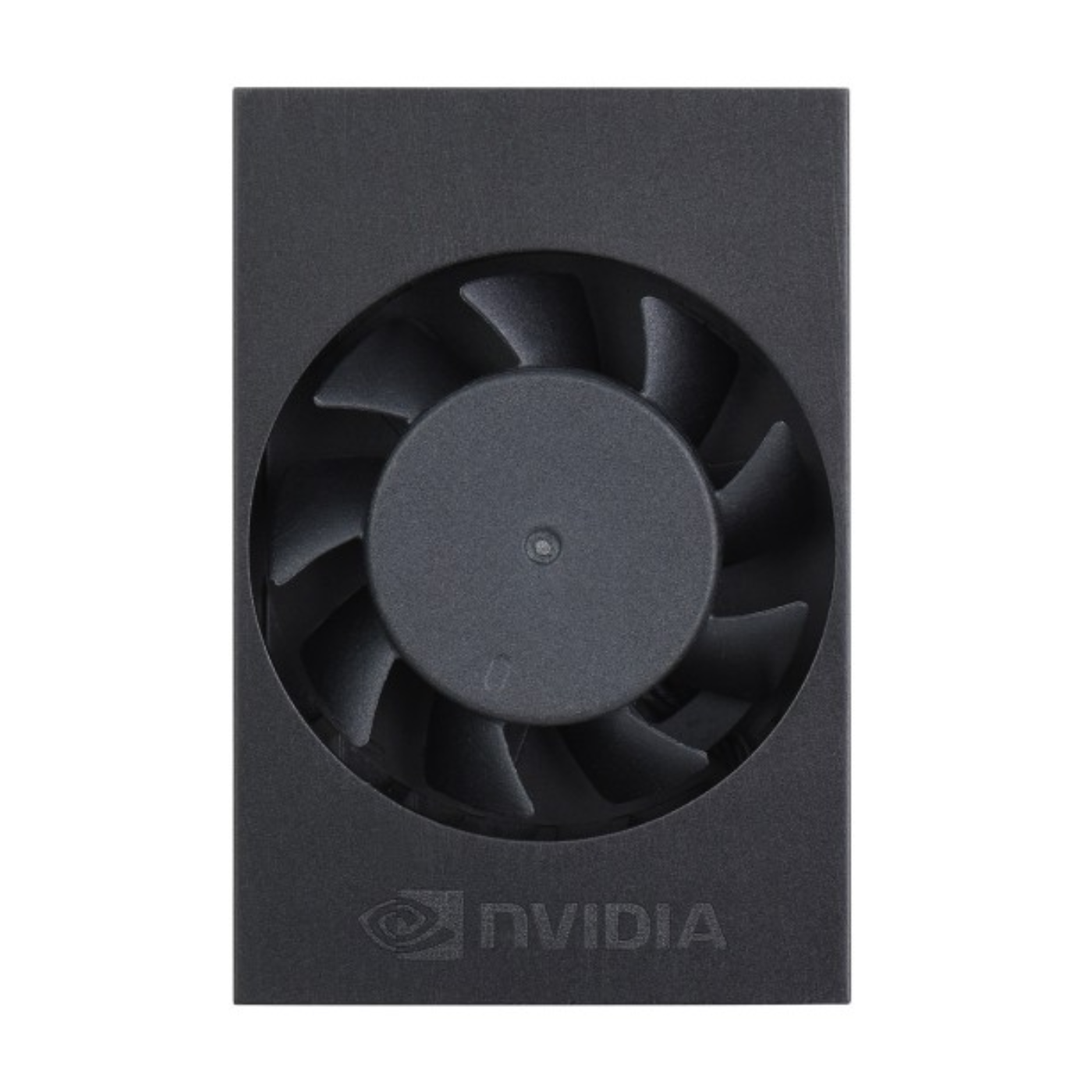

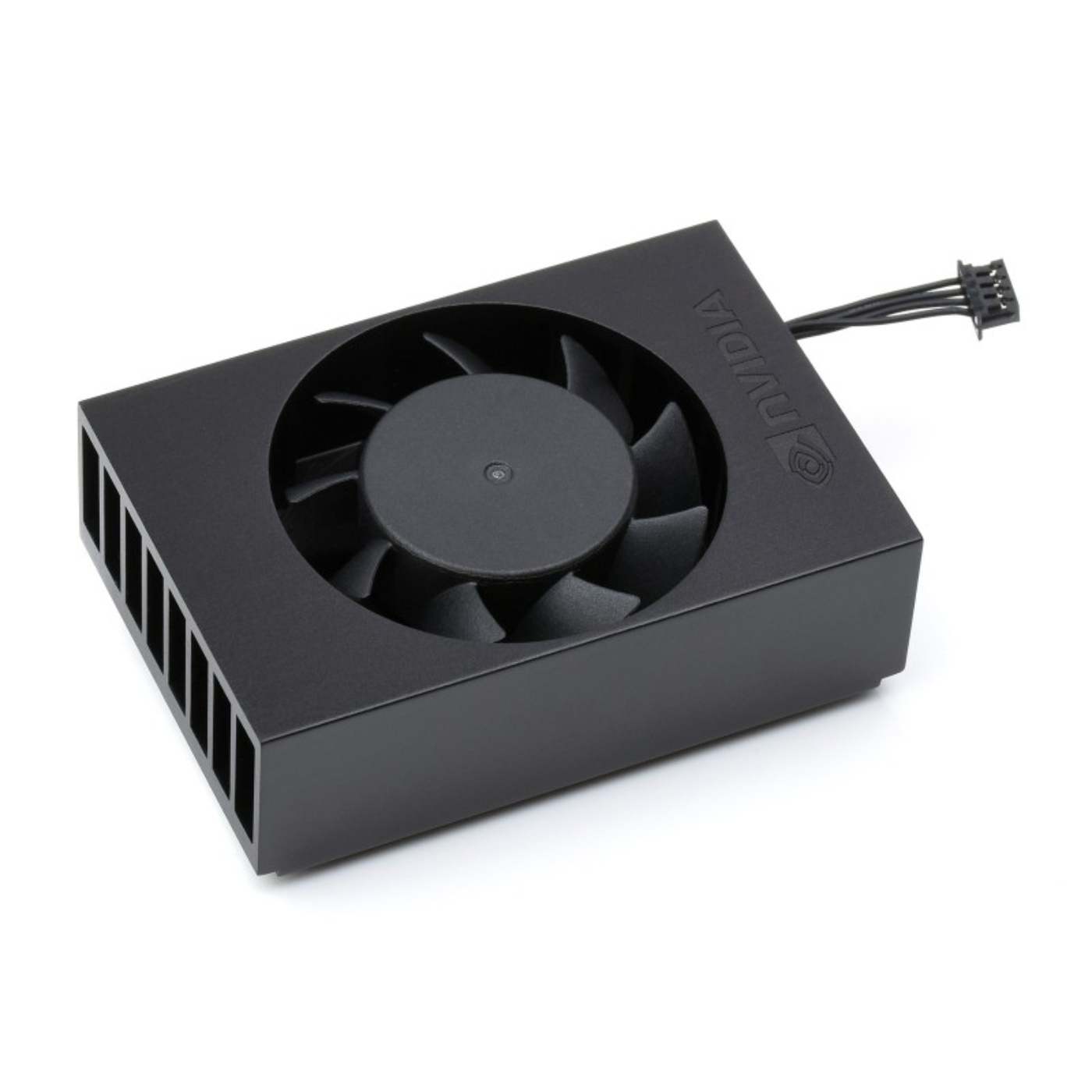

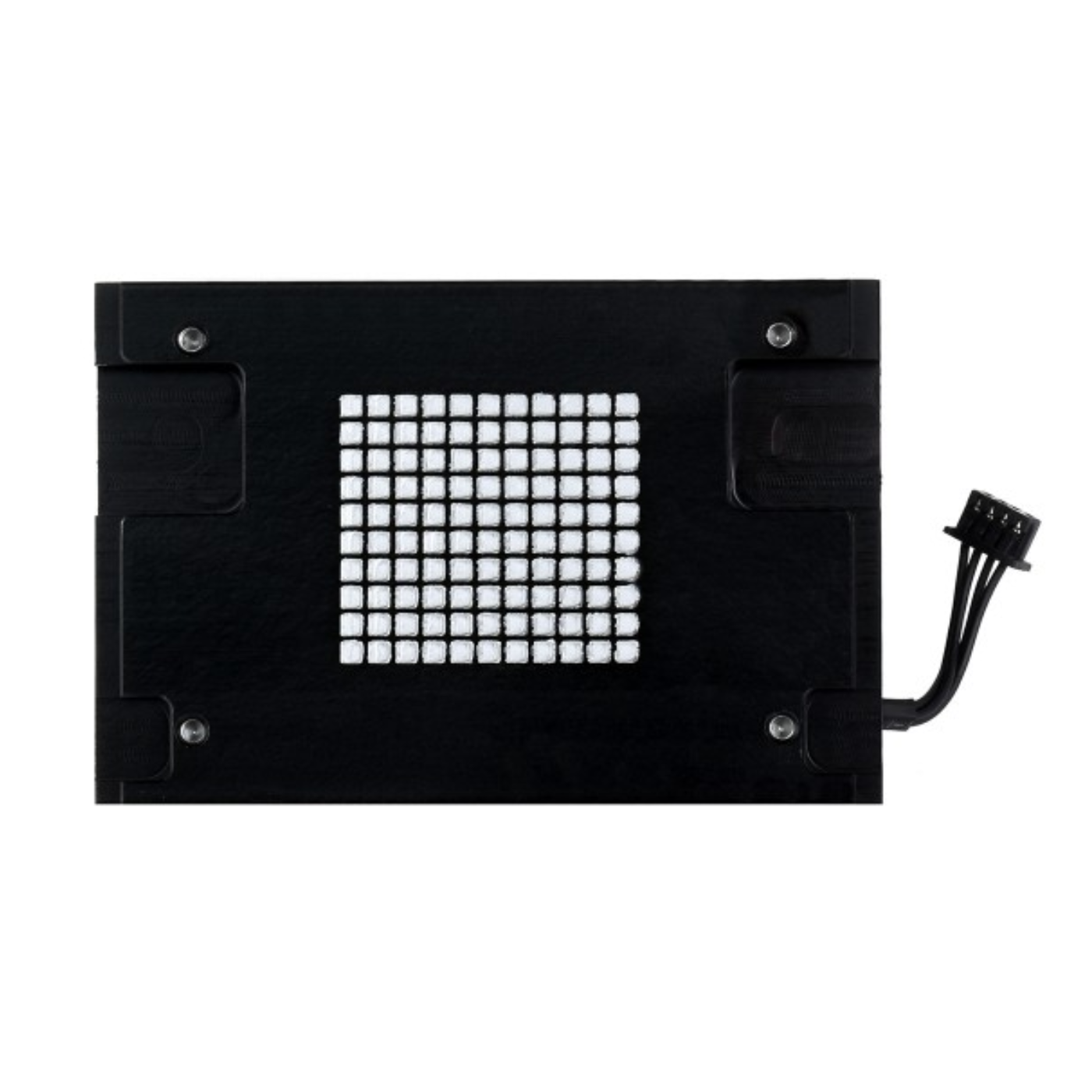

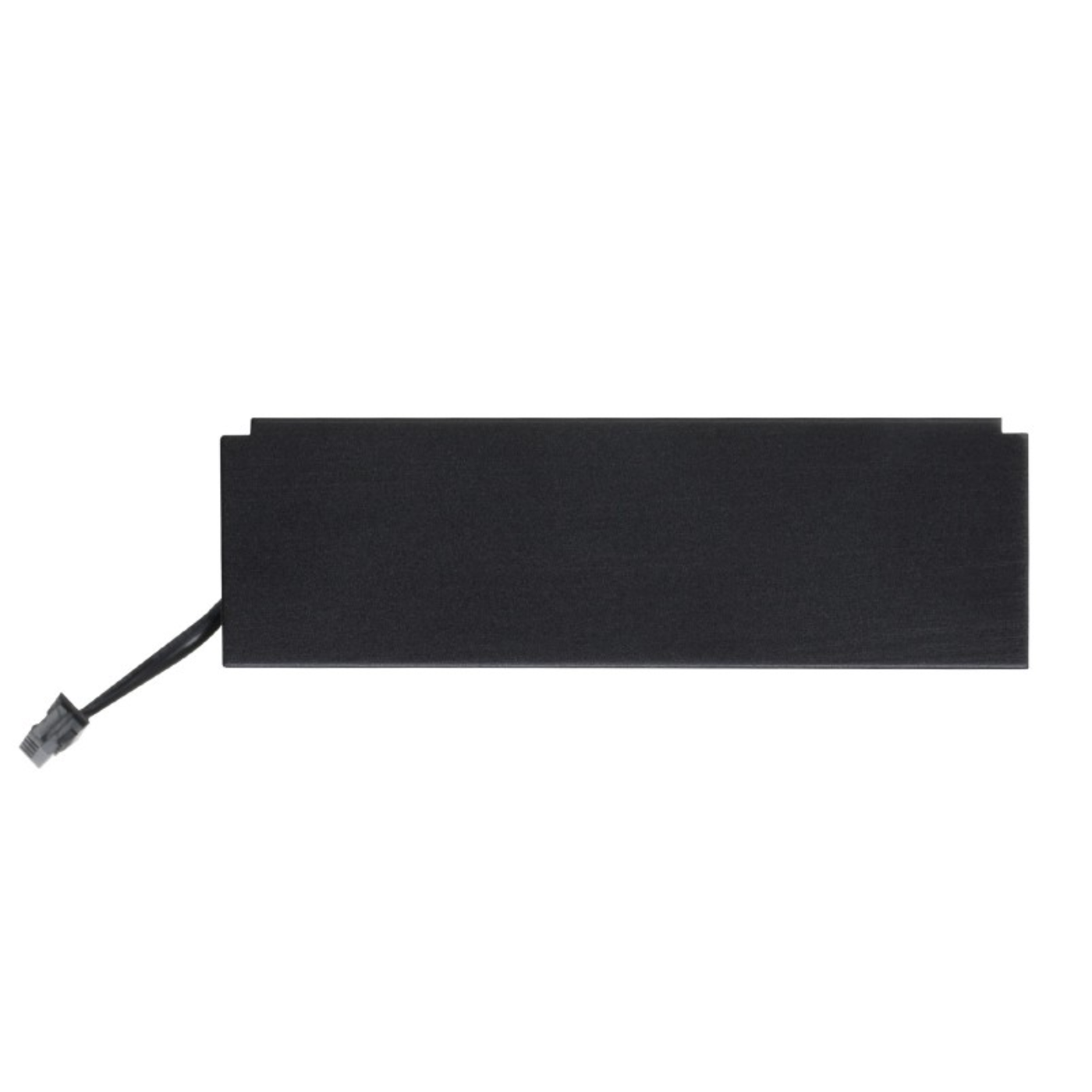

he Waveshare Official Cooling Fan for Jetson Orin is a compact thermal management solution designed for NVIDIA Jetson Orin NX and Jetson Orin Nano modules. It combines an embedded fan with an aluminum alloy enclosure to provide active cooling during demanding workloads such as AI computing, machine learning, computer vision, robotics, and edge AI applications.
The fan operates from a DC 5V input with an electrical rating of 0.65W (5V/0.13A) and features PWM speed adjustment, allowing fan speed to be controlled according to the system's thermal requirements. It is rated at 5500 ±10% RPM and comes with a 37 ±3 mm cable, elastic bracket, and height-limited screws for convenient installation.
The compact design makes this Jetson Orin cooling fan a practical choice for maintaining airflow and helping the Jetson Orin module operate reliably during sustained processing loads.
Features:
- Official Waveshare Cooling Fan designed for Jetson Orin NX and Orin Nano modules.
- PWM speed control enables adjustable fan speed based on cooling requirements.
- 5500 ±10% RPM maximum rated speed for effective heat dissipation.
- DC 5V, 0.65W (5V/0.13A) power rating for efficient operation.
- Aluminum alloy enclosure helps improve heat dissipation and thermal management.
- Includes a 37 ±3 mm cable, elastic bracket, and height-limited screws for easy installation.
Package Includes:
- 1 x Orin-FAN-PWM
- 1 x Elastic bracket and height-limited screws
Specifications:
| Specification | Details |
|---|---|
| Module Support | NVIDIA Jetson Orin NX Module, NVIDIA Jetson Orin Nano Module |
| Power Supply | DC 5V Input |
| Structure | Embedded Fan, Aluminum Alloy Enclosure |
| Electrical Parameter | 0.65W (5V/0.13A) |
| Cable Length | 37 ± 3 mm |
| Fan | PWM Speed-Adjustable, 5500 ± 10% RPM |
Warranty Coverage:
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
Warranty Void If:
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
