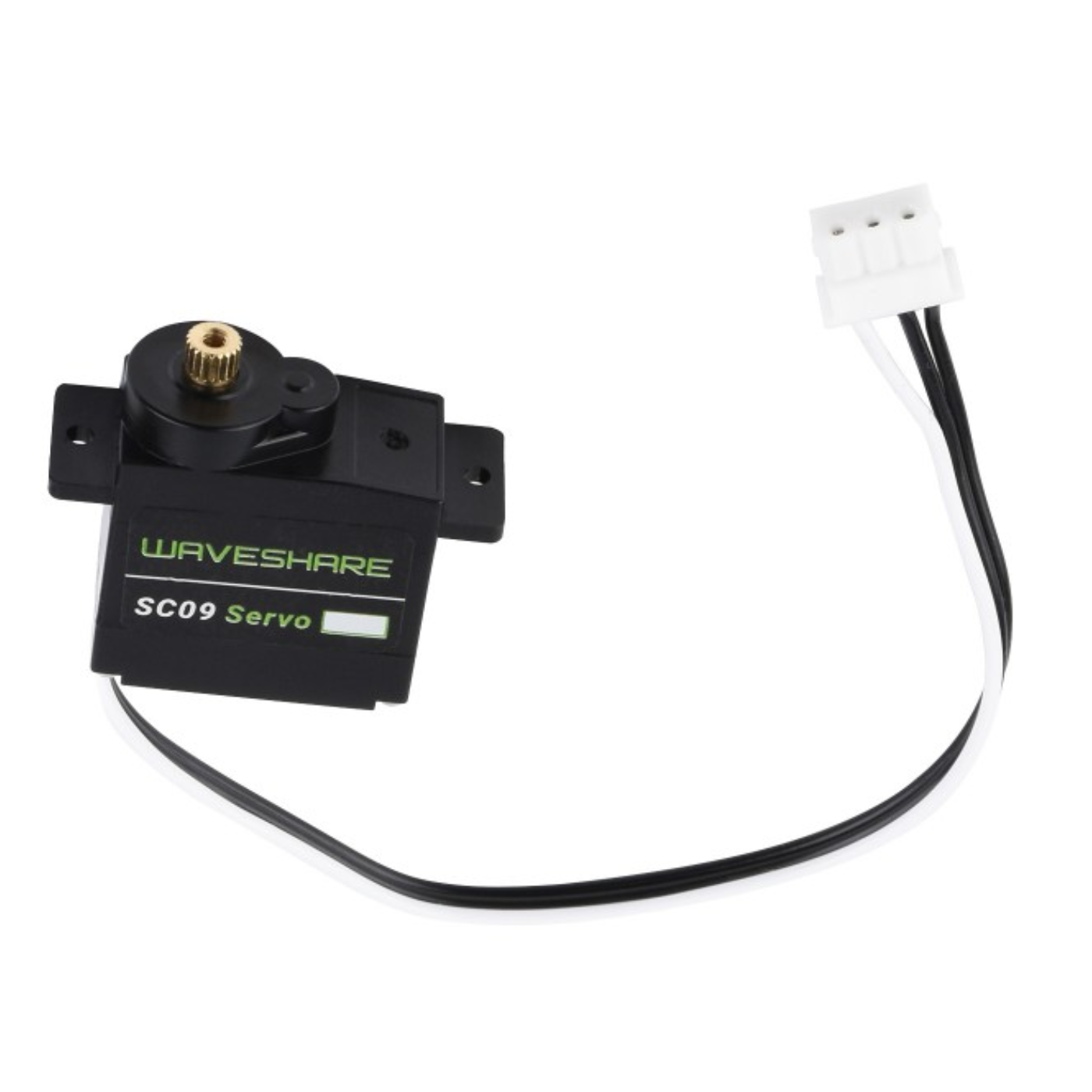

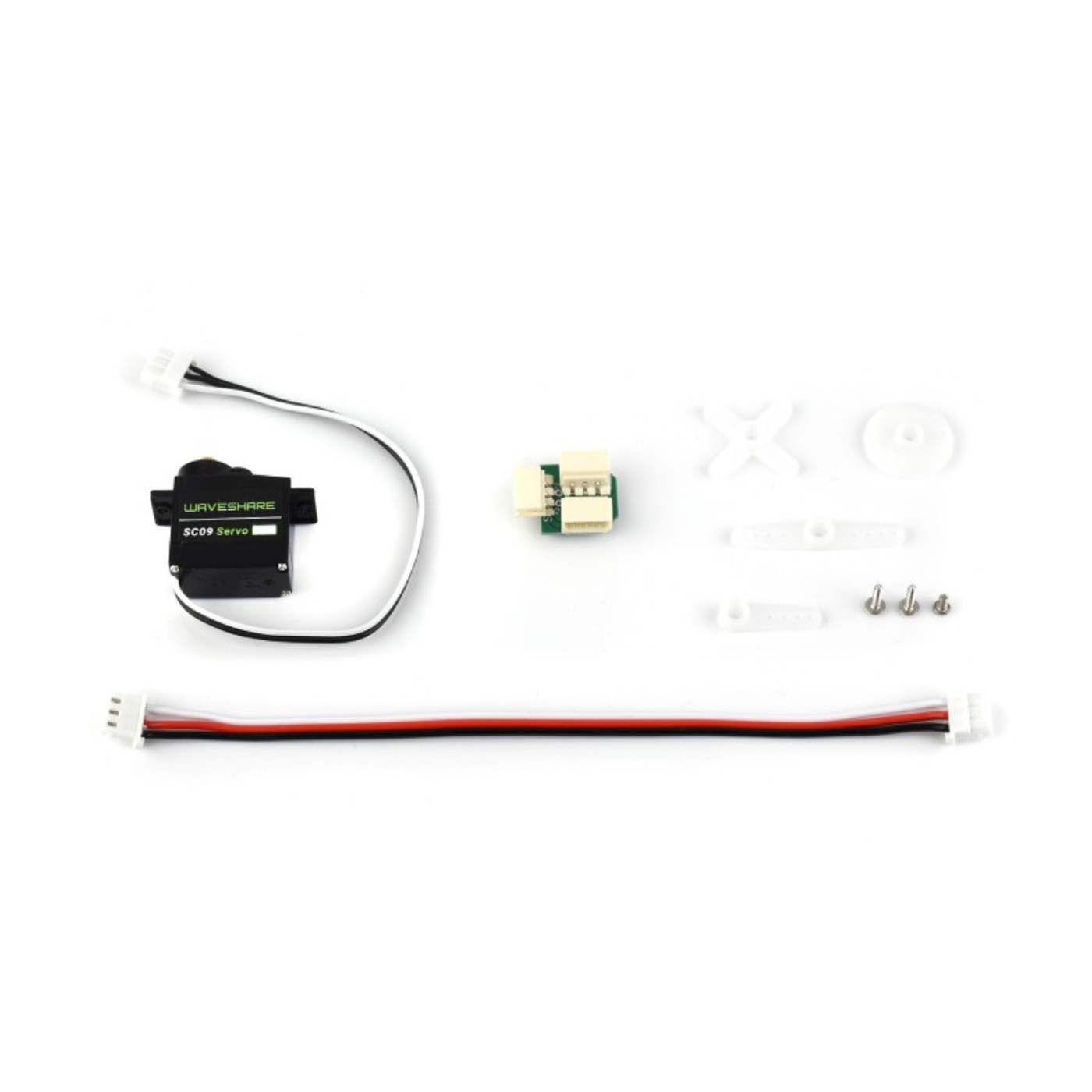

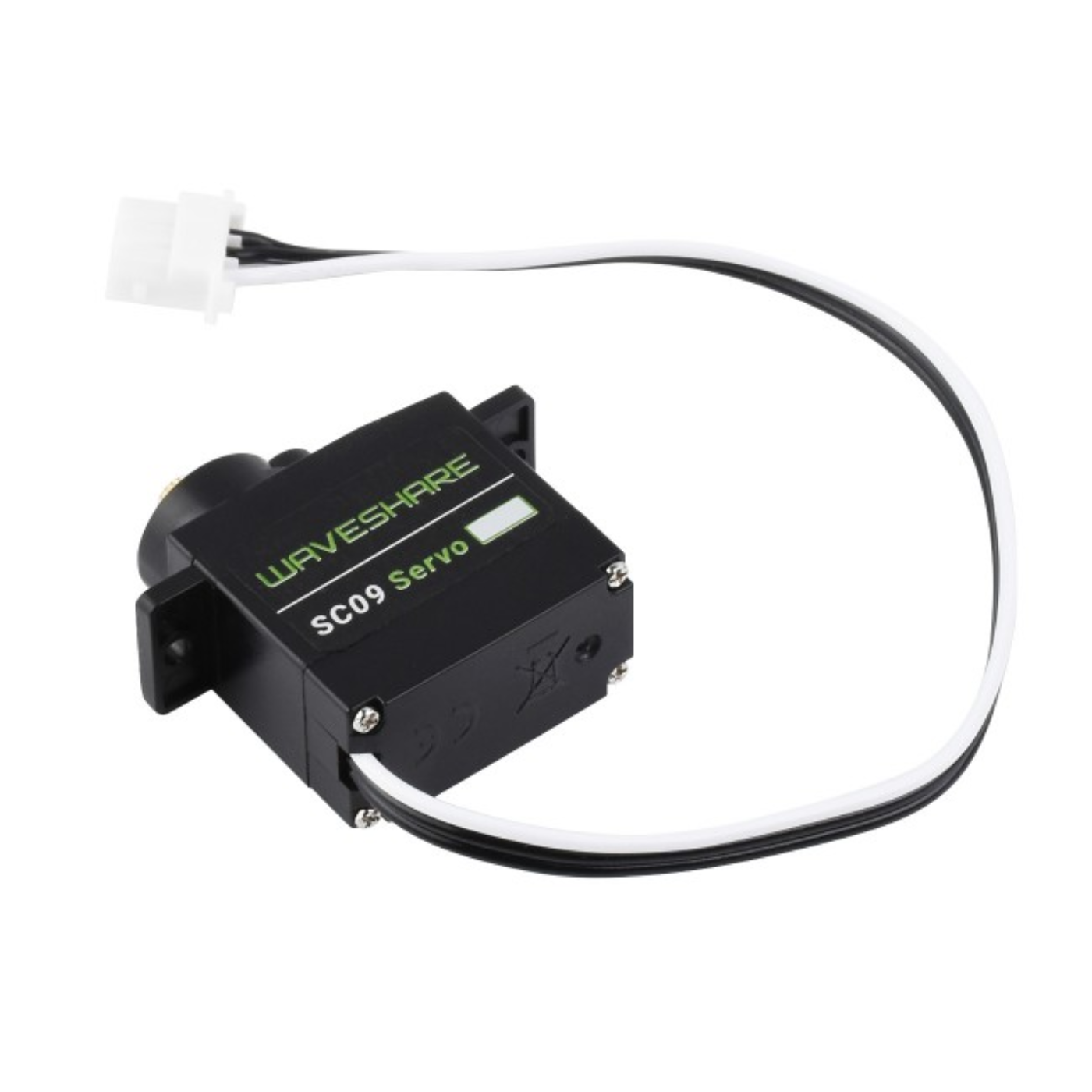

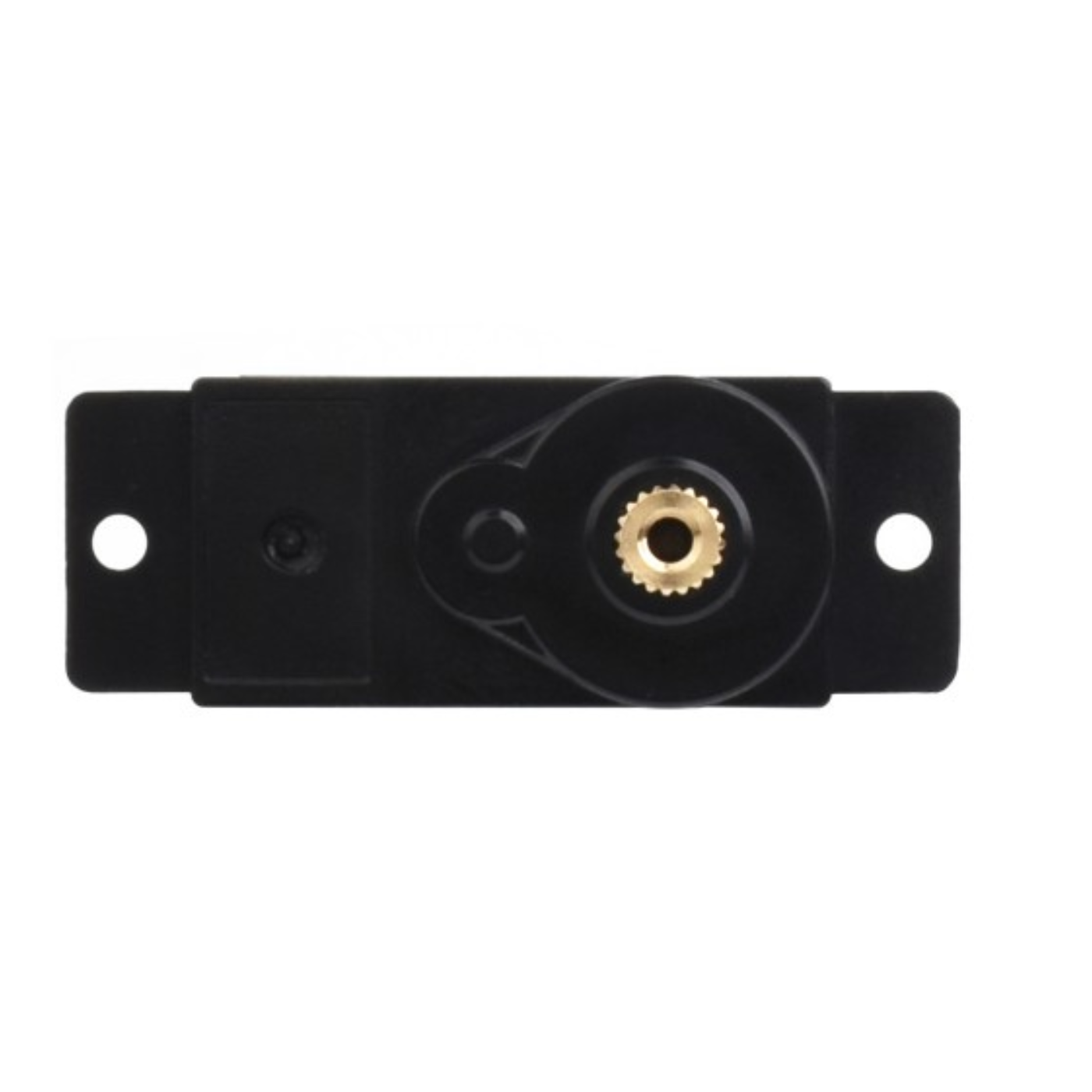

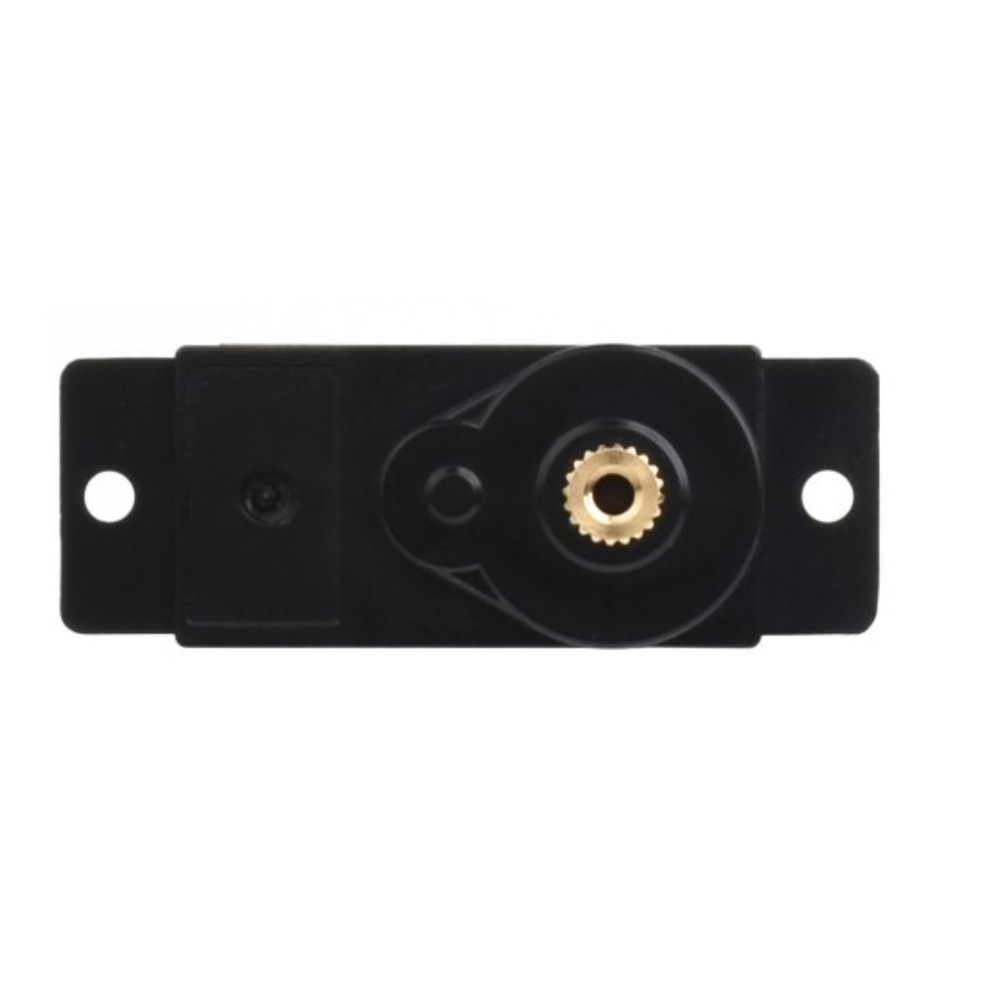

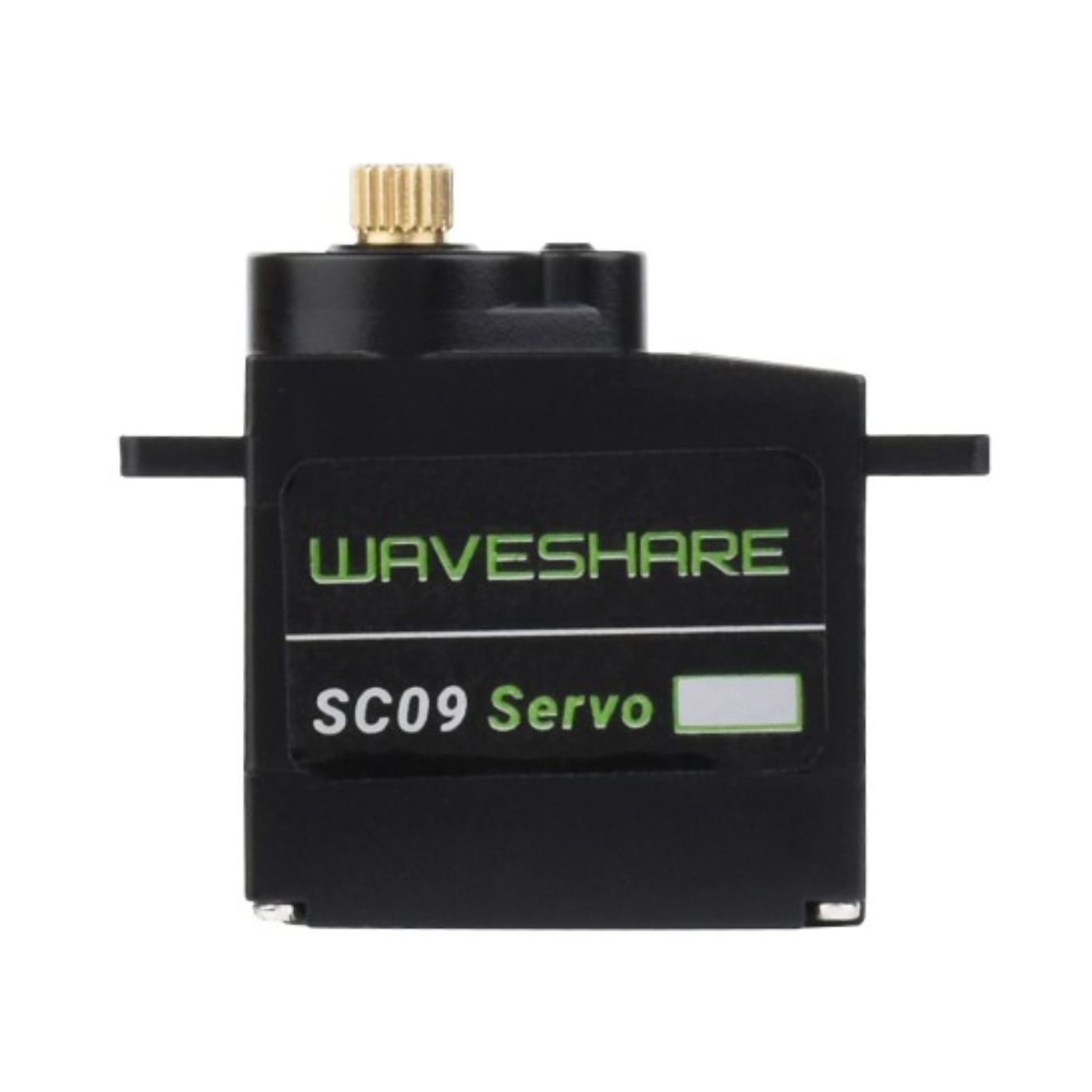

Waveshare 300° 2.3kg SC09 Two-way Serial Bus Servo Motor
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The Waveshare SC09 Two-Way Serial Bus Servo Motor is a compact 2.3kg.cm serial bus servo designed for robotics projects that require precise motion and real-time feedback. Operating from 4–6V, it provides a 300° rotation range with a position sensor resolution of 0.293° (300°/1024) and a no-load speed of 0.1 sec/60° (100 RPM) at 6V.
The servo uses high-precision metal gears and supports both servo mode for accurate angle control and motor mode for continuous rotation, making it suitable for robotic arms, quadruped robots, hexapod robots, humanoid robots, and wheeled robots. Its two-way feedback system can report position, load, speed, and input voltage, enabling closed-loop robotic control.
The SC09 uses digital signal control through half-duplex asynchronous serial communication, supports a baud rate of 38400bps to 1Mbps, and provides an ID range of 0–253, allowing up to 253 serial bus servos to be connected and controlled on a single UART channel when an adequate power supply is used.
| Specification | Details |
|---|---|
| Product Type | SC09 Serial Bus Servo |
| Torque | 2.3 kg.cm @ 6V |
| Rated Torque | 0.7 kg.cm @ 6V |
| Rotation Angle | 300° (0–1024) |
| No-Load Current | 150 mA @ 6V |
| Locked-Rotor Current | 1.0 A |
| No-Load Speed | 0.1 sec/60° (100 RPM) @ 6V |
| Operating Voltage | 4–6V |
| Position Sensor Resolution | 0.293° (300°/1024) |
| Mechanism Limited Angle | No Limit |

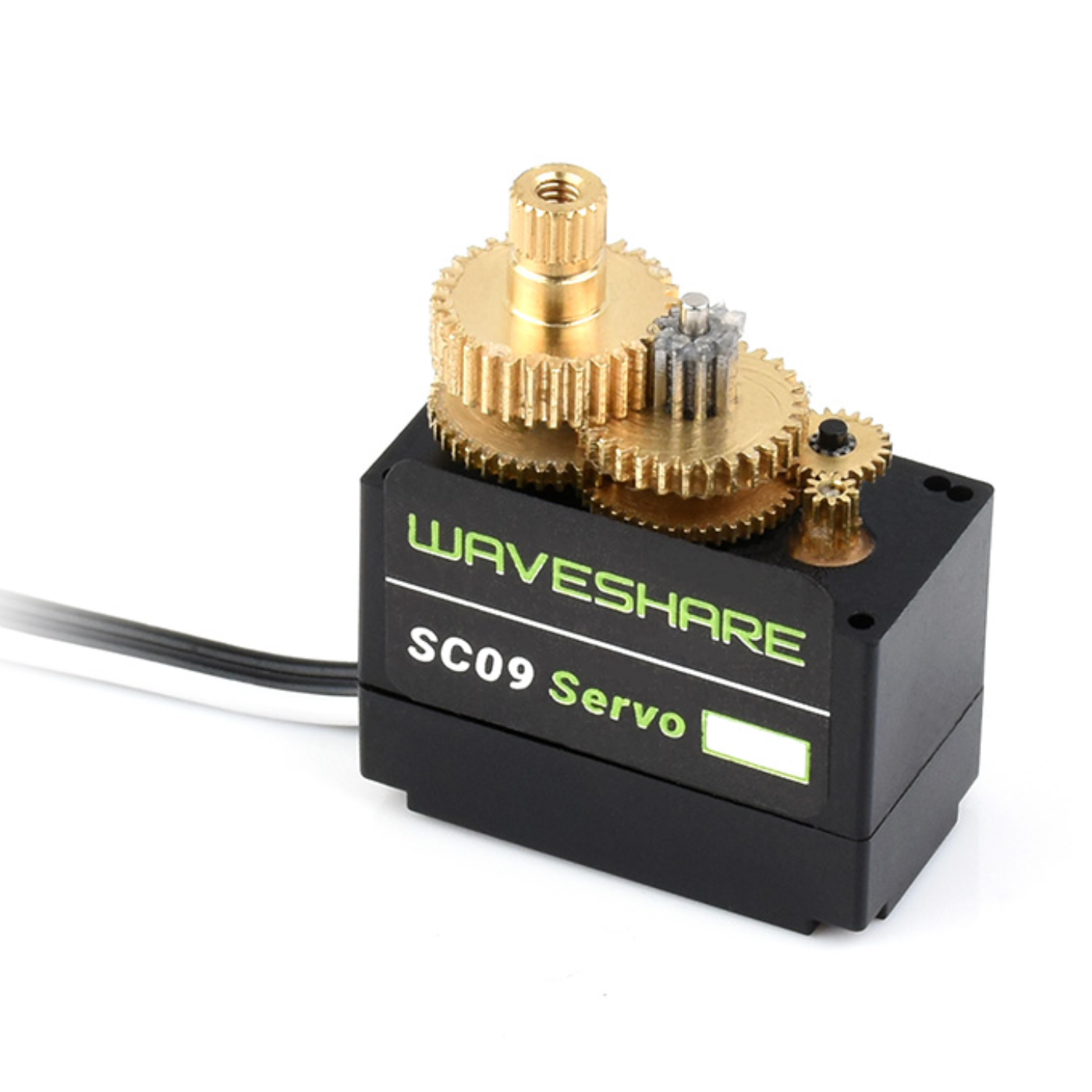

| Gear | High-Precision Metal Gear |
| Motor Type | Iron Core Motor |
| Bearing Type | Sliding Bearing |
| Output Shaft | 20T / OD 3.95 mm |
| Encoder Type | Carbon Film Potentiometer |
| Control Signal | Digital Signal |
| Protocol Type | Half-Duplex Asynchronous Serial Communication |
| Baud Rate | 38400 bps–1 Mbps |
| ID Range | 0–253 |
| Center Position | 150° (511) |
| Storage Temperature | -30°C to 80°C |
| Operating Temperature | -15°C to 70°C |

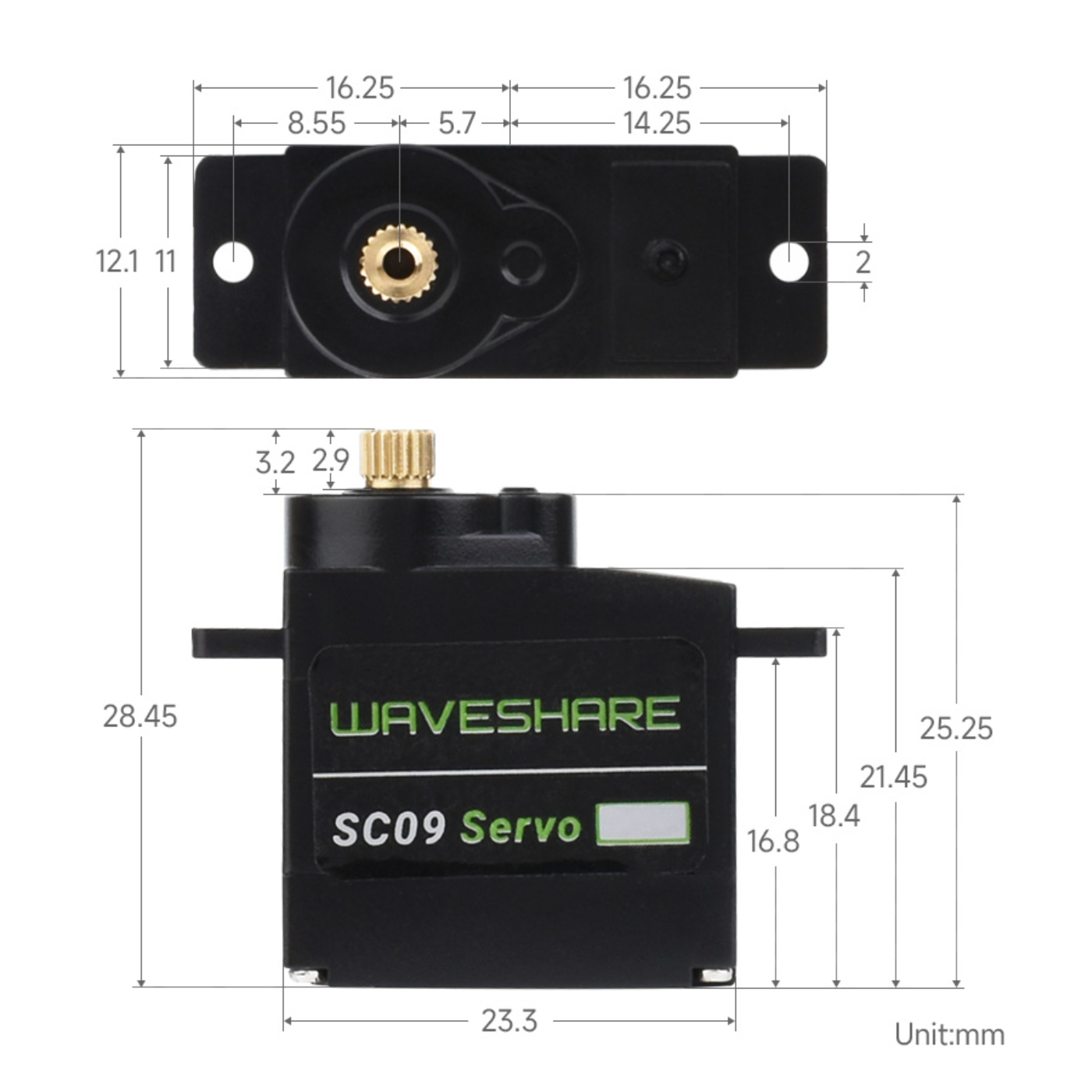

| Dimensions | 23.2 × 12.0 × 25.5 mm |
| Servo Cable Length | 15 cm |
| Feedback | Position, Load, Speed, Input Voltage |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
