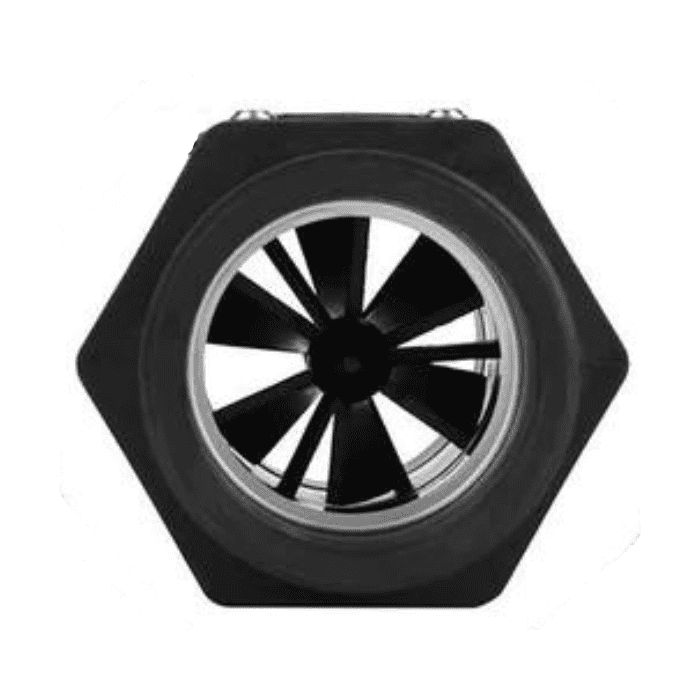

2 Inch Water Flow Sensor YF - DN50

2 Inch Water Flow Sensor YF - DN50

10

Rs. 1,907
Rs. 3,000 Rs. 1907
Sale Sold out 36% off
or ₹ 1812 + alt-pay-logo 95 points
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 14 people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • The working voltage range is 5-18 VDC
  • It is used to measure the flow rate of water.
  • It consists of a turbine-type rotor that is placed in the water stream.
  • It has a digital output that can be read by a microcontroller or other host device.
  • It is commonly used in applications such as irrigation systems, water treatment plants, and industrial process control.

2 Inch Water Flow Sensor YF - DN50

The YF-DN50 water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device. The sensor is commonly used in applications such as irrigation systems, water treatment plants, and industrial process control. It is often preferred over other types of flow sensors because it is easy to install and has a low cost.

The YF-DN50 sensor is designed to be installed in a pipe with a diameter of 50mm or 1.97 inches. The YF-DN50 water flow sensor is a large 2 inch diameter Water Flow meter Sensor that can be used to measure flow rate from 10 - 200 Liter/min

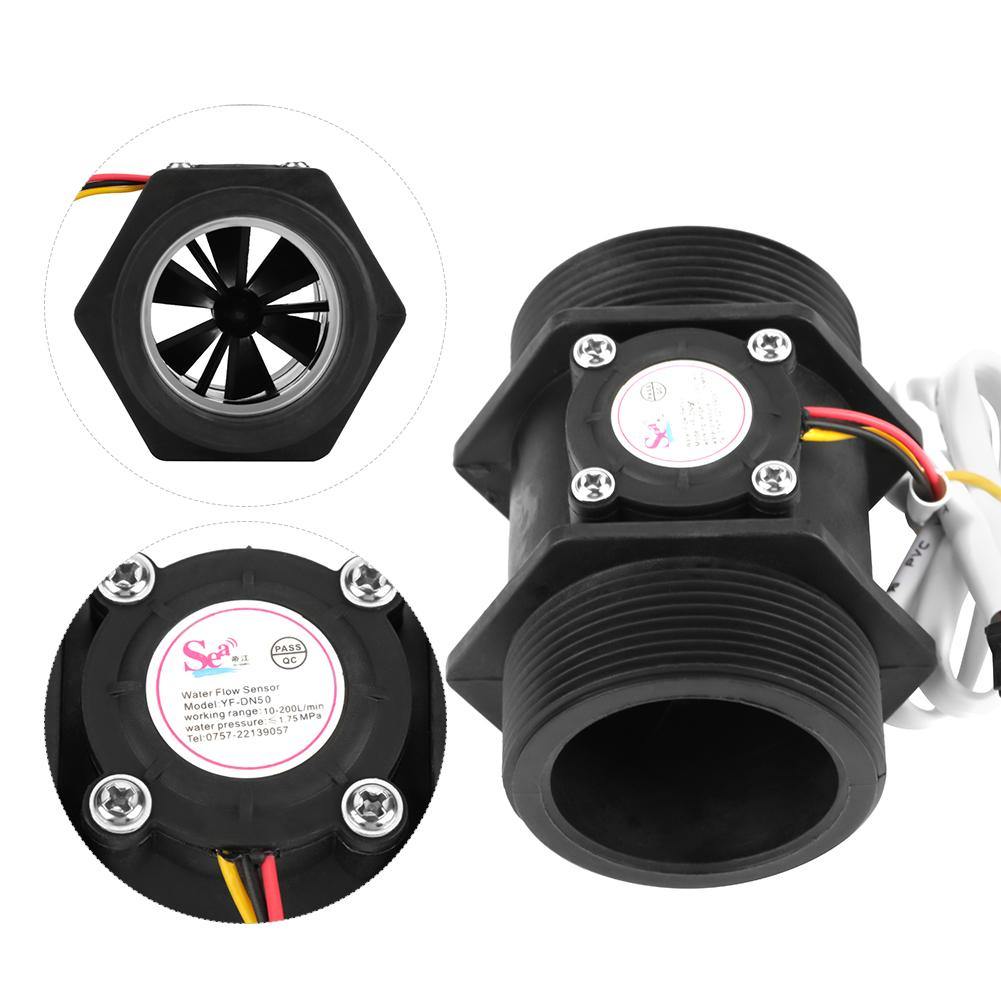

This water flow sensor consists of a plastic valve body, a rotor assembly and a Half effect current sensor. As the water flows through this sensor the rotor rotates and the speed of it changes with changes in the rate of flow of water. The hall-effect sensor outputs the corresponding pulse signal. The output of the flow sensor is proportional to the water flow. The more the water flowing more are the pulses.

Features:

  • Flow Range: 10-200 liters per minute (L/min)
  • Operating Voltage: DC 5-18V
  • Output: Square wave pulse signal
  • Sensor Type: Hall effect
  • Maximum Pressure: 1.75 MPa
  • Operating Temperature: Up to 80°C
  • Cable Length: 480mm
  • Dimensions: 92mm x 68mm

Applications:

  • Irrigation Systems: Used to monitor and control water flow in agricultural and landscaping irrigation systems.
  • Water Treatment Plants: Helps in measuring and managing water flow in treatment processes.
  • Industrial Process Control: Utilized in various industrial applications to ensure accurate water flow measurement and control.
  • Smart Home Automation: Integrated into smart home systems for monitoring water usage.
  • Vending Machines: Used to measure the flow of water in beverage vending machines.
  • Water Dispensers: Ensures accurate dispensing of water in commercial and residential water dispensers.
  • Tankless Water Heaters: Monitors water flow to regulate heating in tankless water heaters

Package Includes:

  • 1 x Water Flow Sensor YF - DN50

Specifications:

Sensor Type  Waterflow Sensor
Model  YF - DN50 Waterflow Sensor
Flow range 10-200 Liter per min
Hall Effect  Yes
Maximum current 15 mA (5 volt DC)
Dimensions  5 x 4 x 3 cms
Weight  50 grams
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

-47%
Water Flow Sensor YF - DN40-Robocraze

1.5 Inch Water Flow Sensor YF - DN40

Rs. 1,332
Rs. 2,499 Rs. 1332
Incl. GST (No Hidden Charges)
Sale
-31%
Turbidity Sensor-Robocraze

Turbidity Sensor

Rs. 865
Rs. 1,249 Rs. 865
Incl. GST (No Hidden Charges)
Sale
-36%
Water Flow Sensor YF G1-Robocraze

1 Inch Water Flow Sensor YF-G1 DN25

Rs. 842
Rs. 1,324 Rs. 842
Incl. GST (No Hidden Charges)
Sale

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

1. What are Applications of Water Flow Sensor?

  • The YF-DN50 water flow sensor is a liquid flow sensor installed at a water source or pipe to measure the water flow rate and calculate the amount of water that has passed through the pipe. Water flow rate is measured in liters or cubic meters per hour. The DN50 flow meter are commonly used in HVAC systems, medical devices, chemical plants, and sewage treatment plants. Flow sensors can detect leaks, blockages, pipe ruptures, and changes in liquid concentration due to contamination and dirt. It can be used to sound an alarm when the water supply stops, shut down electric motors when the flow is insufficient, air conditioners/ventilators, coffee machines, swimming pool chlorination systems, etc.

2.How does the YF-DN50 water flow sensor measure the flow rate of water?

  • The YF-DN50 water flow sensor measures the flow rate of water by using a turbine-type rotor that is placed in the water stream. As the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output that provides a digital signal that can be read by a microcontroller or other host device.

3. What is the primary function of the YF-DN50 Water Flow Sensor?

  • The primary function of the YF-DN50 Water Flow Sensor is to measure the flow rate of water in a pipe, providing accurate readings in liters per minute (L/min).

4. What type of output signal does the sensor provide?

  • The sensor provides an NPN pulse output signal, which can be easily read by microcontrollers and other electronic devices.

5. What are the temperature and pressure specifications for this sensor?

  • The sensor operates effectively within a temperature range of -20°C to 80°C and can withstand a maximum pressure of 1.75 MPa.
