Combo of W1209 Digital Thermostat Temperature Controller with 12V 2AMP Adapter, 12V DC 0.15A Fan, DC female Jack/Splitter and Alligator Clips
Combo of W1209 Digital Thermostat Temperature Controller with 12V 2AMP Adapter, 12V DC 0.15A Fan, DC female Jack/Splitter and Alligator Clips
Low stock: 7 left
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits

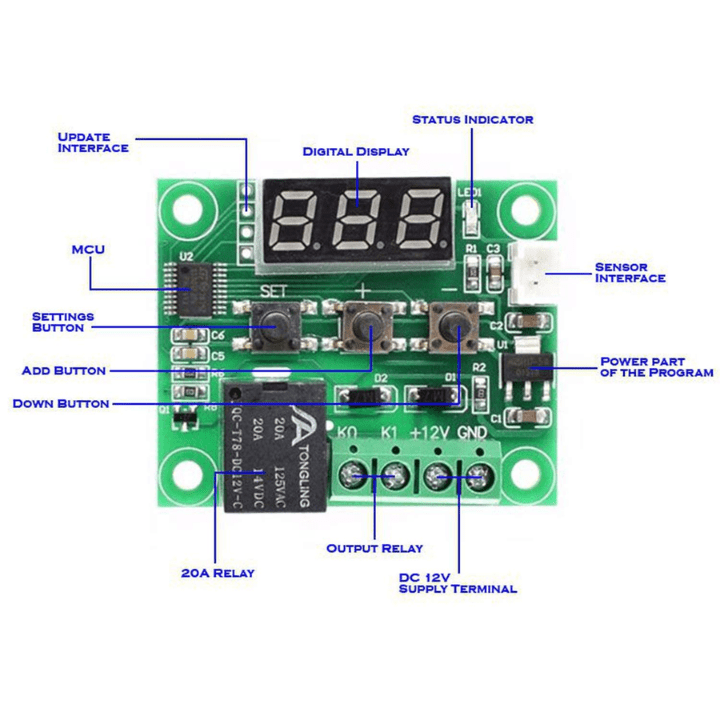

- W1209 is a 12V Temperature controller with 7-segment display with 3 switch keypad to set temperature.
- The Robocraze W1209 Digital thermostat Kit is a precise temperature controller upto 0.1C and fast acting control of 0.5 seconds response time.
- Module current consumption; Static state = Less than 35mA, Max = less than 65mA
- The fan is used to keep the system cool. The 12V power adapter is an industry power module that converts AC power to 12V 2A DC.
- Crocodile clips are useful in connecting components like battery to wires. DC Female Jack can be used to connect a DC power wall wart to a board that does not have a DC Jack.
W1209 with 12V Adapter, DC Fan, DC female Jack and Alligator Clips
The combo of a W1209 digital thermostat temperature controller with a 12V 2AMP adapter, a 12V DC 0.15A fan, a DC female jack/splitter, and alligator clips is a package of components that can be used to build a temperature control system. The W1209 digital thermostat controller is a standalone device that allows you to control the temperature of a system or process using a digital interface. It includes a temperature sensor, a control algorithm, and an output mechanism to control the temperature. The 12V 2AMP adapter is a power supply that converts AC power to 12V DC power, which is used to power the controller and other components.
The 12V DC 0.15A fan is a small cooling fan that can be used to dissipate heat from the system. The DC female jack/splitter is a connector that allows you to split a single DC power source into multiple outputs. The alligator clips are used to make temporary electrical connections. Together, these components can be used to build a temperature control system for a wide range of applications including HVAC systems, incubators, ovens, and other temperature-controlled environments.

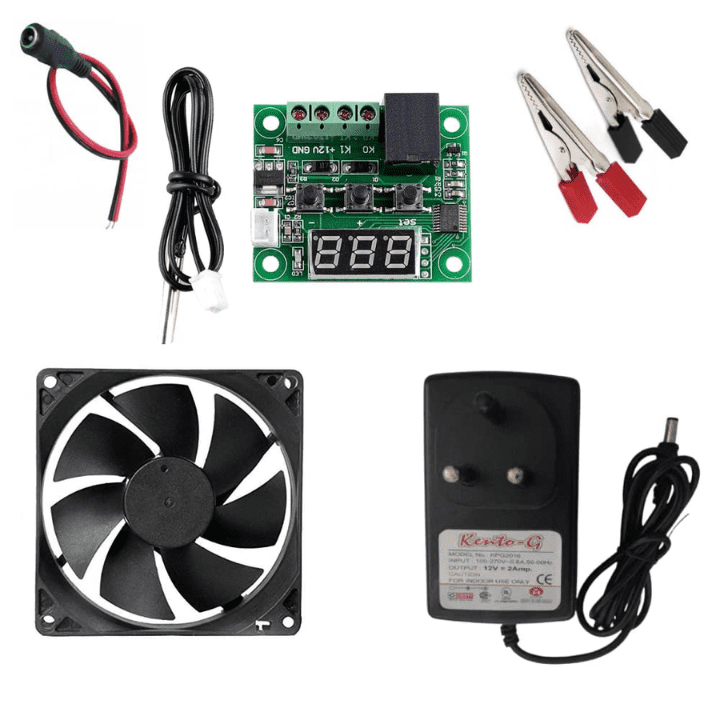

Package Includes:
- 1 x W1209 Digital Thermostat Temperature Controller

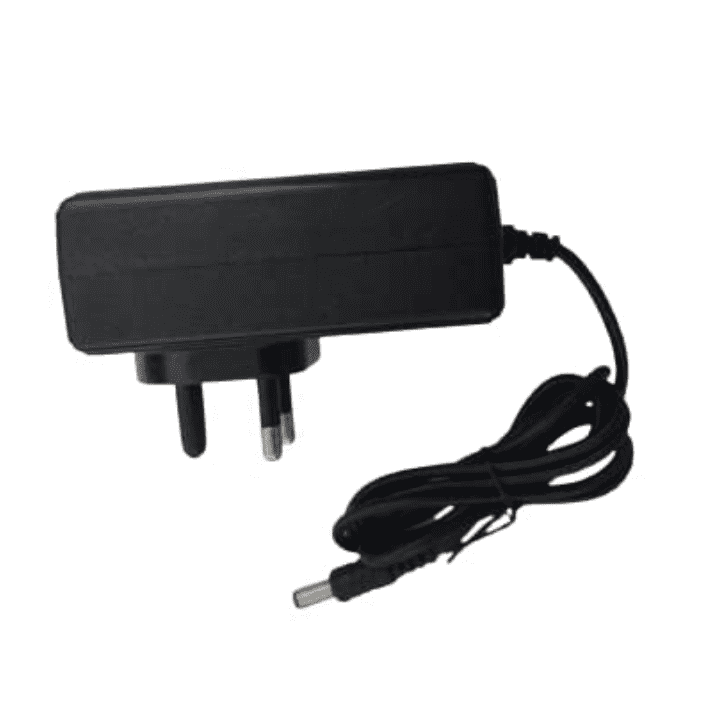

- 1 x 12V 2AMP Adapter

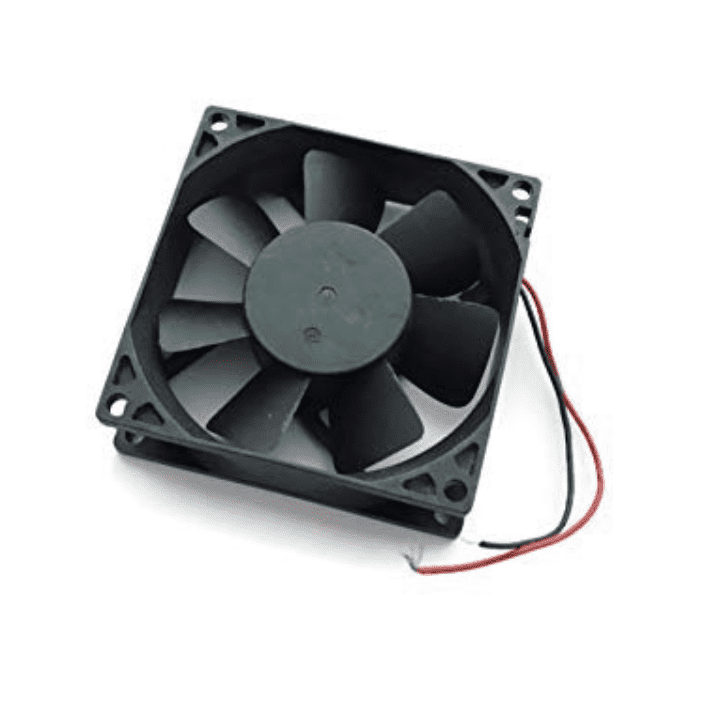

- 1 x 12V DC 0.15A Fan
- 1 x DC female Jack/Splitter
- 2 x Alligator Clips
Specifications:
Model No. | W1209 |
Voltage | 12V |
Adapter Output Voltage | 12V |
Adapter Output Current | 0.15A |
