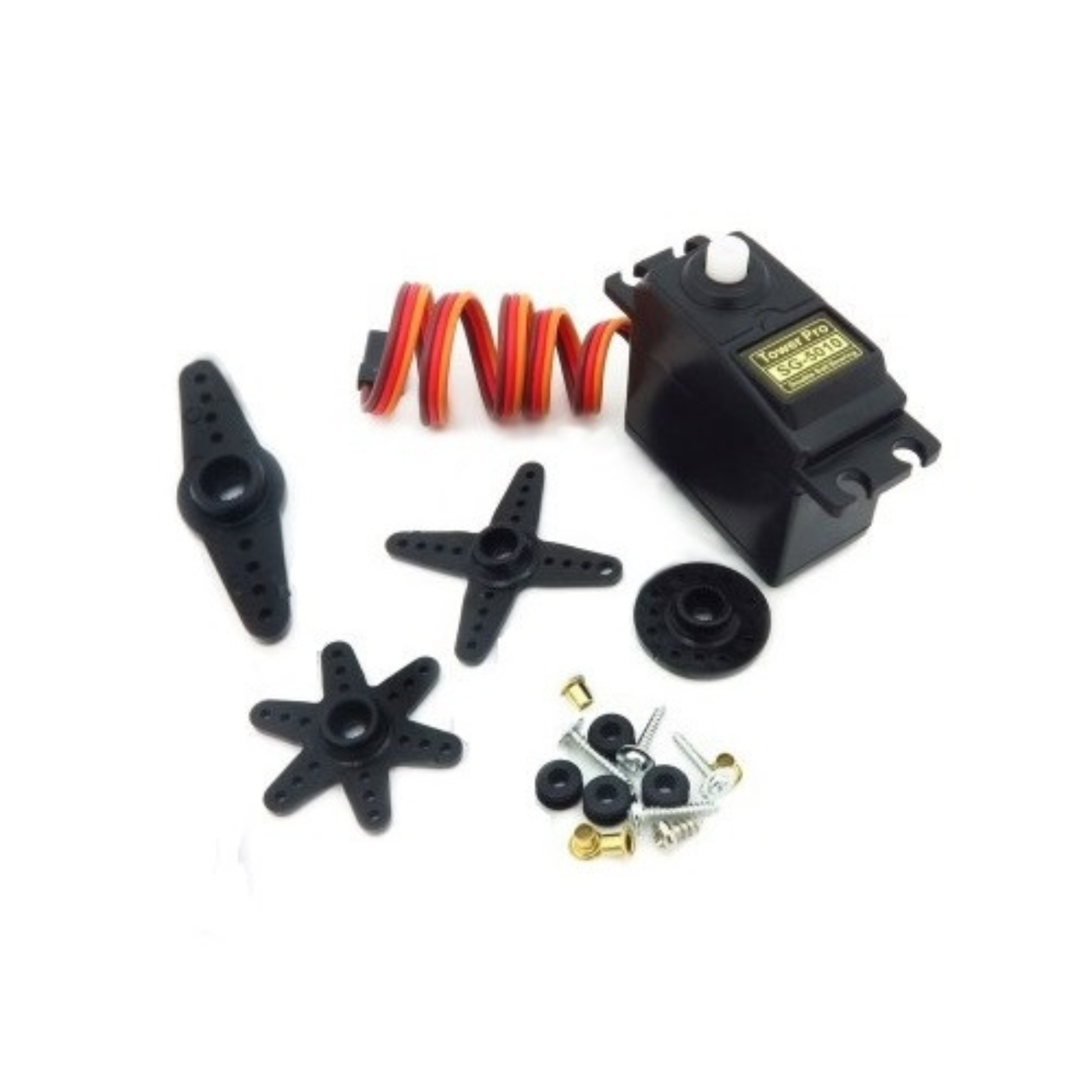

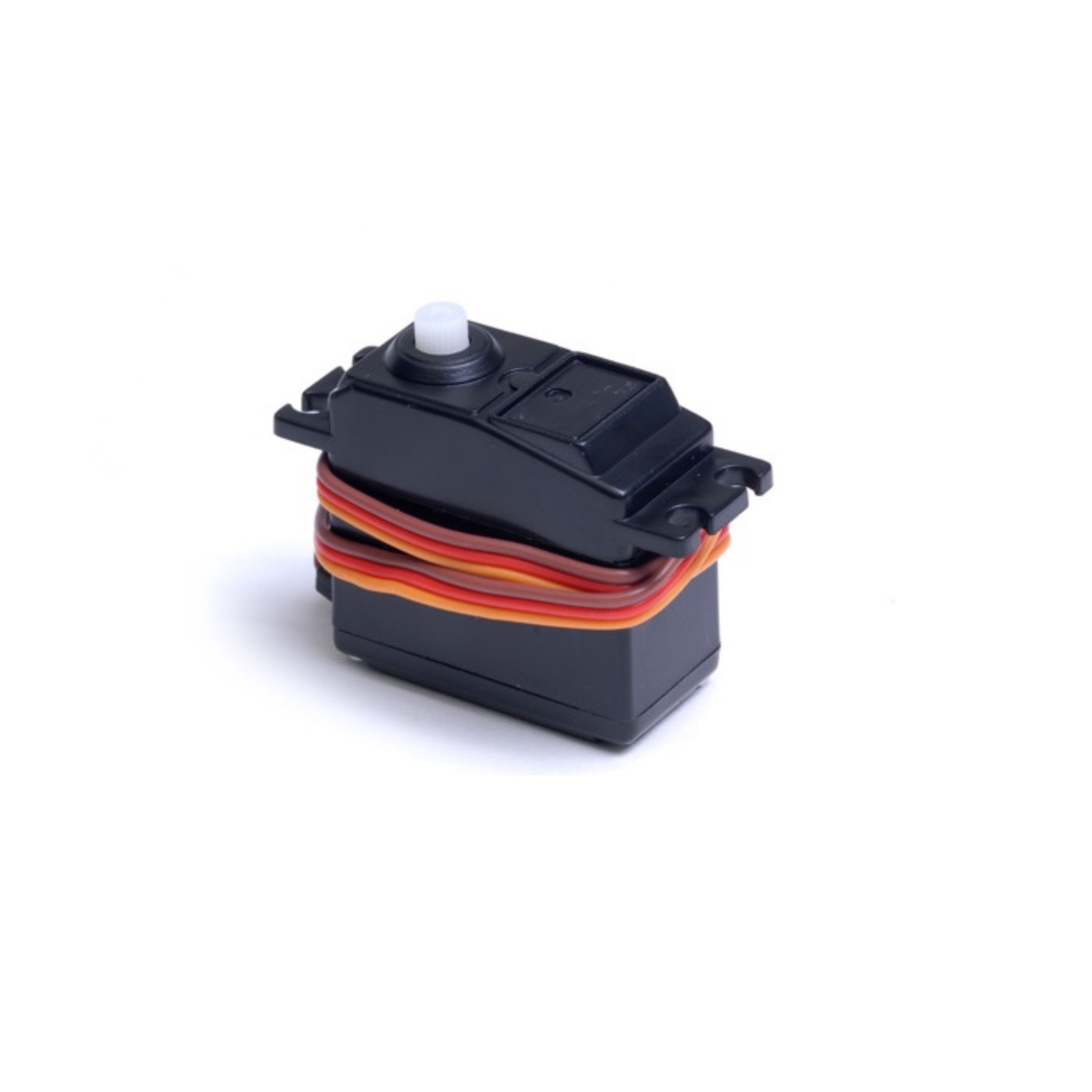

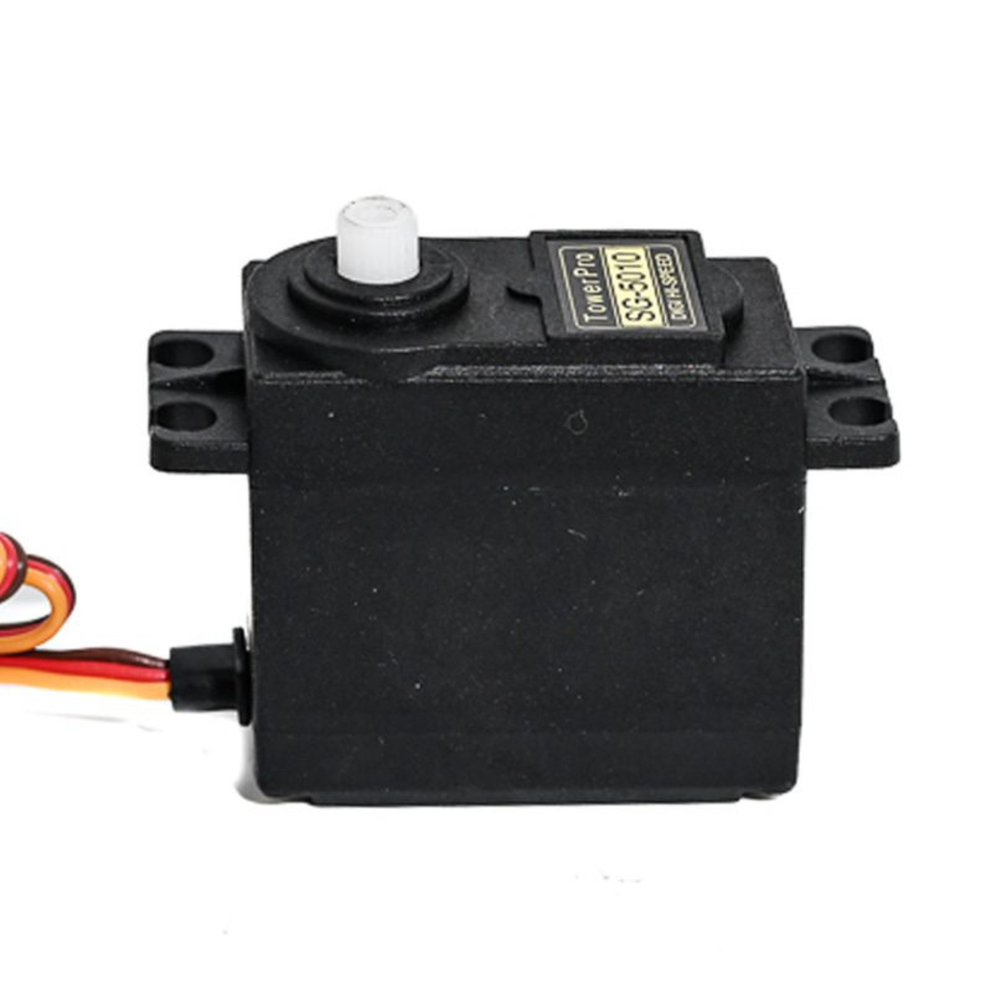

TowerPro SG5010 High-Torque Standard Servo Motor 180° Rotation
Couldn't load pickup availability
The TowerPro SG5010 Standard Servo Motor is a reliable, high-torque 180° rotation servo designed for RC cars, boats, aircraft, and robotics projects. Built with durable glass-fiber gears and smooth control response, it offers stable torque delivery across its entire movement range.
Whether you're upgrading an existing model or building a new DIY system, this servo provides accuracy, consistency, and strong holding power at an affordable price point.
Although these servos are non-original TowerPro units, they still deliver excellent value for hobbyists and makers looking for dependable performance without overspending.
With fast response speeds, precise positioning, and compatibility with standard JR-type connectors, the SG5010 becomes a practical choice for educational robotics, RC experiments, and mechanical control mechanisms.
| Item Type | TowerPro Servo Motor |
|---|---|
| Model Series | SG Series |
| Model No. | SG5010 |
| Rotation Angle | 180° |
| Torque Rating | 5.5–6.5 kg-cm |
| Stall Torque @4.8V | 5.5 kg-cm |
| Stall Torque @6.6V | 6.5 kg-cm |
| Operating Voltage | 4.8V – 6.6V |
| Operating Speed @4.8V | 0.20 sec/60° |
| Operating Speed @6.6V | 0.16 sec/60° |
| Gear Type | Glass Fiber |
| Servo Plug Type | JR |
| Cable Length | 30 cm |
| Operating Temperature | 0°C to 55°C |
| Length | 53 mm |
| Width | 45 mm |
| Height | 20 mm |
| Weight | 53 g |
| Wire Description | Red – Positive, Brown – Negative, Orange – Signal |
