ST-LINK V2/V2.1 USB-C Programmer and Debugger for STM32 Microcontrollers - 7Semi
ST-LINK V2/V2.1 USB-C Programmer and Debugger for STM32 Microcontrollers - 7Semi
Low stock: 9 left
Regular price
Rs. 332
Regular price
Rs. 454
Sale price
Rs. 332
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, people are actively viewing.
Same Day Shipping
If Ordered within 2 Hours and 32 Minutes
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- USB-C programmer/debugger for STM32 microcontrollers.
- Supports SWIM (for STM8) and JTAG/SWD (for STM32) interfaces.
- Modern USB-C connection for enhanced compatibility.
- Available in isolated version (V2-ISOL) for PC-to-target voltage protection.
- Ideal for embedded development and troubleshooting.
ST-LINK V2/V2.1 USB-C Programmer and Debugger for STM32 Microcontrollers - 7Semi

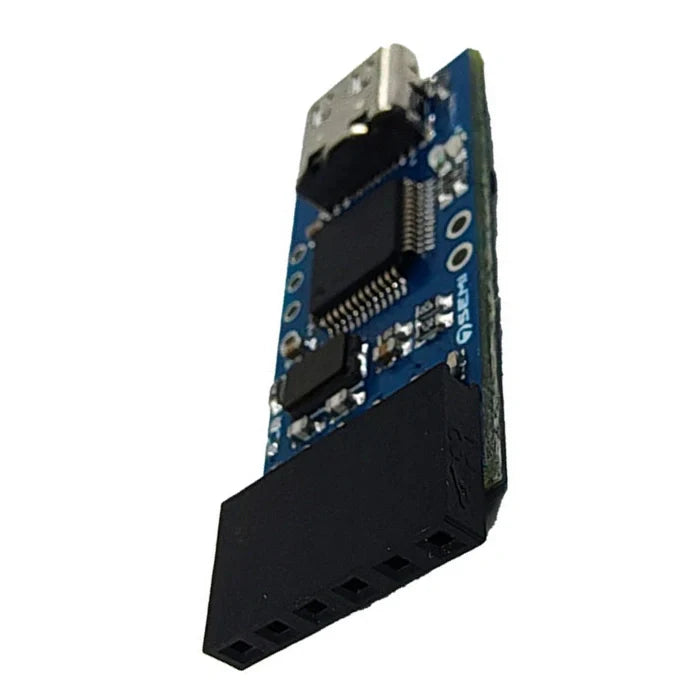

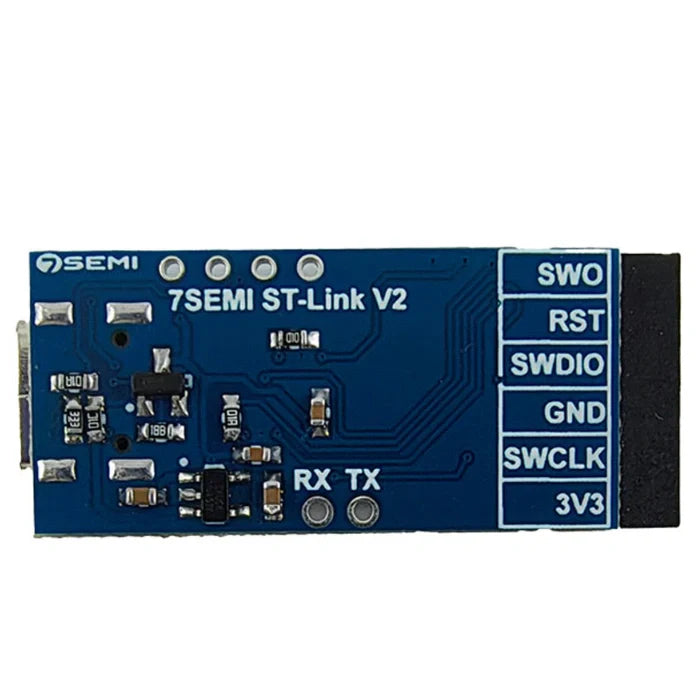

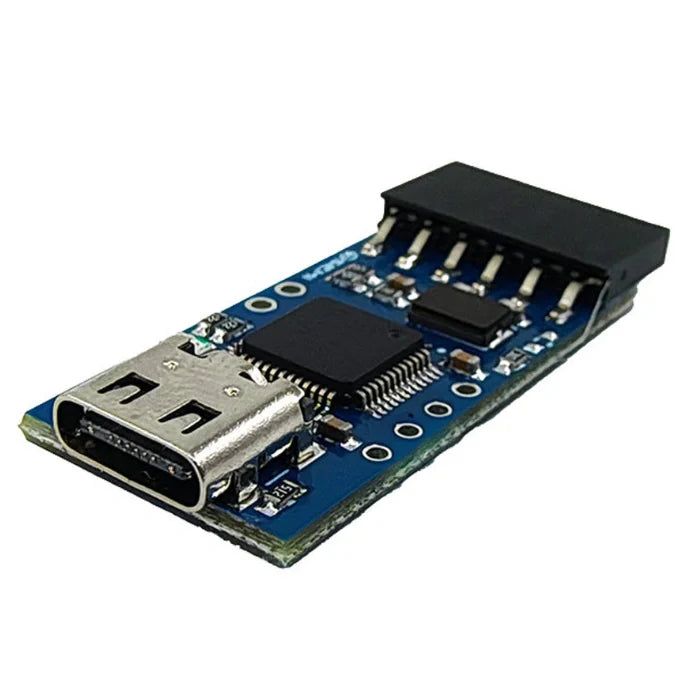

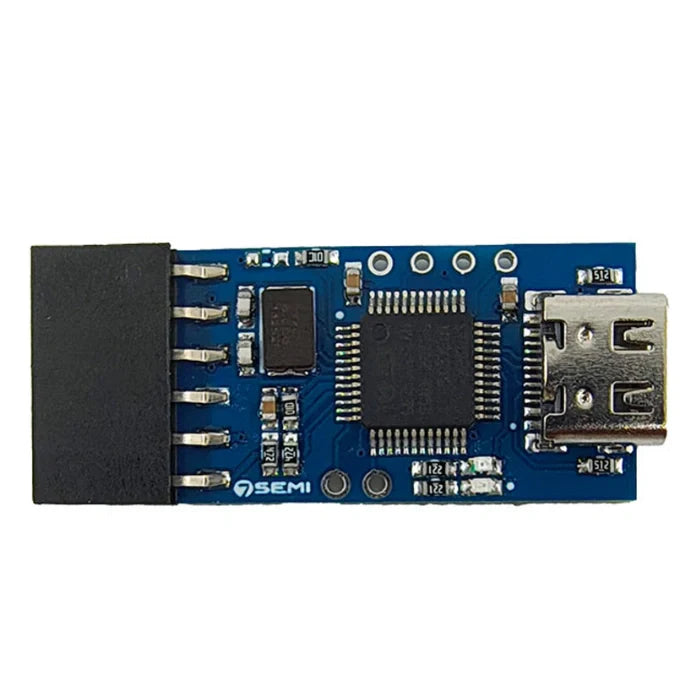

The 7Semi ST-LINK V2/V2.1 USB-C Programmer and Debugger is designed for seamless development and troubleshooting of STM32 microcontrollers. Offering SWIM and JTAG/SWD interface support, it enables precise programming and debugging tasks. The upgraded USB-C connector ensures modern device compatibility and ease of use.
For applications that demand additional protection, the isolated version (ST-LINK/V2-ISOL) provides galvanic isolation between the computer and the target device, safeguarding against high-voltage risks up to 1000 Vrms. Compact and reliable, this tool is ideal for both hobbyists and professionals working in embedded development environments.
Features:
-
Versatile Programming: Supports both STM32 and STM8 microcontrollers.
-
Dual Interface: Provides JTAG/SWD for STM32 and SWIM for STM8 devices.
-
Modern Connectivity: Equipped with USB-C interface for reliable and future-proof connections.
-
High Voltage Protection (Isolated Version): Isolated version protects against up to 1000 Vrms voltage between PC and target board.
-
Compact and Portable: Small form factor ideal for lab and field use.
- Easy Integration: Works with STM32CubeIDE, ST-Link Utility, and other popular development environments.
Package Includes:
- 1 x 7Semi ST-LINK V2/V2.1 USB-C Programmer and Debugger
Specifications:
| Specification | Details |
|---|---|
| Brand | 7Semi |
| Supported MCUs | STM32, STM8 |
| Interface | JTAG/SWD for STM32, SWIM for STM8 |
| Connector Type | USB-C |
| Isolation (Optional) | Available (ST-LINK/V2-ISOL) up to 1000 Vrms |
| Compatible Software | STM32CubeIDE, ST-Link Utility, Keil, IAR, etc. |
| Operating Voltage | Target voltage 1.65V to 3.6V (Typical) |
| Dimensions (LxWxH) | 3.7 x 1.6 x 0.5 cm |
| Weight | 4 gm |
| Supported OS | Windows, Linux, macOS (with drivers) |
