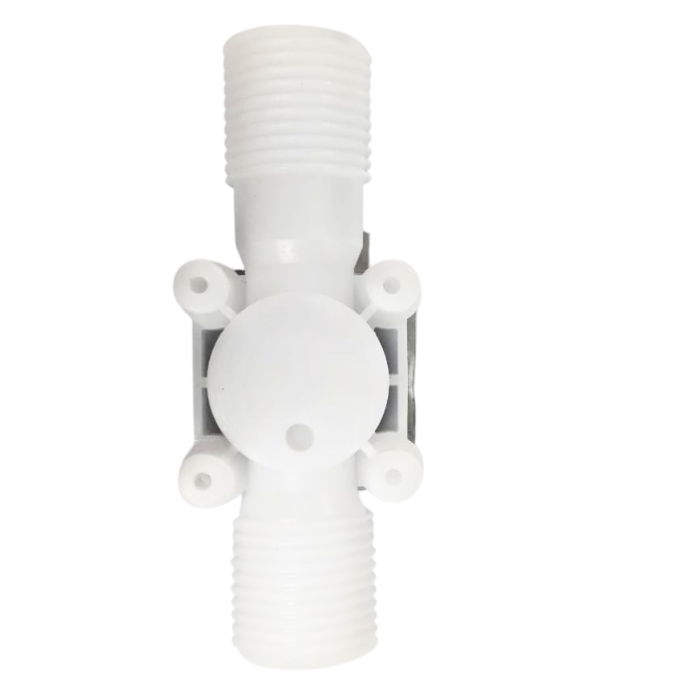

Solenoid Valve 230V 1/2 inch
Couldn't load pickup availability
230V AC Solenoid Water Air Valve Switch (Normally Closed) – 1/2? controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid. This liquid valve would make a great addition to your robotic gardening project. There are two ½” (Nominal NPT) outlets. Normally, the valve is closed. When a 230V AC supply is applied to the two terminals, the valve opens and water can push through.
The valve switch/sensor works with the solenoid coil which operates electronically with AC 230 volt supply. As it is a normally closed assembly, it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage removed.
Also check Solenoid Valve 12v 1/2in designed for solar water heaters. The valve is suitable for liquid media, with a temperature range of 1 - 100 °C. It operates on a 12V DC supply, with a rated current of 0.6A and a power consumption of 8W. The valve is normally closed and has a pressure range of 0.02-0.8Mpa.
| Rated Operating Voltage | 230V AC |
| Rated Current | 0.6A |
| Operation Mode | NC (Normally Closed) |
| Pressure | 0.02 – 0.8MPa |
| Max fluid temperature | 100°C |
| Dimensions | 5 x 4 x 3 cms |
| Weight | 15 grams |
Common applications include:
Water Control: Used in irrigation systems and water treatment plants.
Industrial Automation: Controls the flow of various fluids in automated systems.
HVAC Systems: Regulates the flow of refrigerants and other fluids in heating, ventilation, and air conditioning systems.
Home Appliances: Found in washing machines and dishwashers to control water flow.
