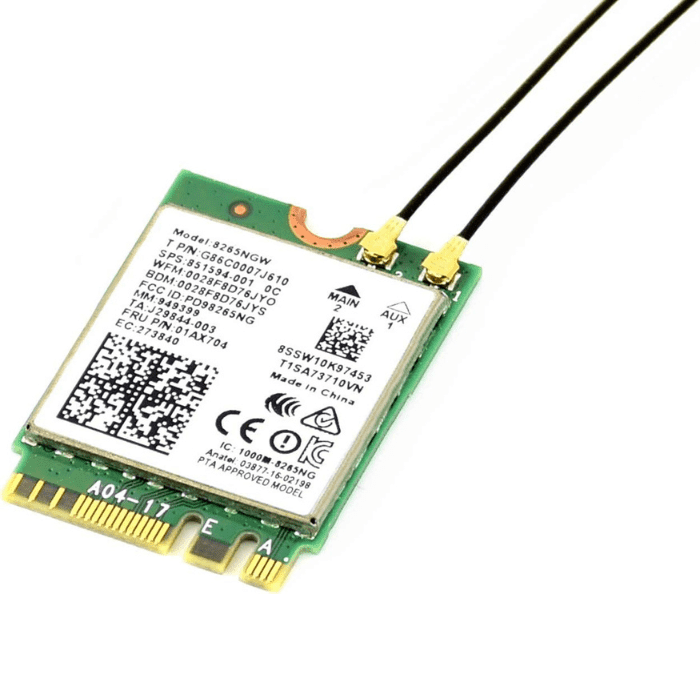

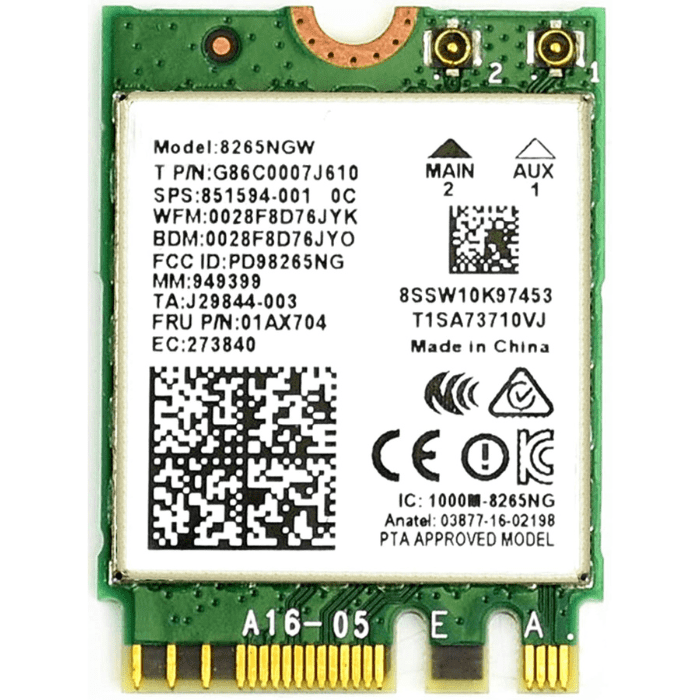

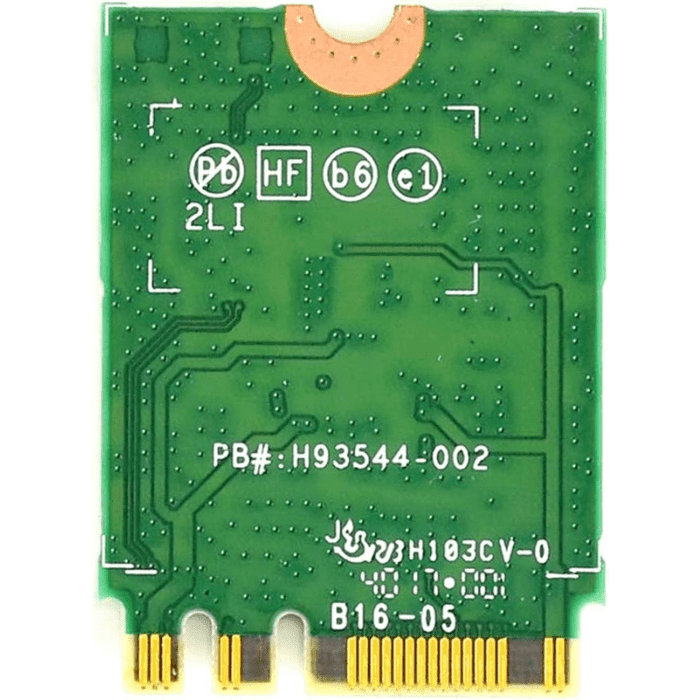

AC8265 Wireless NIC for Jetson Nano

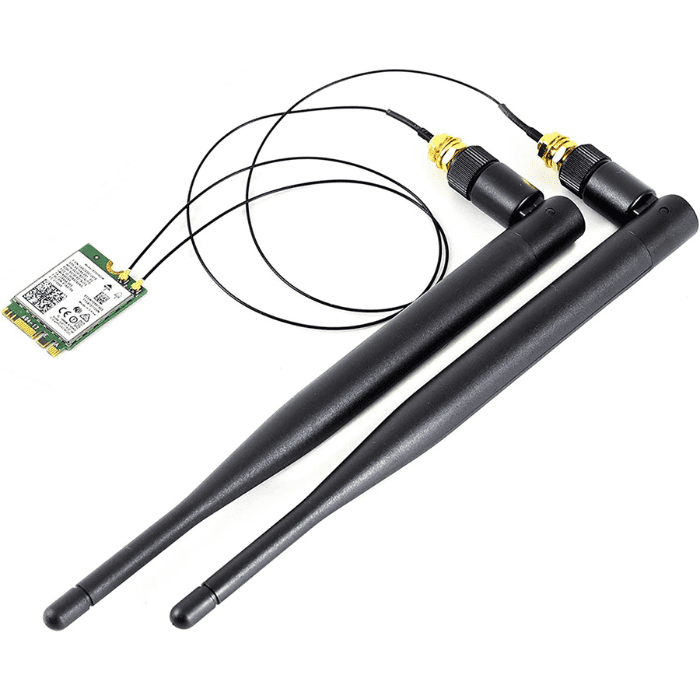

This is an AC8265 Wireless NIC for Jetson Nano, WiFi / Bluetooth. The module is used to receive signals through NIC. NIC allows both wired and wireless communications. NIC allows communications between computers connected via a local area network (LAN) as well as communications over the large-scale network through Internet Protocol (IP). This module contains two antennas that are used to attract the signals.
This is a dual mode wireless NIC module applicable for Jetson Nano, supports 2.4GHz / 5GHz dual band WiFi and Bluetooth 4.2.
How to connect the Wireless NIC to the NVIDIA Jetson Nano?
-
Remove the two screws on Jetson Nano, detach the jetson nano.
-
Connect the extension cable to wireless AC8265 on IPEX connector and tighten the nuts.
-
Remove the NIC screw onboard, insert the wireless AC8265 into the socket.
-
Insert the jetson nano into the socket and screw it again.

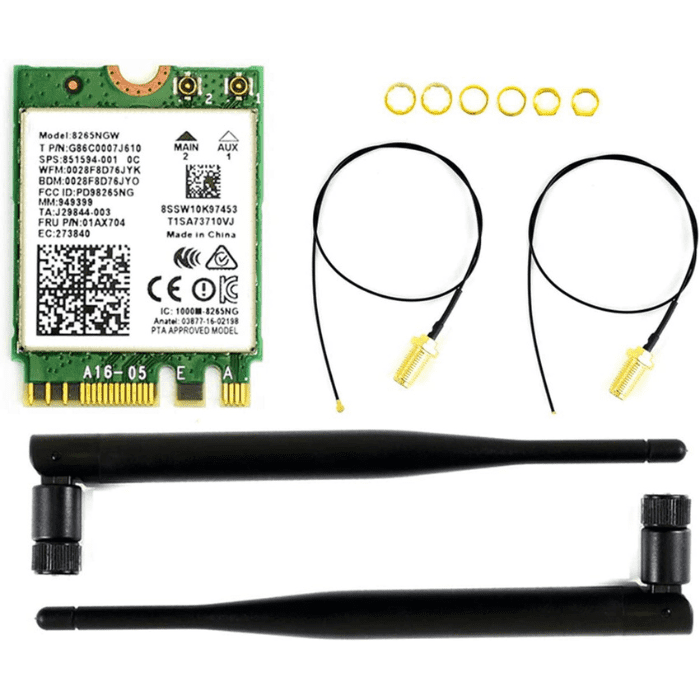

Package Includes:
- 1 x AC8265 Wireless NIC for Jetson Nano Set
Specifications:
|
Chip |
Intel 8265AC |
|
Bands |
2.4GHz / 5GHz |
|
Speed |
300Mbps / 867Mbps |
|
WiFi protocol |
802.11ac |
|
Bluetooth version |
4.2 |
|
NIC interface |
NGFF (M.2) |
|
Antenna interface |
IPEX connector |
| Cable length | 20cm |
|
Dimensions |
22mm × 30mm × 2.4mm |
|
Weight |
50 grams |
