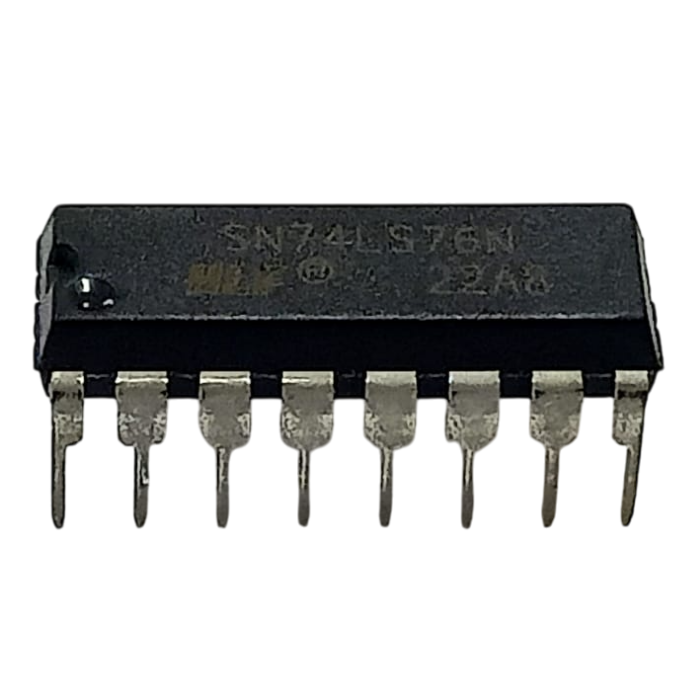

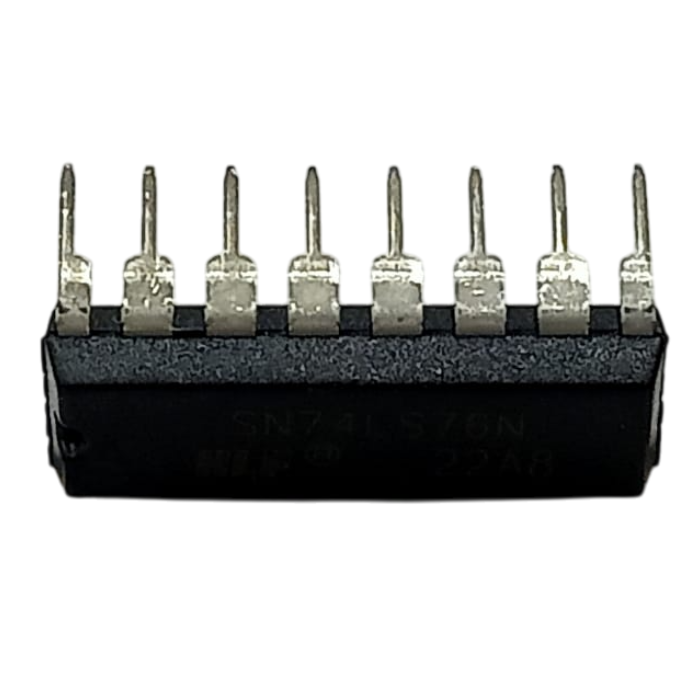

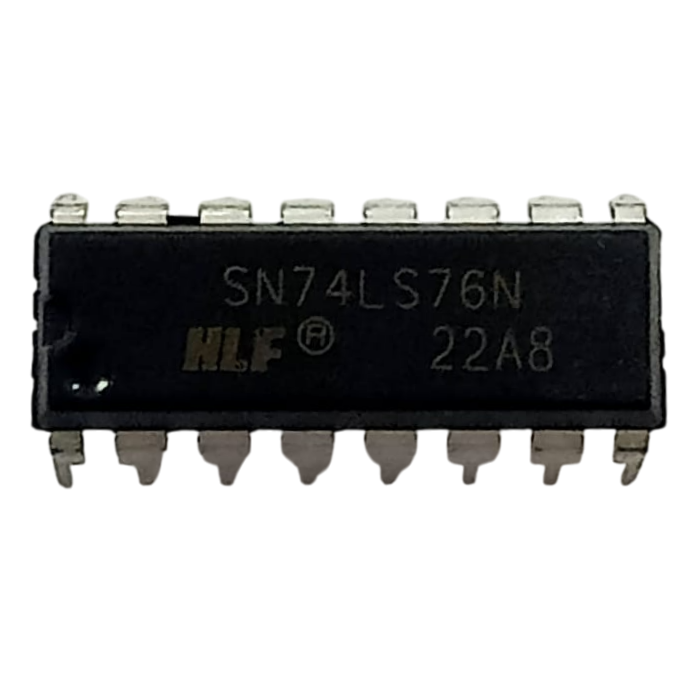

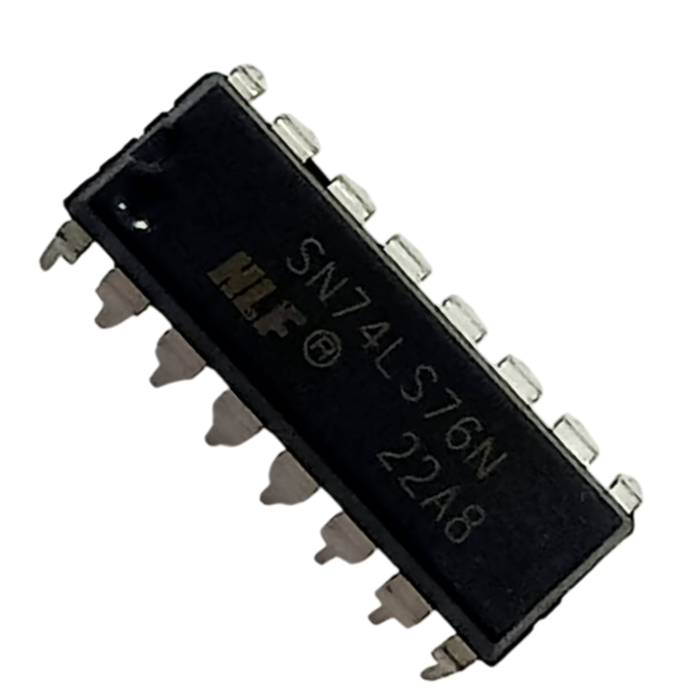

SN74LS76N IC Dual J-K Flip-Flop with Preset and Clear
SN74LS76N IC Dual J-K Flip-Flop with Preset and Clear
Regular price
Rs. 29
Regular price
Rs. 50
Sale price
Rs. 29
Unit price
/
per
You save Rs. 21 |
Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 8 hours and 44 minutes.
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Submit your Bulk Enquiry Here
- Two independent flip-flops with J, K, Clock, Set, and Clear inputs.
- Transfers input data to outputs during HIGH-to-LOW clock transition.
- High-speed switching performance.
- Operates at temperatures up to 70°C.
- Uses standard TTL switching voltage levels.
SN74LS76N IC Dual J-K Flip-Flop with Preset and Clear
The SN74LS76N IC is a dual J-K flip-flop with preset and clear options. It has inputs for J, K, Clock Pulse, Direct Set, and Direct Clear. When the clock signal goes HIGH, the inputs are activated, and data is accepted. The IC transfers data to the outputs when the clock goes from HIGH to LOW, as long as the setup time is met. This makes it useful for storing data and controlling states in digital circuits.
Package Includes
1 x SN74LS76N IC Dual J-K Flip-Flop with Preset and Clear
Specifications
Symbol | Parameter | Min | Type | Max | Unit |
---|---|---|---|---|---|
VCC | Supply Voltage | 4.75 | 5 | 5.25 | V |
TA | Operation free-air temperature | 0 | 25 | 70 | °C |
IOH | Output Current — High | -0.4 | mA | ||
IOL | Output Current — Low | 8 | mA |
Dimensions (LxHxW) | 2cm x 0.8cm x 0.8cm |
Weight | 2gm |
