SmartElex GSM/GPRS Shield for Arduino - Quectel M66 Module

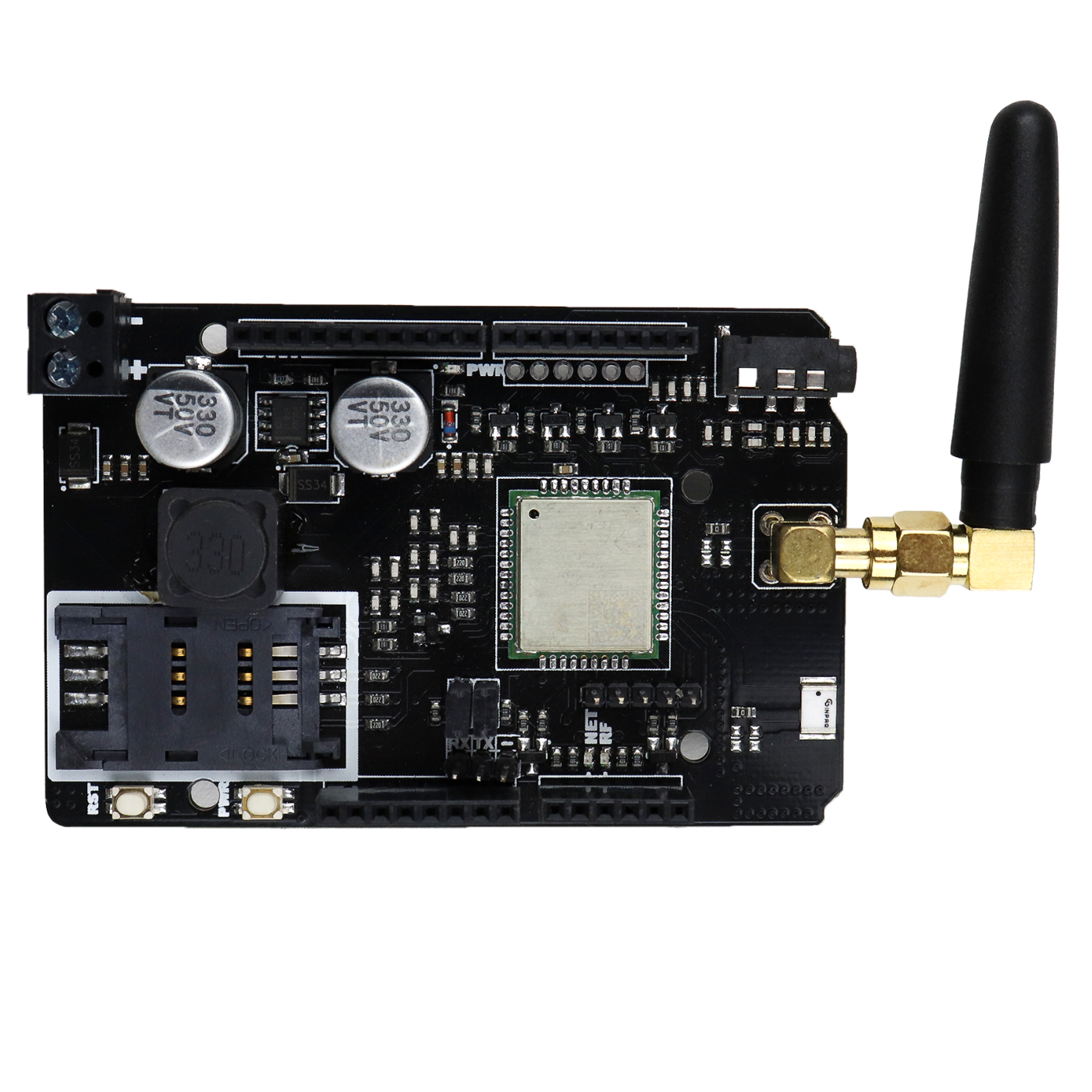

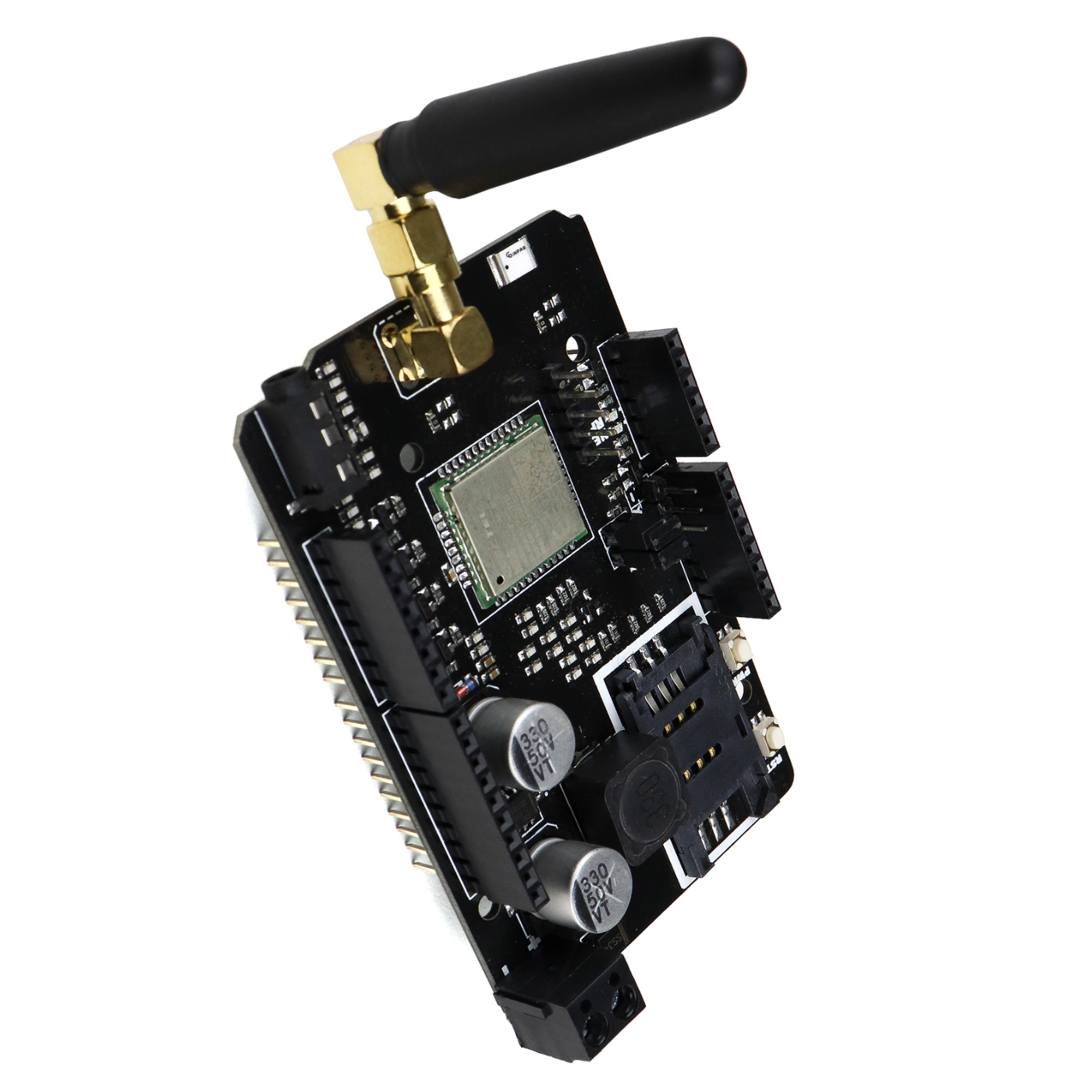

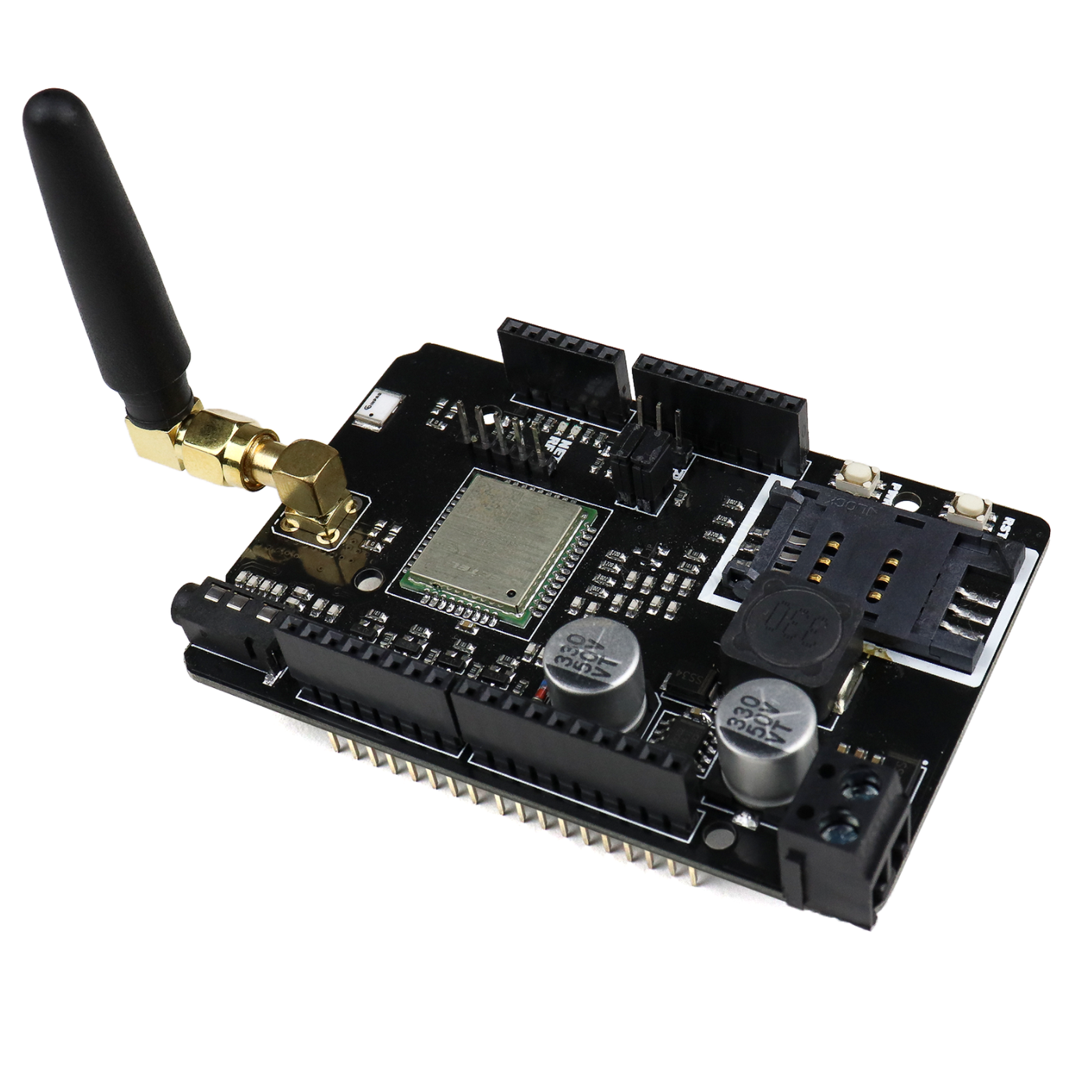

The SmartElex GSM/GPRS Shield for Arduino - Quectel M66 Module is a compact and reliable Arduino GSM GPRS shield that connects your Arduino board to a cellular GSM network.

With this shield, you can easily send and receive SMS, make and answer calls, or connect to the internet via GPRS.

Powered by the robust Quectel M66 GSM GPRS module, it comes equipped with essential components like a SIM card holder, cellular antenna, Bluetooth 3.0 with antenna, and a 3.5mm audio jack for voice communication.

The shield communicates through a serial interface using standard AT commands, making integration simple and efficient.

Whether you’re building an IoT system, a remote monitoring device, or a mobile communication project, the SmartElex GSM/GPRS Shield offers a complete and user-friendly solution for your next Arduino-based GSM project.

Instructions to Use:

Jumpers: There are two RX and TX jumpers on board. If both jumpers are connected, the shield's RX and TX are linked to the Arduino D2 and D3 pins, respectively. Use Arduino's software serial library.

The jumpers are connected as follows:

• RX of Shield Arduino TX (D2)
• Shield RX (D3)
• And Shield D7 power pin.


For Arduino Mega:

• After mounting the shield on the Mega, remove two jumpers from the shield called TX and RX.

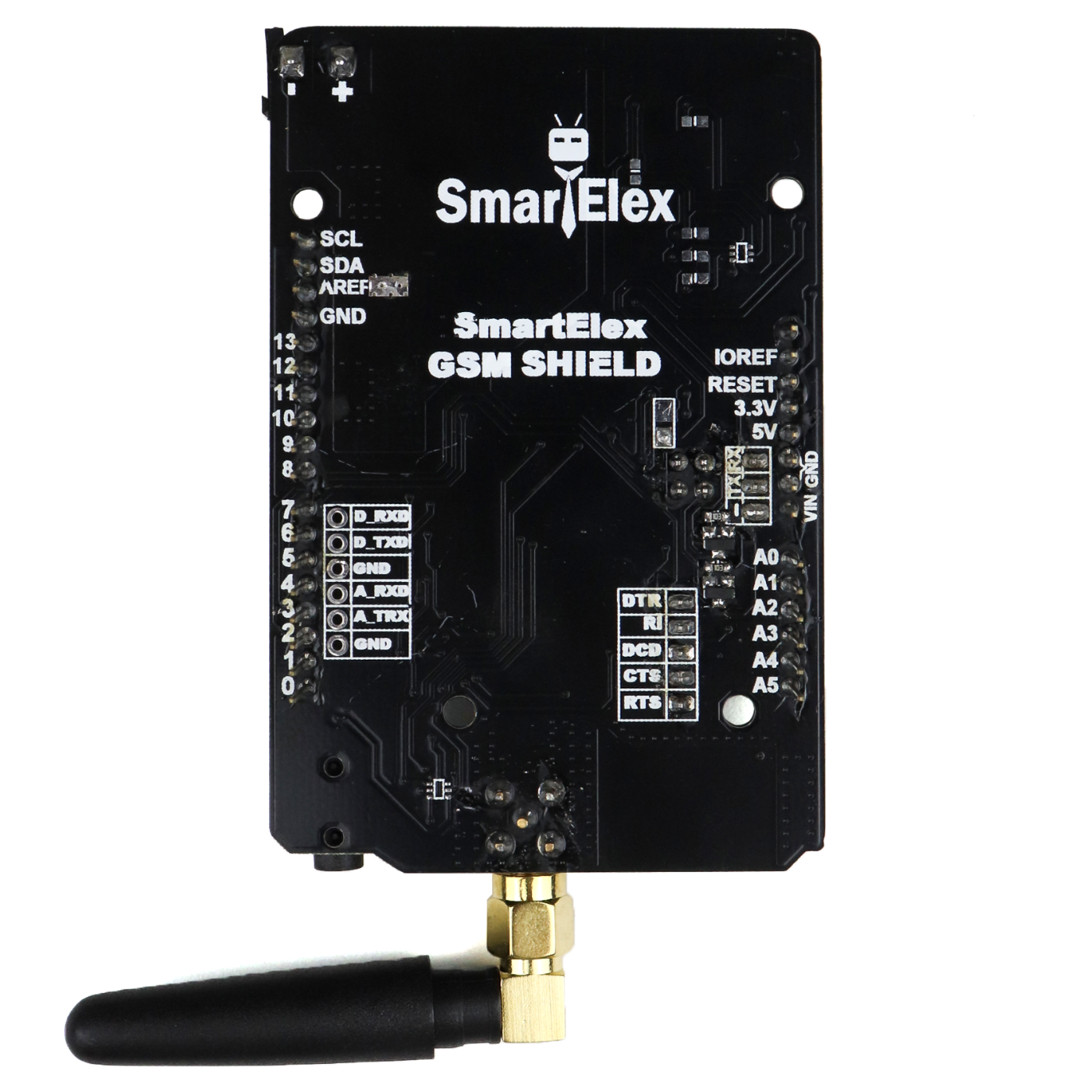

• In addition to the jumper, there is a three-pin male header labeled TX & RX, which corresponds to the TX and RX pins of the GSM chip.
• By attaching a jumper wire to the 3 pin Male header, you can communicate with the GSM shield using any other controller.
• For Arduino Mega, connect the shield's RX pin to the Mega's D2 pin and the shield's TX pin to the Mega's D10.
• Modify the following line in the sample code: SoftwareSerial mySerial(10,2).

Applications:

• Home Automation
• Vehicle Tracking
• Remote Monitoring and Control
• Agricultural Automation
• Industrial Automation
• GPRS Data Logging

Features:

• GSM/GRPS 850/EGSM 900/DCS 1800/PCS 1900 MHz quad-band
• Use a 3.5 mm headphone to make and receive voice calls? Jack
• Allows SMS texts to be sent and received.
• Based on the Quectel M66 module.
• Add an antenna and Bluetooth 3.0 onboard.
• RX and TX voltage levels are both 3.3V and 5V.
