SmartElex FT232 Type C, USB To UART (TTL) Communication Module - Buy Online in India

SmartElex FT232 Type C, USB To UART (TTL) Communication Module

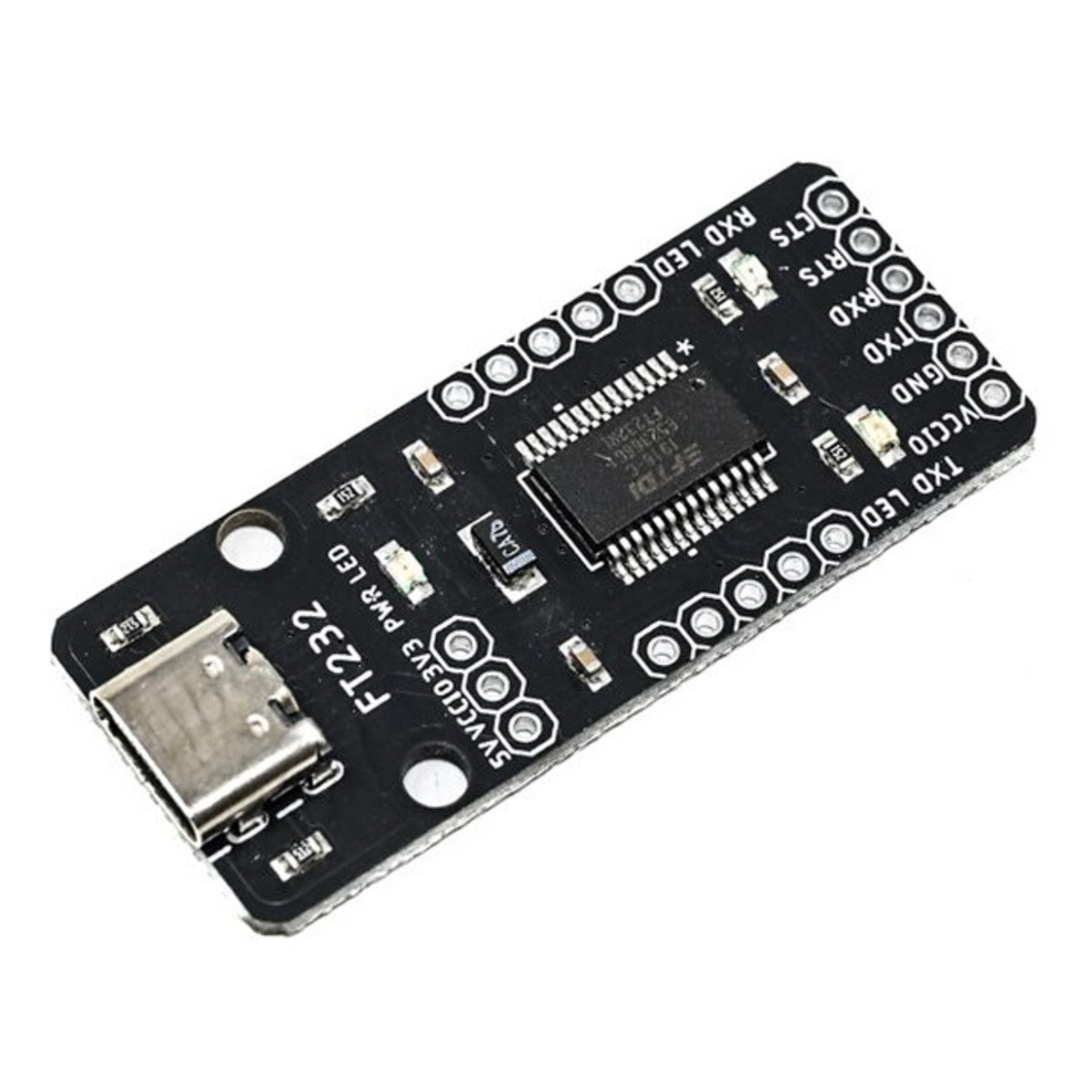

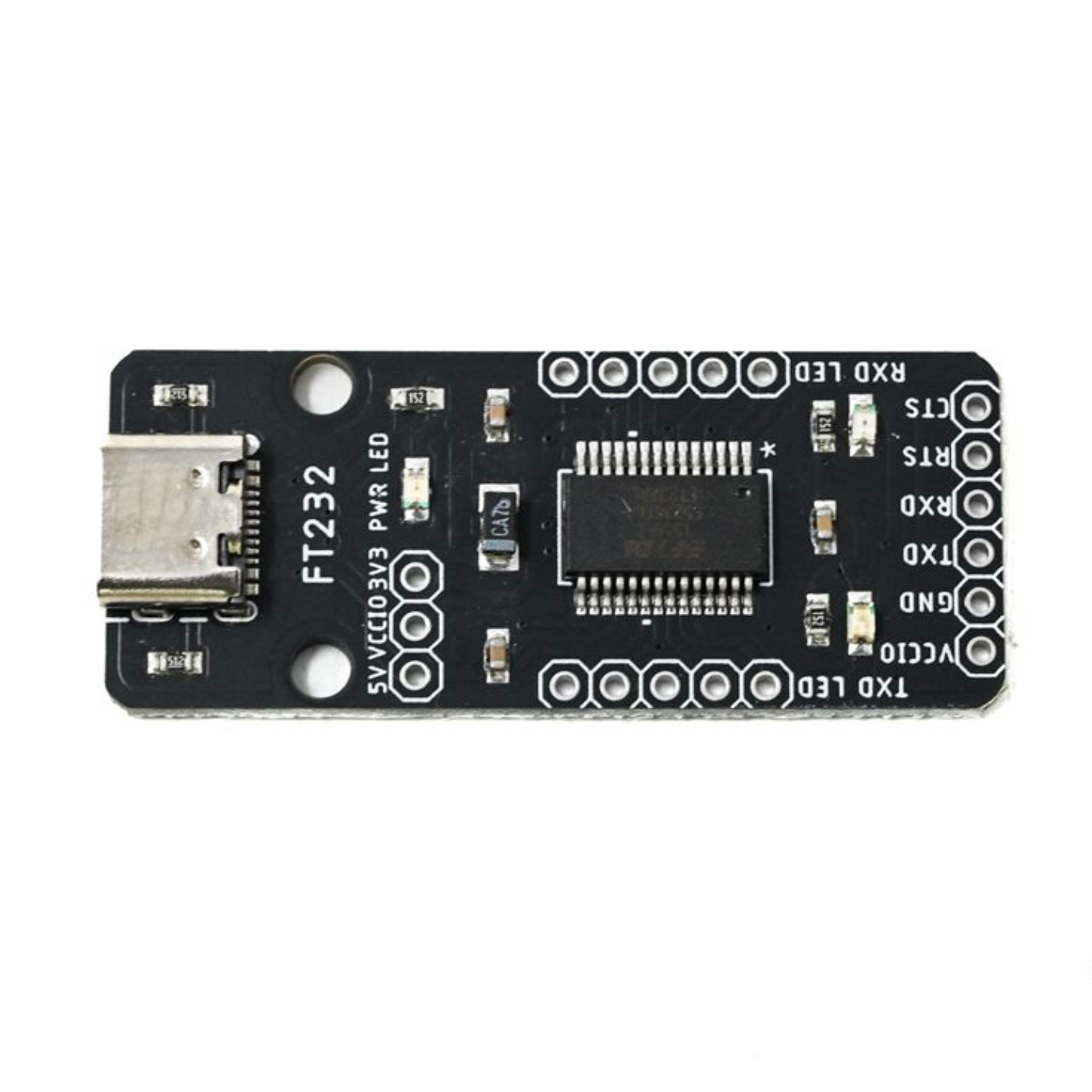

The SmartElex FT232 Type C USB to UART (TTL) Communication Module is a high-performance communication module designed to bridge USB systems with TTL-based serial devices smoothly and reliably. Built around the genuine FT232RL USB serial interface board, it ensures stable data transfer and wide driver support across multiple operating systems.

The USB-C interface offers durability and modern connectivity, while the onboard jumper allows precise selection between 3.3V and 5V TTL output, making it suitable for Arduino, ESP, Raspberry Pi, and other embedded platforms.

With clear LED indicators for transmission, reception, and power, this USB to UART TTL converter module simplifies debugging, firmware flashing, and serial communication tasks in both development and production environments.

Applications:

• Programming and Debugging Microcontrollers
• Serial connection between embedded systems
• USB to TTL converter for different devices
• Data logging and monitoring.
• Integration of IoT devices

Cautions:

• To avoid damage, ensure that the voltage is set correctly using the onboard jumper.
• This module is intended for TTL level signals; do not connect directly to RS232 ports.
• Avoid dampness and static discharge.

Features:

• Original FTDI FT232RL chipset for dependable and steady UART connectivity
• USB Type-C connector improves compatibility and supports contemporary devices.
• Supports 3.3V and 5V TTL logic levels via jumper selection.
• Fast data transfer rates of up to 3 Mbps
• Real-time LED status indicators for TXD, RXD, and power monitoring
• Compact design is perfect for embedded system integration.
• Compatible with various operating systems, including Windows, macOS, Linux, Android, and Windows CE.
• USB-powered with a maximum output current of 500 mA.
• Plug-and-play capabilities for quick setup and deployment.
• Suitable for prototyping, debugging, and data logging applications.
