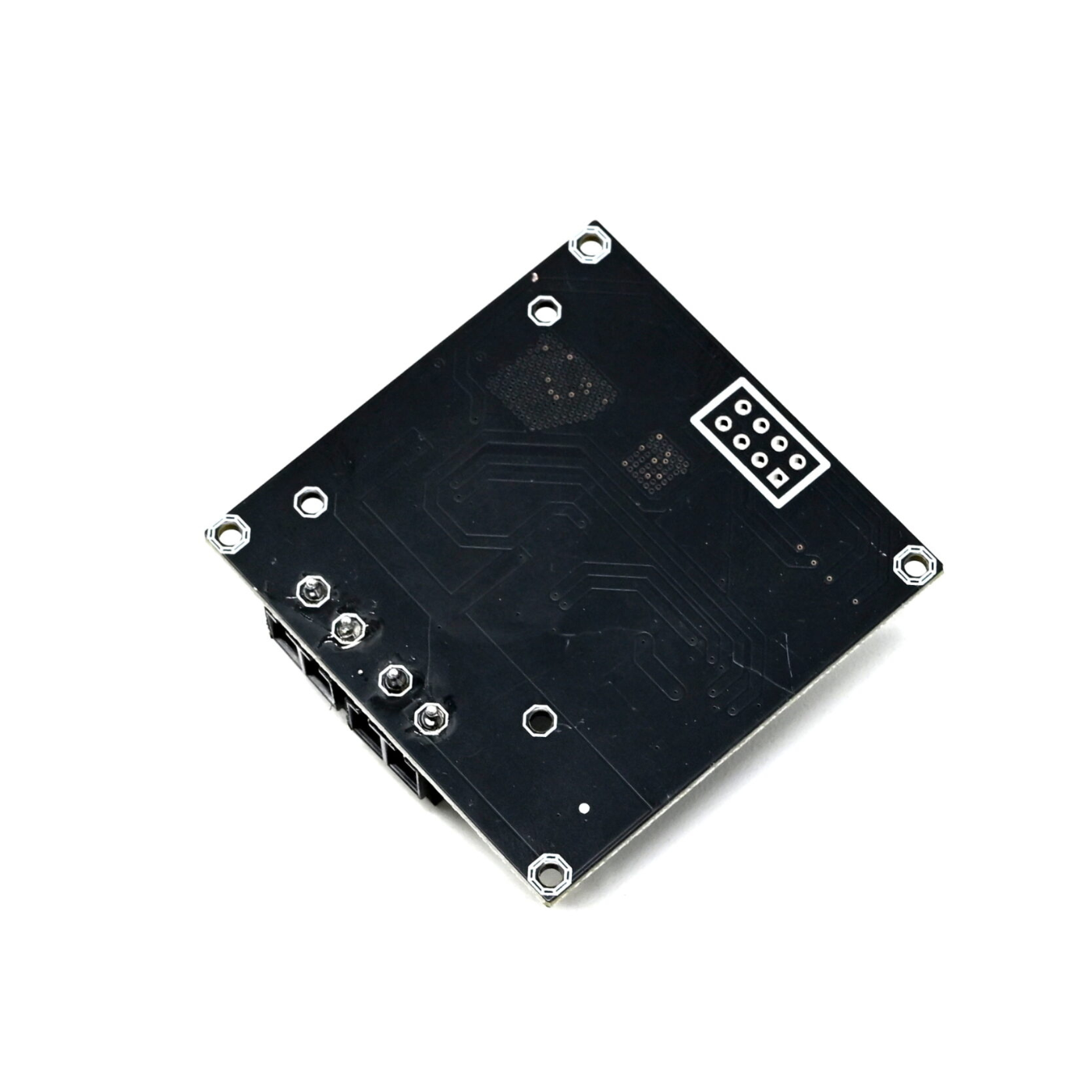

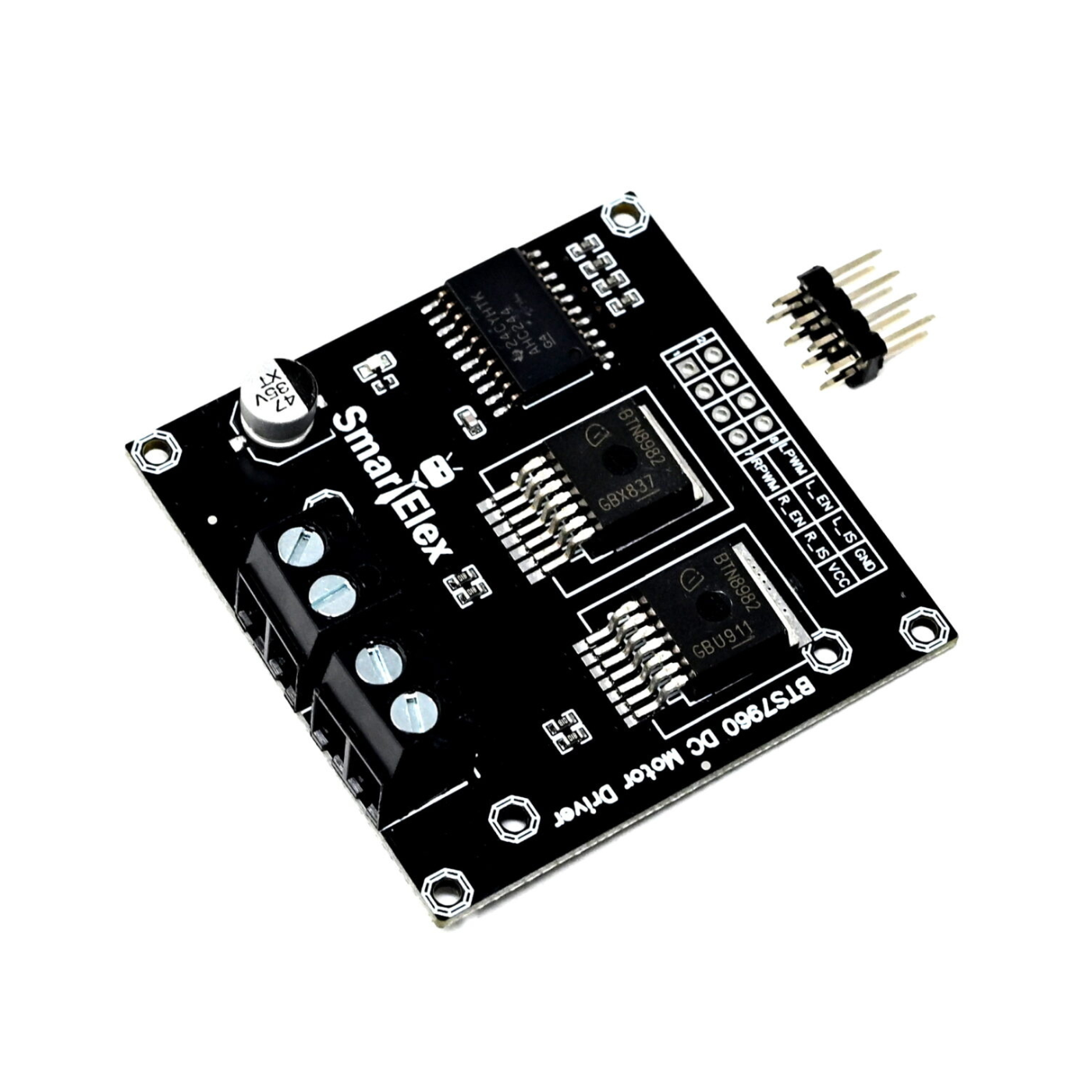

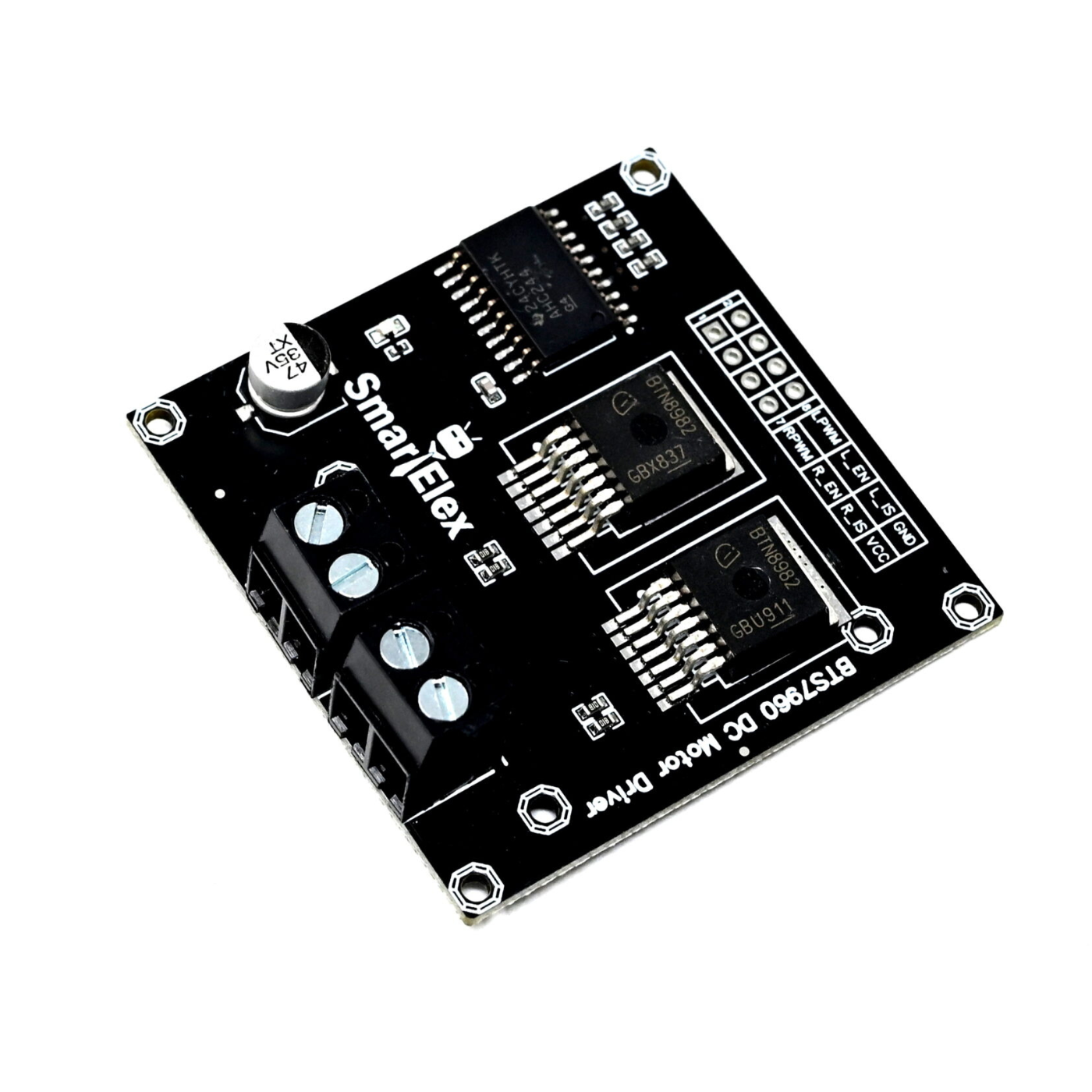

SmartElex BTS7960 High-Power Dual Channel 43A DC Motor Driver Module
Couldn't load pickup availability
The SmartElex BTS7960 DC Motor Driver Module is a powerful and efficient solution for controlling high-current DC and stepper motors. Designed around the BTS7960 IC, this dual-channel H-bridge driver supports up to 43A of continuous current, making it ideal for demanding robotic, automation, and motor control applications.
With its compact design and built-in safety features, it’s perfect for hobbyists and engineers working on high-torque motor projects.
This Stepper Motor Driver Module ensures smooth operation with PWM control up to 25 kHz, offering stable and noise-free performance. It comes equipped with advanced protection features such as overcurrent, short-circuit, overvoltage, and thermal shutdown, ensuring long-term durability.
The easy-to-interface logic inputs make it compatible with popular microcontrollers like Arduino and Raspberry Pi, simplifying the motor control experience.
| Specification | Details |
|---|---|
| Voltage Rating (V) | 6 to 27 VDC |
| Current Rating (A) | 43 |
| Max. Current (A) | 43 |
| Logic Voltage (V) | 3.3 – 5 |
| Duty Cycle | 0 – 100% |
| Path Resistance (Ω) | 16 mΩ at 25°C |
| Quiescent Current (µA) | 7 µA at 25°C |
| Pulse Frequency (KHz) | 25 |
| Dimensions (L x W x H) mm | 50 x 50 x 15 |
| Weight (g) | 17 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
