Description

SmartElex 9-DOF Orientation IMU Fusion Breakout | BNO085 Sensor Module

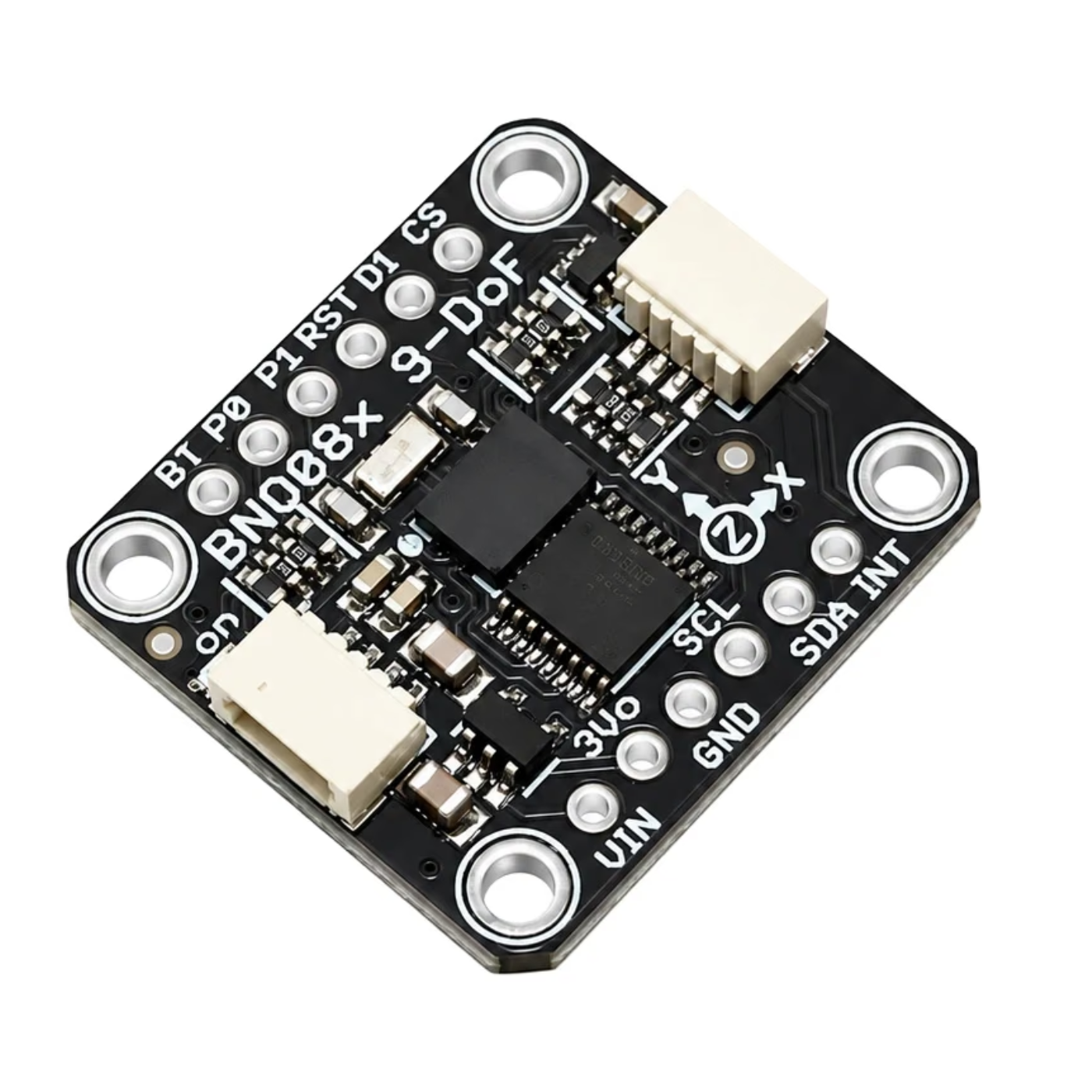

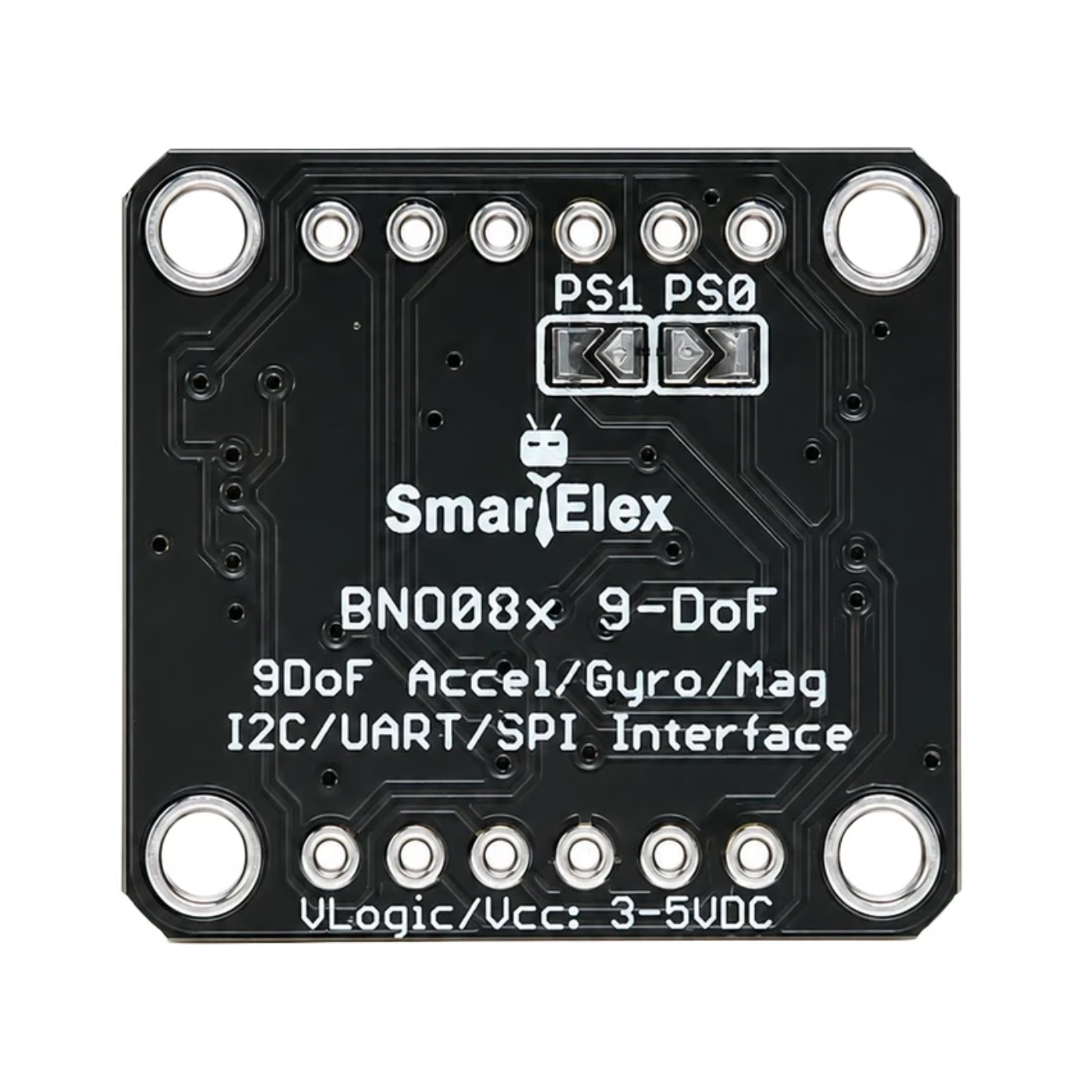

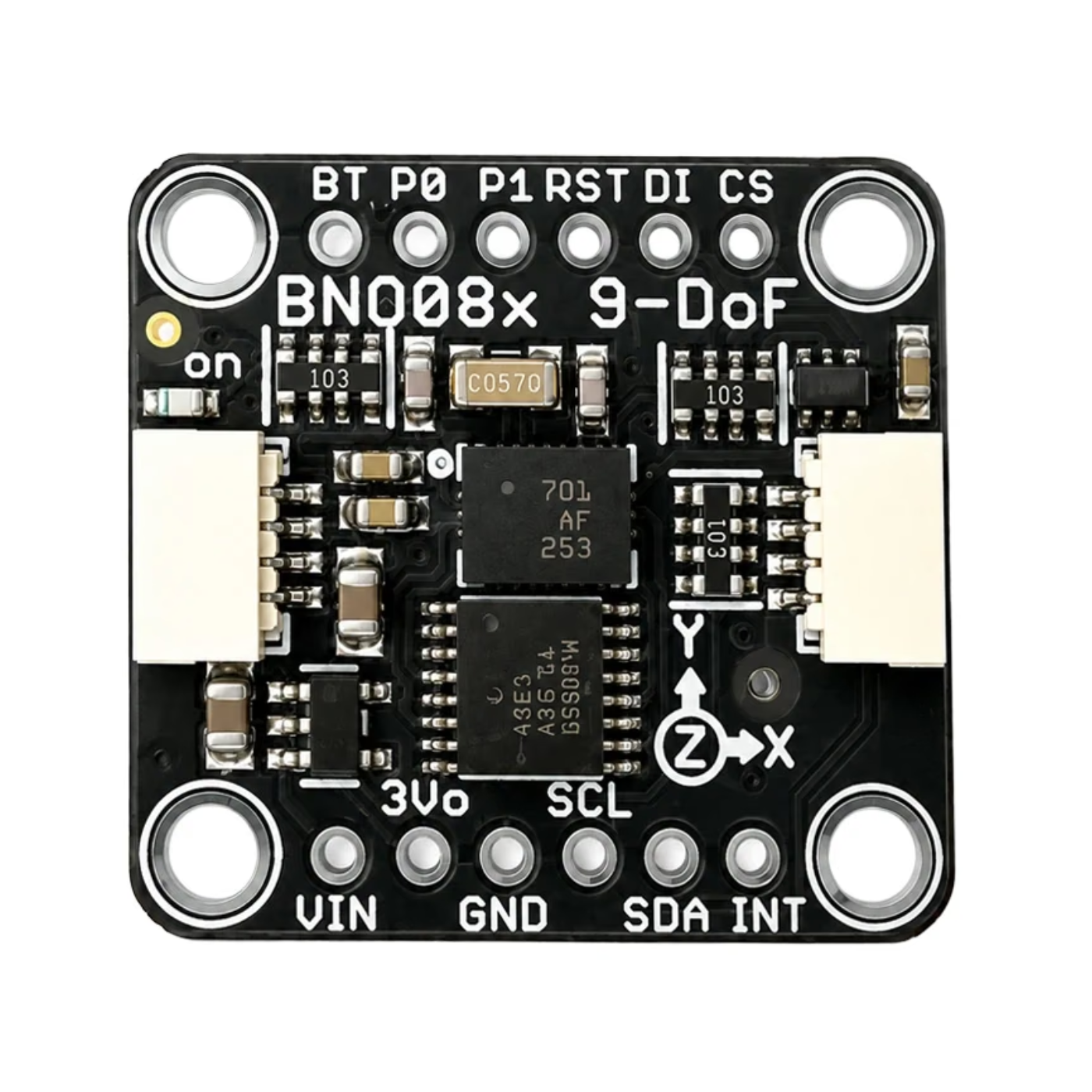

The SmartElex 9-DOF Orientation IMU Fusion Breakout is based on the BNO085 and combines a 3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer into a single motion-sensing module. It uses onboard sensor-fusion processing to provide orientation and motion data, reducing the need for complex sensor-fusion calculations on the host microcontroller.

The breakout is suitable for robotics, drones, motion tracking, navigation, wearable devices, gesture detection and other embedded applications that require orientation and movement sensing. SmartElex lists this product within its IMU sensor range for motion and orientation applications.

Features

  • 9-DOF Motion Sensing: Combines 3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer for comprehensive motion and orientation measurement.
  • BNO085 Sensor: Uses the BNO085 motion-sensing platform for integrated inertial measurement and orientation applications.
  • Built-In Sensor Fusion: Processes data from multiple motion sensors to provide useful orientation information without requiring all fusion calculations on the host controller.
  • Orientation Tracking: Designed to detect changes in device movement, rotation and spatial orientation.
  • Compact Breakout: Provides an easy-to-integrate form factor for prototyping, embedded systems and development projects.
  • Motion Measurement: Detects linear acceleration, angular movement and magnetic-field changes across three axes.
  • Robotics Applications: Suitable for robotic platforms requiring motion, heading and orientation information.
  • Drone & Navigation Projects: Can be used in applications requiring orientation and motion data for navigation and stabilization systems.
  • Motion Tracking: Suitable for wearable devices, gesture detection, interactive systems and movement-monitoring applications.
  • Wide Applications: Ideal for robotics, drones, IoT devices, embedded systems, navigation, motion tracking and DIY electronics projects.
Specifications

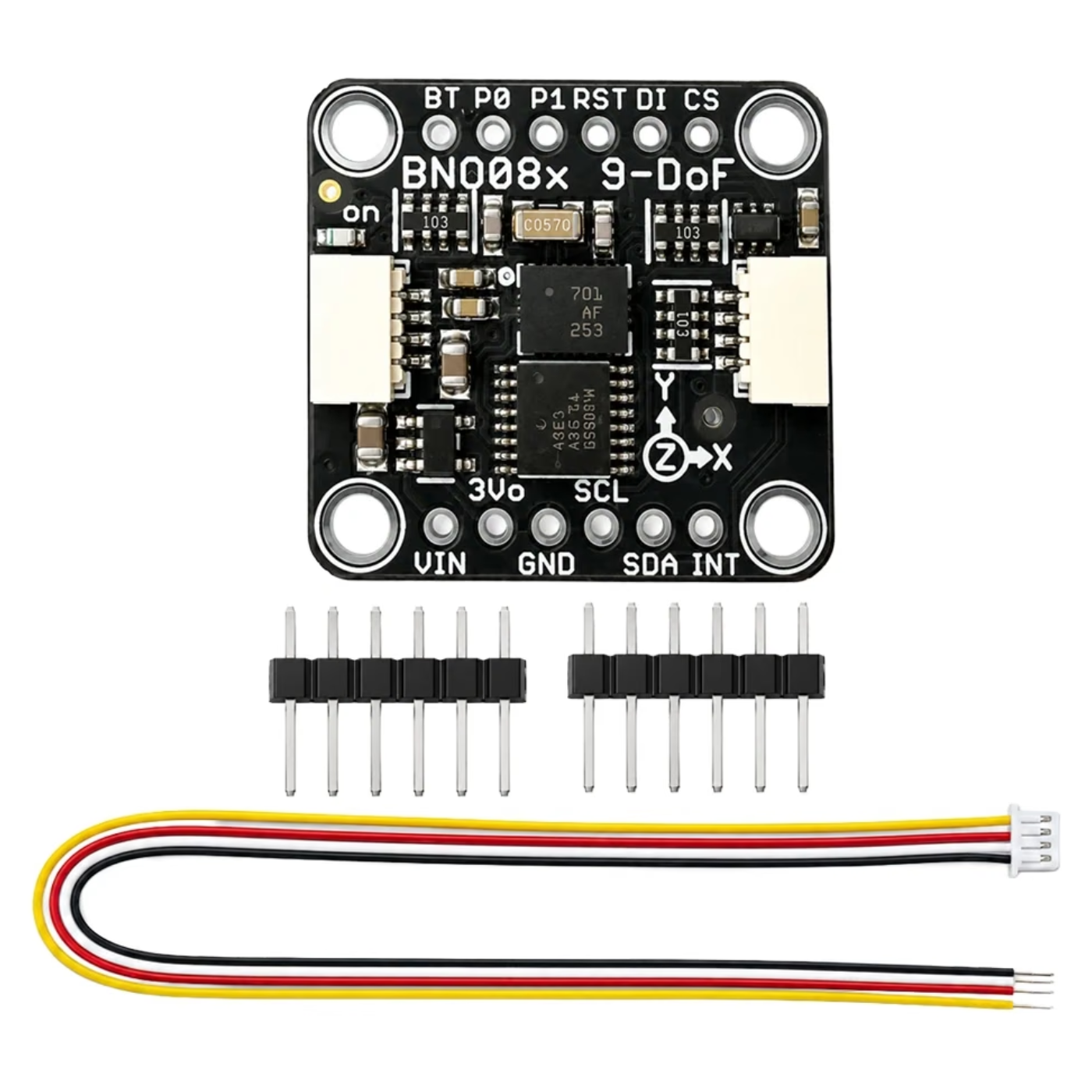

Package Includes:

  • 1 x SmartElex  9-DOF Orientation IMU Fusion Breakout - BNO085
  • 2 x 6 Pin male pin header
  • 1 x 4 pin JST SH cable

Specifications

SpecificationDetails
Model No. / NameBNO085
InterfaceI2C, SPI, UART
Voltage Rating3 V–5 V DC
Sensor Type9-DOF IMU
Accelerometer Type3-axis
Gyroscope3-axis
Magnetometer3-axis
ProcessorARM Cortex-M0
FirmwareBuilt-in SH-2 Firmware
Other FunctionsGravity, Linear Acceleration, Step Counter, Tap Detection, Activity Classification
Length25 mm
Width22 mm
Height4 mm
Weight2 g
Operating Temperature-40°C to +85°C
