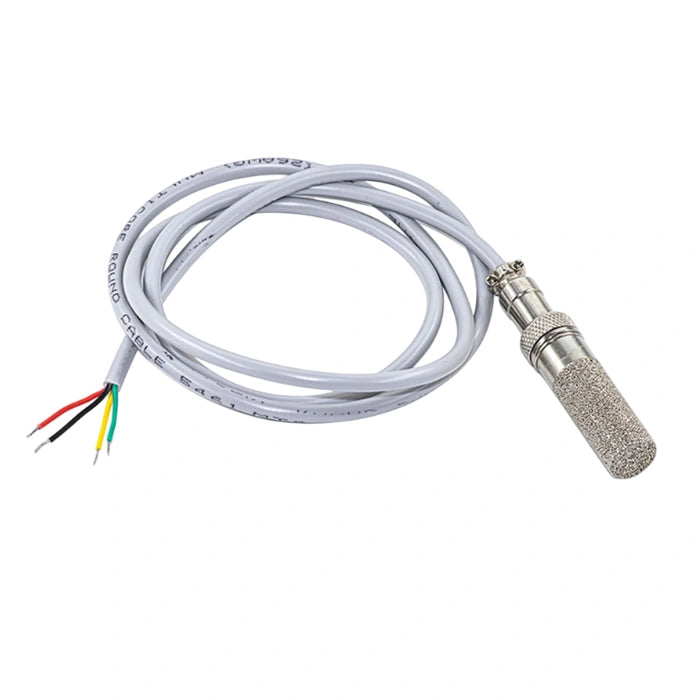

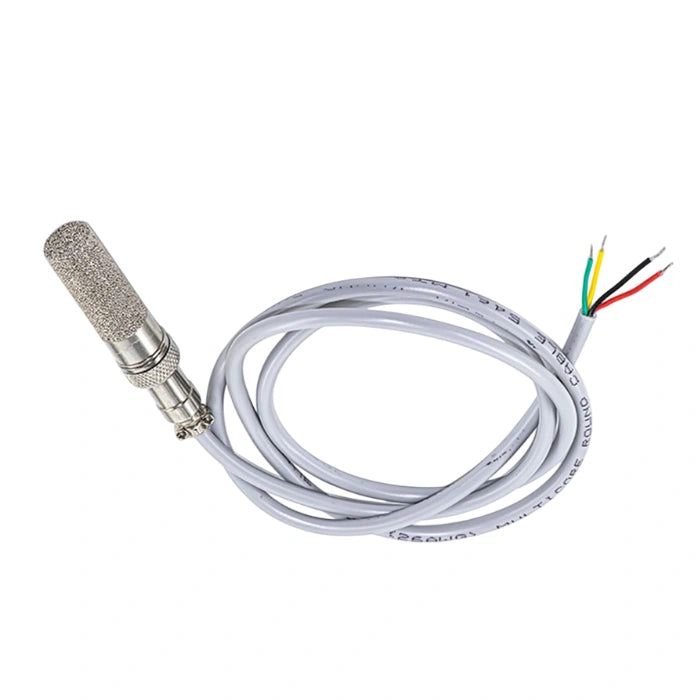

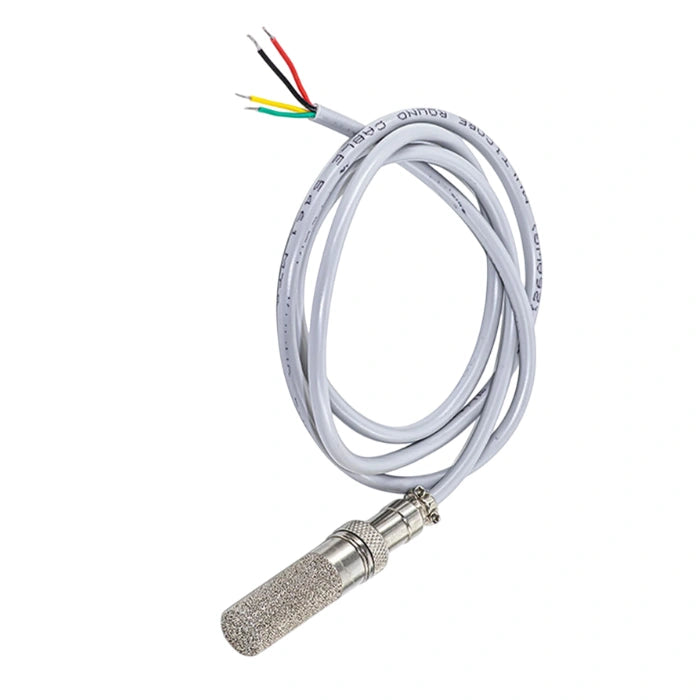

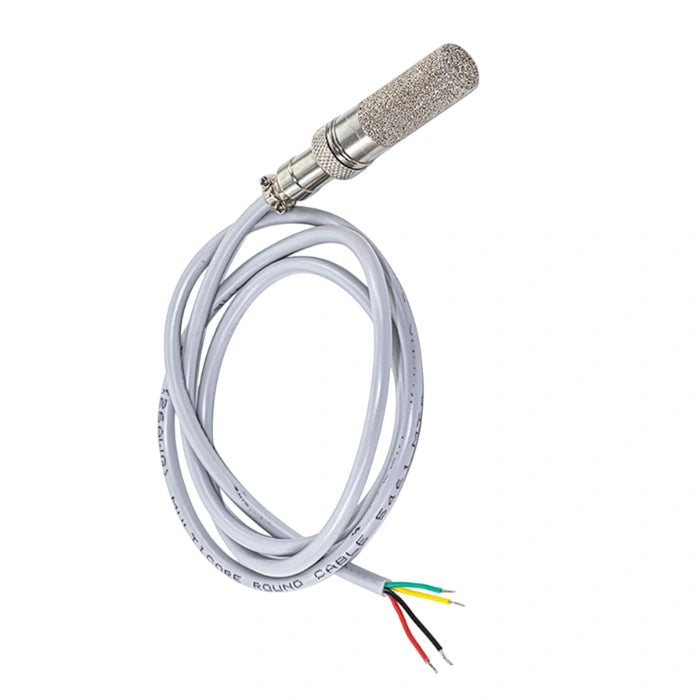

SHT45 Digital Humidity and Temperature Sensor Probe
SHT45 Digital Humidity and Temperature Sensor Probe
Low stock: 5 left
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- High-precision temperature (±0.1°C) and humidity (±1% RH) measurements
- Ultra-low-power 16-bit digital output via I2C interface (address 0x44)
- Corrosion-resistant stainless-steel housing for durability and air permeability
- Integrated breathable membrane protects against dust, moisture, and oxidation
- Adjustable internal heater with three levels for accurate operation in extreme conditions
- Individually calibrated with unique serial numbers for traceability and quality control
- Ideal for use in HVAC systems, weather monitoring, medical instrumentation, and industrial automation
SHT45 Digital Humidity and Temperature Sensor Probe - 7Semi
The 7Semi SHT45 Digital Humidity and Temperature Sensor Probe is a high-precision sensor designed for accurate environmental monitoring in demanding conditions. It offers a temperature accuracy of ±0.1°C and a humidity accuracy of ±1% RH, making it ideal for applications in HVAC systems, weather stations, automation, medical instrumentation, and industrial processes.
The sensor operates with a 16-bit digital output via I²C interface (address 0x44) and features a corrosion-resistant stainless-steel housing with a breathable membrane to protect against dust and moisture.
Additionally, it includes a power-trimmed internal heater with three adjustable levels to ensure reliable performance in high humidity and condensing environments.
Digital Humidity and Temperature Sensor Probe I2C Interfacing with MCU Circuit Diagram
Features:
-
High Accuracy: ±0.1°C temperature and ±1% RH humidity
-
Wide Operating Range: Temperature: -40°C to +125°C; Humidity: 0–100% RH
-
Low Power Consumption: Ideal for battery-powered applications
-
I²C Interface: Pre-configured address 0x44 for easy integration
-
Durable Design: Corrosion-resistant stainless-steel housing with breathable membrane
-
Internal Heater: Three adjustable levels for operation in high humidity and condensing conditions
- Calibration: Factory calibrated with individual serial numbers for traceability
Package Includes:
- 1 x 7Semi SHT45 Digital Humidity and Temperature Sensor Probe
Specifications:
| Specification | Details |
|---|---|
| Operating Voltage | 3.3V |
| Interface | I2C (Address: 0x44) |
| Temperature Range | -40°C to +125°C |
| Humidity Range | 0% to 100% RH |
| Temperature Accuracy | ±0.1°C |
| Humidity Accuracy | ±1.0% RH |
| Wiring | Red: VCC, Black: GND, Yellow: SDA, Green: SCL |
| Probe | Metal probe with copper sintered filter/PE |
| Cable Length | 1 meter |
| Dimensions (LxWxH) | 7.5 x 1.4 x 1.4 cm |
| Weight | 60 gm |
| Operating Current | 0.4 µA (average) |
