SHT40 Temperature and Humidity Probe Sensor - 7Semi
SHT40 Temperature and Humidity Probe Sensor - 7Semi
Low stock: 5 left
Regular price
Rs. 731
Regular price
Rs. 959
Sale price
Rs. 731
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, people are actively viewing.
Same Day Shipping
If Ordered within 3 Hours and 2 Minutes
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- High-precision temperature and humidity sensing with 16-bit resolution
- Compact stainless-steel porous housing for durability in harsh environments
- Ultra-low power consumption, ideal for embedded and industrial systems
- Digital I2C output (default address 0x44) for easy integration
- Individually calibrated and traceable with a unique serial number
- Integrated breathable membrane protects against dust, moisture, and corrosion
- Suitable for pipelines, HVAC, test chambers, medical, and industrial applications
SHT40 Temperature and Humidity Probe Sensor - 7Semi

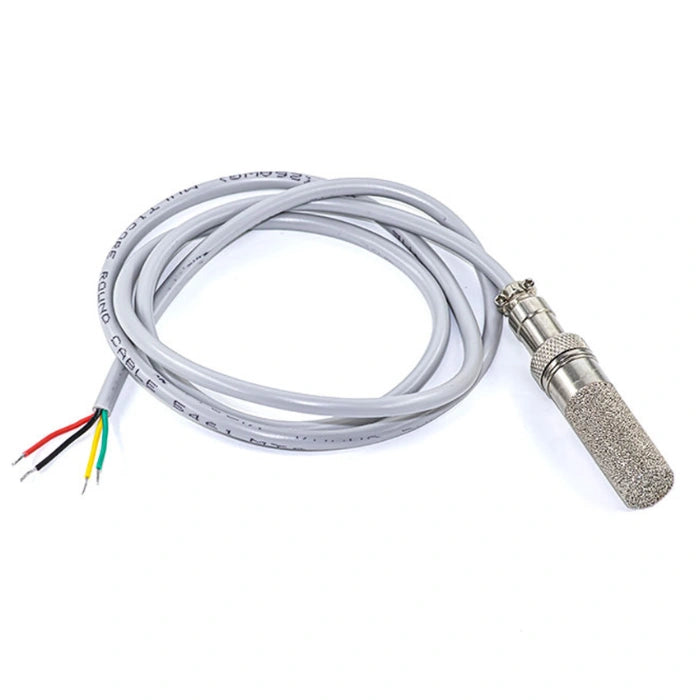

The 7Semi SHT40 Temperature and Humidity Probe Sensor is a high-precision environmental sensing solution, ideal for industrial and professional applications. Encased in a compact stainless-steel porous housing, it offers robust durability in harsh and high-pressure environments such as pipelines, HVAC systems, and test chambers.
Featuring ultra-low power consumption, 16-bit resolution, and a digital I2C output (default address 0x44), the SHT40 provides reliable, responsive measurements suitable for continuous operation. Each unit is individually calibrated, tested, and traceable via a unique serial number, ensuring exceptional quality and consistency.
An integrated breathable membrane protects against dust, moisture, and corrosive agents without compromising airflow, making it suitable even for condensing and explosive environments. With a variable power heater and proven long-term stability, the SHT40 excels in critical fields like medical equipment, automation, and industrial monitoring.

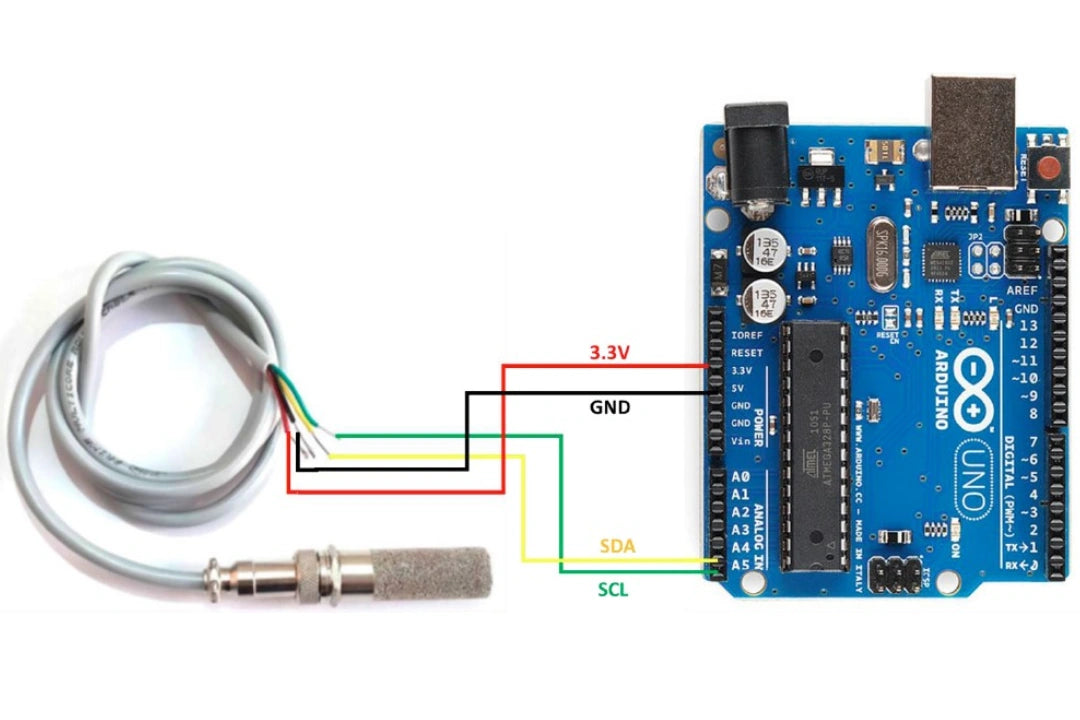

Digital Humidity and Temperature Sensor Probe I2C Interfacing with MCU Circuit Diagram
Features:
-
High Accuracy & Resolution: 16-bit digital output for precise humidity (0–100% RH) and temperature (-40°C to 125°C) measurements
-
Ultra-Low Power Consumption: Consumes as little as 80 nA in idle mode, ideal for battery-powered applications
-
Robust Environmental Resistance: Operates reliably in corrosive, acidic, high-pressure (up to 150 bar), and condensing environments
-
Breathable Protective Shell: Stainless-steel porous housing enables fast air exchange while shielding internal components
-
Reliable I2C Interface: Preconfigured at address 0x44 for seamless integration into existing systems
-
Internal Variable Heater: Adjustable heater enhances measurement accuracy in fluctuating humidity conditions
-
NIST Traceable Calibration: Guarantees industry-standard accuracy and long-term stability
-
Versatile Connectivity: Equipped with Mini Round Shell (MRS) connector and a 1-meter cable for flexible deployment
-
Anti-Dust and Anti-Corrosion Properties: Ensures long operational life even in polluted or chemically active environments
- Ideal for Extreme Conditions: Flawless operation in vacuum chambers, explosive zones, drying processes, and extreme humidity/temperature areas
Package Includes:
- 1 x 7SEmi SHT40 Temperature and Humidity Probe Sensor
Specifications:
| Specification | Details |
|---|---|
| Operating Voltage | 3.3V |
| Interface | I2C |
| Temperature Range | -40°C to 125°C |
| Humidity Range | 0% RH to 100% RH |
| Wiring | Red: VCC, Black: GND, Yellow: SDA, Green: SCL |
| Probe | Metal probe with copper sintered filter / PE |
| Cable Length | 1 meter |
| Dimensions (LxWxH) | 7.2 x 1.5 x 1.5 cm |
| Weight | 60 gm |
