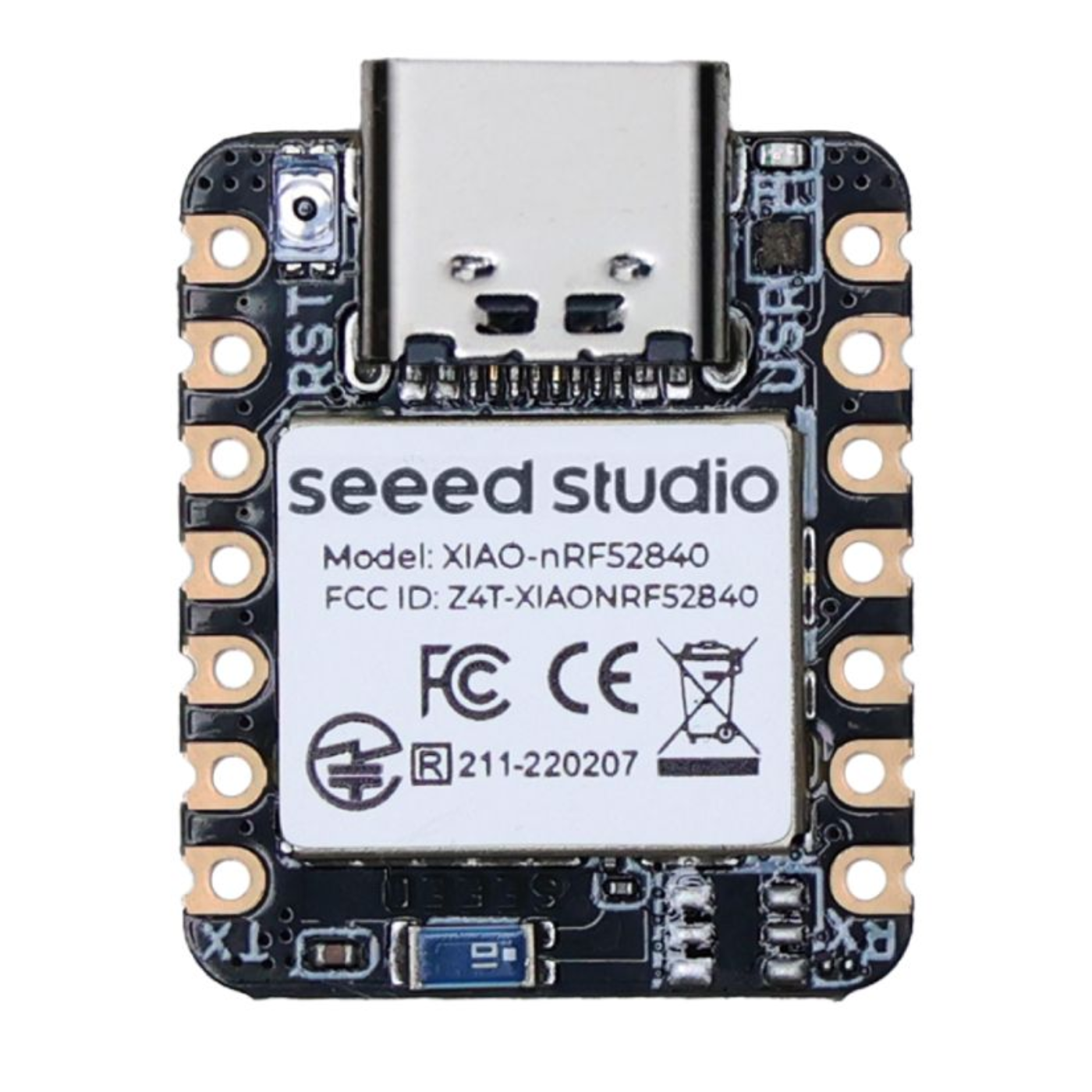

Seeed Studio XIAO nRF52840 Development Board Supports Bluetooth 5.0
The Seeed Studio XIAO nRF52840 Development Board is a powerful yet compact nRF52840 module designed by Nordic, bringing wireless capability to the XIAO family for the first time.
This versatile nRF52840 board supports Bluetooth 5.0 and is optimized for low power consumption, making it an excellent choice for IoT, wearable devices, and Bluetooth-based applications.
With its tiny size and robust performance, the Seeed Studio XIAO nRF52840 is the perfect microcontroller for developers looking to build efficient and reliable wireless solutions.
Features:
-
Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython /Micropython
-
Wireless Capabilities: Implement Bluetooth 5.0, BLE functions with onboard antenna, also provide NFC connectivity Elaborate
-
Power Design: Provide ultra-low power consumption as 5 μA in deep sleep mode while supporting lithium battery charge management
-

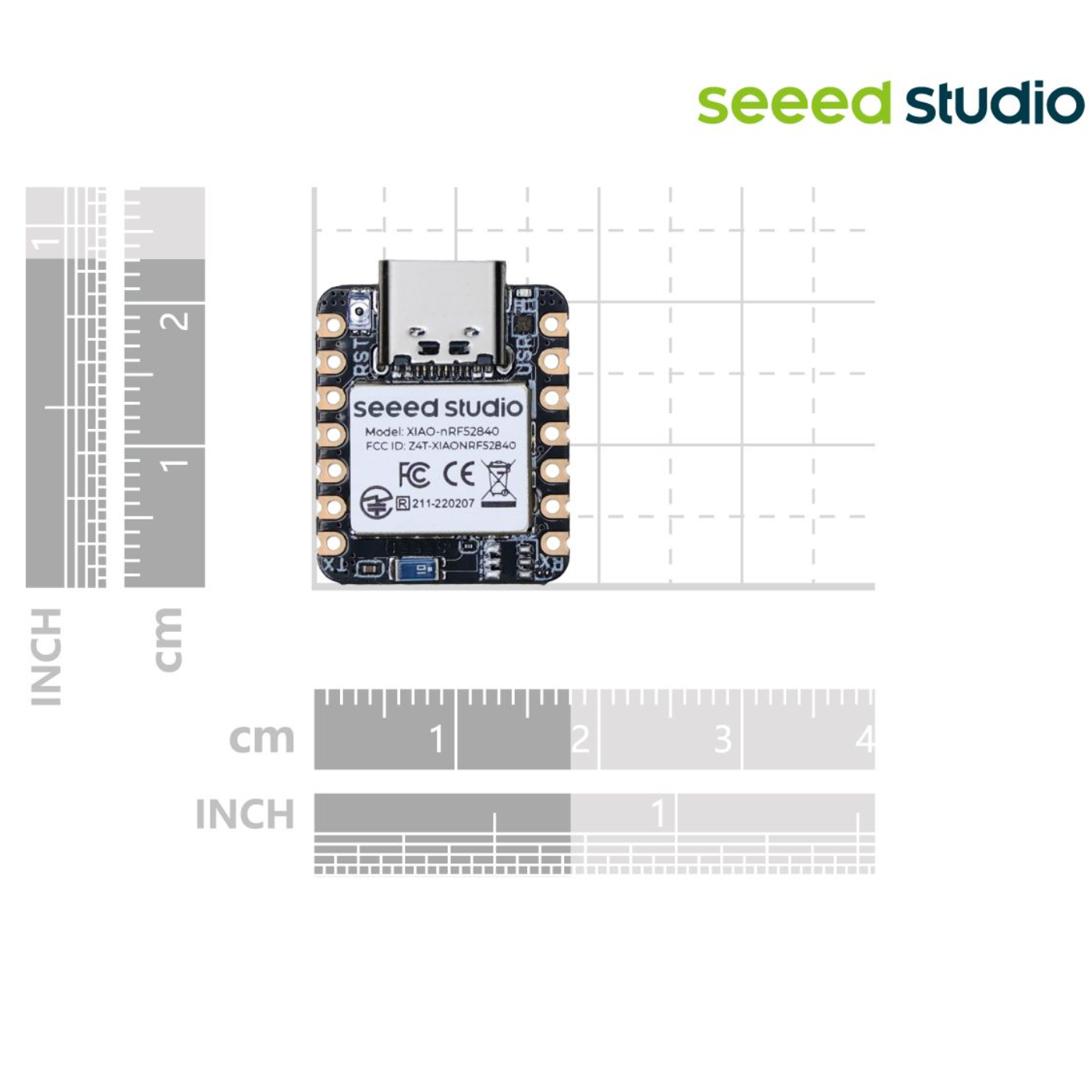

Thumb-sized Design: 21 x 17.8mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices
-

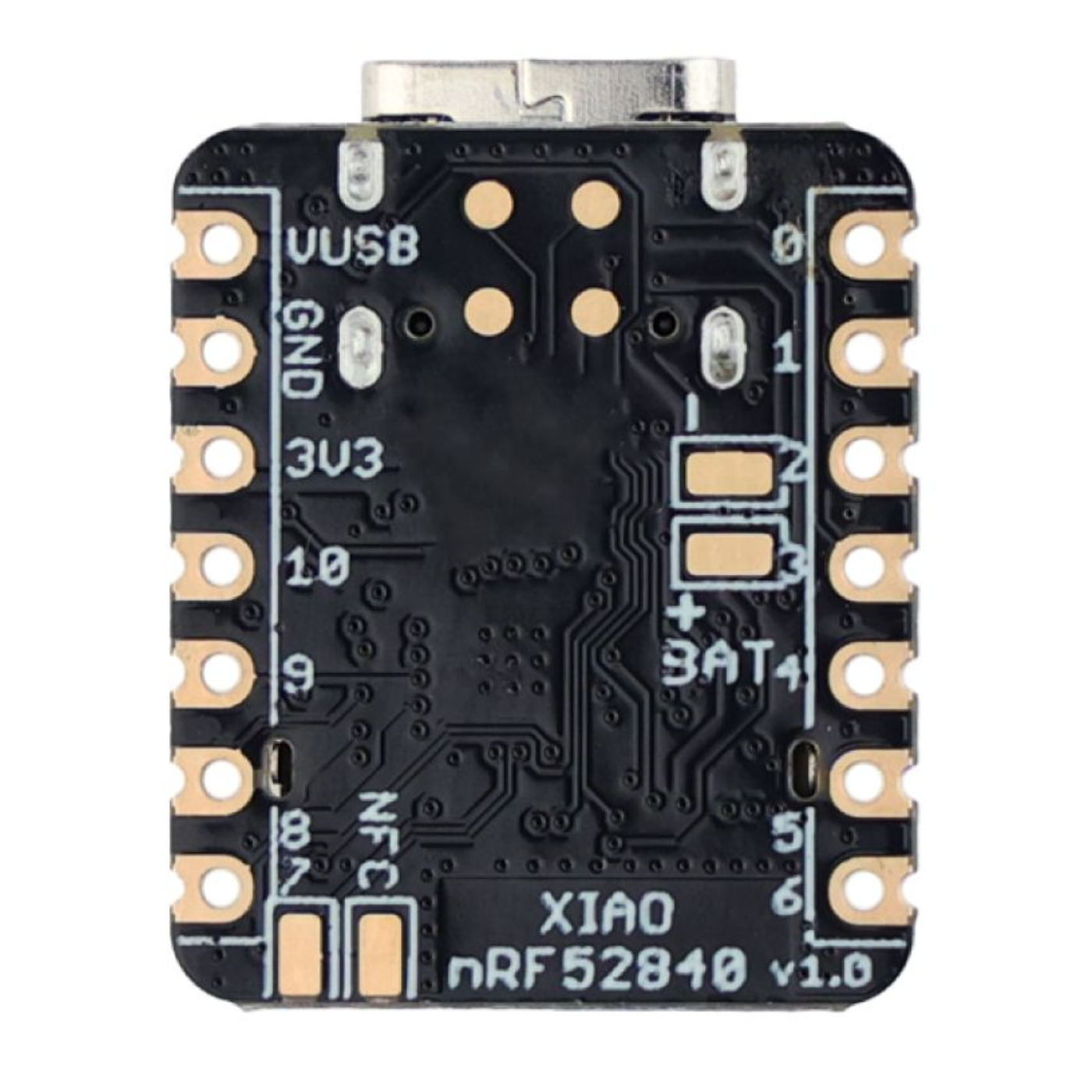

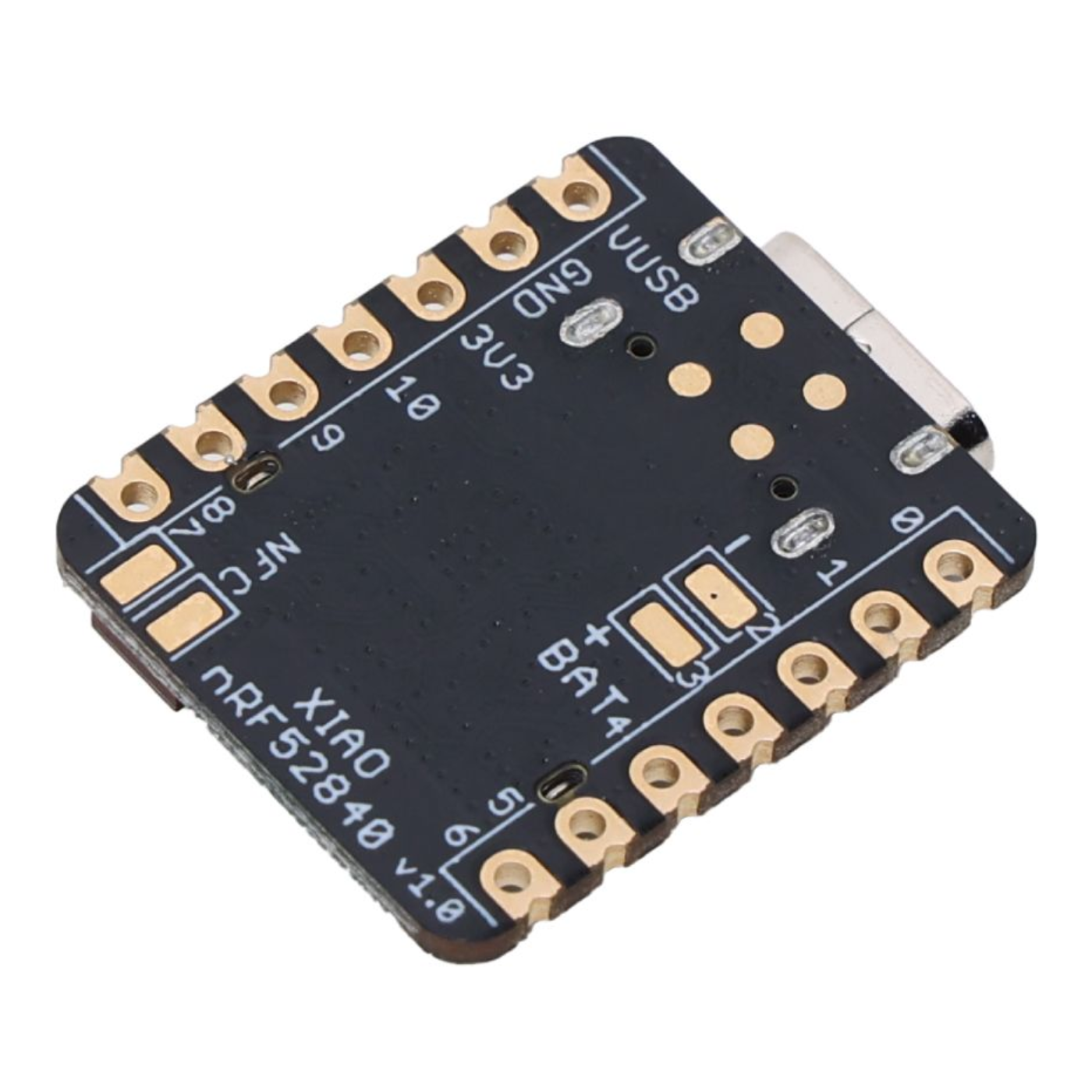

Perfect for Production: Breadboard-friendly & SMD design, no components on the back
1. How to get started with the Seeed Studio XIAO nRF52840?
Connect the Seeed Studio XIAO nRF52840 to your computer using a USB-C cable and install the necessary board definitions in the Arduino IDE or PlatformIO. Select the "XIAO nRF52840" board profile and ensure the correct port is chosen before uploading code. This Bluetooth 5.0 development board supports both standard and secure BLE modes for rapid prototyping. Double-press the reset button to enter bootloader mode if needed.
2. How to program the nRF52840 Bluetooth board for IoT projects?
Use the nRF52840 Bluetooth board with frameworks like Arduino, Zephyr, or Nordic SDK to develop wireless applications for sensor networks or wearables. The onboard ARM Cortex-M4 microcontroller provides sufficient processing power for real-time data handling and encryption. Configure GATT services to define how data is exchanged over BLE. This makes the wearable IoT development board ideal for custom health or environmental monitoring solutions.
3. How to integrate sensors with the wearable IoT development board?
Connect sensors such as IMUs, heart rate monitors, or environmental modules to the wearable IoT development board via I2C, SPI, or analog GPIO pins. The Seeed Studio XIAO nRF52840 can read and preprocess sensor data before transmitting it over Bluetooth 5.0. Use interrupt pins for event-driven sensing to reduce power consumption. Ensure voltage compatibility—this board operates at 3.3V logic—to protect sensitive peripherals.
4. How to deploy low-power applications on the Bluetooth 5.0 development board?
Leverage the Bluetooth 5.0 development board’s Nordic power management system by using CPU sleep, low-frequency clock, and peripheral autostart features. Configure the nRF52840 Bluetooth board to wake periodically using RTC or GPIO triggers, sample sensors, and transmit data in bursts. This extends battery life significantly in wearable or remote monitoring applications. Optimize advertising intervals and connection parameters to balance responsiveness and energy use.
5. How to connect multiple devices using the Seeed Studio XIAO nRF52840?
The Seeed Studio XIAO nRF52840 supports multiple concurrent BLE connections, allowing it to act as a central hub for several peripherals. Use it in a star topology where sensors or wearables connect directly to a gateway device. This enables scalable wearable IoT development board networks for fitness tracking or industrial monitoring. Ensure sufficient RAM allocation when handling multiple GATT clients or bonded devices.
6. How to troubleshoot connectivity issues on the nRF52840 Bluetooth board?
If BLE connection fails, verify that the nRF52840 Bluetooth board is running updated firmware and advertising correctly using a BLE scanner app. Check that the antenna is properly connected and not obstructed by metal or shielding materials. Ensure the power supply delivers stable 3.3V, as voltage fluctuations can disrupt radio performance. Re-flash the bootloader if the device fails to enter programming mode.
7. How to use the ARM Cortex-M4 microcontroller for embedded processing?
The ARM Cortex-M4 microcontroller on the Seeed Studio XIAO nRF52840 supports DSP instructions and floating-point operations, making it suitable for sensor fusion or audio processing. Use it to run real-time algorithms locally before transmitting processed data over Bluetooth 5.0. This reduces bandwidth needs and improves response time in wearable IoT development board applications. Allocate memory carefully to avoid stack overflow during intensive tasks.
8. How to integrate the wearable IoT development board with mobile devices?
Pair the wearable IoT development board with smartphones or tablets via Bluetooth 5.0 using custom or standard GATT services. Develop companion apps using Flutter, Swift, or Android Studio to receive and visualize sensor data in real time. The Seeed Studio XIAO nRF52840 supports secure bonding and encryption for private health or biometric applications. Use Nordic’s BLE libraries to streamline mobile-side implementation.
1. What is the Seeed Studio XIAO nRF52840 development board used for?
The Seeed Studio XIAO nRF52840 is a tiny but powerful Bluetooth 5.0 development board that is perfect for your next wireless project. Its compact size makes it an ideal choice for creating wearable devices and other connected IoT gadgets. It is a fantastic tool for building sophisticated wireless communication projects.
2. Which microcontroller does this board use?
This board is powered by the popular and efficient Nordic ARM Cortex-M4 microcontroller. This processor provides plenty of power for your code while still being very energy efficient. It is a great choice for any wearable IoT development board where battery life is important.
3. Can I use the XIAO nRF52840 for Bluetooth 5.0 projects?
Yes, this nRF52840 Bluetooth board is specifically designed for these types of projects and offers full support for Bluetooth 5.0. This allows you to create applications with better range, higher speeds, and more reliable connections. It is perfect for building advanced IoT devices.
4. Is this board suitable for wearable applications?
Absolutely! The Seeed Studio XIAO nRF52840 is an excellent choice for a wearable IoT development board due to its incredibly small size and low power needs. You can easily integrate it into clothing or small gadgets to create your own low-power wearable electronics that can run for a long time on a small battery.
5. What kind of projects can I build with this board?
With this versatile Bluetooth 5.0 development board, you can build a wide range of Bluetooth-enabled IoT devices. Create your own smart sensors that report data back to your phone, design custom fitness trackers, or build any other imaginative wireless applications you can think of.
6. Which programming languages and platforms are supported?
The Seeed Studio XIAO nRF52840 offers great flexibility, with full support for Arduino, MicroPython, and PlatformIO. This makes it easy for developers of all skill levels to get started with rapid prototyping. You can choose the programming environment that you are most comfortable with.
7. How does this board handle low-power applications?
The nRF52840 Bluetooth board is designed from the ground up for energy efficiency. The ARM Cortex-M4 microcontroller combined with Bluetooth 5.0 low energy features allows it to sip power. This makes it the perfect brain for any battery-powered wearable IoT development board project.
8. Is the board suitable for beginners?
Yes, the Seeed Studio XIAO nRF52840 is a great choice for those new to electronics and is very beginner-friendly. With excellent Arduino support and a wealth of online tutorials, it is easy to get your first Bluetooth 5.0 development board project up and running quickly.
