SC8LUU Linear Bearing Bushing for 8mm Shafts CNC Router Mill Linear Stage
SC8LUU Linear Bearing Bushing for 8mm Shafts CNC Router Mill Linear Stage
Regular price
Rs. 191
Regular price
Rs. 249
Sale price
Rs. 191
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 1 hours and 36 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits

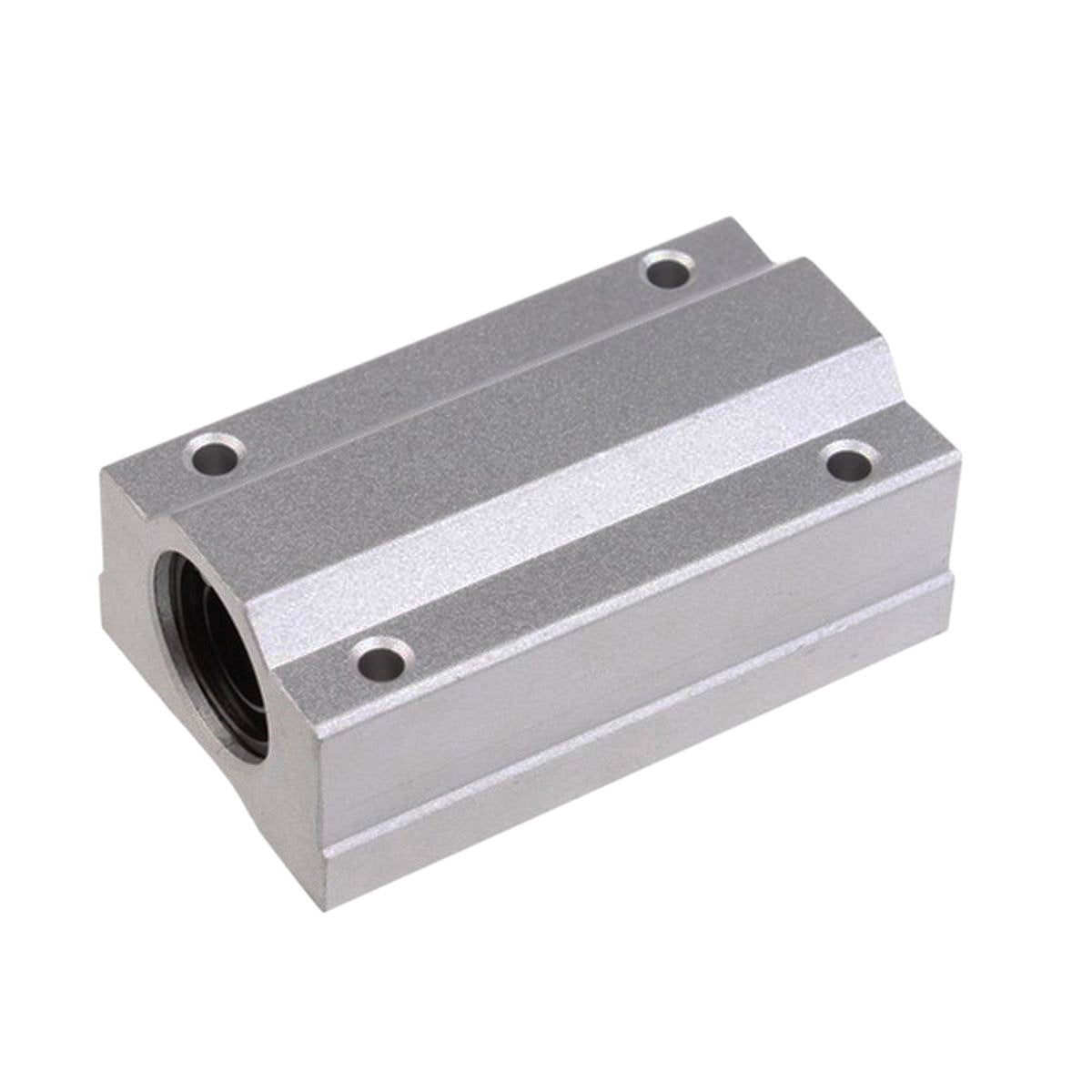

- This linear bearing unit is of the model SC8UU with a 8mm inner diameter.
- The housing of the SC8UU unit is made of aluminium and is equipped with 4 mounting holes.
- The Platform has a size of 34mm x 30mmx20mm.
- The 8mm SC8UU linear bearing has great industrial and home applications due to the low noise and great speeds.
SC8UU Linear Bearing (8 mm)
The 8mm SC8UU linear bearing unit is equipped with an aluminium-based housing that features four mounting holes. The linear bearing platform is generally used for super-fast movement robots or CNC or 3D printers. The SC8UU 8mm linear bearing unit is a great system to replace damaged ball bearings to improve efficiency and save energy. In order to get started with the SC8UU linear bearing unit, you need two 8mm supports and a precision-ground 8mm rod. The 8mm SC8UU linear bearing is economical and easy to maintain and replace.
Features:
- Inner Diameter: 8mm
- Length: 58mm
- Material: Aluminum housing with integrated ball bearings
- Mounting: Equipped with mounting holes for easy installation
- Smooth Motion: Provides smooth linear motion
- Low Friction: Reduces friction and enhances durability
- Noise Reduction: Operates with low noise
- High Rigidity: Ensures stability and precision
- Long Life: Designed for long-lasting performance
- Economical: Cost-effective and easy to maintain
Applications:
- Construction machinery
- CNC 3D Printers
- Automotive components
- Home appliances
- Industrial
- High-speed electric motors, pumps, and machinery.
Package Includes:
- 1 x SC8UU Linear Bearing (8 mm)

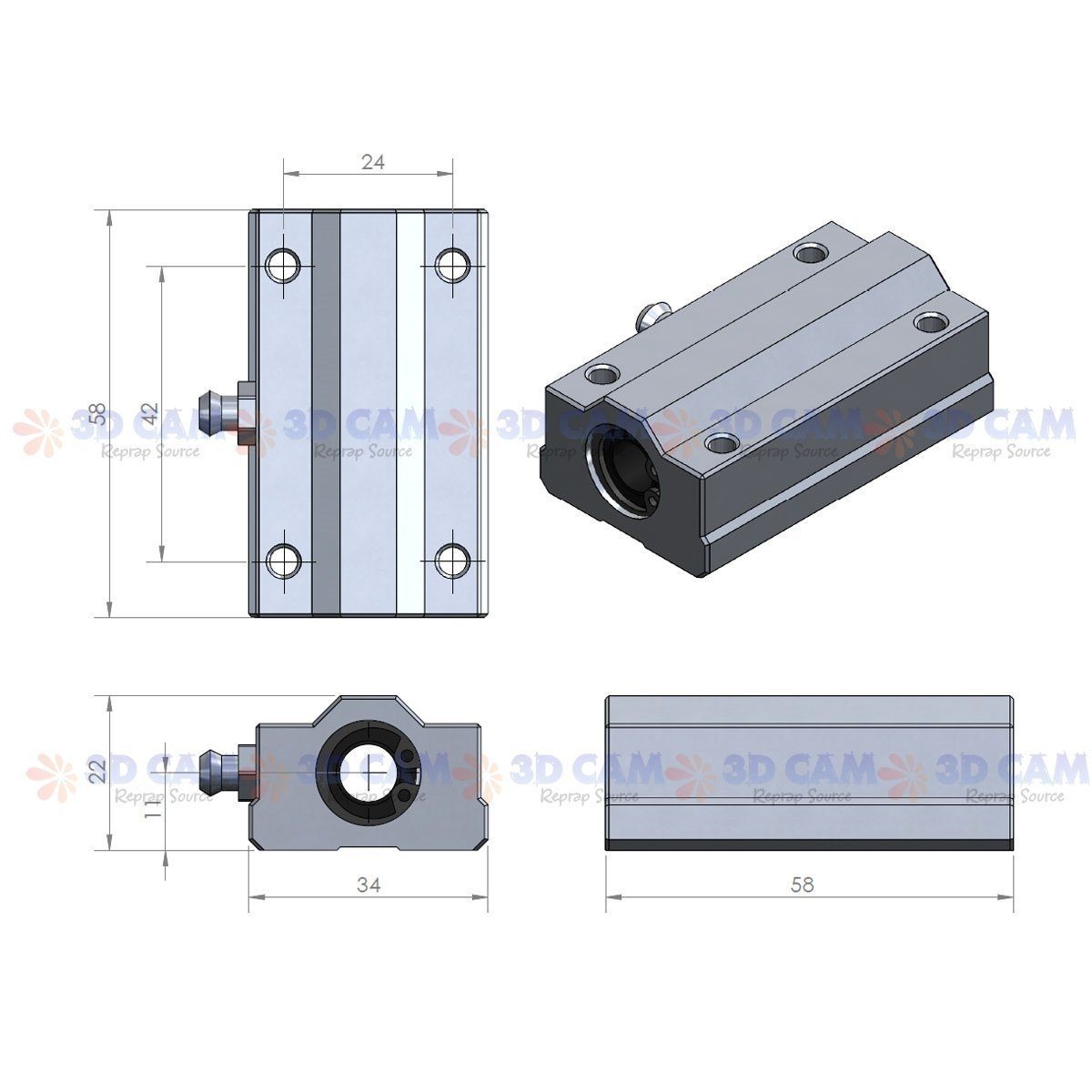

Specifications:
| Model | SC8UU |
| Inner Diameter | 8mm |
| Platform Size | 34mm x 30mmx22mm |
| Material | Steel, Aluminium |
| Holes | 4 Mounting Holes |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
500mm Chrome Plated Stainless Steel Smooth Rod 8mm diameter
Regular price
Rs. 284
Regular price
Rs. 349
Sale price
Rs. 284
Unit price
per
Incl. GST (No Hidden Charges)
Sale
M8 400mm Stainless Steel Rod
Regular price
Rs. 224
Regular price
Rs. 291
Sale price
Rs. 224
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Linear Bearing LMK12LUU 12mm Square Flange Bushing
Regular price
Rs. 178
Regular price
Rs. 249
Sale price
Rs. 178
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the primary use of the SC8LUU Linear Bearing Bushing?
- This bearing bushing is used for providing smooth and precise linear motion in CNC routers, mills, 3D printers, and other machinery that requires linear movement.
2. What shaft diameter is compatible with the SC8LUU bearing?
- The SC8LUU bearing is designed for use with 8mm shafts.
3. What material is the housing of the SC8LUU bearing made from?
- The housing is made from high-quality aluminum alloy, which ensures durability and strength.
4. How is the SC8LUU bearing mounted?
- The bearing features threaded mounting holes, making it easy to install on various platforms.
5. What are the benefits of using the SC8LUU bearing in CNC and 3D printing applications?
- The integrated ball bearings reduce friction, ensuring smooth and precise linear motion, which is crucial for the accuracy and efficiency of CNC and 3D printing applications.
