125Khz RFID Reader TTL Module

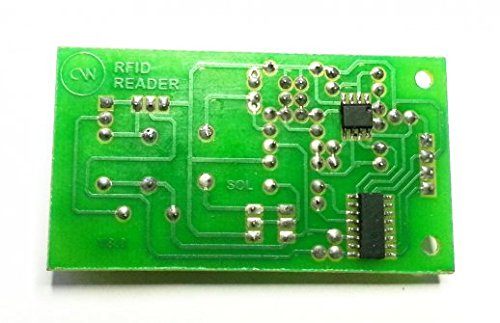

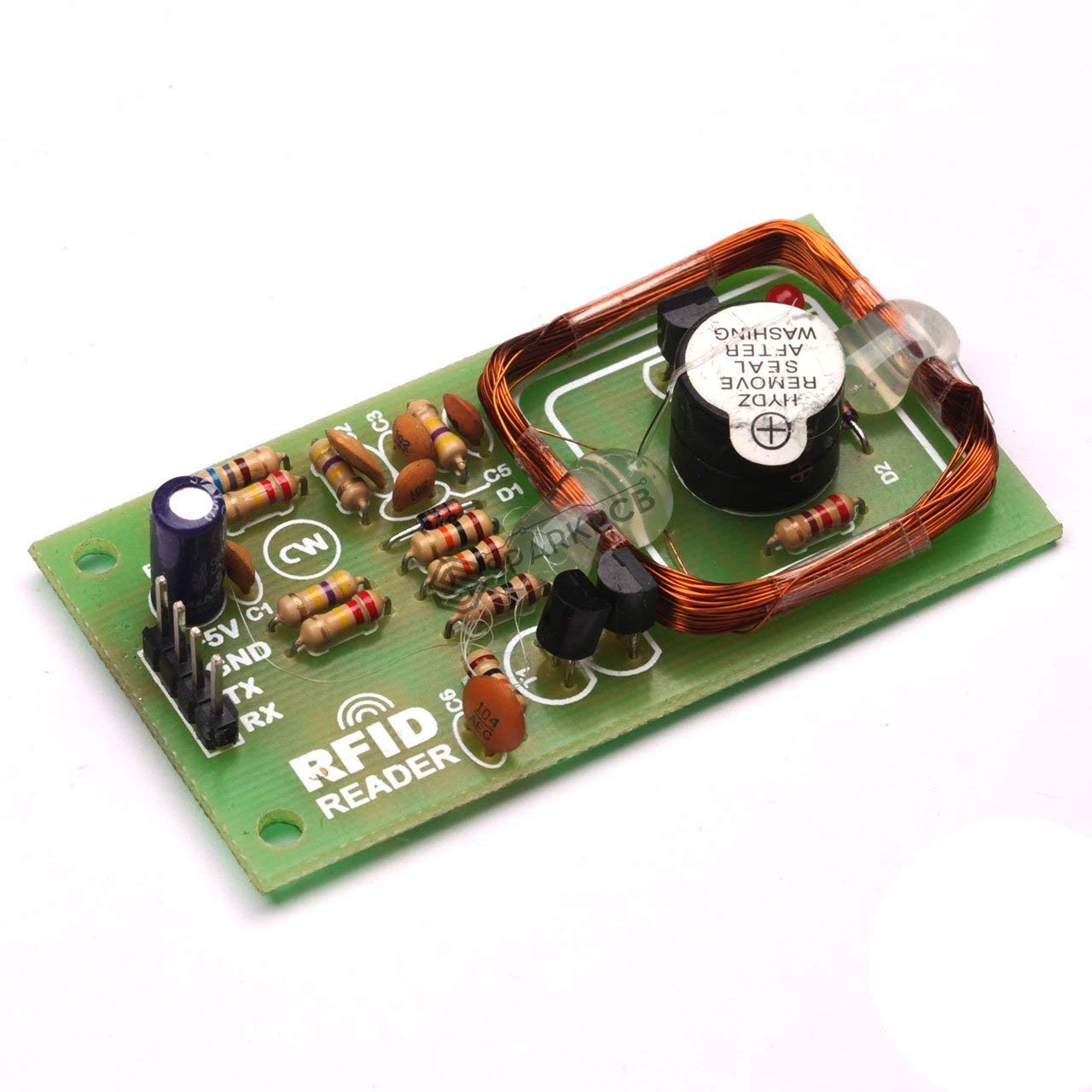

The 125Khz Proximity RFID Reader Module has an inbuilt antenna in minimized form factor. designed to work on the industry-standard carrier frequency of 125 kHz. The sensitivity range is about 6cm from the antenna coil. The antenna on the PCB. Buzzer to detect the proximity cards.
LED blinking to show that the RFID card/tag reader is powered on. Direct TTL output that can be directly coupled with most of the microcontrollers without MAX232. Operates at 5V with 500ma of current. Microcontroller to decode the data from into TTL port. The LF module.
Applications:
- Access Control.
- Time and Attendance.
- Asset Management.
- Handheld Readers.
- Immobilizers.
- other RFID-enabled applications.
