Robocraze

RFID Reader Serial

RFID Reader Serial

Out of stock

Regular price Rs. 727
Regular price Rs. 861 Sale price Rs. 727
Sale Sold out 16% off Best Price Guaranteed
You save Rs. 134 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • Designed to work on the industry-standard carrier frequency of 125 KHz Sensitivity Range is about 6cm from the antenna.
  • Operates at 5v with 500ma of current Microcontroller to decode the data into Serial o/p RS232 to convert the signal into TTL to RS232 The LF module.
  • It is best suited for applications in Access Control, Time and Attendance, Asset Management, Handheld Readers, Immobilizers, and other RFID enabled applications.

RFID Reader Serial

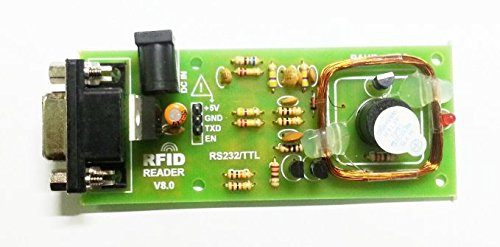

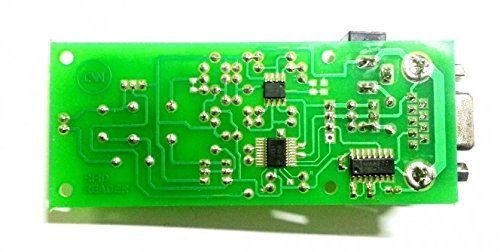

The RFID Reader Module has an inbuilt antenna in minimized form factor. designed to work on the industry standard carrier frequency of 125 kHz. Sensitivity Range is about 6cm from antenna. Internal antenna on the PCB Buzzer to detect the proximity cards. Blue LED blinking to show that the RFID reader is powered on. Direct TTL output that can be directly coupled with most of the microcontrollers without max232.

Operates at 5v with 500ma of current. Microcontroller to decode the data into Serial o/p. Rs232 to convert signal into TTL to RS232 (optional). The LF module is best suited for applications in Access Control,Time and Attendance, Asset Management, Handheld Readers,Immobilizers, and other RFID enabled applications.

Package Includes:

  • 1 x RFID Reader Serial

Specifications

Operating voltage 5V DC
Frequency 125 KHz
Dimensions  5 x 4 x 3cms
Weight 15 grams
