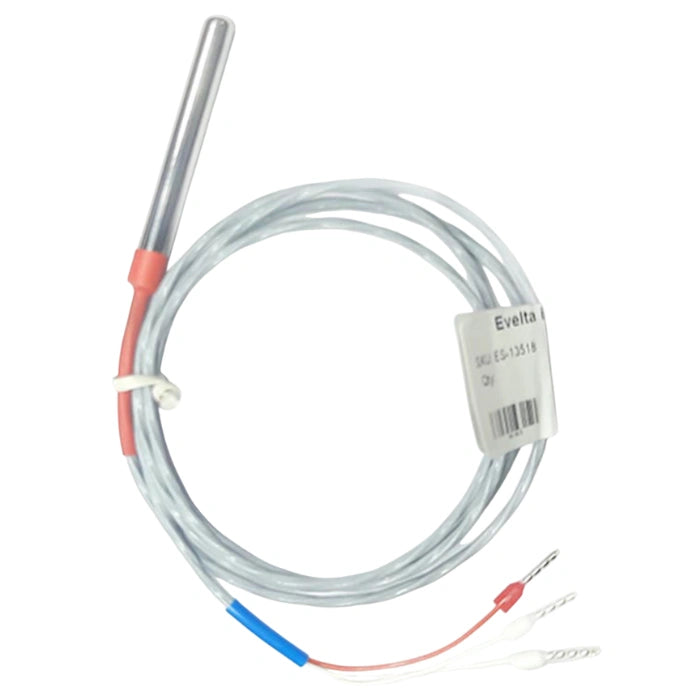

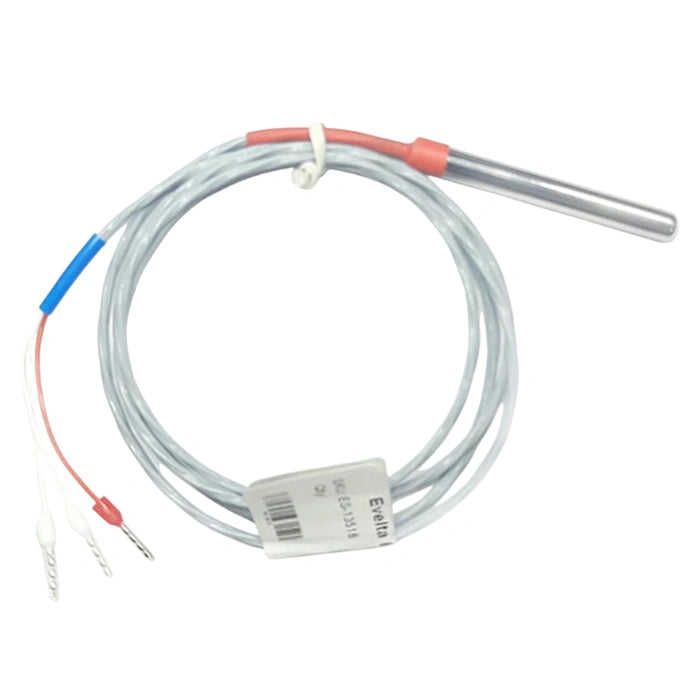

The 7Semi PT100 RTD 3-Wire Temperature Sensor Probe is a precision-engineered solution for high-performance temperature sensing across demanding environments. Featuring a JUMO PCA 1.2003.1EG platinum-chip and adhering to IEC 60751:2008 standards (Class F0.15 / Class A), this sensor guarantees highly accurate and stable readings.
With a wide measurement range of -70°C to +300°C, a durable stainless steel 2-inch probe, and a flexible 1-meter cable, it ensures reliable operation in industrial automation, chemical processing, laboratory, and HVAC applications.
Its waterproof design and platinum-based RTD core make it an ideal choice for both indoor and harsh outdoor setups requiring long-term stability and precision.
| Feature | Specification |
|---|---|
| Brand | 7Semi |
| Sensor Type | RTD PT100 (3-Wire) |
| Chip | JUMO PCA 1.2003.1EG Platinum-chip |
| Temperature Range | -70°C to +300°C |
| Accuracy | Class A (F0.15) - IEC 60751:2008 Standard |
| Probe Material | Stainless Steel |
| Probe Length | 2 Inches |
| Cable Length | 1 Meter |
| Dimensions (LxWxH) | 5.5 x 0.5 x 0.5 cm |
| Weight | 19 gm |
| Connection Type | 3-Wire Configuration |
| Mounting Type | Flexible Installation |
| Waterproof | Yes |
| Application Areas | Industrial, Laboratory, HVAC, Food Processing |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
