PSI-GSM-STUB-ANT Antenna
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

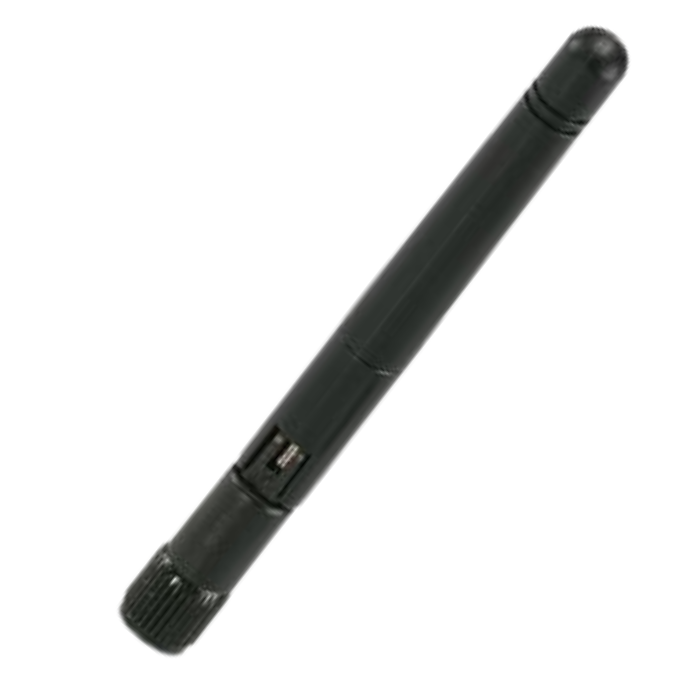

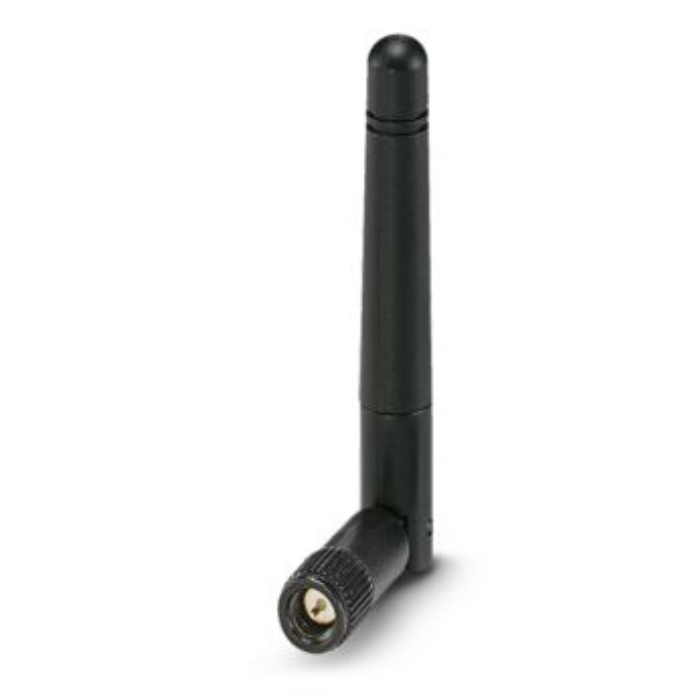

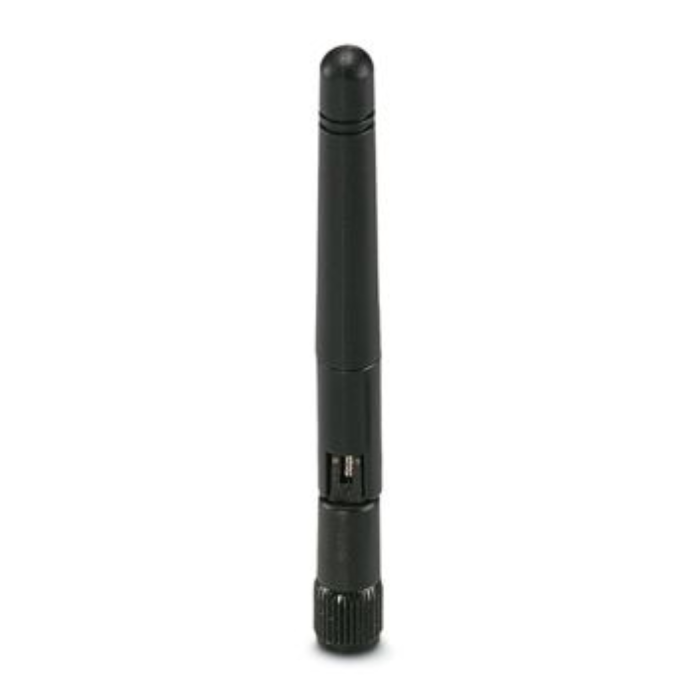

The PSI-GSM-STUB-ANT Antenna is a compact, high-reliability stub antenna designed for versatile GSM communication across multiple frequency bands, including 850, 900, 1800, 1900, and 2100 MHz. With omnidirectional radiation, 0 dB typical gain, and linear vertical polarization, it ensures stable and consistent performance in demanding industrial and IoT environments. The antenna features a robust SMA male connector, IP54-rated housing, and supports a wide temperature range from -40°C to 105°C, making it ideal for both indoor and outdoor applications where space-saving and durability are critical.
1 x PSI-GSM-STUB-ANT Antenna
| Specification | Details |
|---|---|
| Product Type | Antenna |
| Radiation Characteristics | Omnidirectional |
| Gain | Typical 0 dB |
| Polarization | Linear Vertical |
| Frequency Bands | 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz |
| Frequency Range | 850 MHz – 900 MHz, 1.8 GHz – 2.1 GHz |
| Impedance | 50 ? |
| VSWR (in 50 ? system) | < 2.00 |
| Connection Method | SMA (Male) |

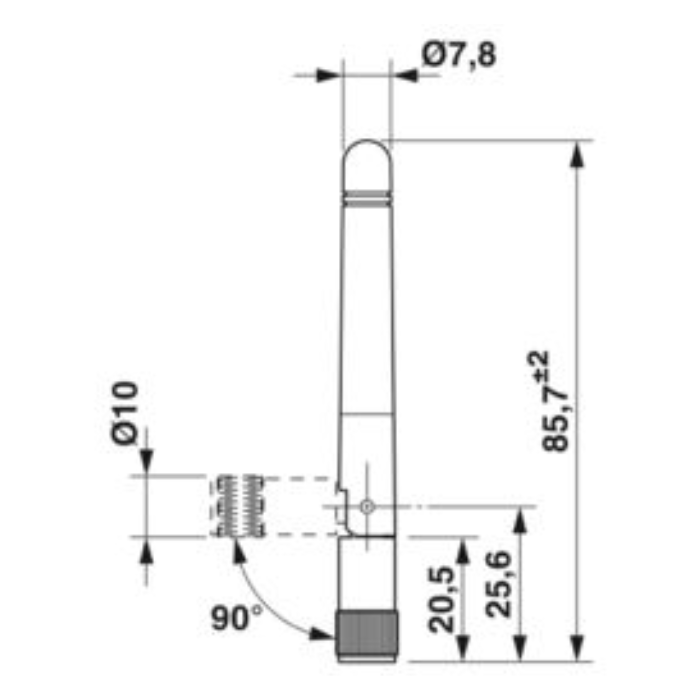

| Height | 86 mm |
| Diameter | 10 mm |
| Degree of Protection | IP54 |
| Operating Temperature | -40°C to 105°C |
| Storage/Transport Temperature | -40°C to 105°C |
