Peacefair PZEM-004T Multi-Function AC Power Meter for Energy Measurement

Peacefair PZEM-004T Multi-Function AC Power Meter for Energy Measurement

0

Regular price Rs. 569
Regular price Rs. 749 Sale price Rs. 569
Sale Sold out 24% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 23 people are actively viewing.
Trust Badge 1
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Measures voltage, current, power, and energy.
  • Power data clearing function.
  • Power-down memory storage.
  • PC display support for real-time readings.
  • Serial communication via TTL interface.

Peacefair PZEM-004T Multi-Function AC Power Meter for Energy Measurement

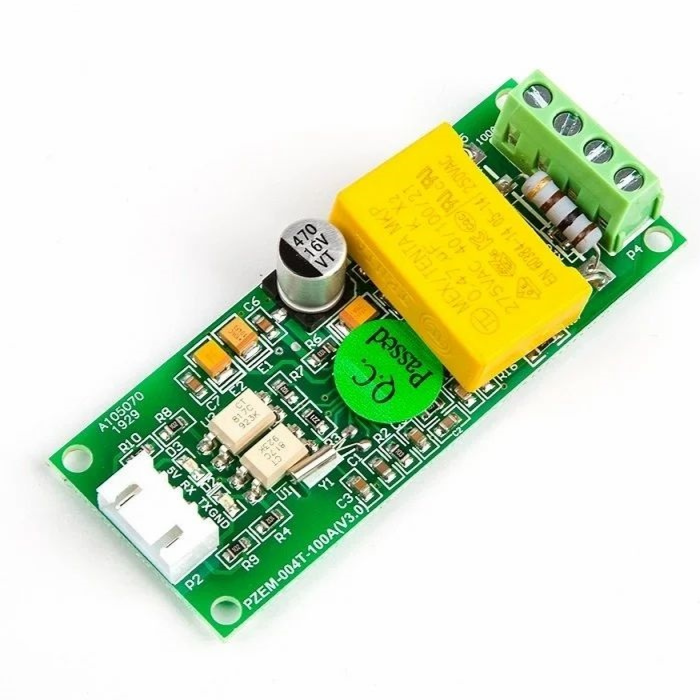

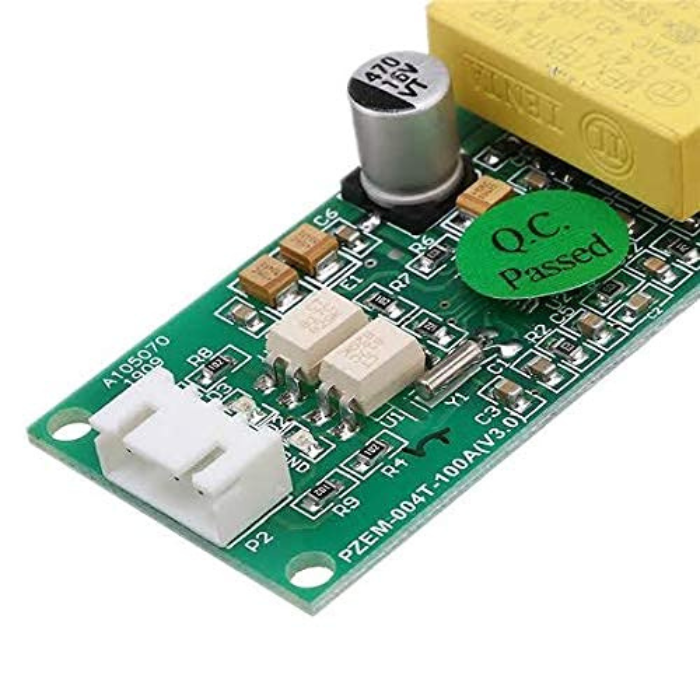

The Peacefair PZEM-004T Multi-Function AC Power Meter is a small, easy-to-use device that measures important electrical information like voltage, current, power, and energy. this energy measurement device works well with single-phase AC systems and can be easily connected to Arduino and other hardware for projects.

To use, simply power the device with the AC source you're measuring and connect the sensor. It also comes with a TTL to USB adapter, so you can connect it to a computer or microcontroller. The built-in button lets you clear the readings, making this voltage and current monitor easy to use for tracking electrical usage in different projects.

Precautions:

  • This module is designed for indoor use only.
  • Do not exceed the rated power for the load.
  • Ensure correct wiring connections.

Note: The package does not include a USB cable

Features

  • Measures electrical parameters (voltage, current, active power, and energy).
  • Power button reset function.
  • Power-down data storage (saves cumulative power data before shutdown).
  • PC display function for voltage, current, active power, and energy.
  • Serial communication with TTL interface for reading and setting parameters through various adapters.

Package Includes

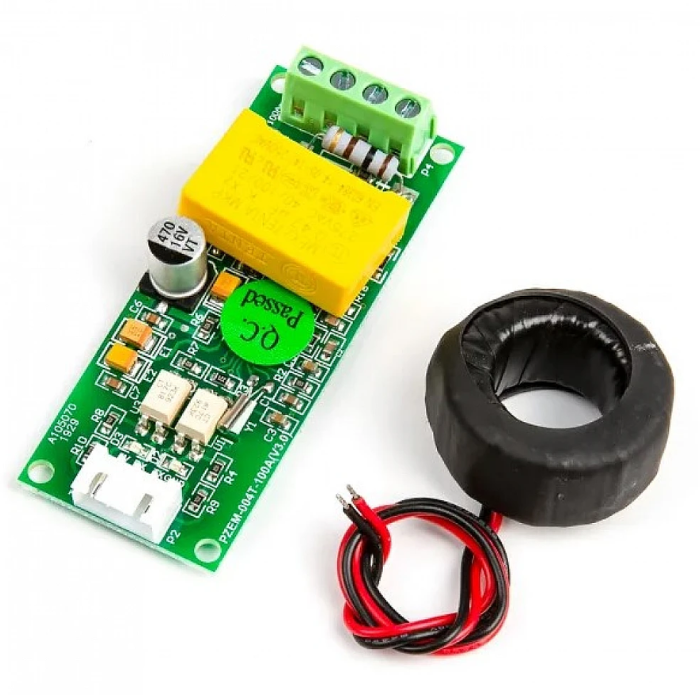

  • 1 x Peacefair PZEM-004T Multi-Function AC Power Meter for Energy Measurement
  • 1x CT coil

Specifications

Specification Details
Accuracy 1
Operating Voltage (VDC) 80-260V (AC)
Test Voltage 80-260V (AC)
Max. Operating Current (mA) 100A
Power Rating (W) 100A/22KW
Frequency (Hz) 45-65Hz
Length (cm) 7.3
Width (cm) 2.9
Height (cm) 1.2
Weight (g) 39
