- Particle P0 Wi-Fi module.
- Broadcom BCM43362 Wi-Fi chip.
- 11b/g/n Wi-Fi.
- STM32F205 120Mhz ARM Cortex M3.
- 1MB flash, 128KB RAM.
- On-board RGB status LED.

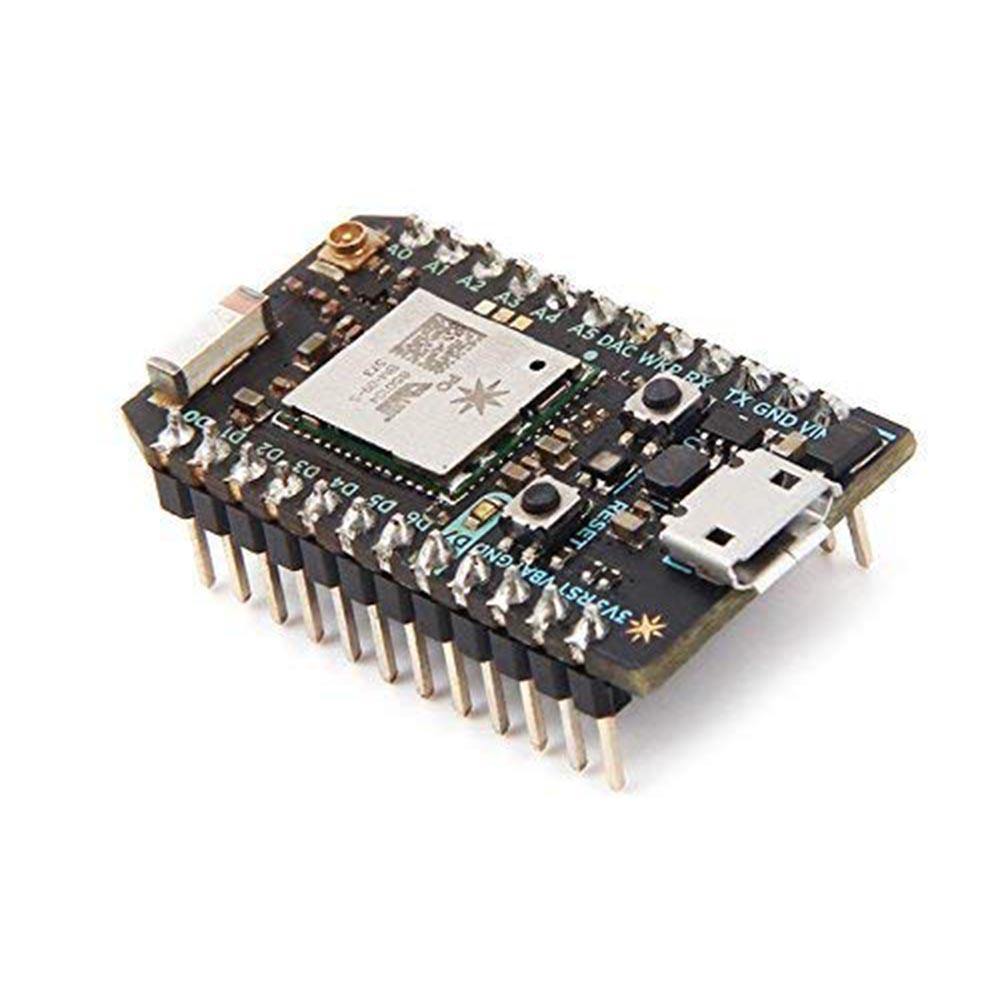

Particle Photon Development Board
Particle’s Photon is a tiny Wi-Fi development kit for creating connected projects and products for the Internet of Things (IoT). It is easy to use, powerful and connected to the cloud. The particle combines a powerful ARM Cortex M3 microcontroller with a Broadcom Wi-Fi chip in a tiny thumbnail-size module called the P0 (P-Zero).
To get you started quickly, Particle adds a rock solid 3.3VDC SMPS power supply, RF and user interface components to the P0 on a small single-sided PCB called Photon. The design is open source, so when you are ready to integrate the Photon into your product, you can.
- 1 x Particle Photon Development Board
|Input Supply voltage (V)||3.3 ~ 5V|
|Supply Output Current (mA)||100|
|Frequency Bandwidth (GHz)||2.412 ~ 2.462|
|Modulation||DSSS, CCK, OFDM, BPSK, QPSK, 16QAM, 64QAM|
|Dimensions||1 x 1 x 1cms|
